DORMER C1105/8 HSCO Cutters

Product Code: C1105/8

$112.74$102.49 Ex. GST

Product Code: C1105/8 SKU C1105/8 Categories , ,
DORMER C1105/8 HSCO Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

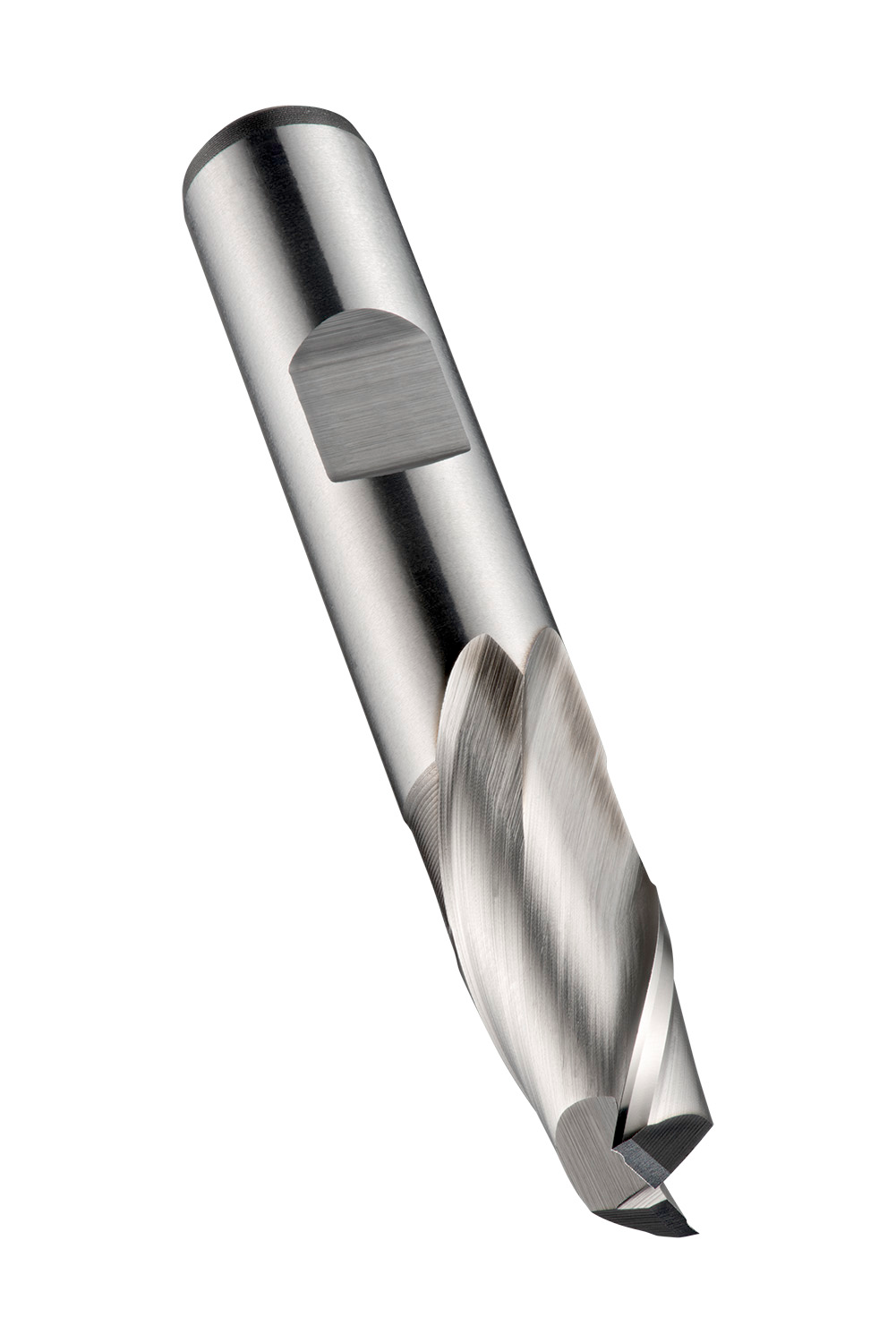

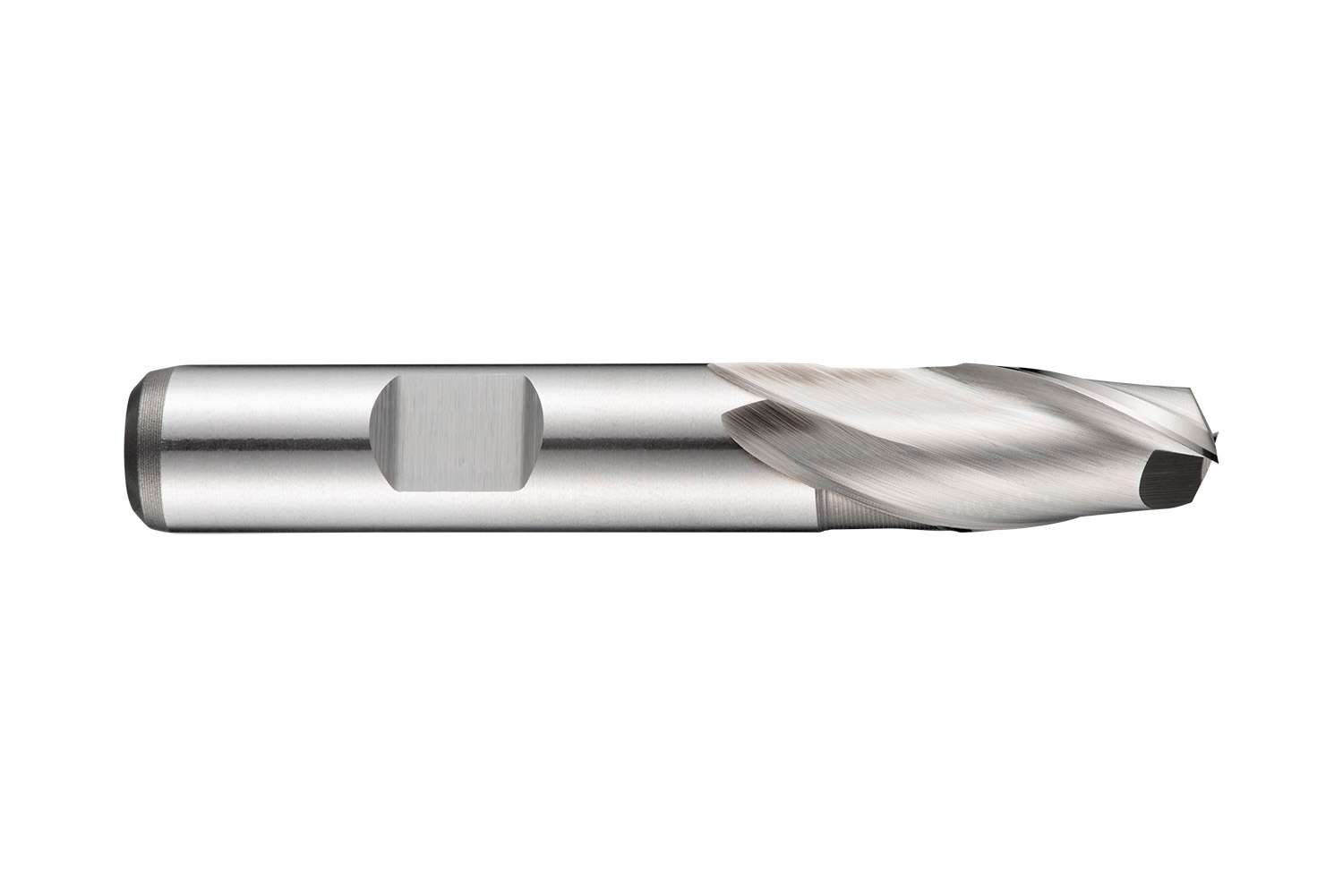

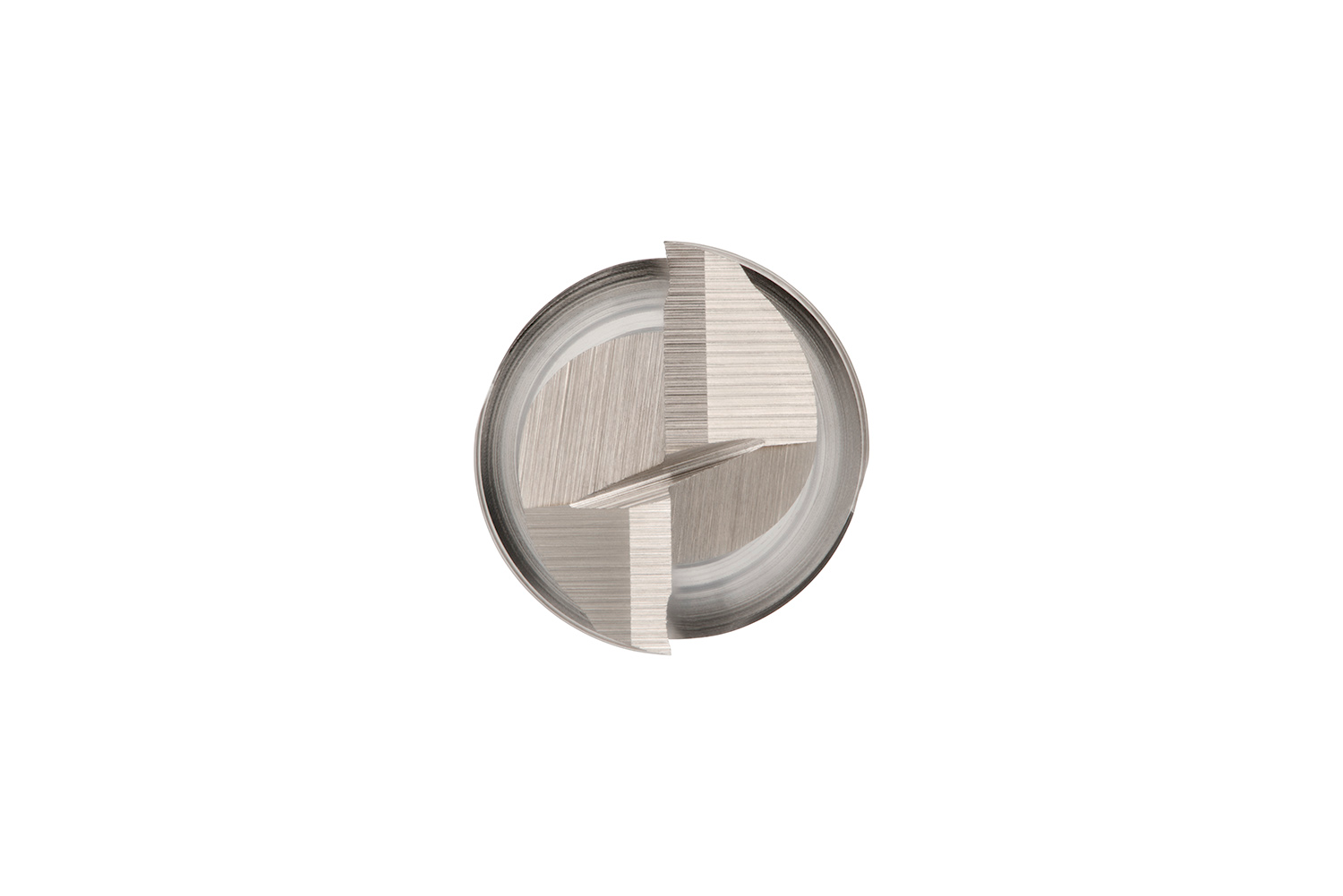

Extra short series slot drill with 2 flutes, diameter 5/8″ with 19mm length of cut, 79mm overall length and 30.5mm reach with neck relief, according to DIN 327 D standard with a 16mm Weldon shank, powder metallurgical HSS-E with bright finish, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining steel and copper or copper alloys

Additional information

Weight 0.1095 kg
Dimensions Length 7.9cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 7320760639917
Product number (SAP): 86013375
Ordering code ANSI: C1105/8
Gross weight – grams: 109

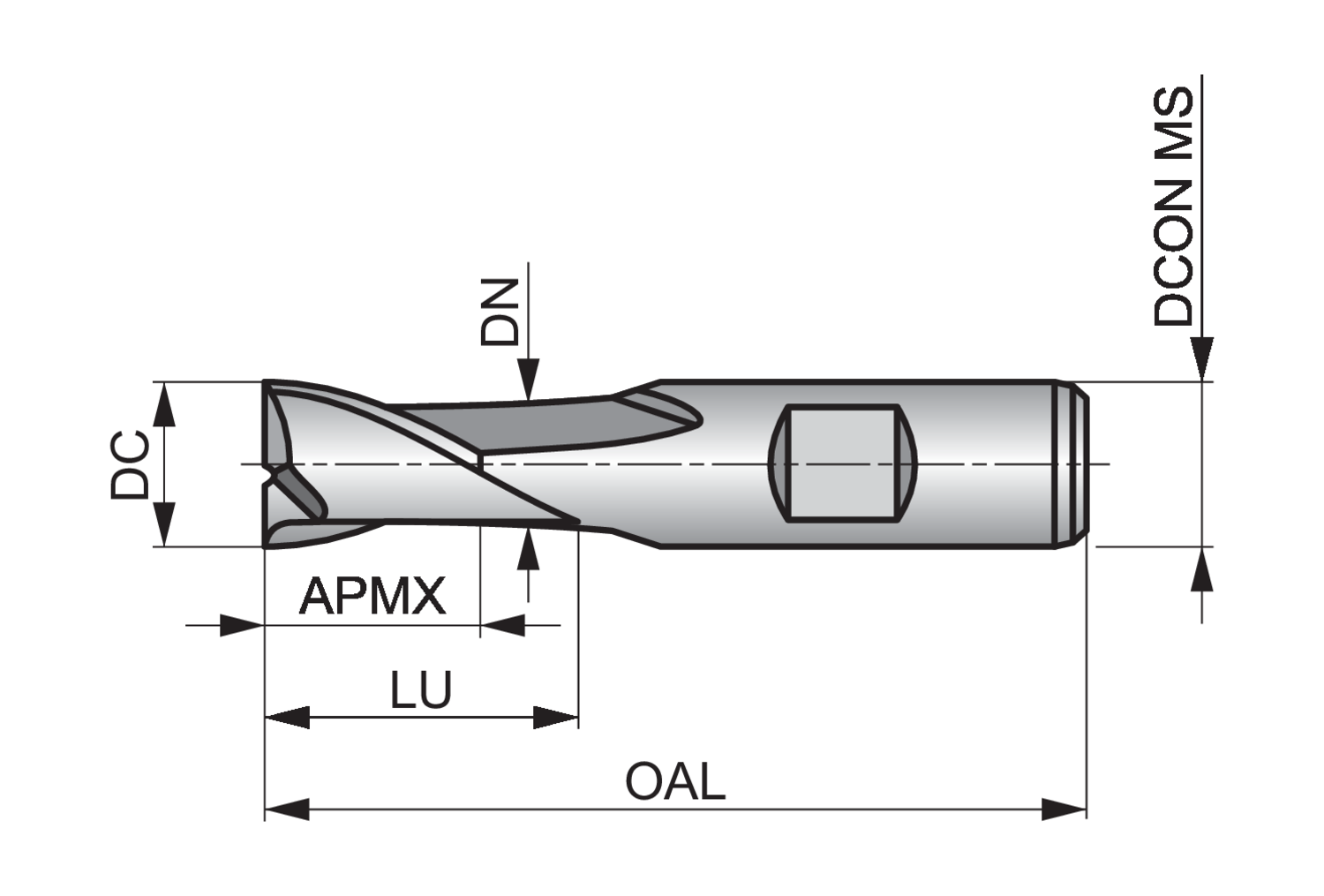

Cutting diameter – fractional inch (DC): 5/8
Cutting diameter – millimeter (DC): 15.88 mm
Connection diameter – millimeter (DCON MS): 16 mm
Depth of cut maximum – millimeter (APMX): 19 mm
Overall length – millimeter (OAL): 79 mm
Flute count (NOF): 2
Usable Length – millimeter (LU): 30.5 mm
Neck diameter – millimeter (DN): 15.5 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C1105/8

Brand

DORMER
