DORMER C12218.0 HSCO Cutters

Product Code: C12218.0

$169.95$154.50 Ex. GST

Product Code: C12218.0 SKU C12218.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

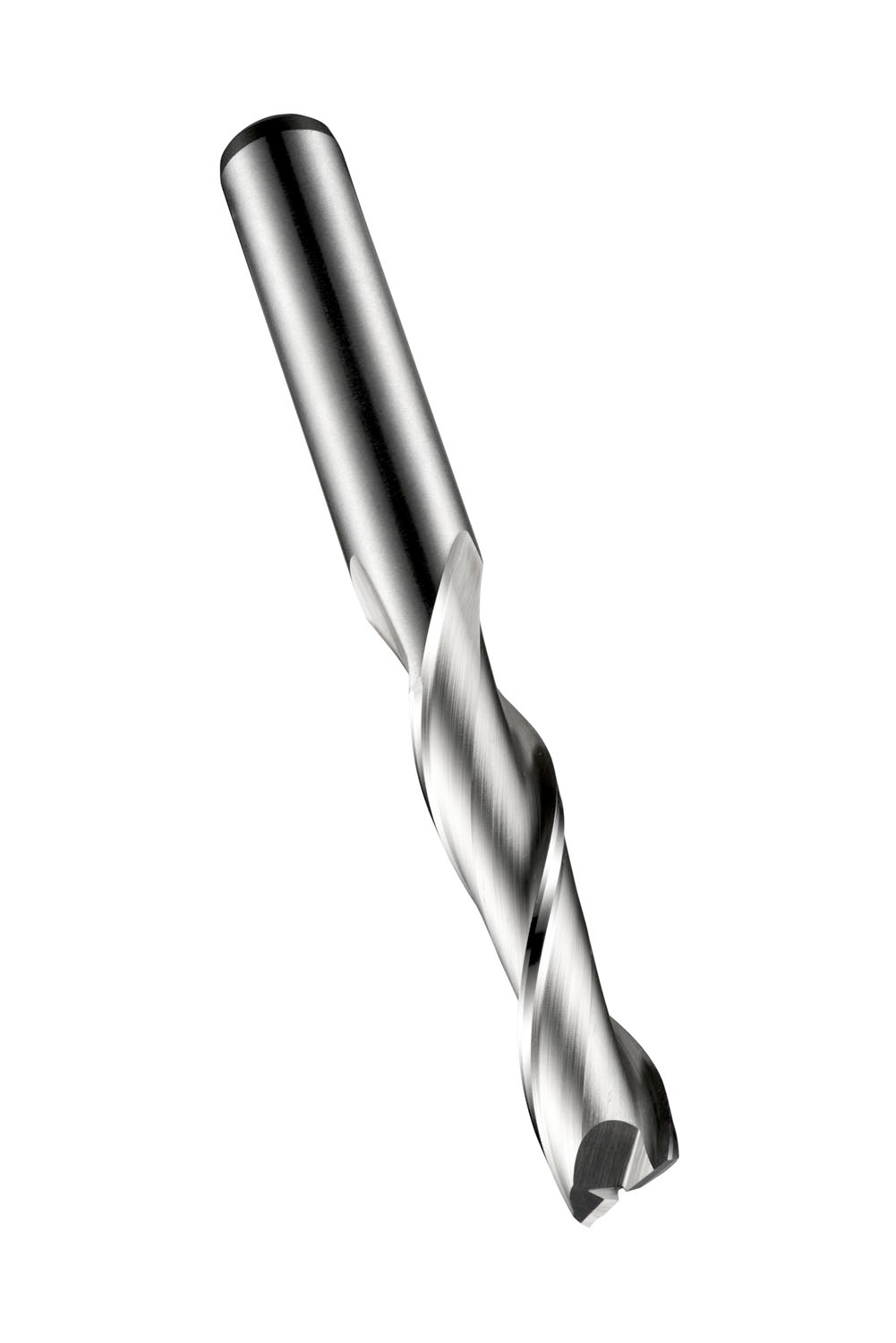

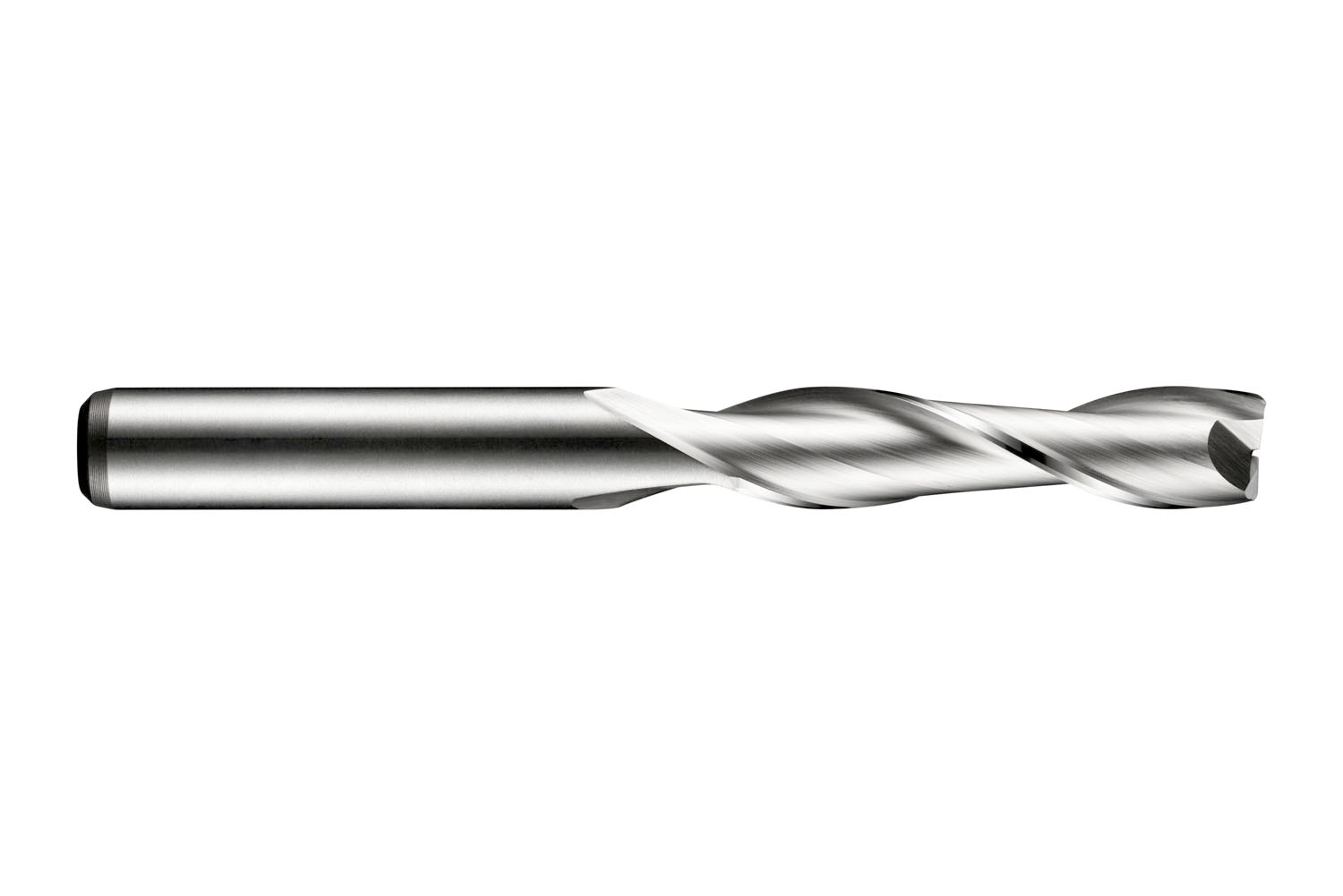

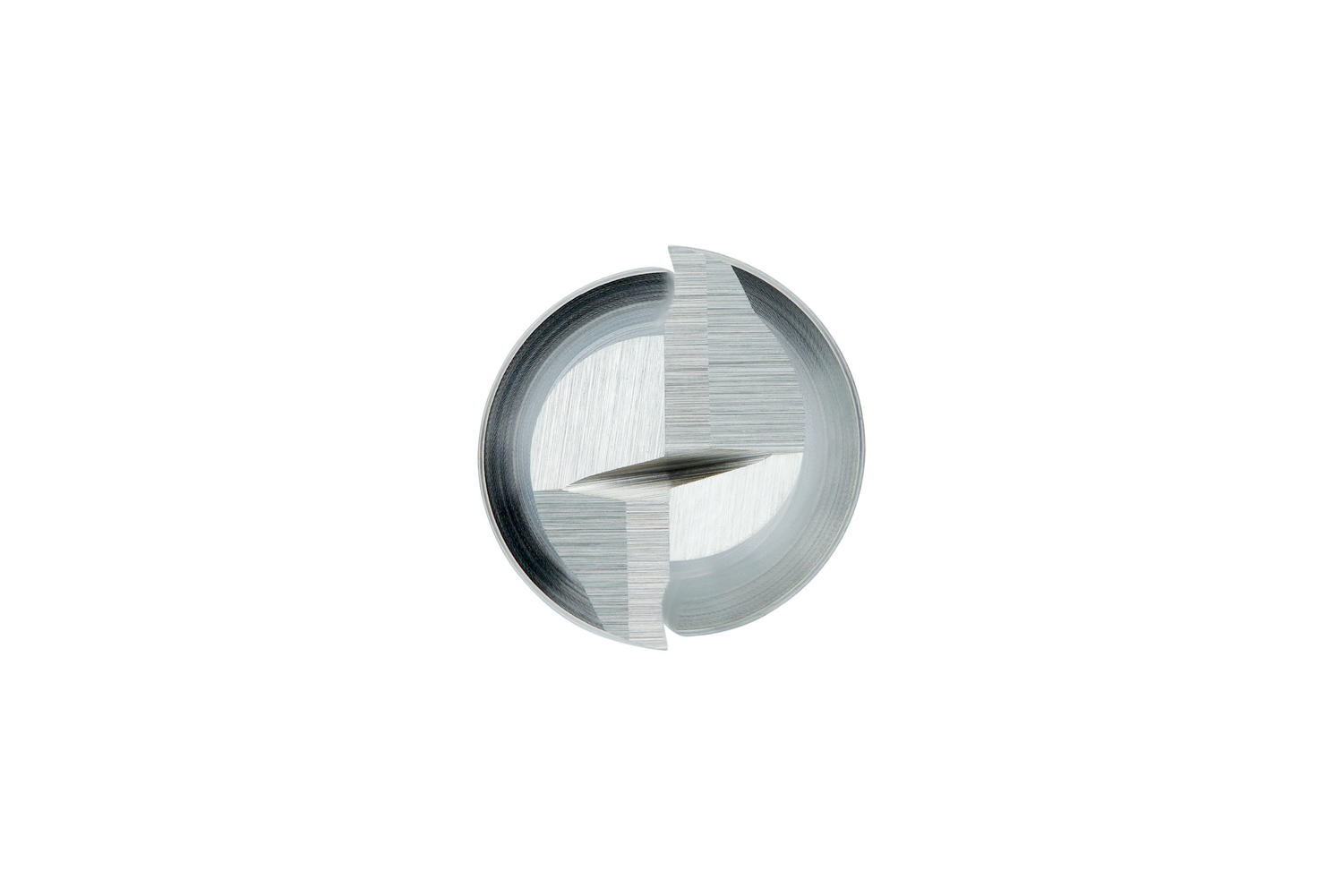

Long series end mill with 2 flutes, diameter 18mm with 65mm length of cut, 150mm overall length and 76.5mm reach with neck relief, according to DORMER standard with a 16mm plain shank, cobalt based HSS-E with bright finish, 30° helix and 12° rake angle for shoulder milling and slot milling in free machining steel and copper or copper alloys

Additional information

Weight 0.1650 kg
Dimensions Length 15cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 7320760056455
Product number (SAP): 86013395
Ordering code ANSI: C12218.0
Gross weight – grams: 215.4

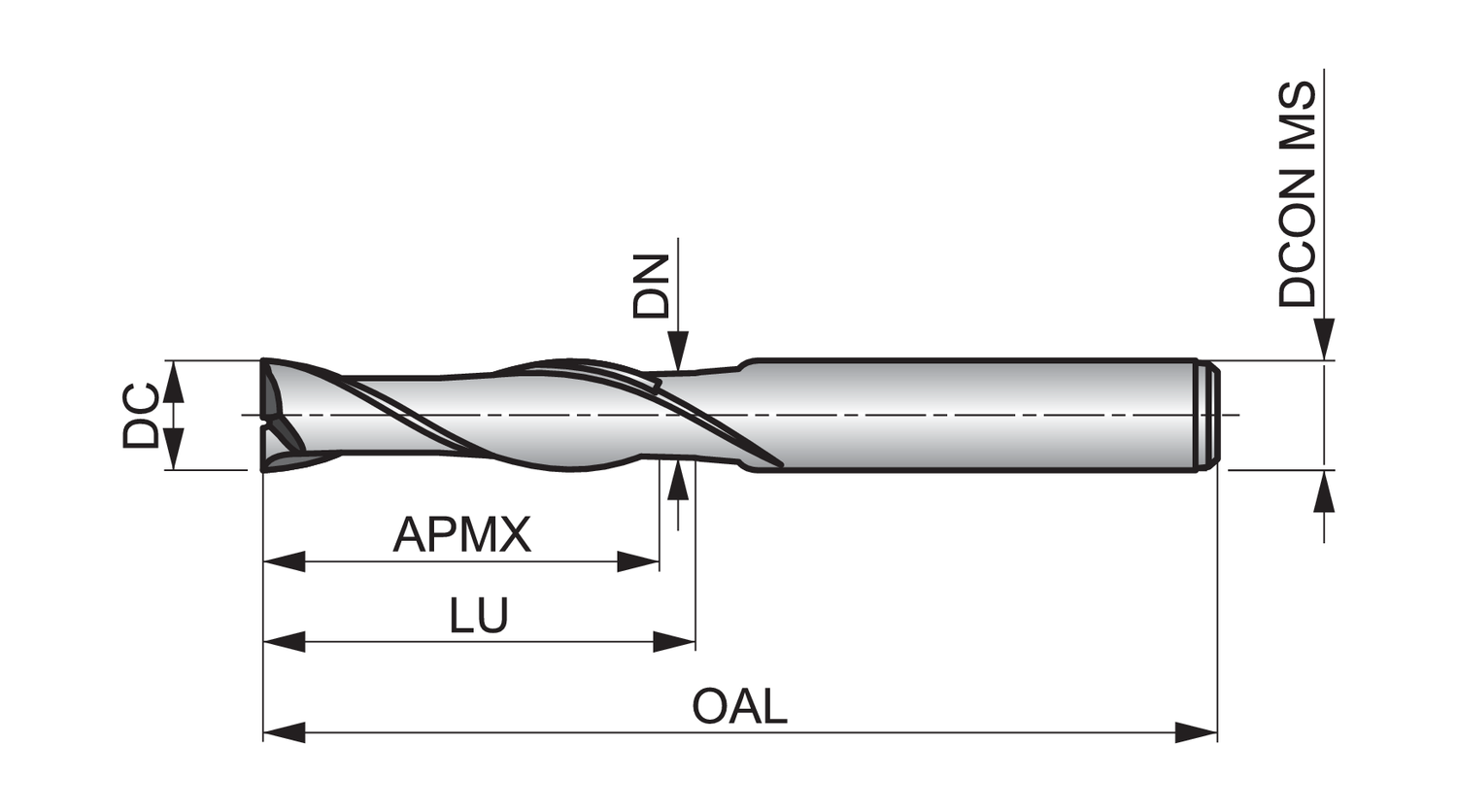

Cutting diameter – millimeter (DC): 18 mm
Connection diameter – millimeter (DCON MS): 16 mm
Depth of cut maximum – millimeter (APMX): 65 mm
Overall length – millimeter (OAL): 150 mm
Flute count (NOF): 2
Usable Length – millimeter (LU): 76.5 mm
Neck diameter – millimeter (DN): 18 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C12218.0
