DORMER C1227.0 HSCO Cutters

Product Code: C1227.0

$86.11$78.28 Ex. GST

Product Code: C1227.0 SKU C1227.0 Categories , ,
DORMER C1227.0 HSCO Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Long series end mill with 2 flutes, diameter 7mm with 33mm length of cut and 85mm overall length, according to DORMER standard with a 8mm plain shank, cobalt based HSS-E with bright finish, 30° helix and 12° rake angle for shoulder milling and slot milling in free machining steel and copper or copper alloys

Additional information

Weight 0.0836 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760056523
Product number (SAP): 86013402
Ordering code ANSI: C1227.0
Gross weight – grams: 31

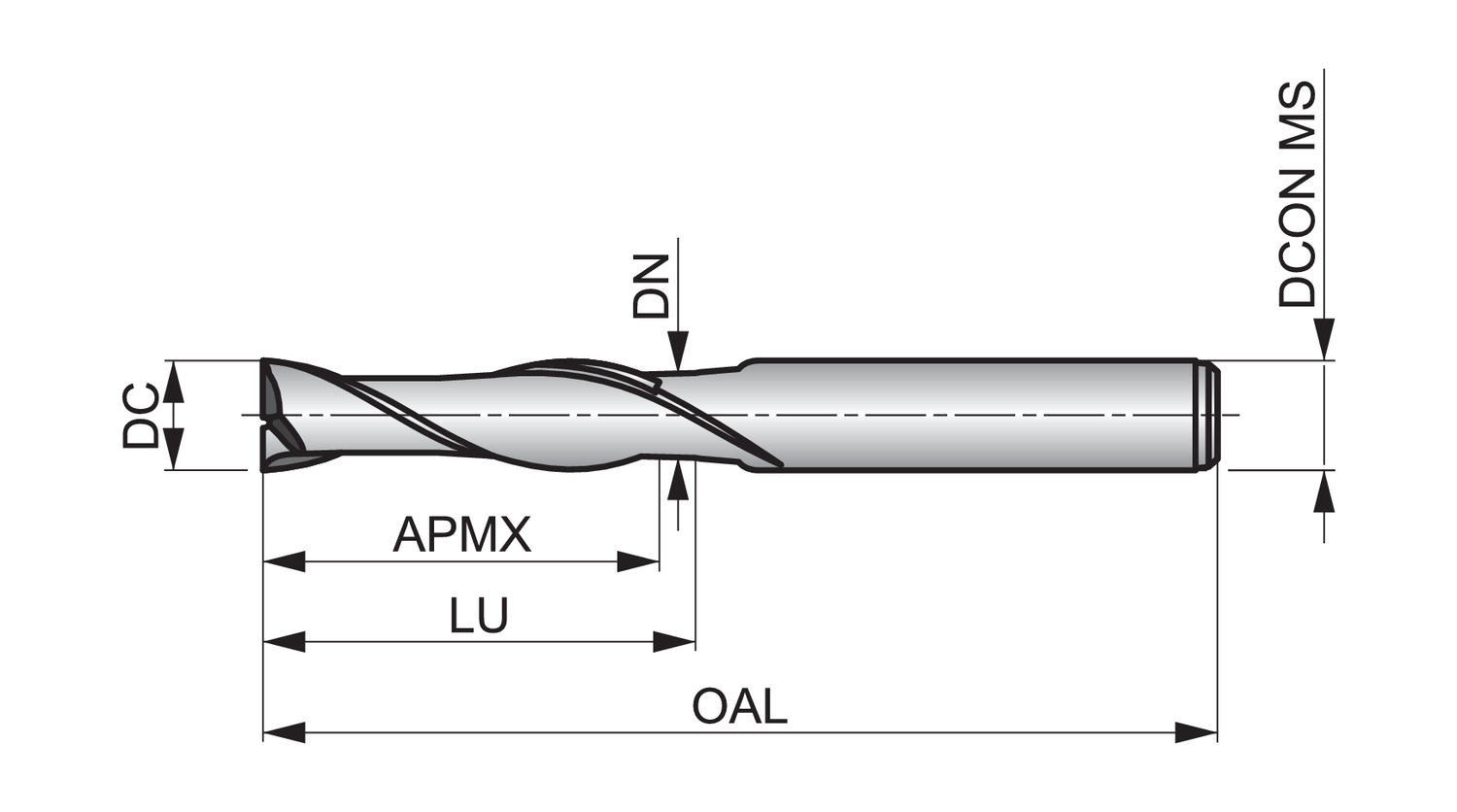

Cutting diameter – millimeter (DC): 7 mm
Connection diameter – millimeter (DCON MS): 8 mm
Depth of cut maximum – millimeter (APMX): 33 mm
Overall length – millimeter (OAL): 85 mm
Flute count (NOF): 2
Neck diameter – millimeter (DN): 7 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C1227.0
