DORMER C1231/2 HSCO Cutters

Product Code: C1231/2

$115.57$105.06 Ex. GST

Product Code: C1231/2 SKU C1231/2 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

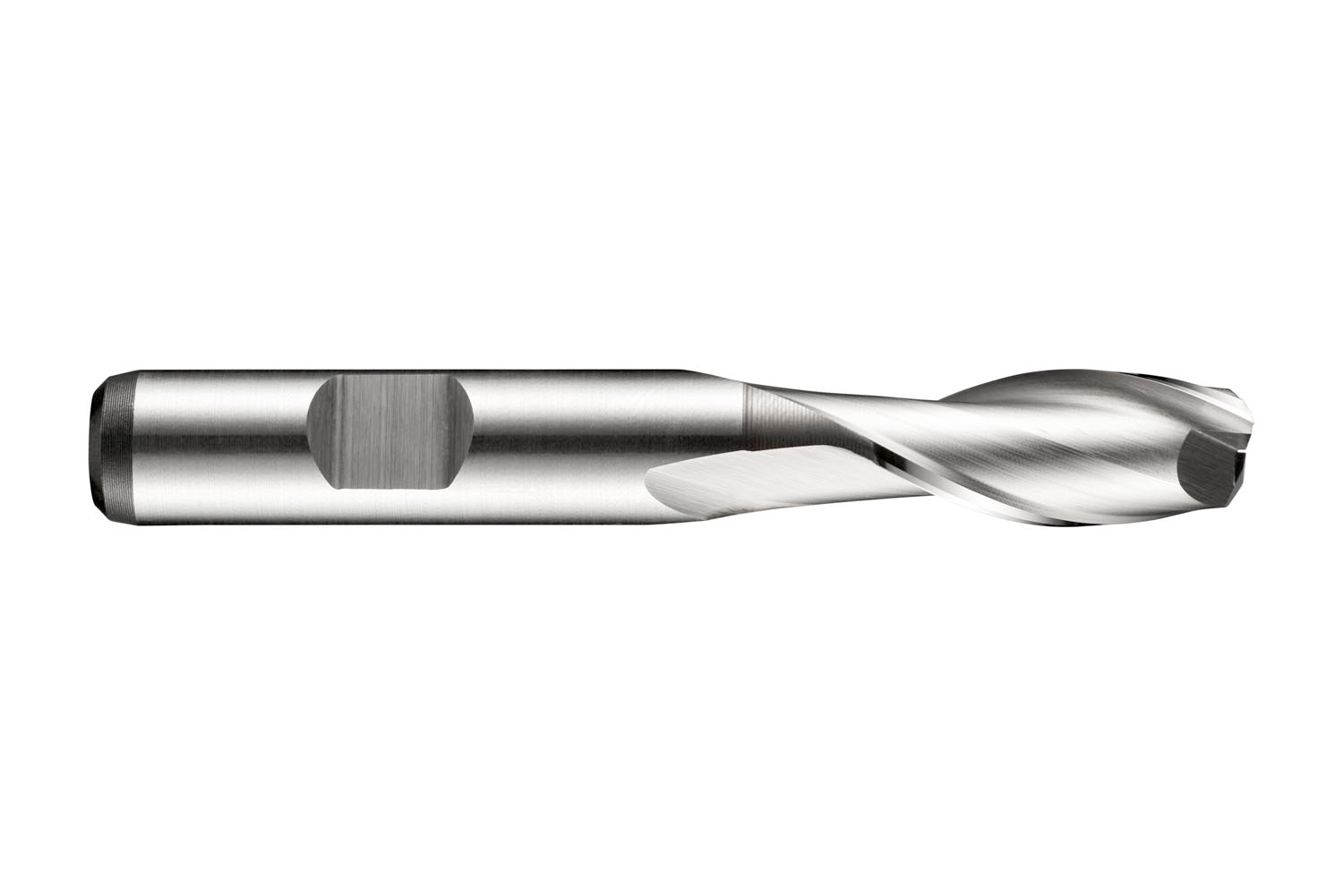

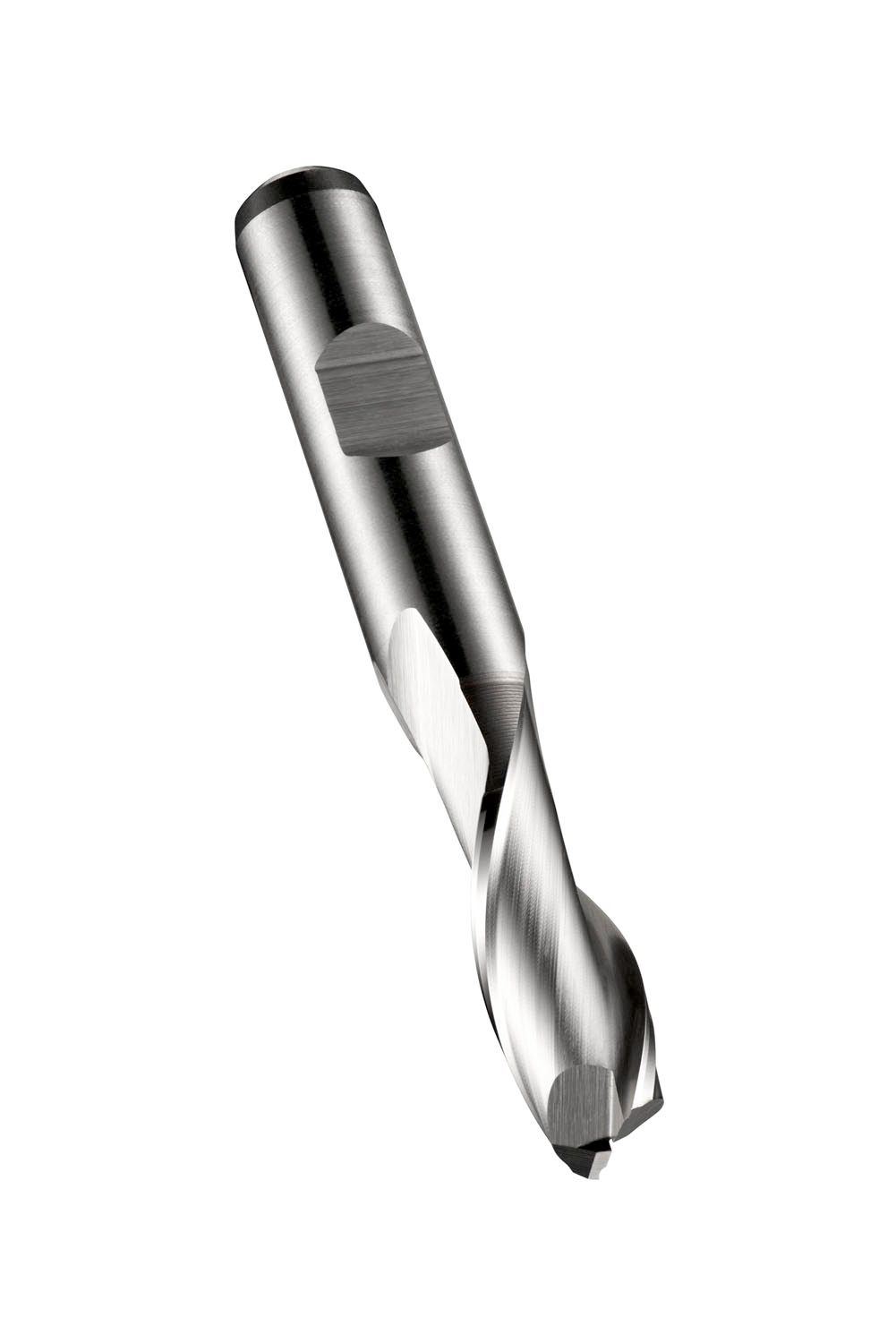

Short series slot drill with 2 flutes, diameter 1/2″ with 26mm length of cut, 83mm overall length and 37.5mm reach with neck relief, according to DIN 844 K standard with a 12mm Weldon shank, powder metallurgical HSS-E with bright finish, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel and copper or copper alloys

Additional information

Weight 0.1122 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760640081
Product number (SAP): 86013407
Ordering code ANSI: C1231/2
Gross weight – grams: 69

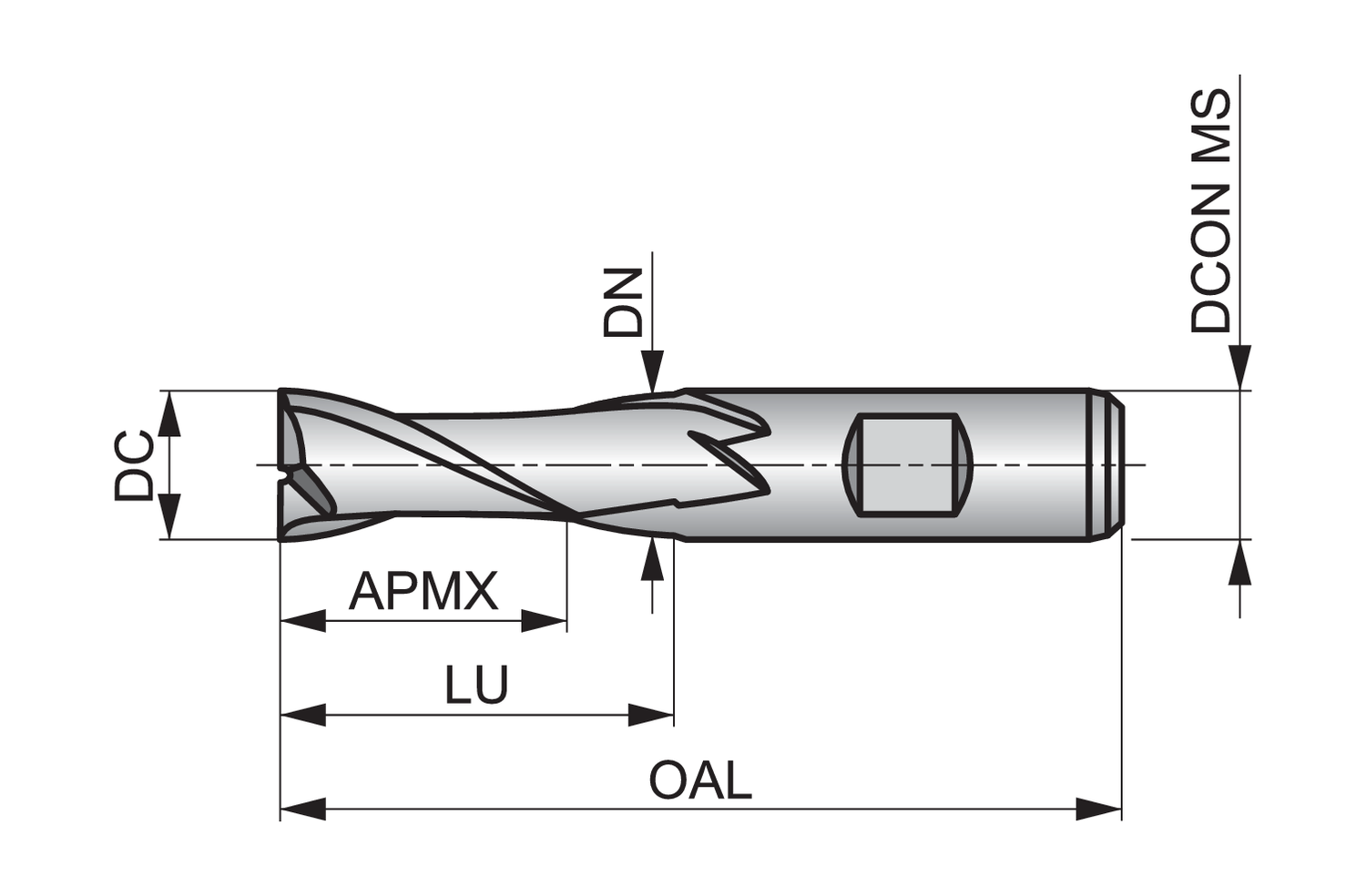

Cutting diameter – fractional inch (DC): 1/2
Cutting diameter – millimeter (DC): 12.7 mm
Connection diameter – millimeter (DCON MS): 12 mm
Depth of cut maximum – millimeter (APMX): 26 mm
Overall length – millimeter (OAL): 83 mm
Flute count (NOF): 2
Usable Length – millimeter (LU): 37.5 mm
Neck diameter – millimeter (DN): 11.5 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C1231/2

Brand

DORMER
