DORMER C12311.0 HSCO Cutters

Product Code: C12311.0

$96.31$87.55 Ex. GST

Product Code: C12311.0 SKU C12311.0 Categories , ,
DORMER C12311.0 HSCO Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

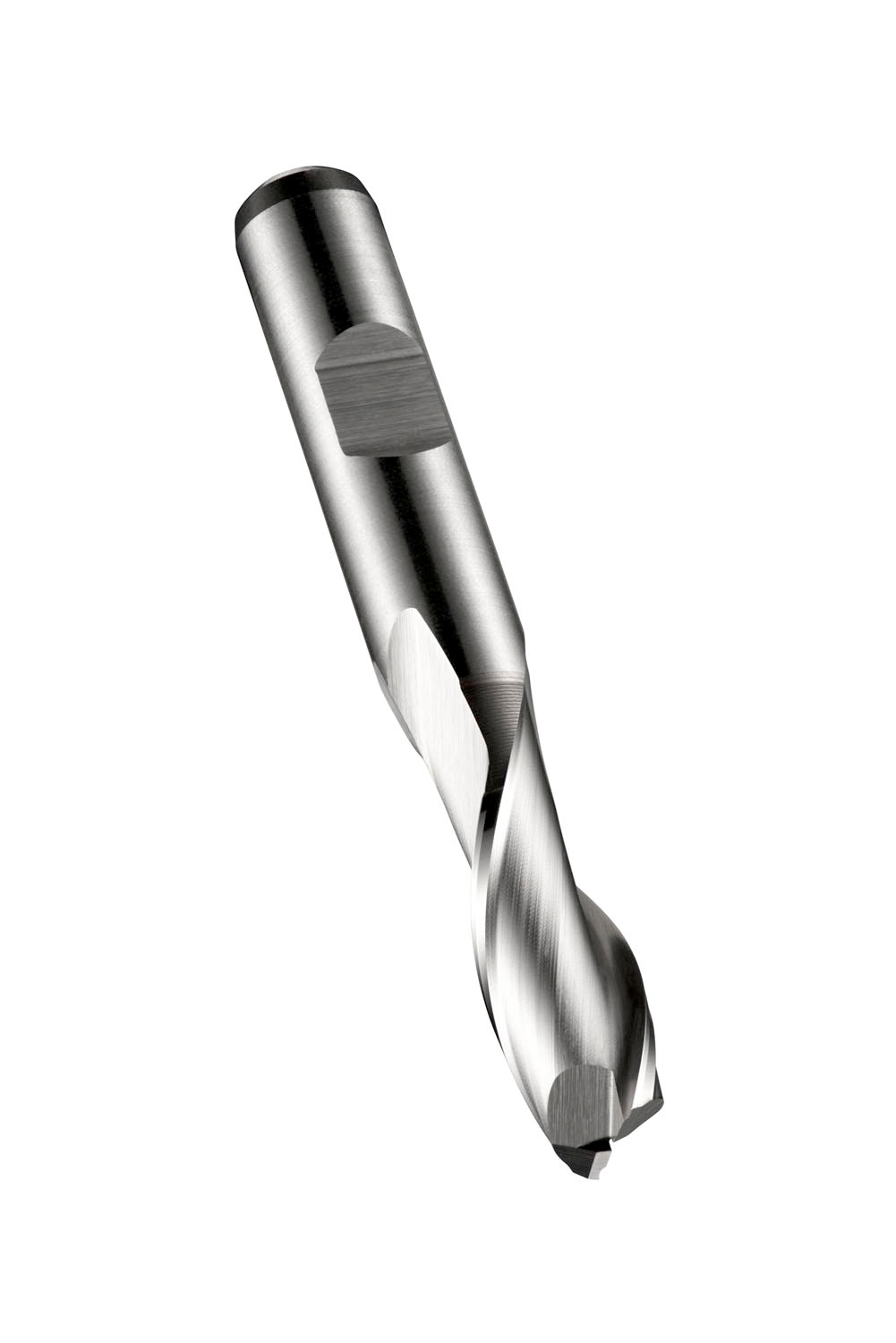

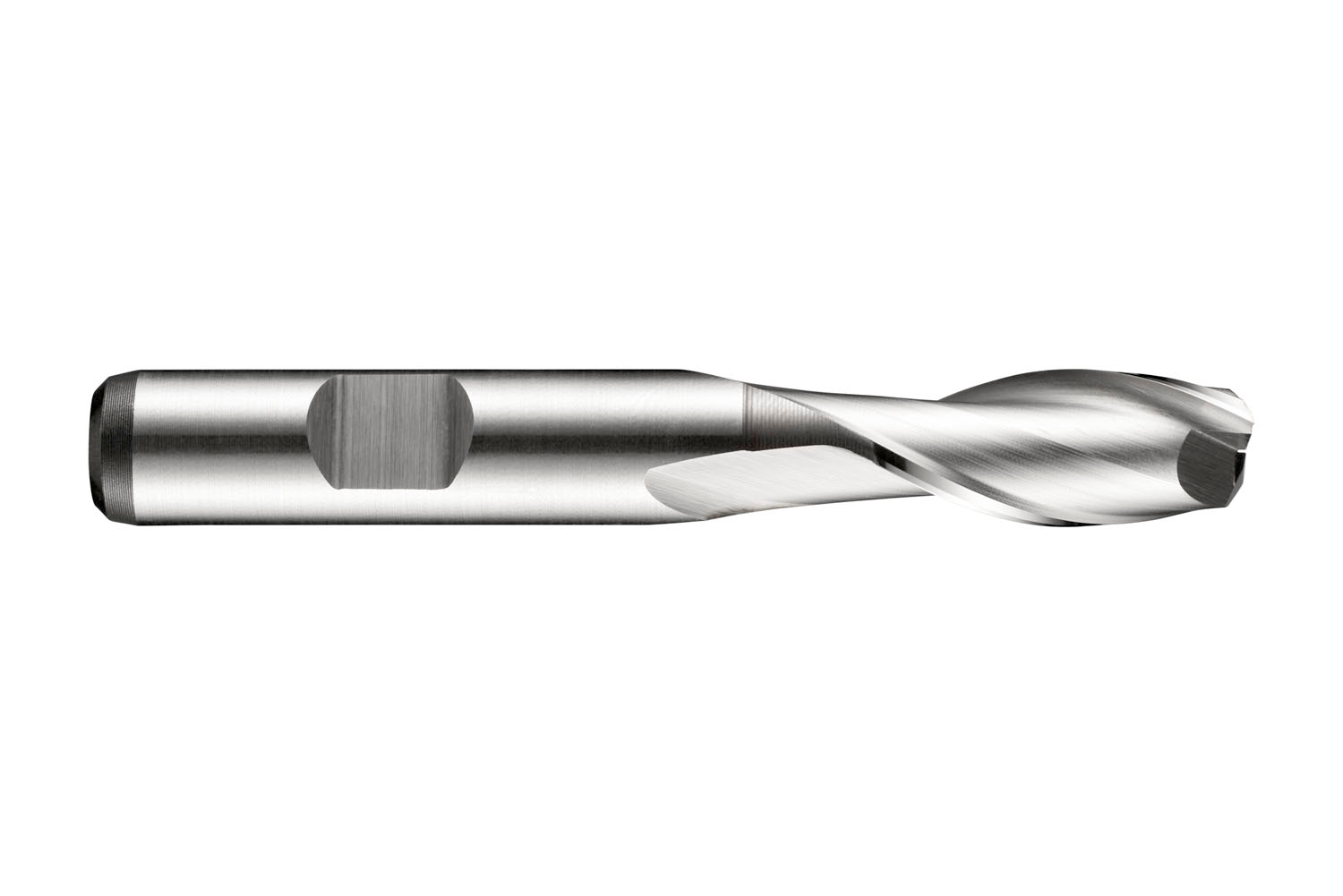

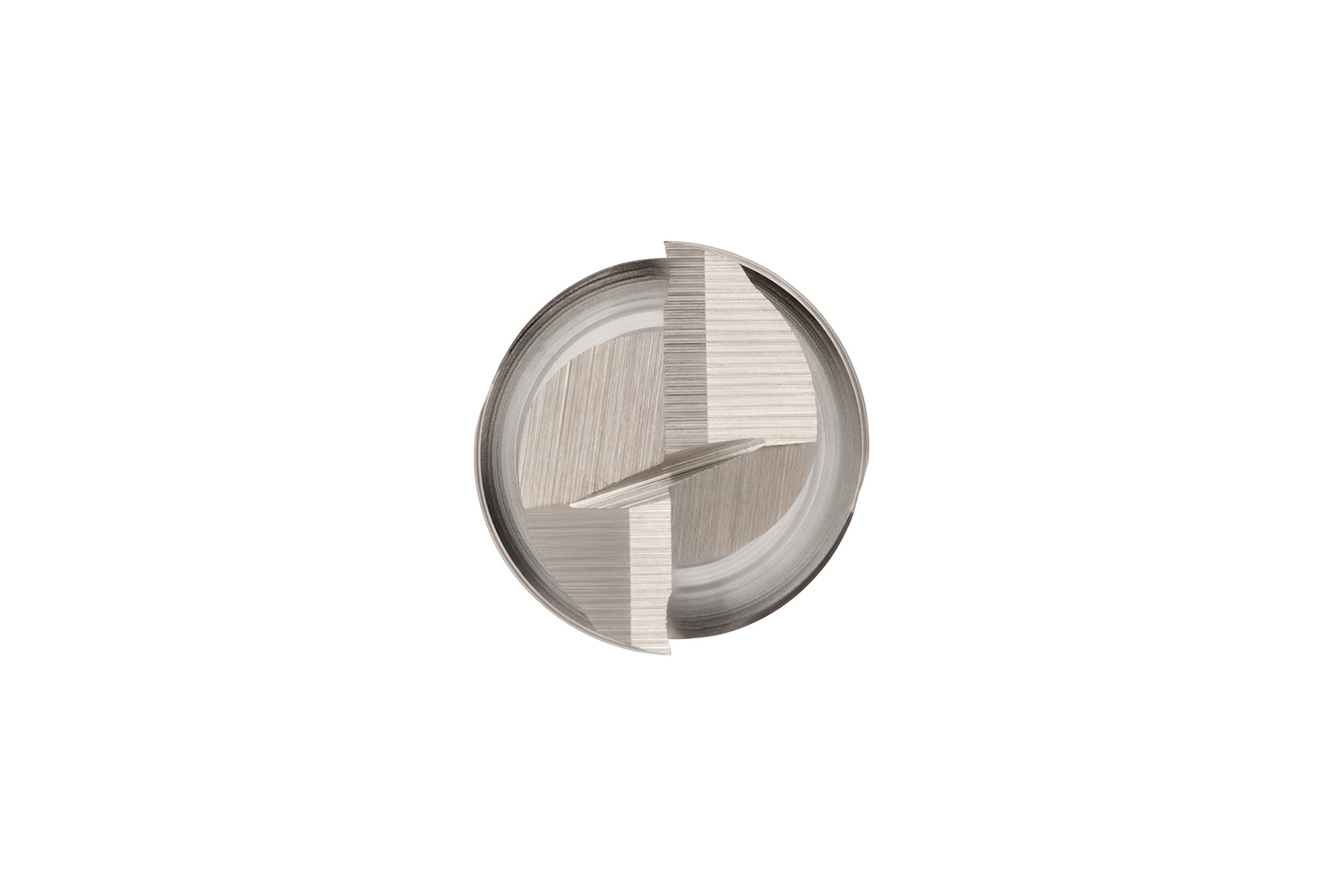

Short series slot drill with 2 flutes, diameter 11mm with 22mm length of cut and 79mm overall length, according to DIN 844 K standard with a 12mm Weldon shank, powder metallurgical HSS-E with bright finish, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel and copper or copper alloys

Additional information

Weight 0.0935 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760353578
Product number (SAP): 86013411
Ordering code ANSI: C12311.0
Gross weight – grams: 62.7

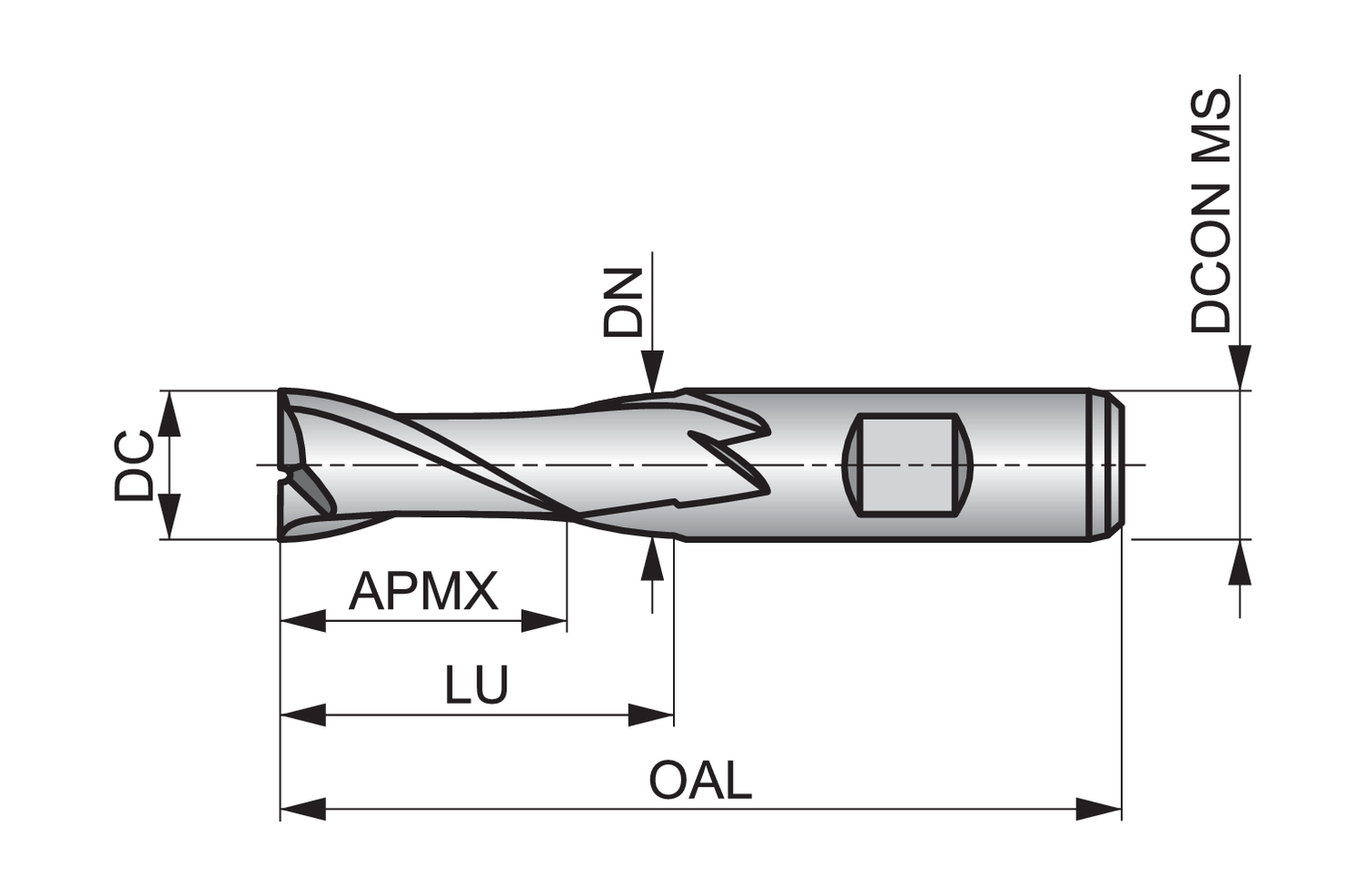

Cutting diameter – millimeter (DC): 11 mm
Connection diameter – millimeter (DCON MS): 12 mm
Depth of cut maximum – millimeter (APMX): 22 mm
Overall length – millimeter (OAL): 79 mm
Flute count (NOF): 2
Neck diameter – millimeter (DN): 11 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C12311.0

Brand

DORMER
