DORMER C1233.0 HSCO Cutters

Product Code: C1233.0

$52.91$48.10 Ex. GST

Product Code: C1233.0 SKU C1233.0 Categories , ,
DORMER C1233.0 HSCO Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

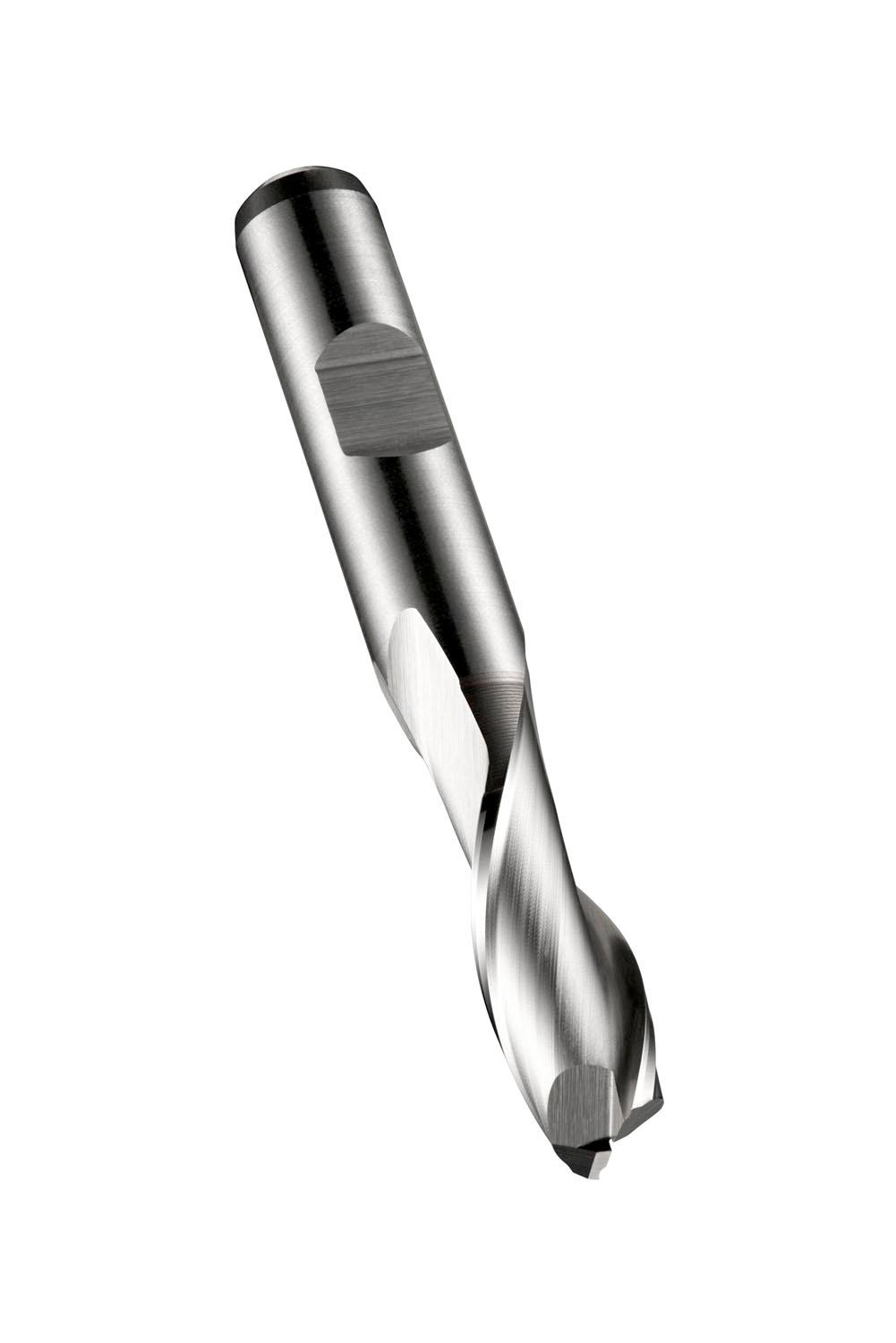

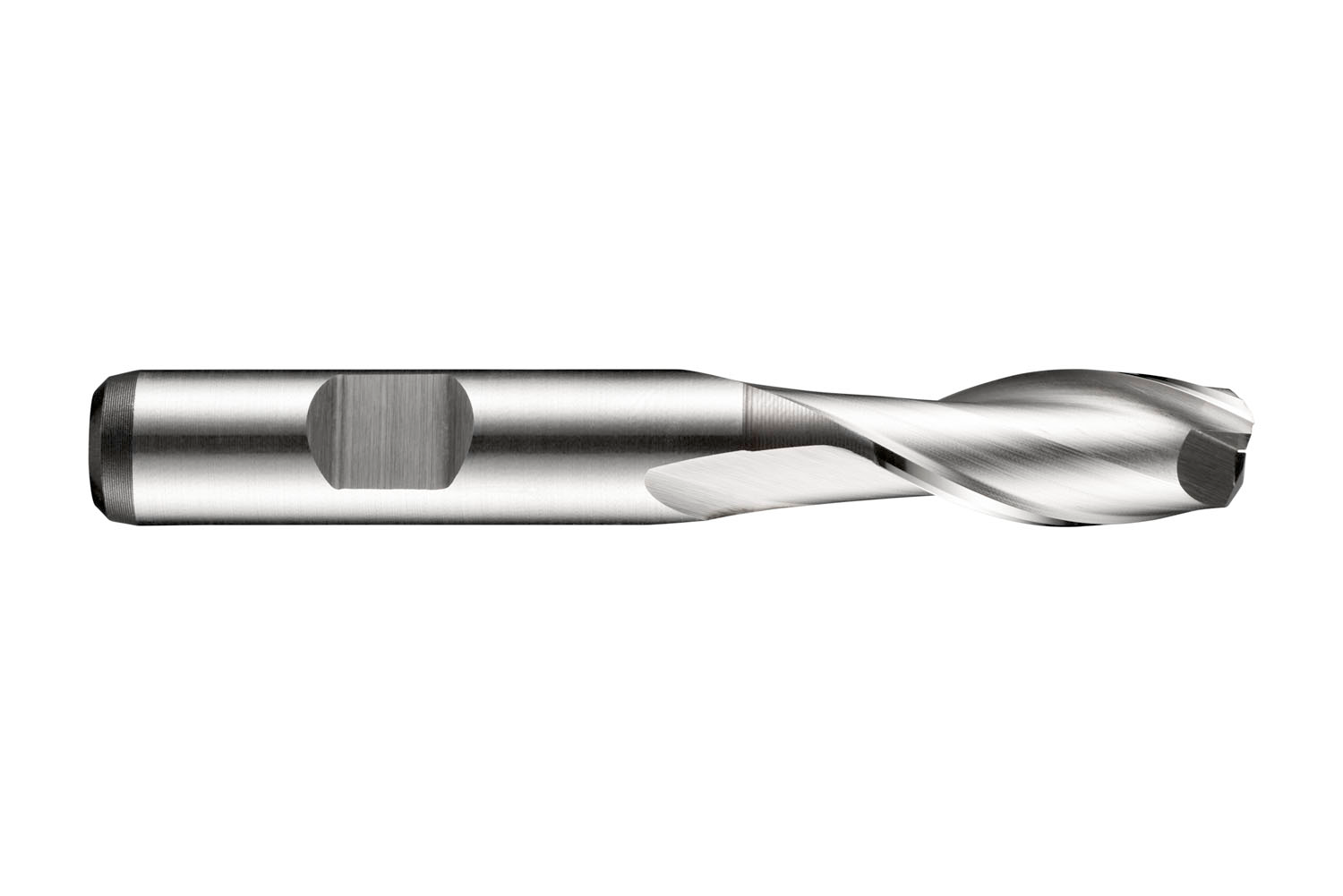

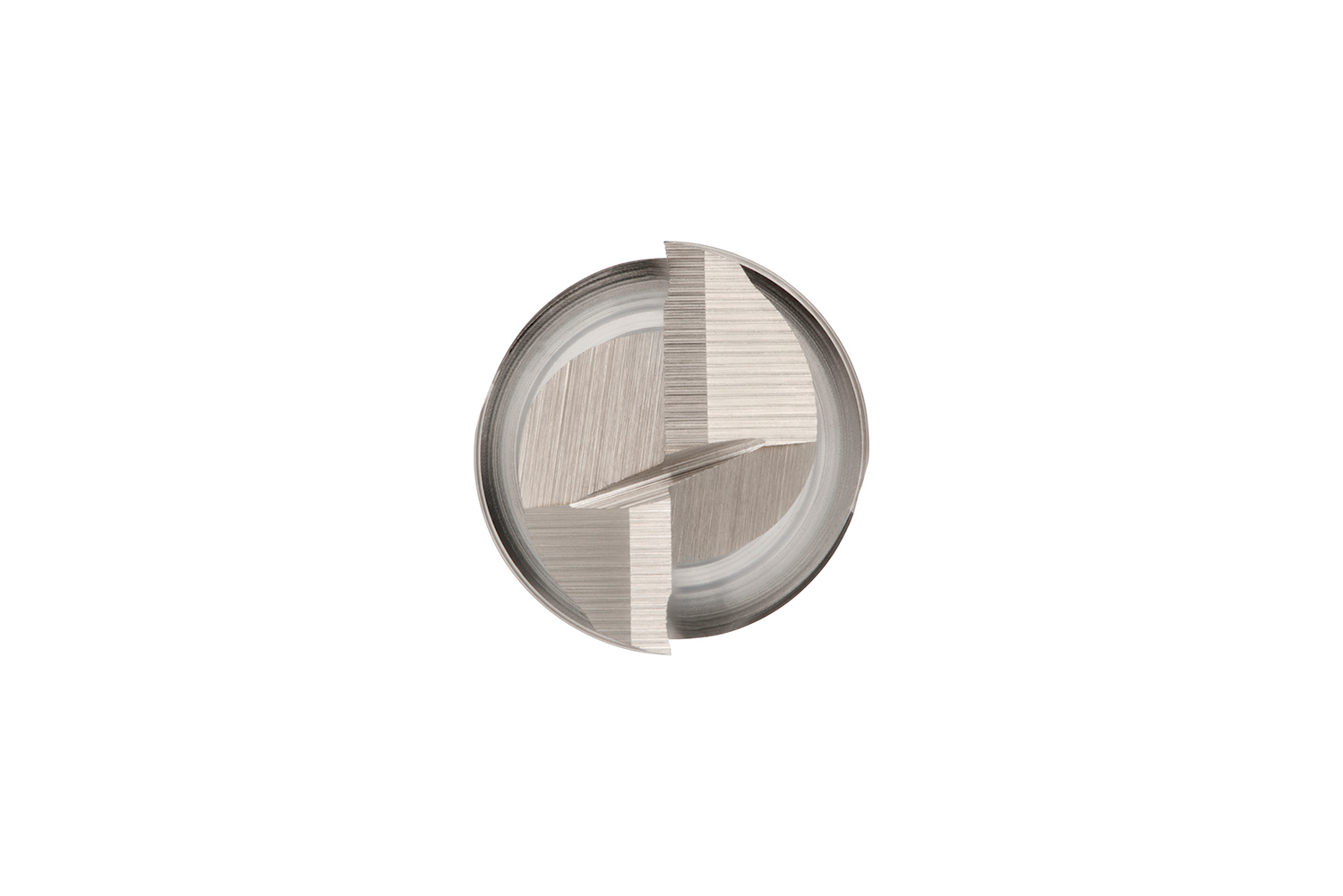

Short series slot drill with 2 flutes, diameter 3mm with 8mm length of cut and 52mm overall length, according to DIN 844 K standard with a 6mm Weldon shank, powder metallurgical HSS-E with bright finish, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel and copper or copper alloys

Additional information

Weight 0.0514 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760353714
Product number (SAP): 86013423
Ordering code ANSI: C1233.0
Gross weight – grams: 11.5

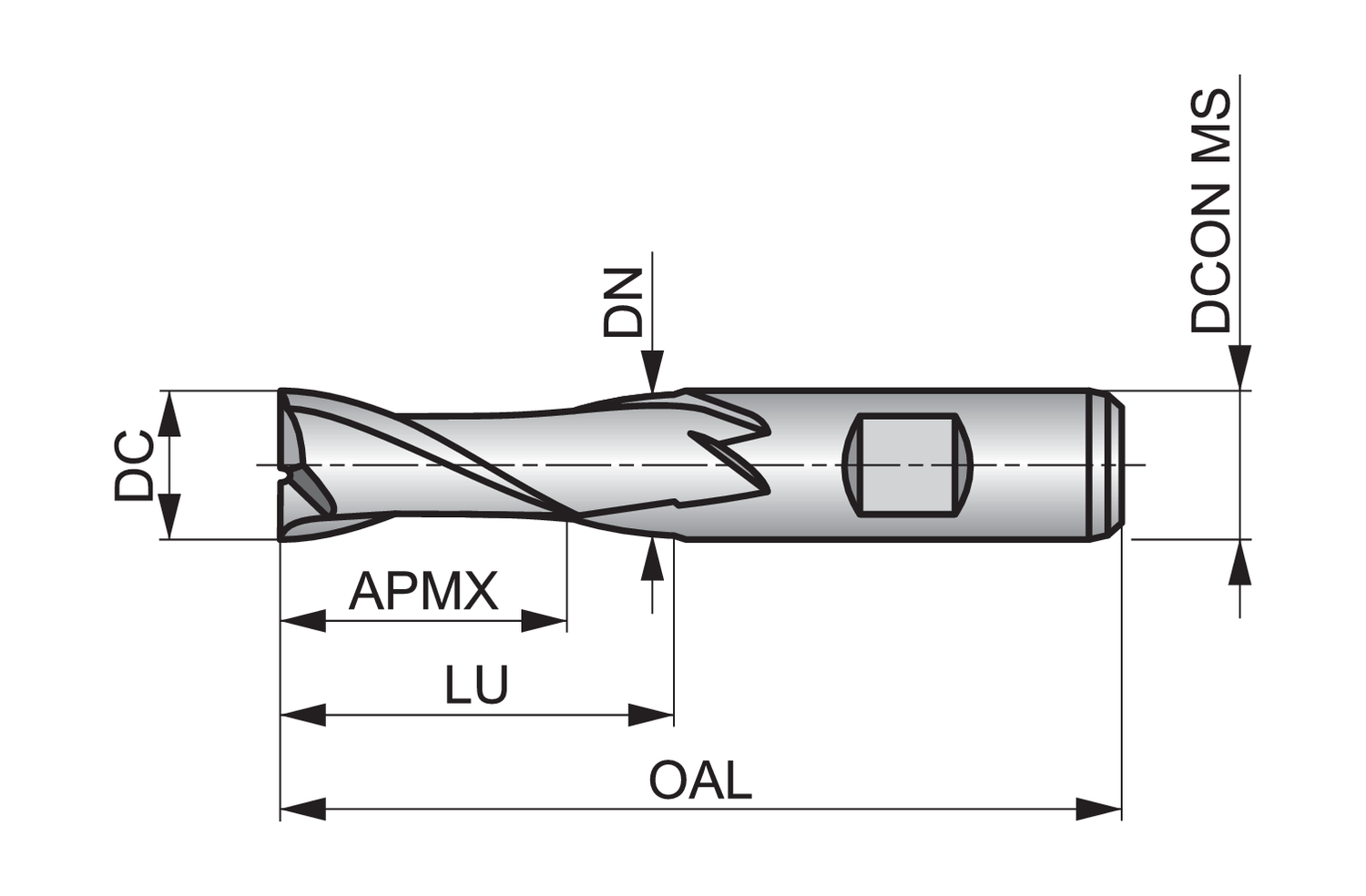

Cutting diameter – millimeter (DC): 3 mm
Connection diameter – millimeter (DCON MS): 6 mm
Depth of cut maximum – millimeter (APMX): 8 mm
Overall length – millimeter (OAL): 52 mm
Flute count (NOF): 2
Neck diameter – millimeter (DN): 3 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C1233.0

Brand

DORMER
