DORMER C1239.0 HSCO Cutters

Product Code: C1239.0

$81.02$73.65 Ex. GST

Product Code: C1239.0 SKU C1239.0 Categories , ,

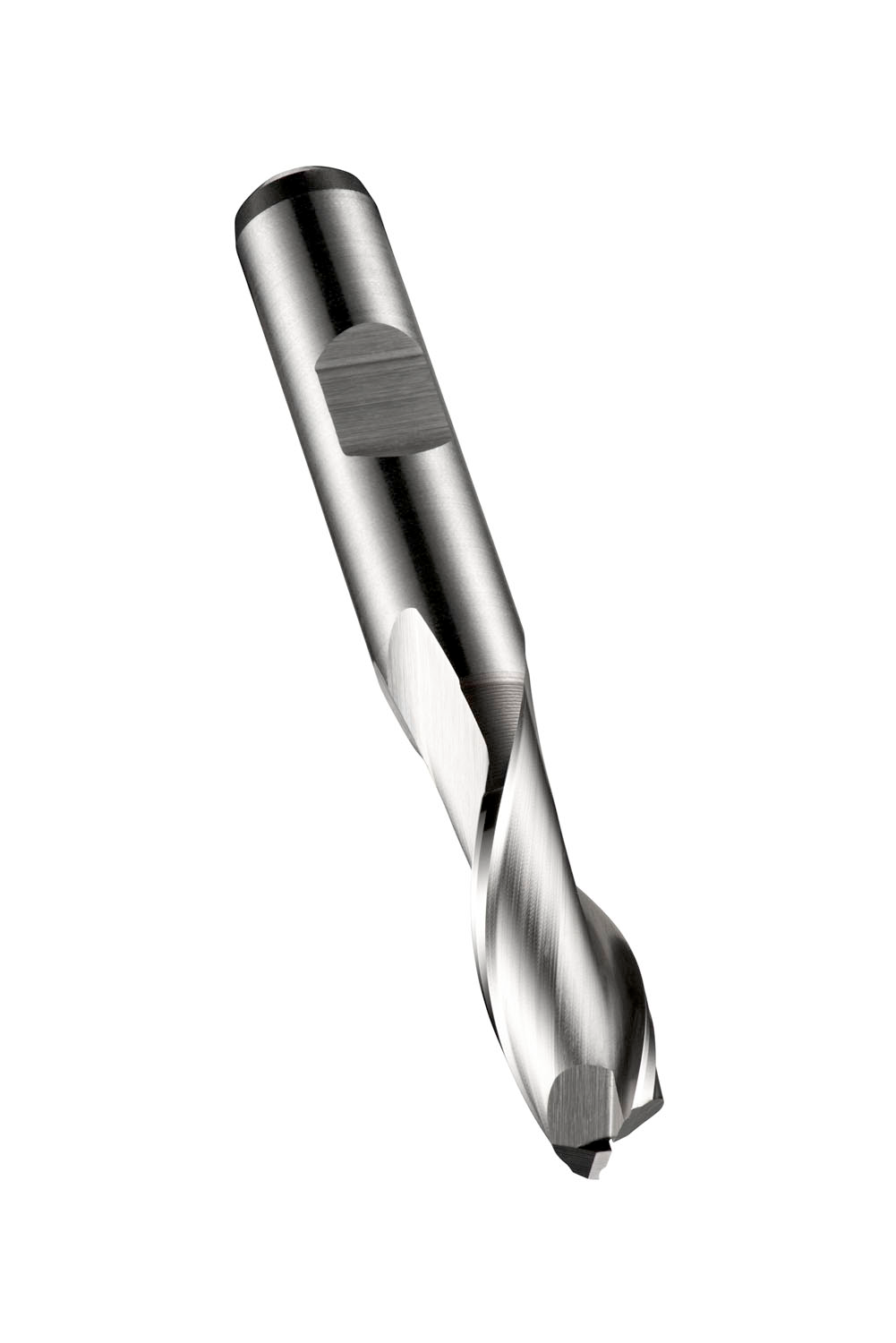

DORMER C1239.0 HSCO Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

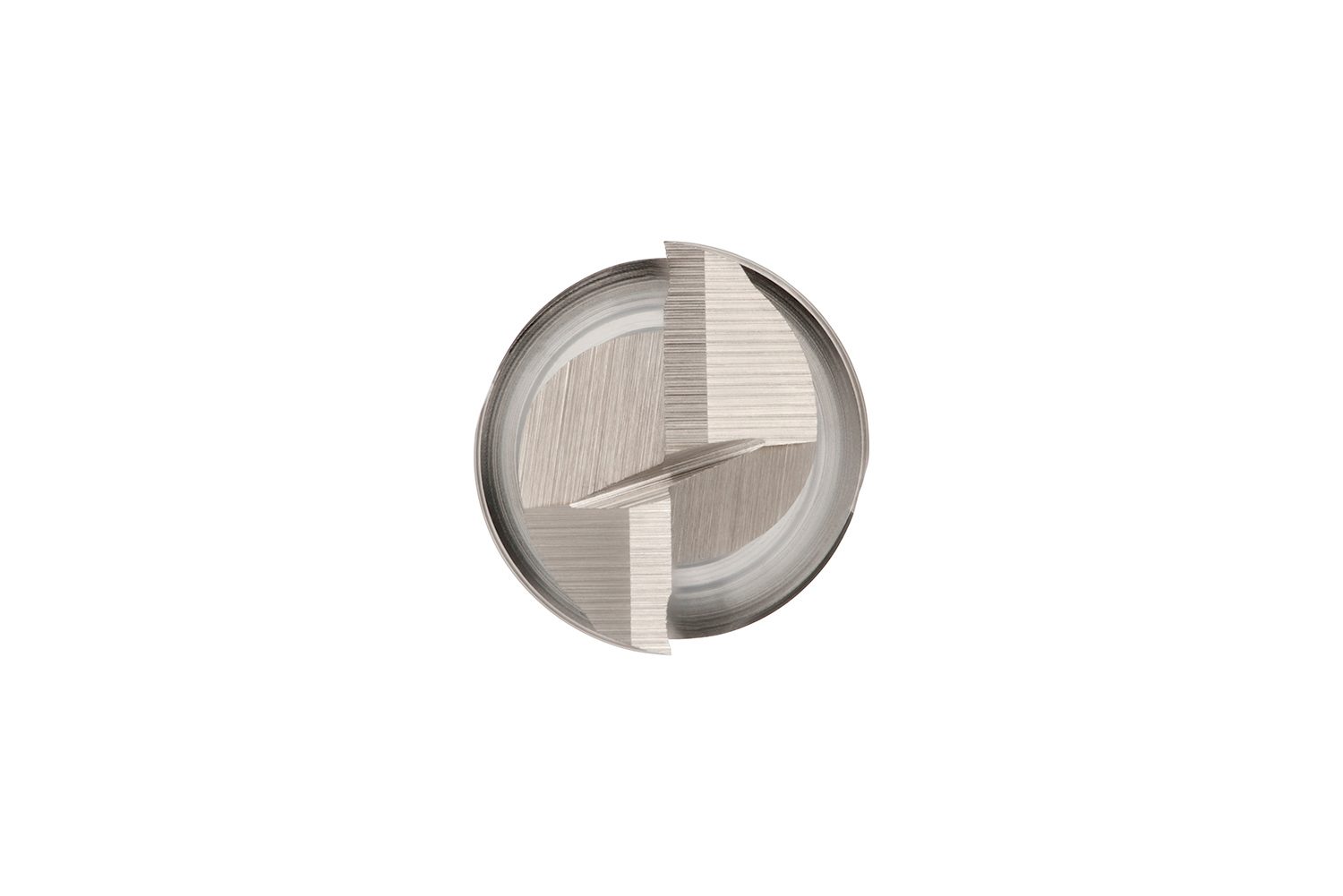

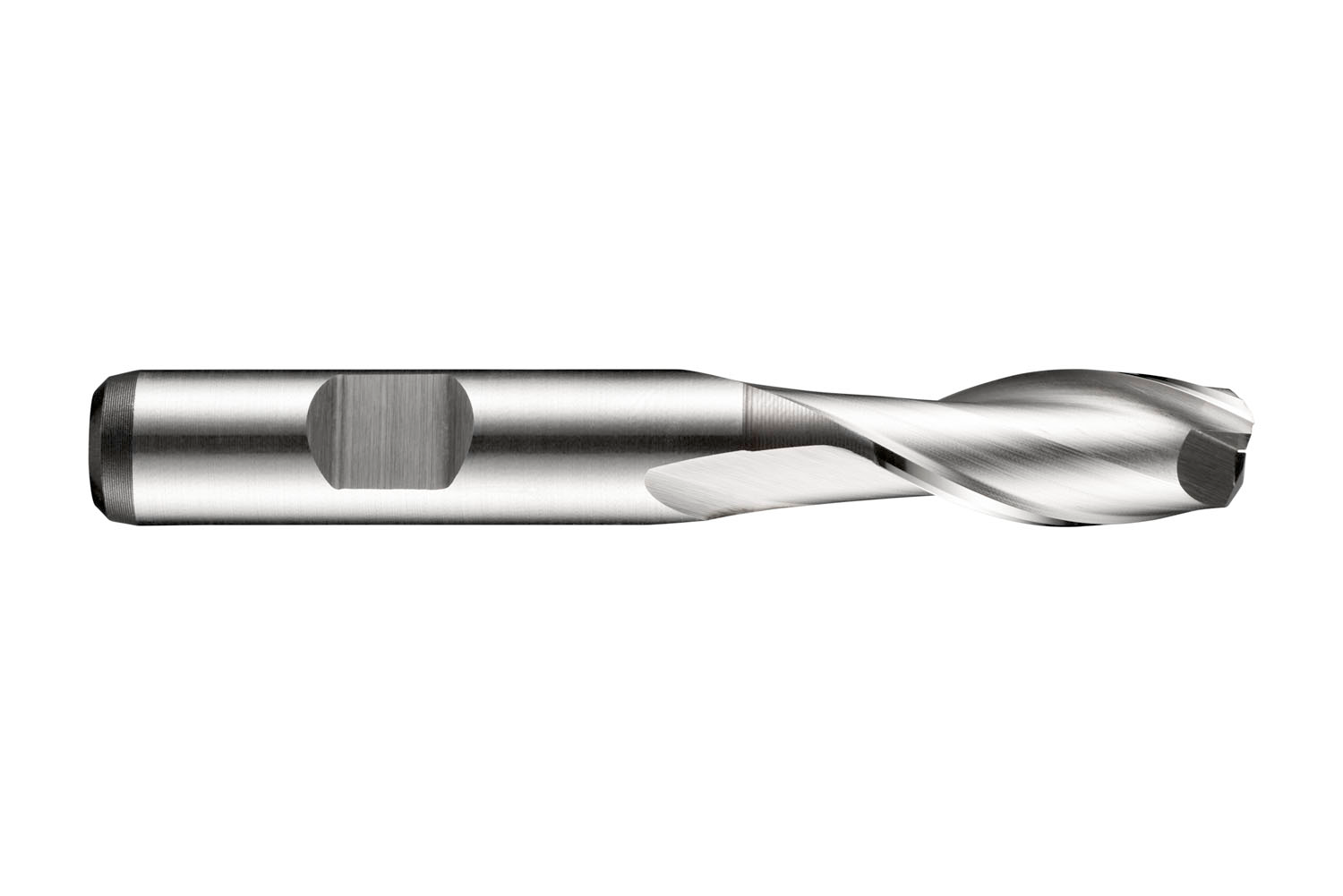

Short series slot drill with 2 flutes, diameter 9mm with 19mm length of cut and 69mm overall length, according to DIN 844 K standard with a 10mm Weldon shank, powder metallurgical HSS-E with bright finish, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel and copper or copper alloys

Additional information

Weight 0.0787 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760353875
Product number (SAP): 86013445
Ordering code ANSI: C1239.0
Gross weight – grams: 39

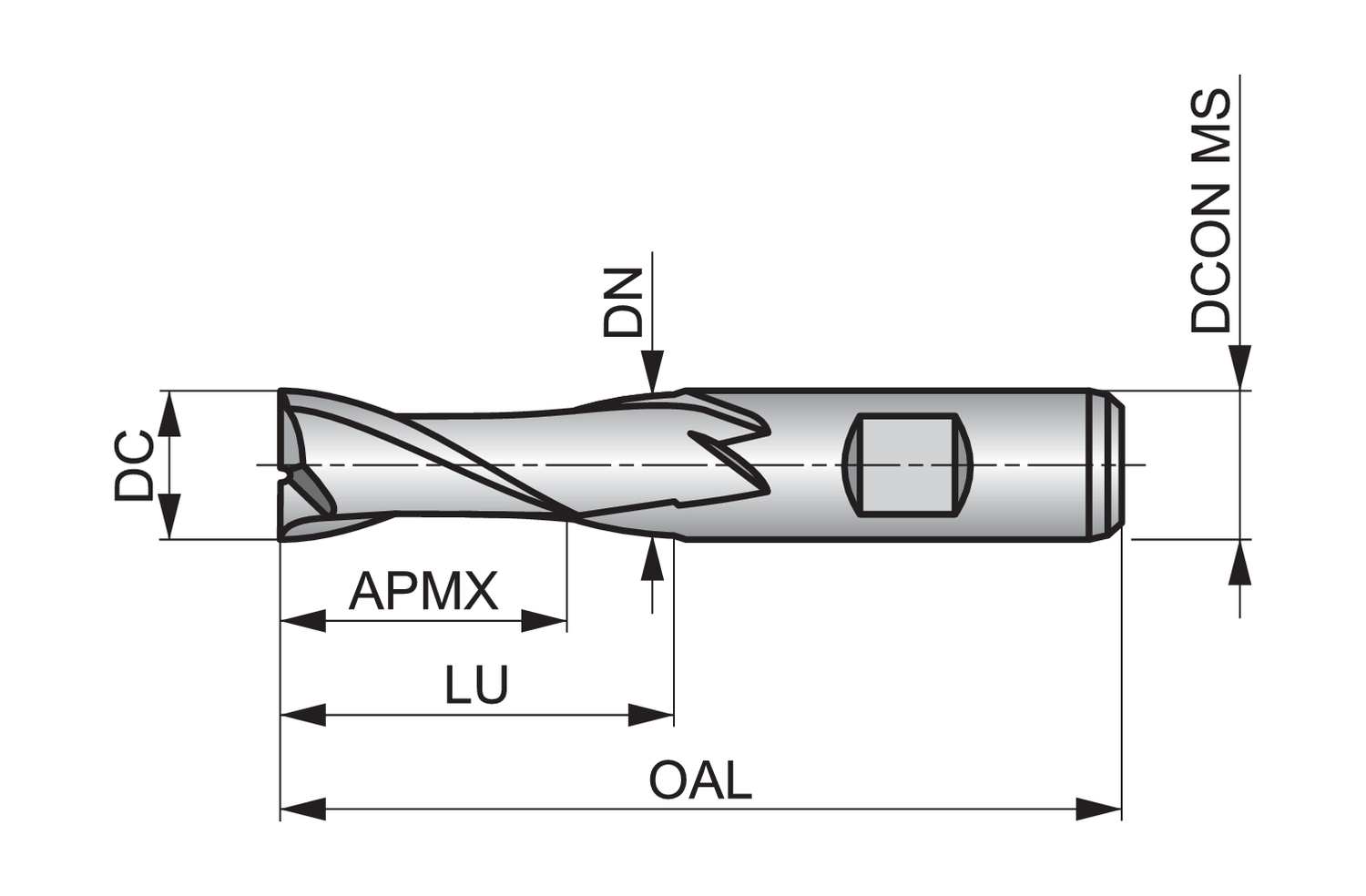

Cutting diameter – millimeter (DC): 9 mm
Connection diameter – millimeter (DCON MS): 10 mm
Depth of cut maximum – millimeter (APMX): 19 mm
Overall length – millimeter (OAL): 69 mm
Flute count (NOF): 2
Neck diameter – millimeter (DN): 9 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C1239.0

Brand

DORMER
