DORMER C12611.0 HSCO Cutters

Product Code: C12611.0

$113.30$103.00 Ex. GST

Product Code: C12611.0 SKU C12611.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

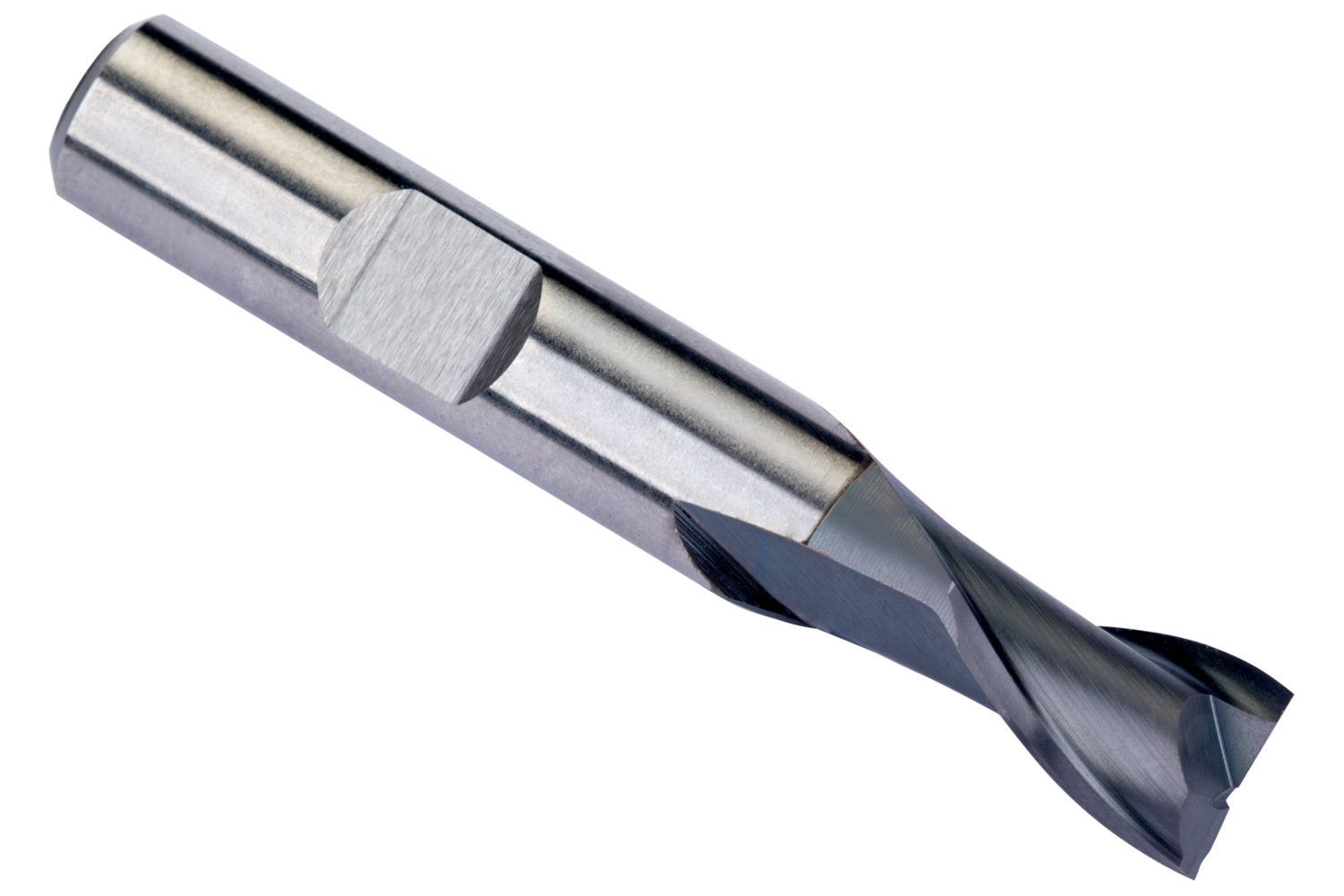

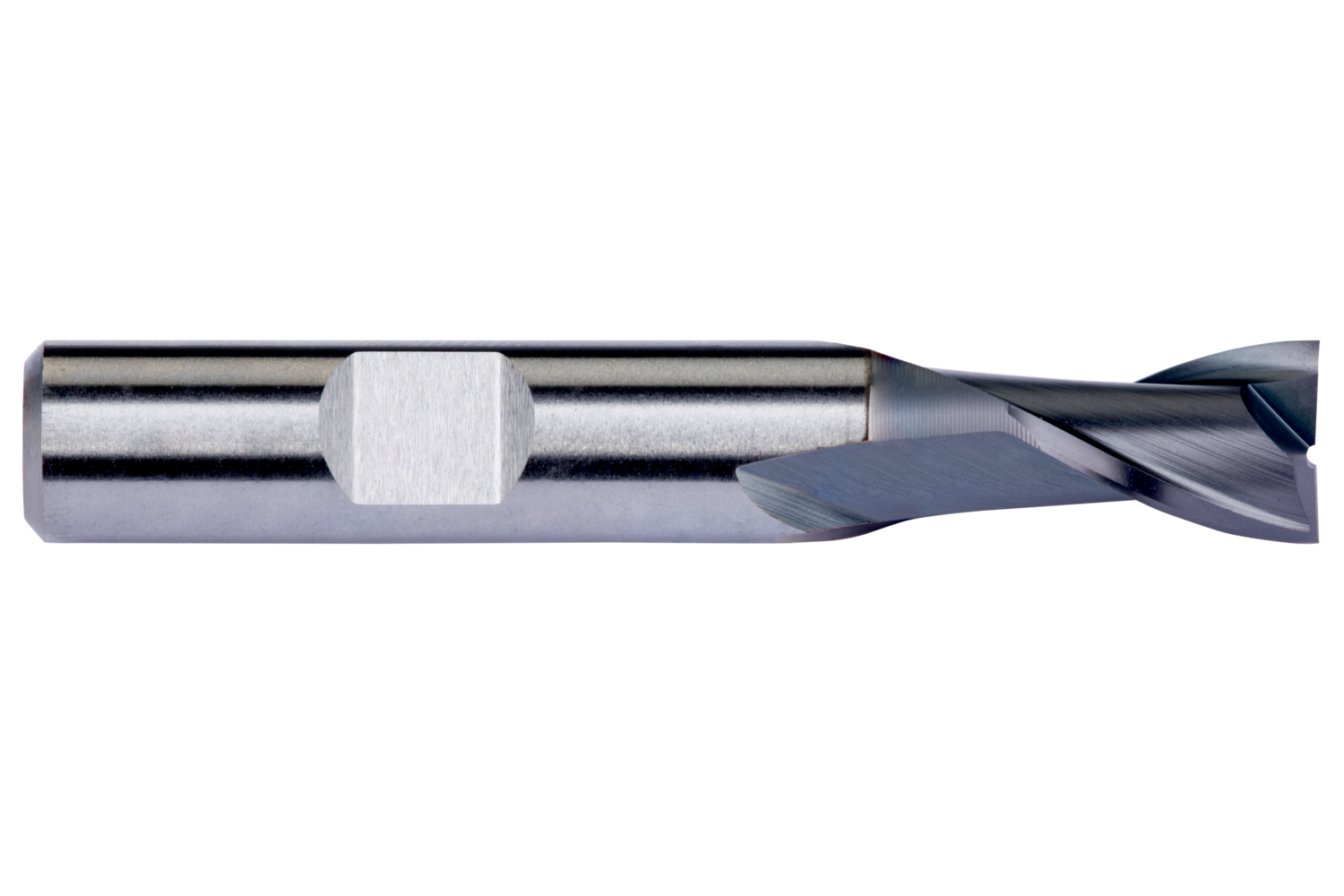

Extra short series slot drill with 2 flutes, diameter 11mm with 13mm length of cut and 70mm overall length, according to DIN 327 D standard with a 12mm Weldon shank, powder metallurgical HSS-E with TiCN coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining, plain carbon and alloy steel, cast-iron, copper or copper alloys and titanium or titanium alloys

Additional information

Weight 0.1100 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760353936
Product number (SAP): 86013452
Ordering code ANSI: C12611.0
Gross weight – grams: 56.8

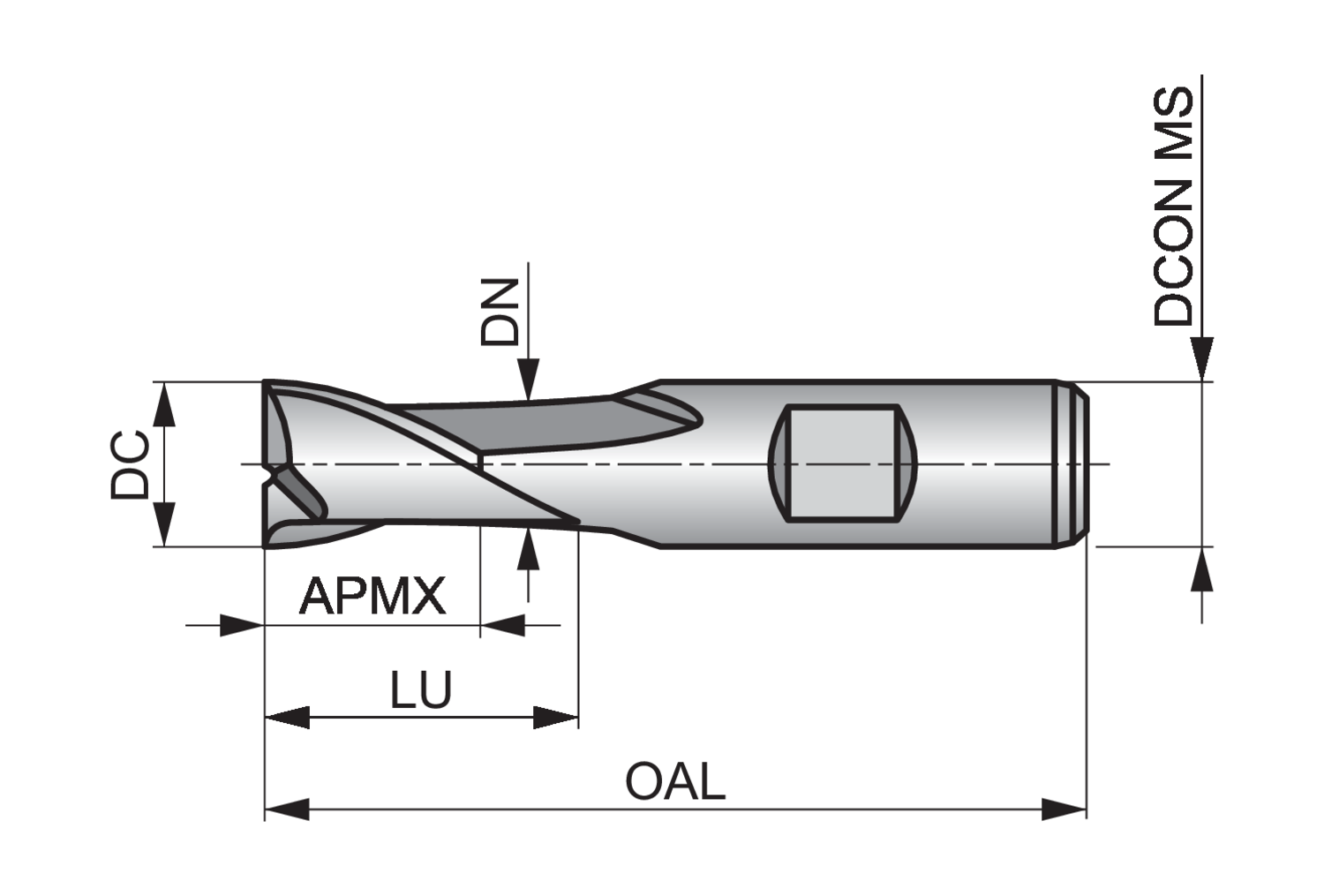

Cutting diameter – millimeter (DC): 11 mm
Connection diameter – millimeter (DCON MS): 12 mm
Depth of cut maximum – millimeter (APMX): 13 mm
Overall length – millimeter (OAL): 70 mm
Flute count (NOF): 2
Neck diameter – millimeter (DN): 11 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C12611.0

Brand

DORMER
