DORMER C12611.5 HSCO Cutters

Product Code: C12611.5

$116.70$106.09 Ex. GST

Product Code: C12611.5 SKU C12611.5 Categories , ,
DORMER C12611.5 HSCO Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

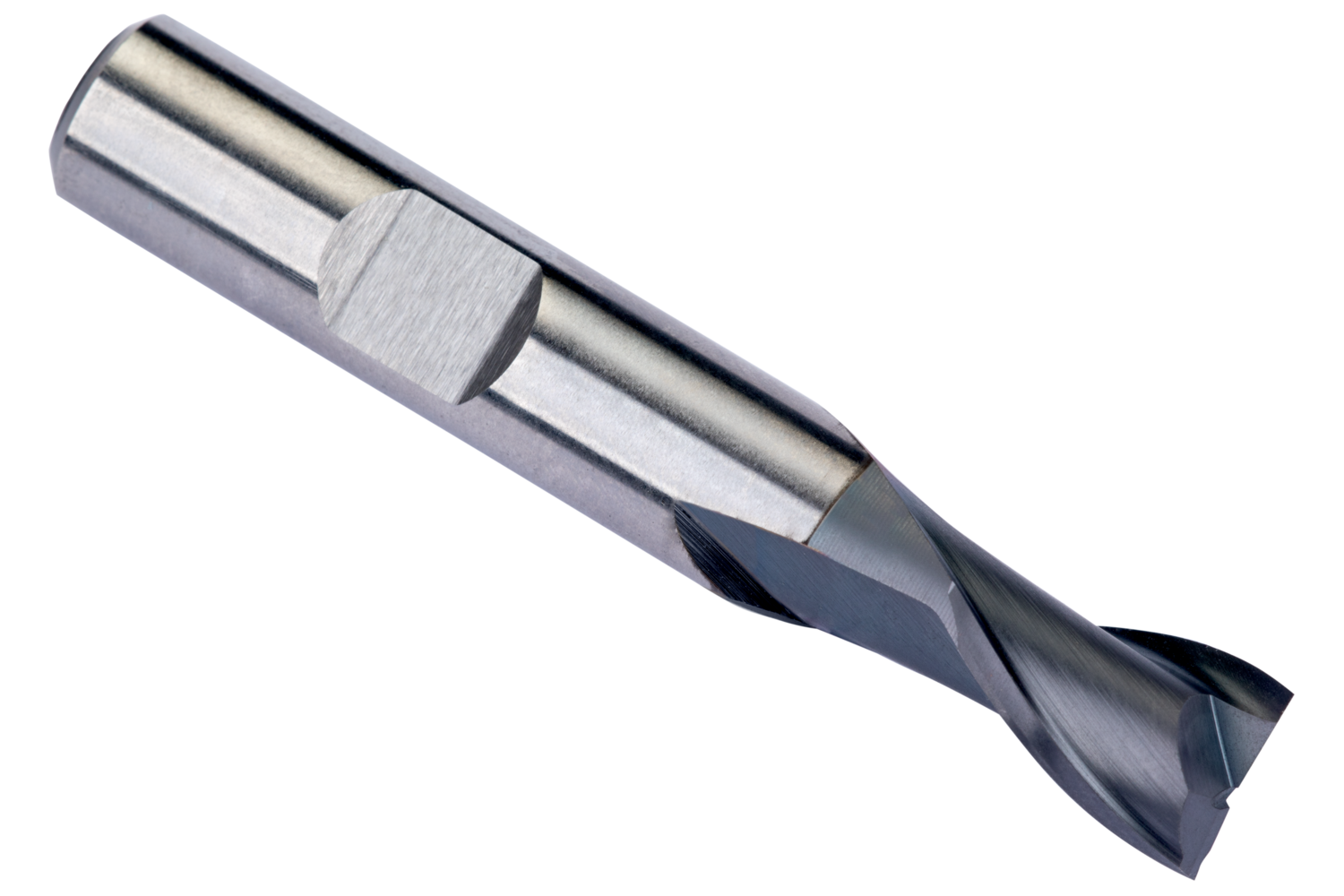

Extra short series slot drill with 2 flutes, diameter 11.5mm with 13mm length of cut and 70mm overall length, according to DIN 327 D standard with a 12mm Weldon shank, powder metallurgical HSS-E with TiCN coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining, plain carbon and alloy steel, cast-iron, copper or copper alloys and titanium or titanium alloys

Additional information

Weight 0.1133 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760573518
Product number (SAP): 86013453
Ordering code ANSI: C12611.5
Gross weight – grams: 57.8

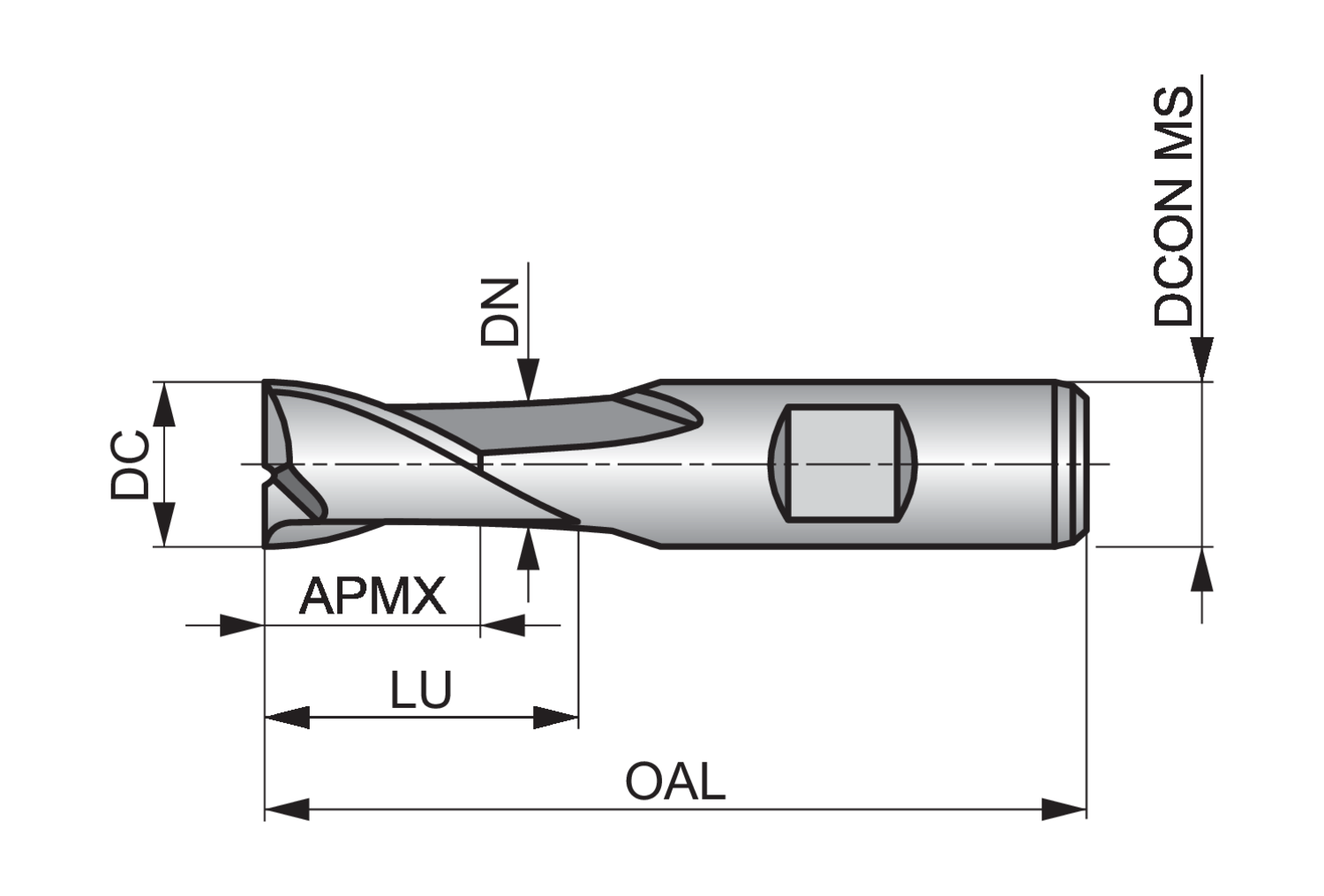

Cutting diameter – millimeter (DC): 11.5 mm
Connection diameter – millimeter (DCON MS): 12 mm
Depth of cut maximum – millimeter (APMX): 13 mm
Overall length – millimeter (OAL): 70 mm
Flute count (NOF): 2
Neck diameter – millimeter (DN): 11.5 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C12611.5

Brand

DORMER
