DORMER C1264.0 HSCO Cutters

Product Code: C1264.0

$61.18$55.62 Ex. GST

Product Code: C1264.0 SKU C1264.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

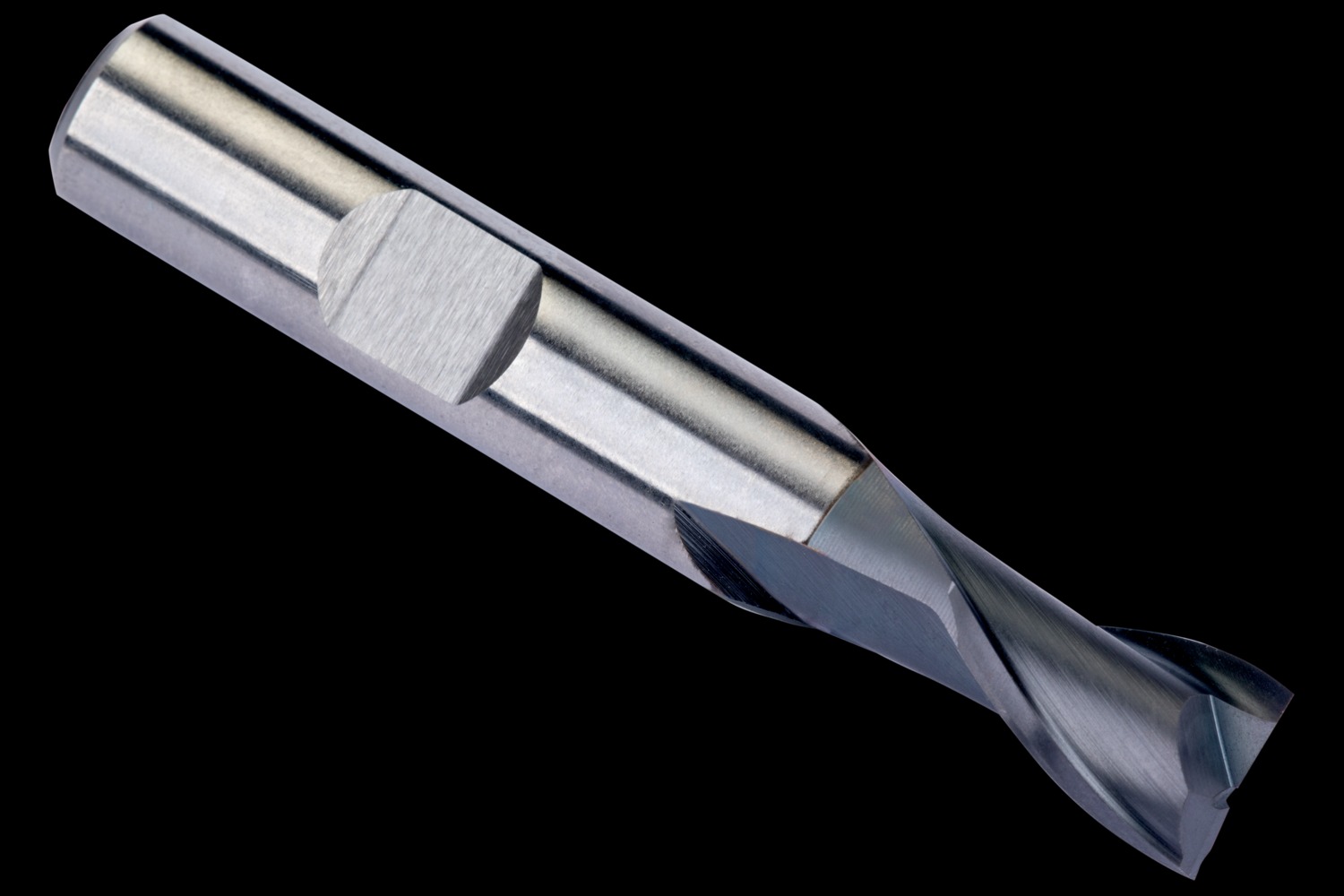

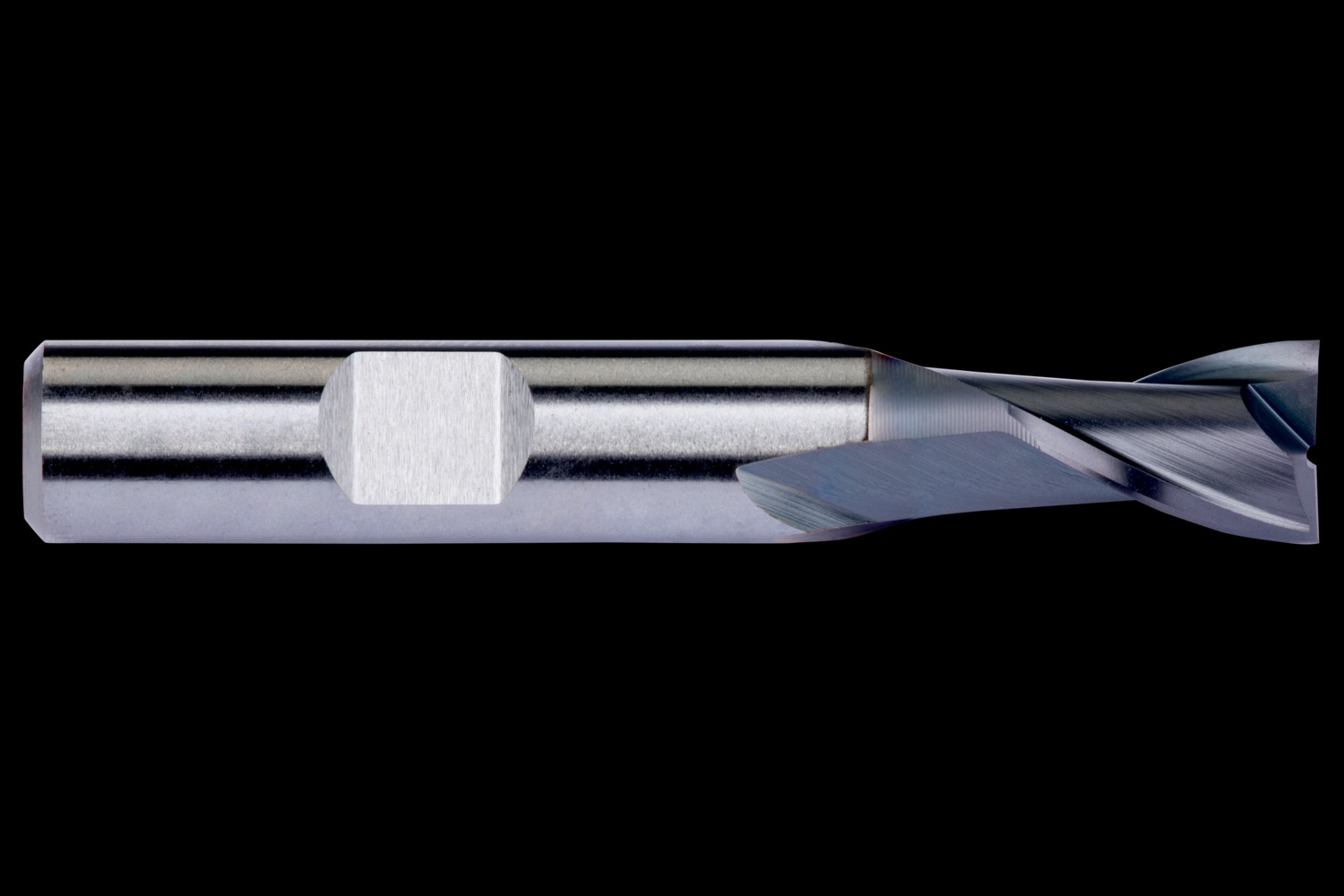

Extra short series slot drill with 2 flutes, diameter 4mm with 7mm length of cut and 51mm overall length, according to DIN 327 D standard with a 6mm Weldon shank, powder metallurgical HSS-E with TiCN coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining, plain carbon and alloy steel, cast-iron, copper or copper alloys and titanium or titanium alloys

Additional information

Weight 0.0594 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760354087
Product number (SAP): 86013473
Ordering code ANSI: C1264.0
Gross weight – grams: 11.5

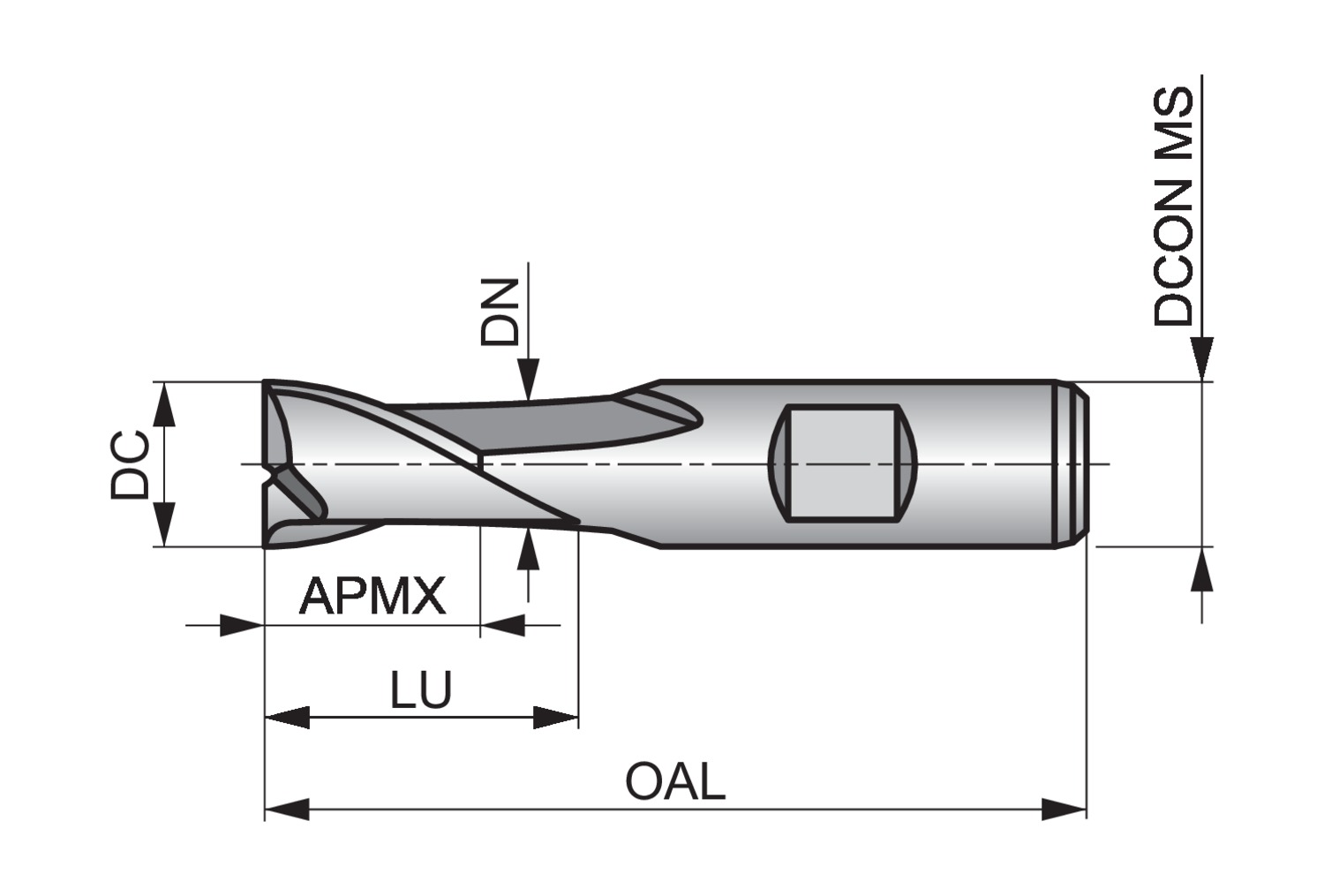

Cutting diameter – millimeter (DC): 4 mm
Connection diameter – millimeter (DCON MS): 6 mm
Depth of cut maximum – millimeter (APMX): 7 mm
Overall length – millimeter (OAL): 51 mm
Flute count (NOF): 2
Neck diameter – millimeter (DN): 4 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C1264.0

Brand

DORMER
