DORMER C1267.0 HSCO Cutters

Product Code: C1267.0

$88.37$80.34 Ex. GST

Product Code: C1267.0 SKU C1267.0 Categories , ,

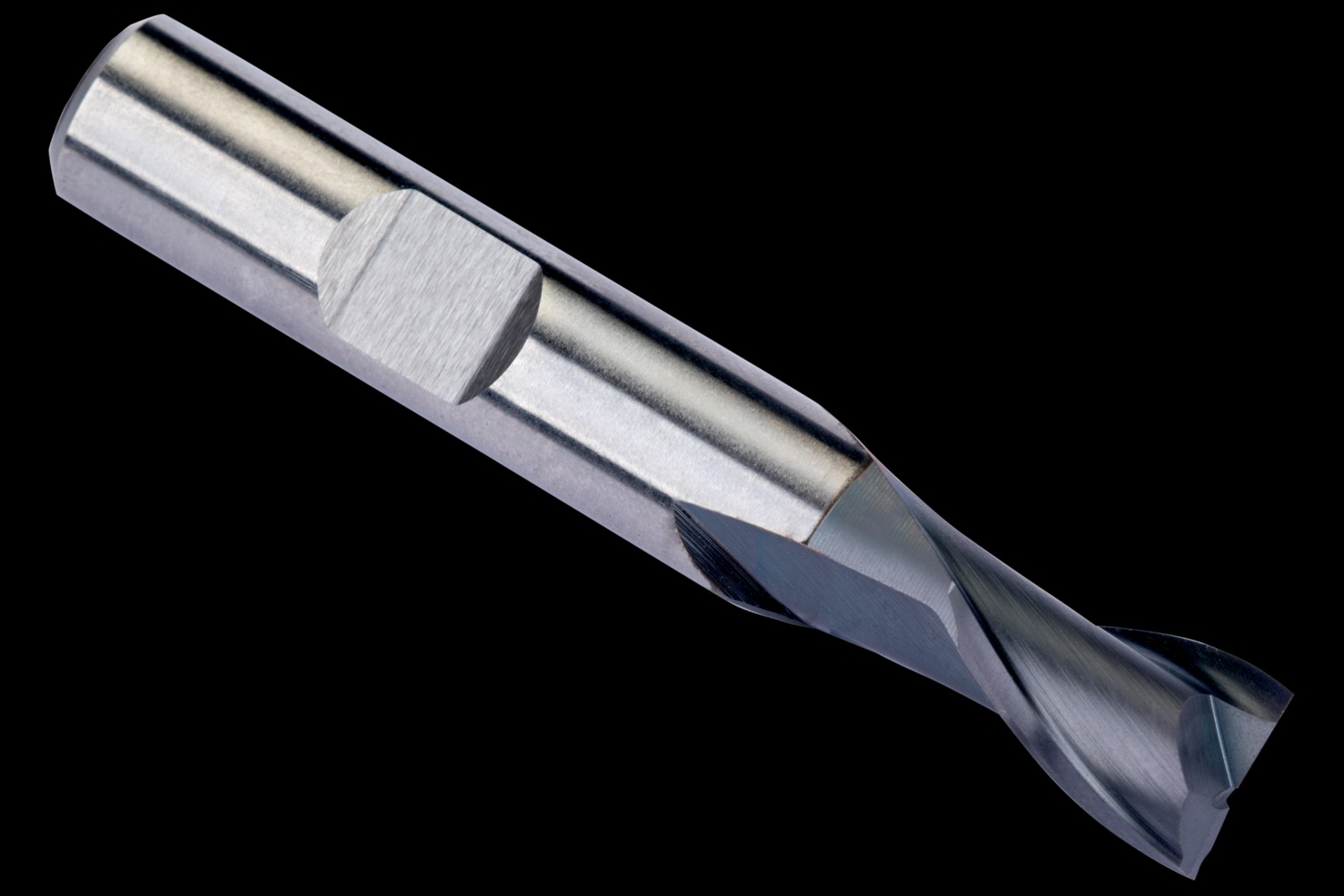

DORMER C1267.0 HSCO Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Extra short series slot drill with 2 flutes, diameter 7mm with 10mm length of cut and 60mm overall length, according to DIN 327 D standard with a 10mm Weldon shank, powder metallurgical HSS-E with TiCN coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining, plain carbon and alloy steel, cast-iron, copper or copper alloys and titanium or titanium alloys

Additional information

Weight 0.0858 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760354162
Product number (SAP): 86013481
Ordering code ANSI: C1267.0
Gross weight – grams: 33.3

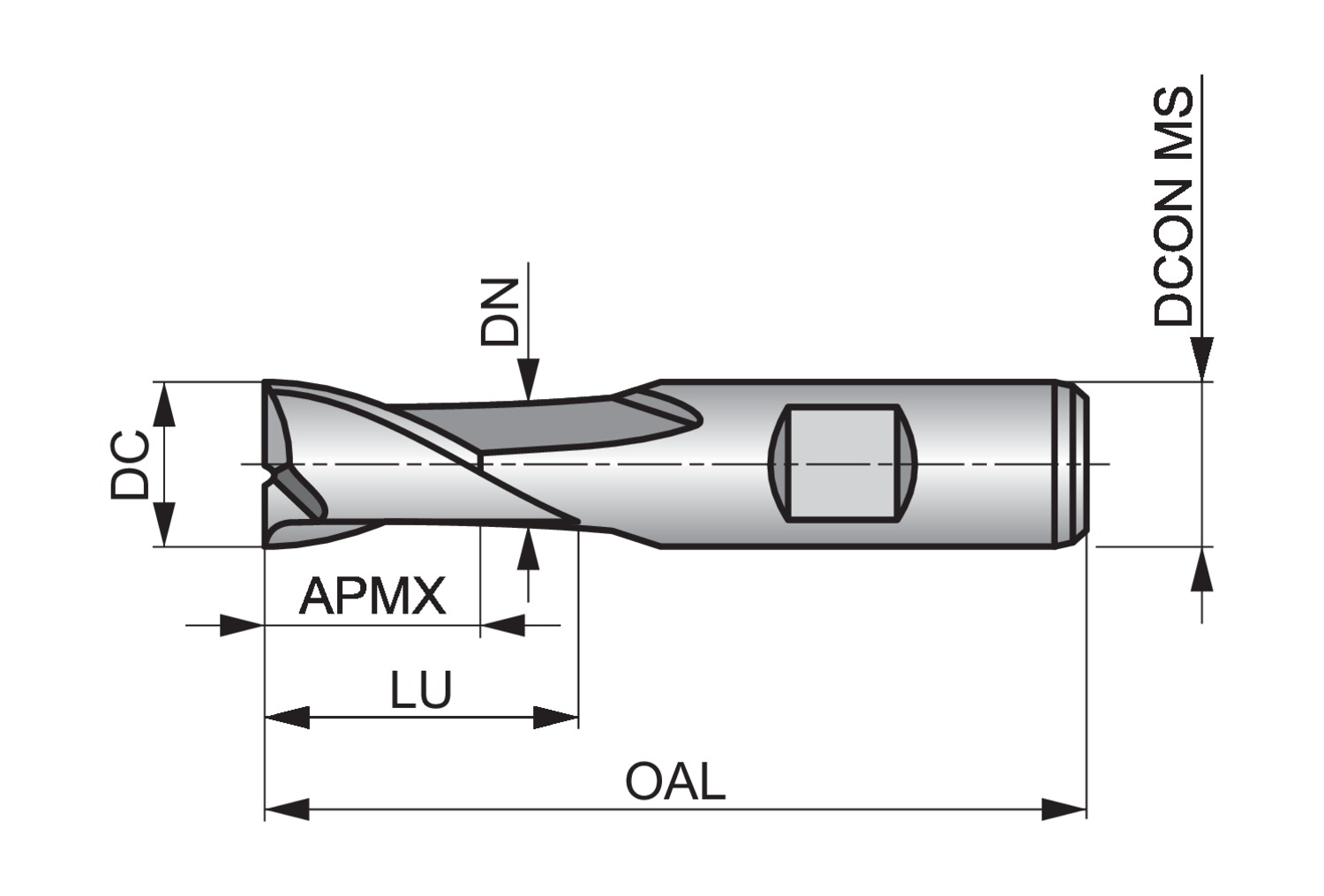

Cutting diameter – millimeter (DC): 7 mm
Connection diameter – millimeter (DCON MS): 10 mm
Depth of cut maximum – millimeter (APMX): 10 mm
Overall length – millimeter (OAL): 60 mm
Flute count (NOF): 2
Neck diameter – millimeter (DN): 7 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C1267.0

Brand

DORMER
