DORMER C1268.5 HSCO Cutters

Product Code: C1268.5

$101.41$92.19 Ex. GST

Product Code: C1268.5 SKU C1268.5 Categories , ,

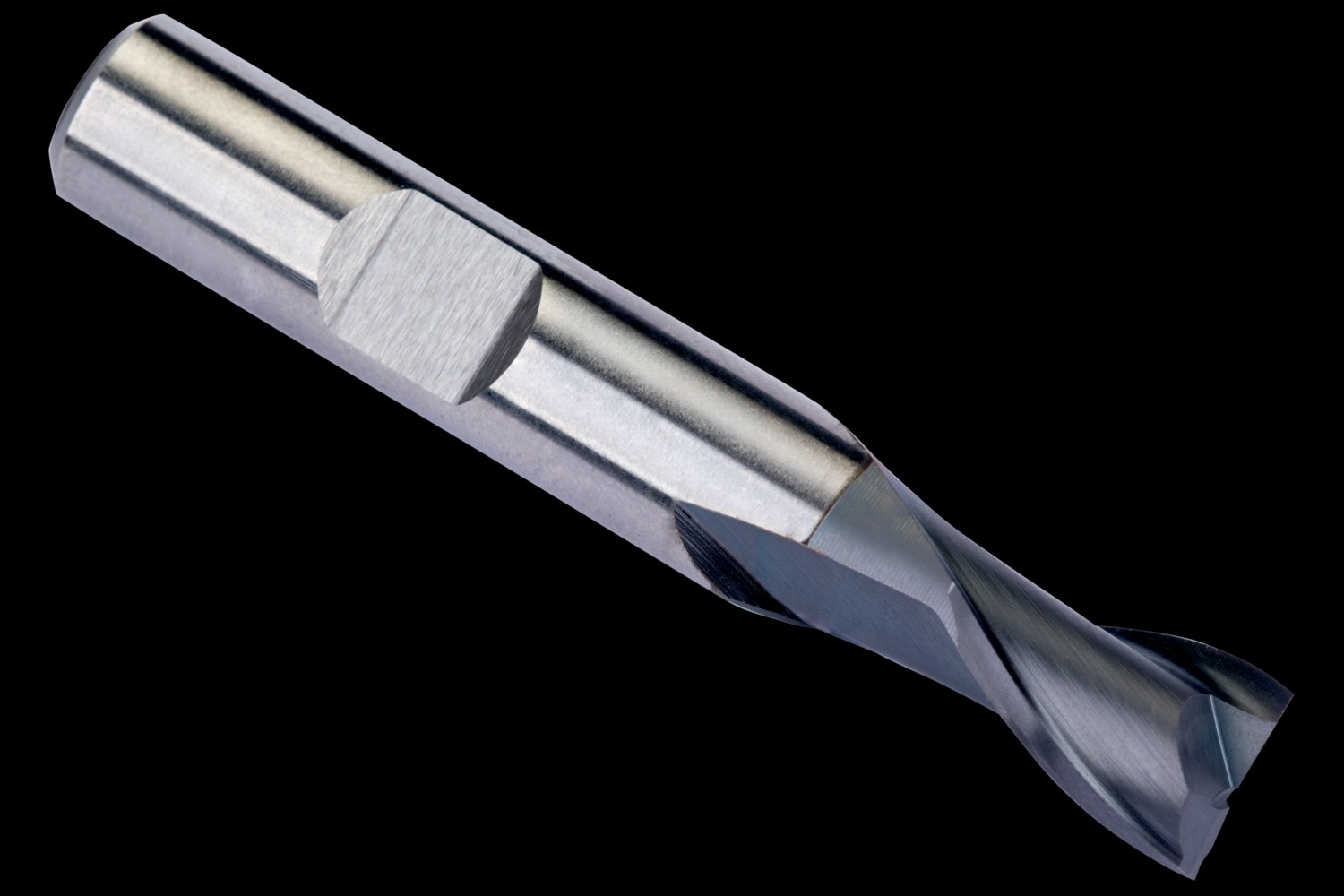

DORMER C1268.5 HSCO Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Extra short series slot drill with 2 flutes, diameter 8.5mm with 11mm length of cut and 61mm overall length, according to DIN 327 D standard with a 10mm Weldon shank, powder metallurgical HSS-E with TiCN coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining, plain carbon and alloy steel, cast-iron, copper or copper alloys and titanium or titanium alloys

Additional information

Weight 0.0985 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760354193
Product number (SAP): 86013485
Ordering code ANSI: C1268.5
Gross weight – grams: 34.8

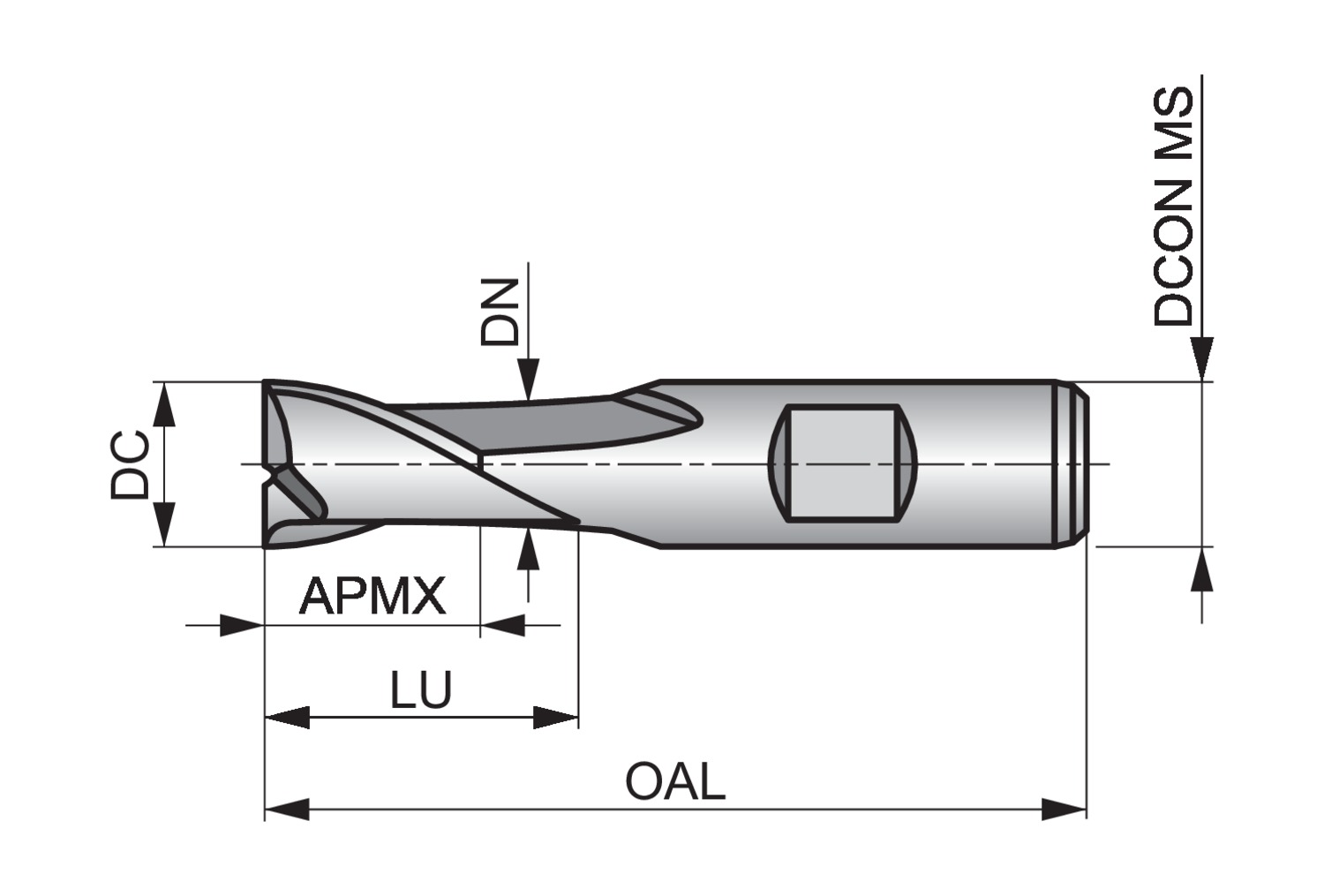

Cutting diameter – millimeter (DC): 8.5 mm
Connection diameter – millimeter (DCON MS): 10 mm
Depth of cut maximum – millimeter (APMX): 11 mm
Overall length – millimeter (OAL): 61 mm
Flute count (NOF): 2
Neck diameter – millimeter (DN): 8.5 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C1268.5

Brand

DORMER
