DORMER C13510.0 HSCO Cutters

Product Code: C13510.0

$84.98$77.25 Ex. GST

Product Code: C13510.0 SKU C13510.0 Categories , ,

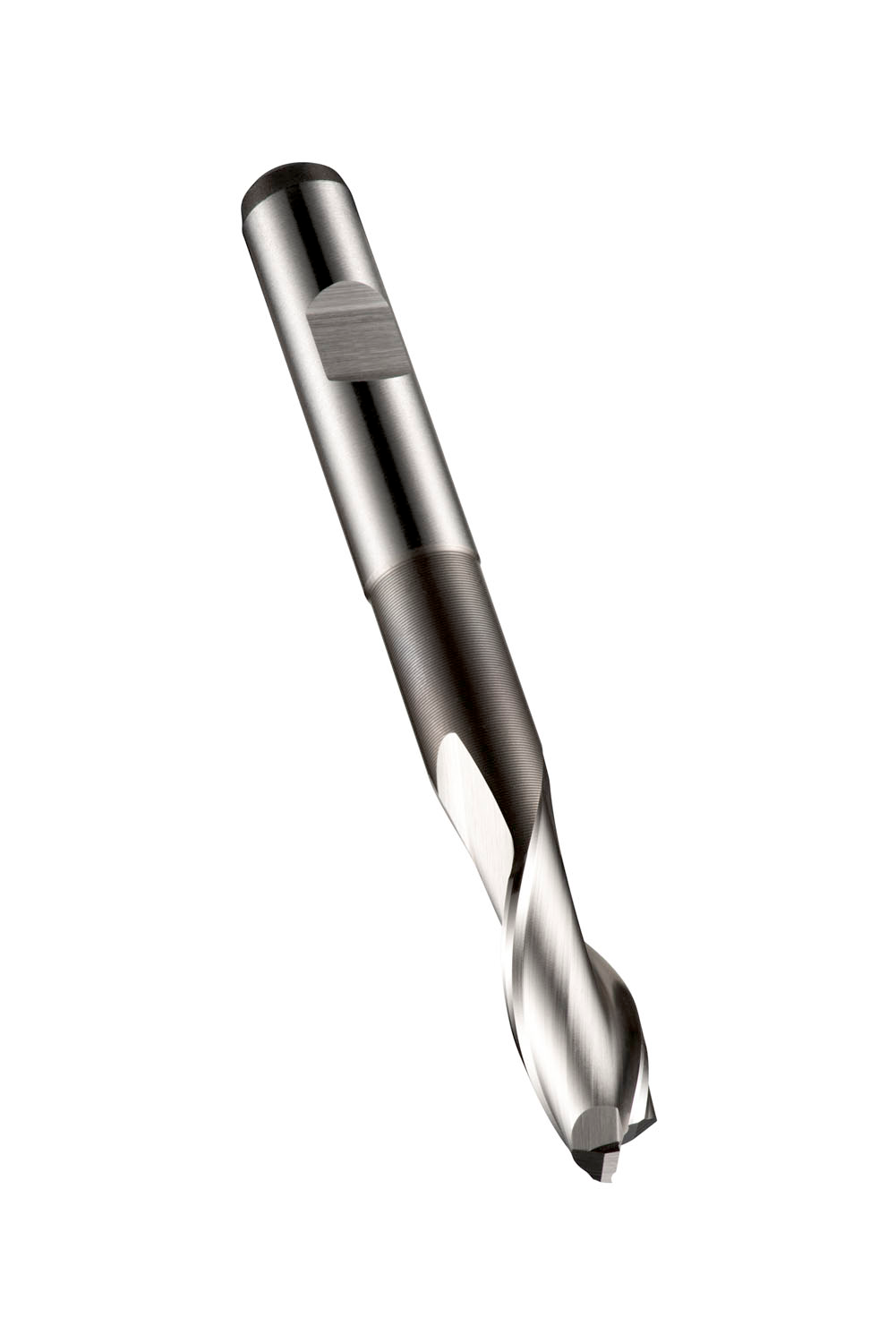

DORMER C13510.0 HSCO Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

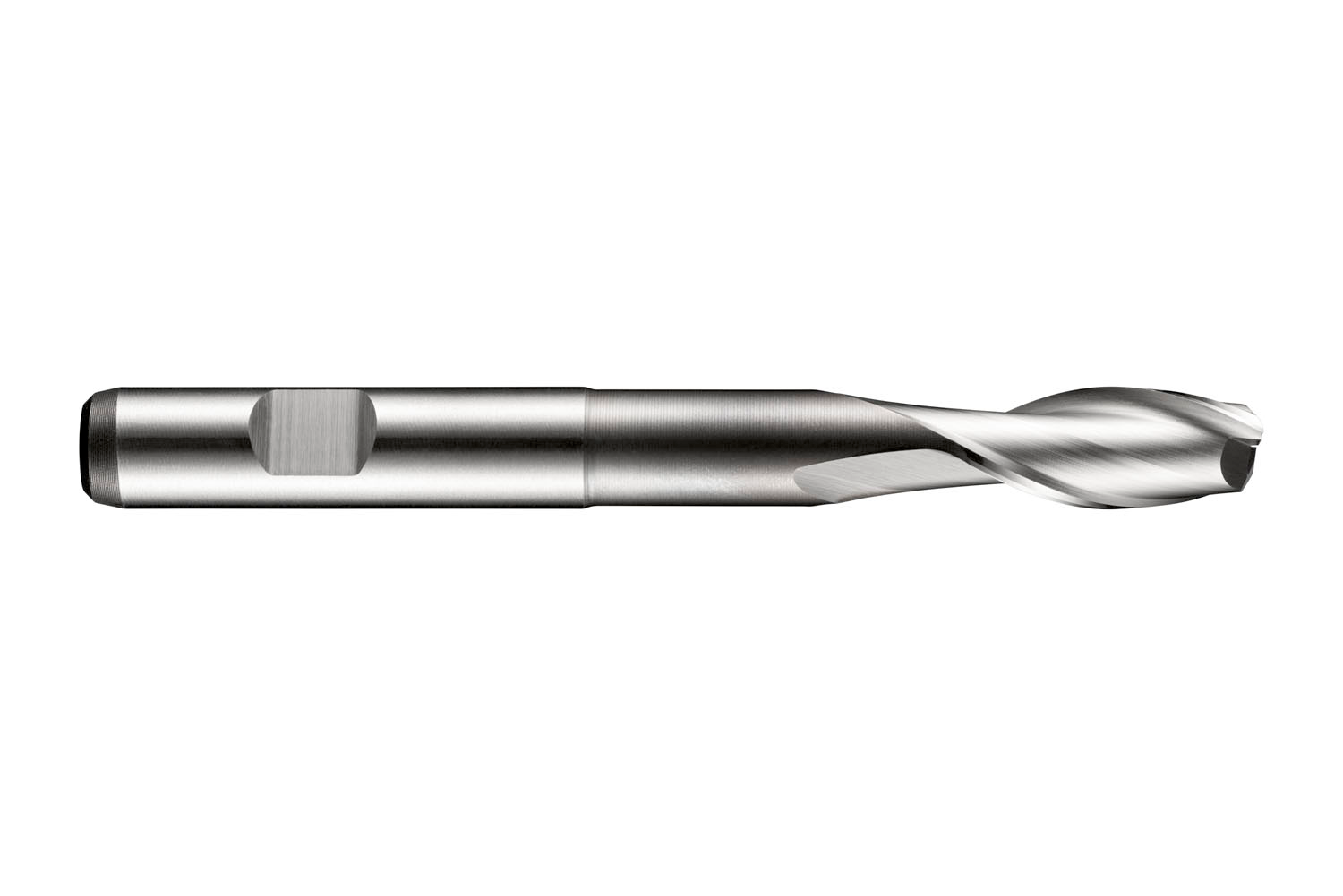

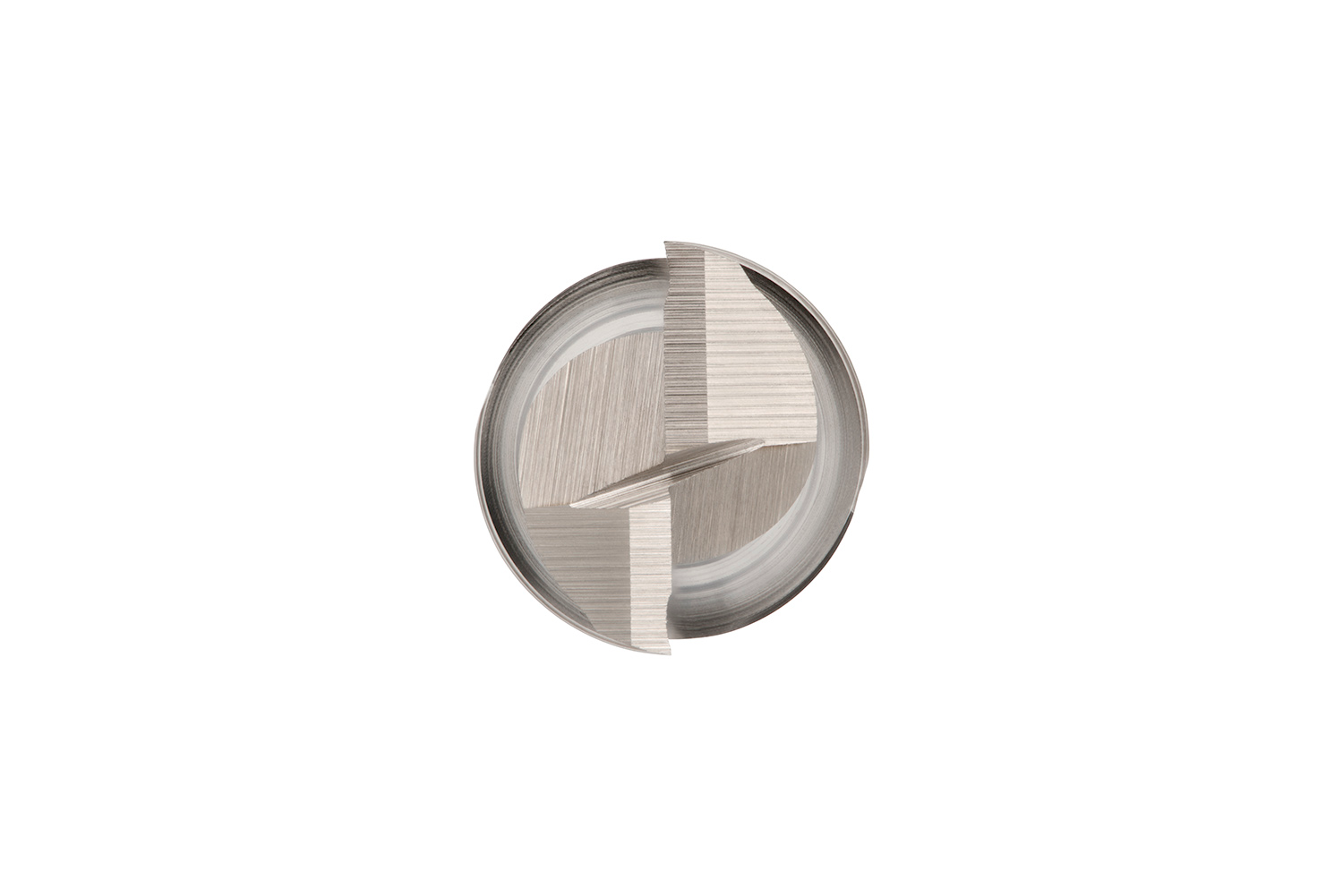

Short series slot drill with 2 flutes, diameter 10mm with 22mm length of cut, 95mm overall length and 54.5mm reach with neck relief, according to DORMER standard with a 10mm Weldon shank, cobalt based HSS-E with bright finish, 30° helix and 12° rake angle for slot milling in free machining steel and copper or copper alloys

Additional information

Weight 0.0825 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760057490
Product number (SAP): 86013489
Ordering code ANSI: C13510.0
Gross weight – grams: 56

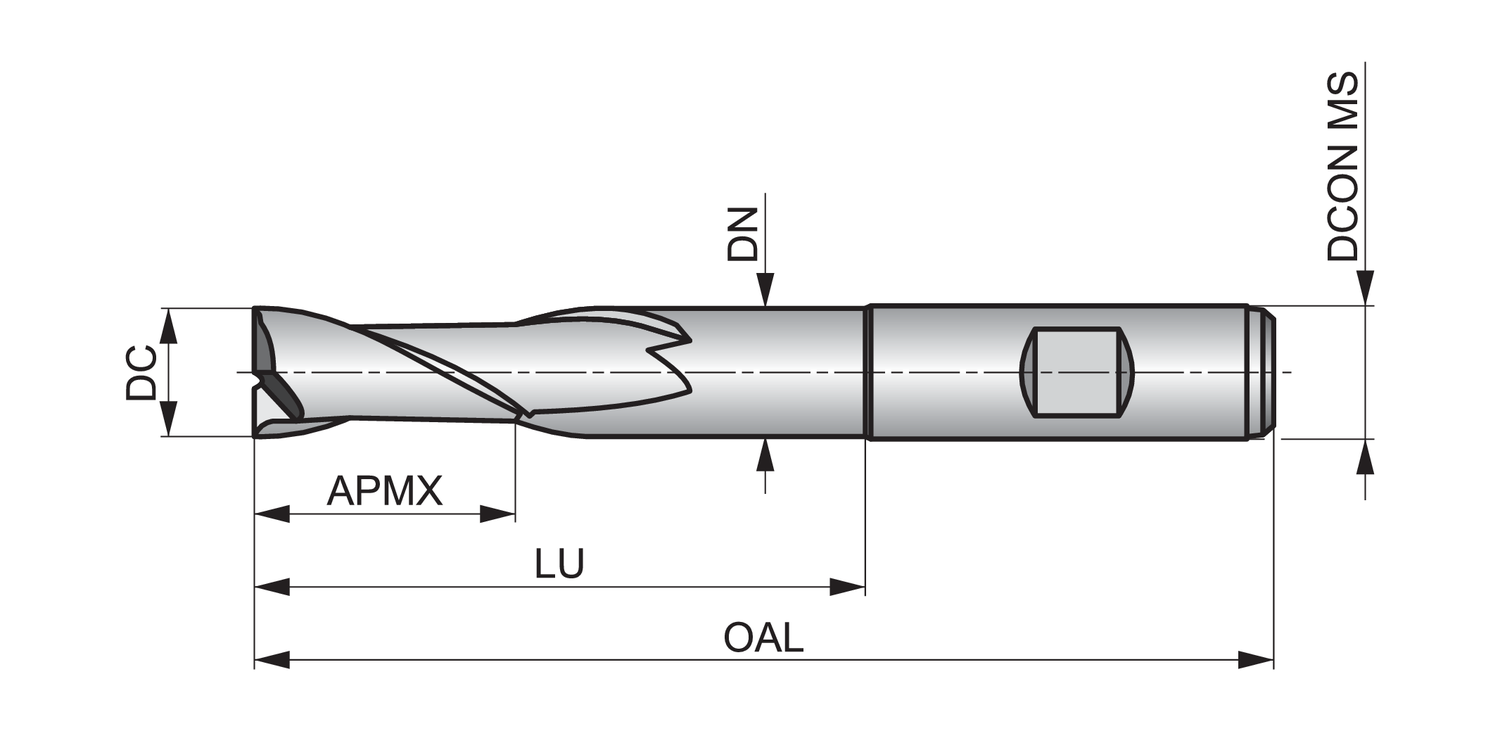

Cutting diameter – millimeter (DC): 10 mm
Connection diameter – millimeter (DCON MS): 10 mm
Depth of cut maximum – millimeter (APMX): 22 mm
Overall length – millimeter (OAL): 95 mm
Flute count (NOF): 2
Usable Length – millimeter (LU): 54.5 mm
Neck diameter – millimeter (DN): 9.5 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C13510.0

Brand

DORMER
