DORMER C13512.0 HSCO Cutters

Product Code: C13512.0

$99.70$90.64 Ex. GST

Product Code: C13512.0 SKU C13512.0 Categories , ,
DORMER C13512.0 HSCO Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

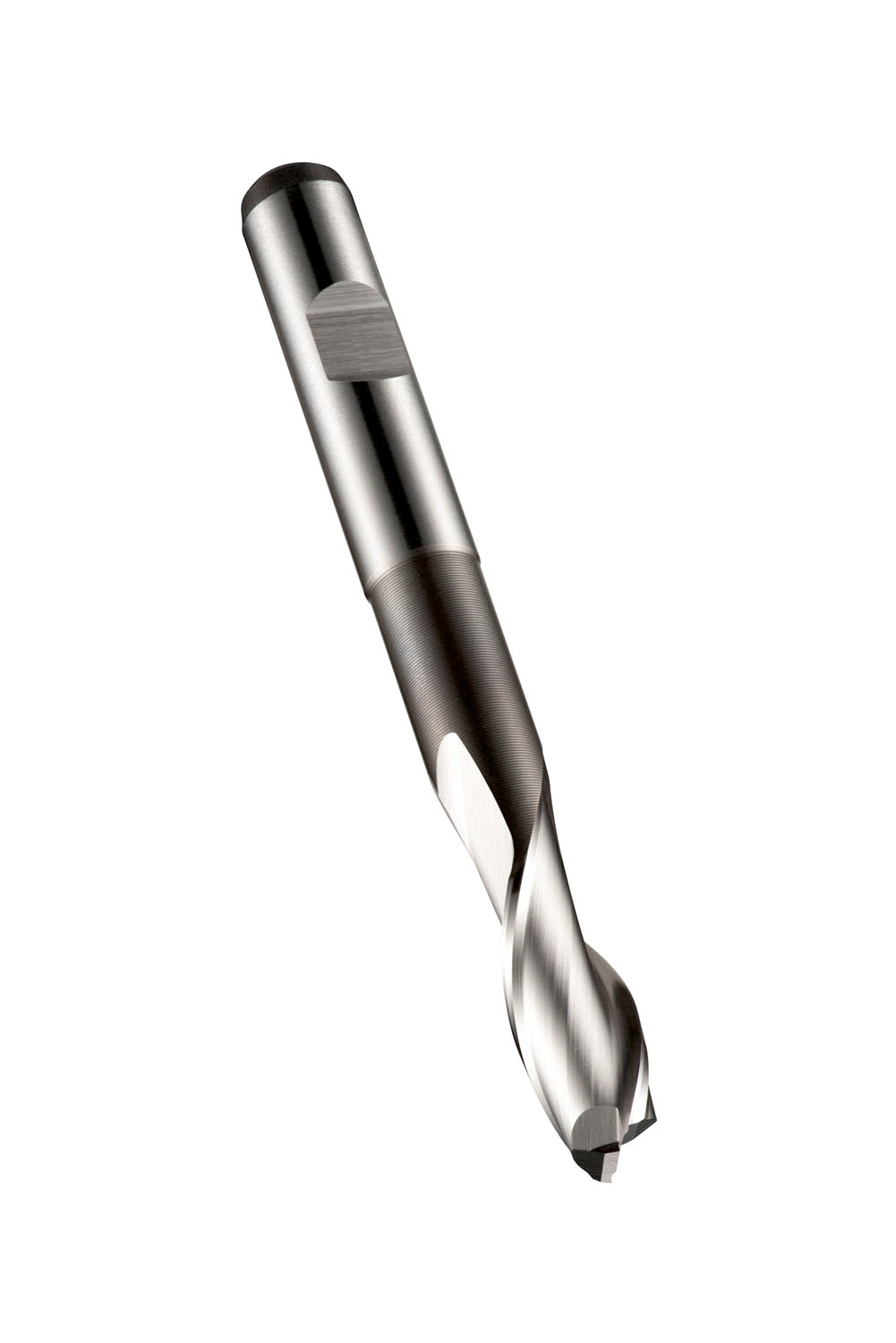

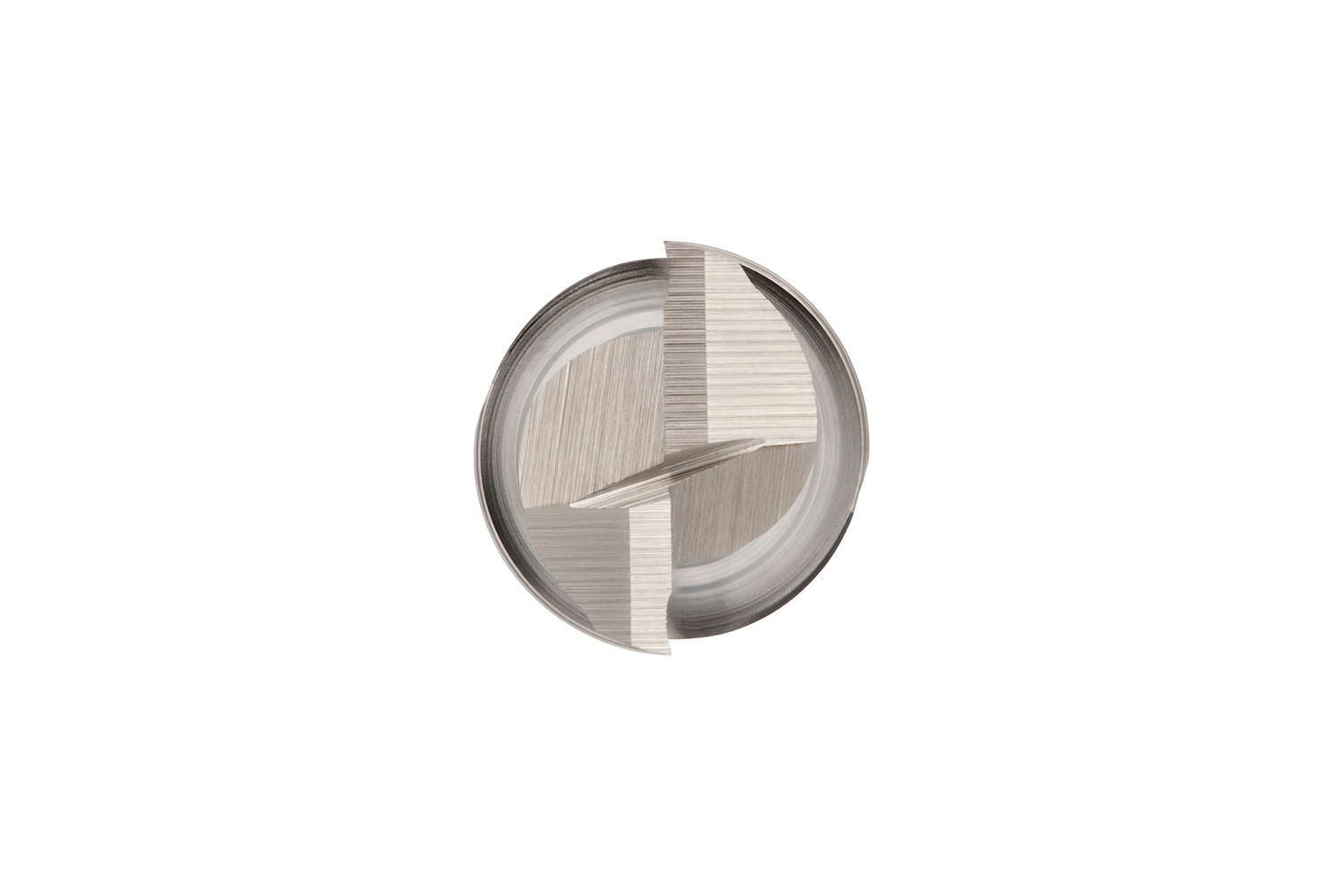

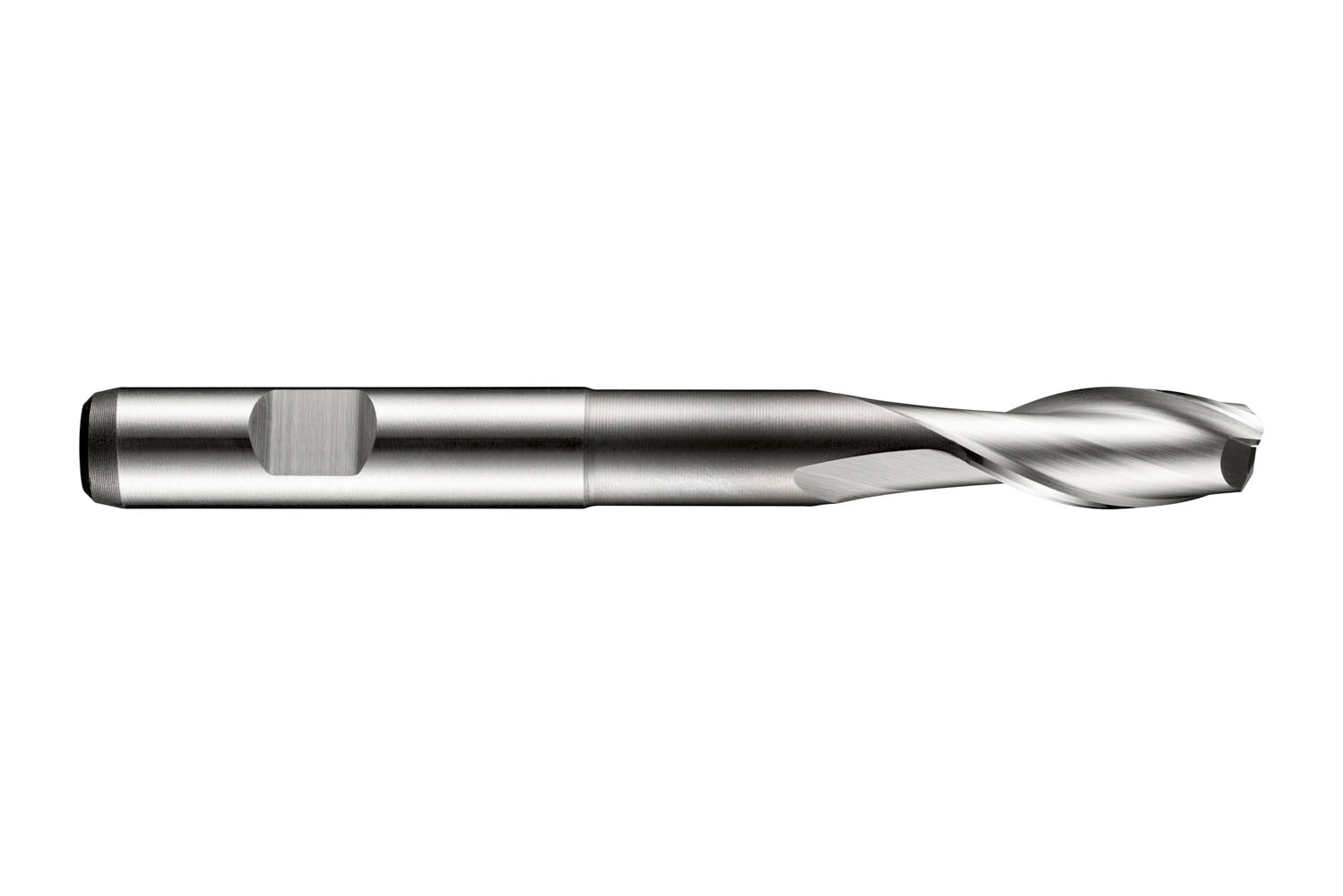

Short series slot drill with 2 flutes, diameter 12mm with 26mm length of cut, 110mm overall length and 64.5mm reach with neck relief, according to DORMER standard with a 12mm Weldon shank, cobalt based HSS-E with bright finish, 30° helix and 12° rake angle for slot milling in free machining steel and copper or copper alloys

Additional information

Weight 0.0968 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760057513
Product number (SAP): 86013491
Ordering code ANSI: C13512.0
Gross weight – grams: 88.7

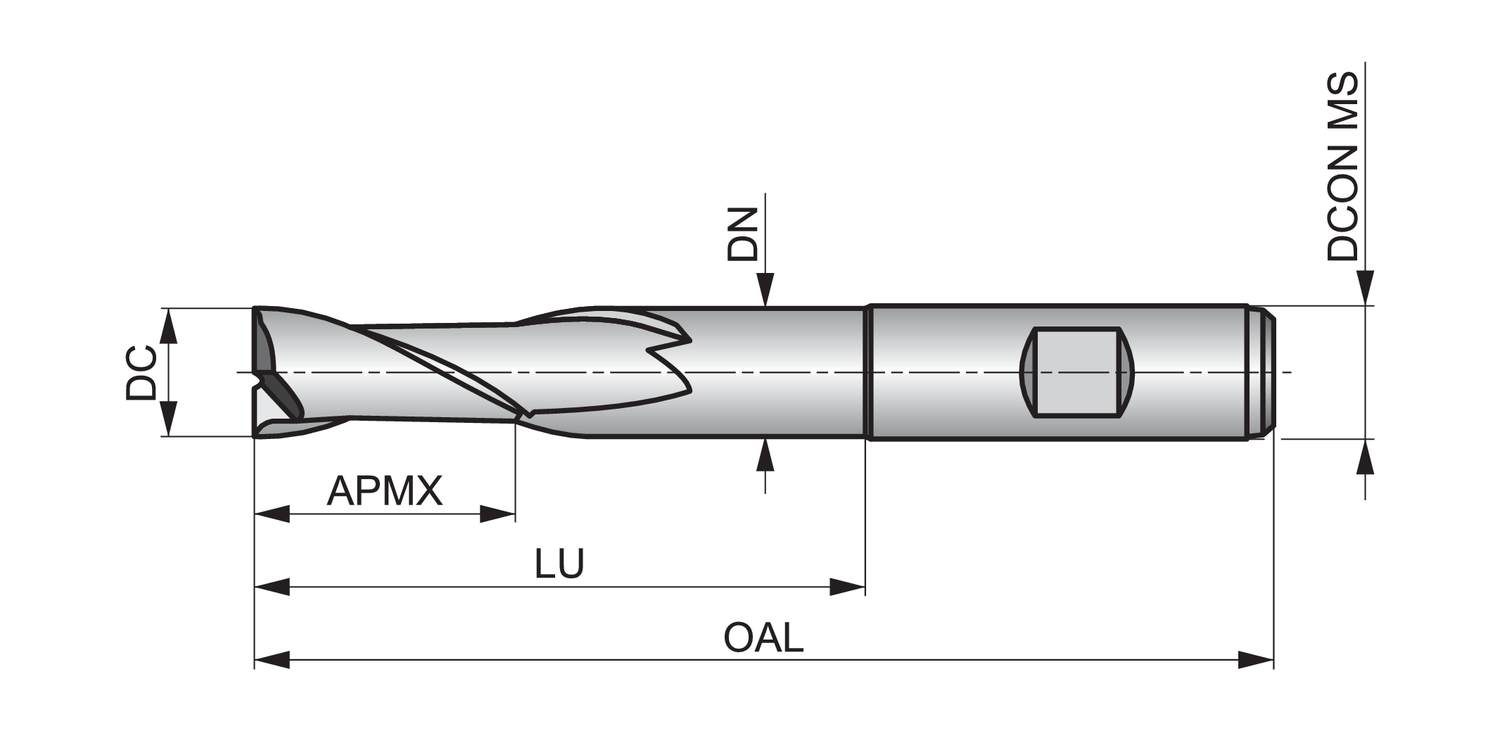

Cutting diameter – millimeter (DC): 12 mm
Connection diameter – millimeter (DCON MS): 12 mm
Depth of cut maximum – millimeter (APMX): 26 mm
Overall length – millimeter (OAL): 110 mm
Flute count (NOF): 2
Usable Length – millimeter (LU): 64.5 mm
Neck diameter – millimeter (DN): 11.5 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C13512.0

Brand

DORMER
