DORMER C1352.0 HSCO Cutters

Product Code: C1352.0

$64.58$58.71 Ex. GST

Product Code: C1352.0 SKU C1352.0 Categories , ,
DORMER C1352.0 HSCO Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Short series slot drill with 2 flutes, diameter 2mm with 7mm length of cut, 54mm overall length and 18mm reach with neck relief, according to DORMER standard with a 6mm Weldon shank, cobalt based HSS-E with bright finish, 30° helix and 12° rake angle for slot milling in free machining steel and copper or copper alloys

Additional information

Weight 0.0627 kg
Dimensions
barcode
Additional Information

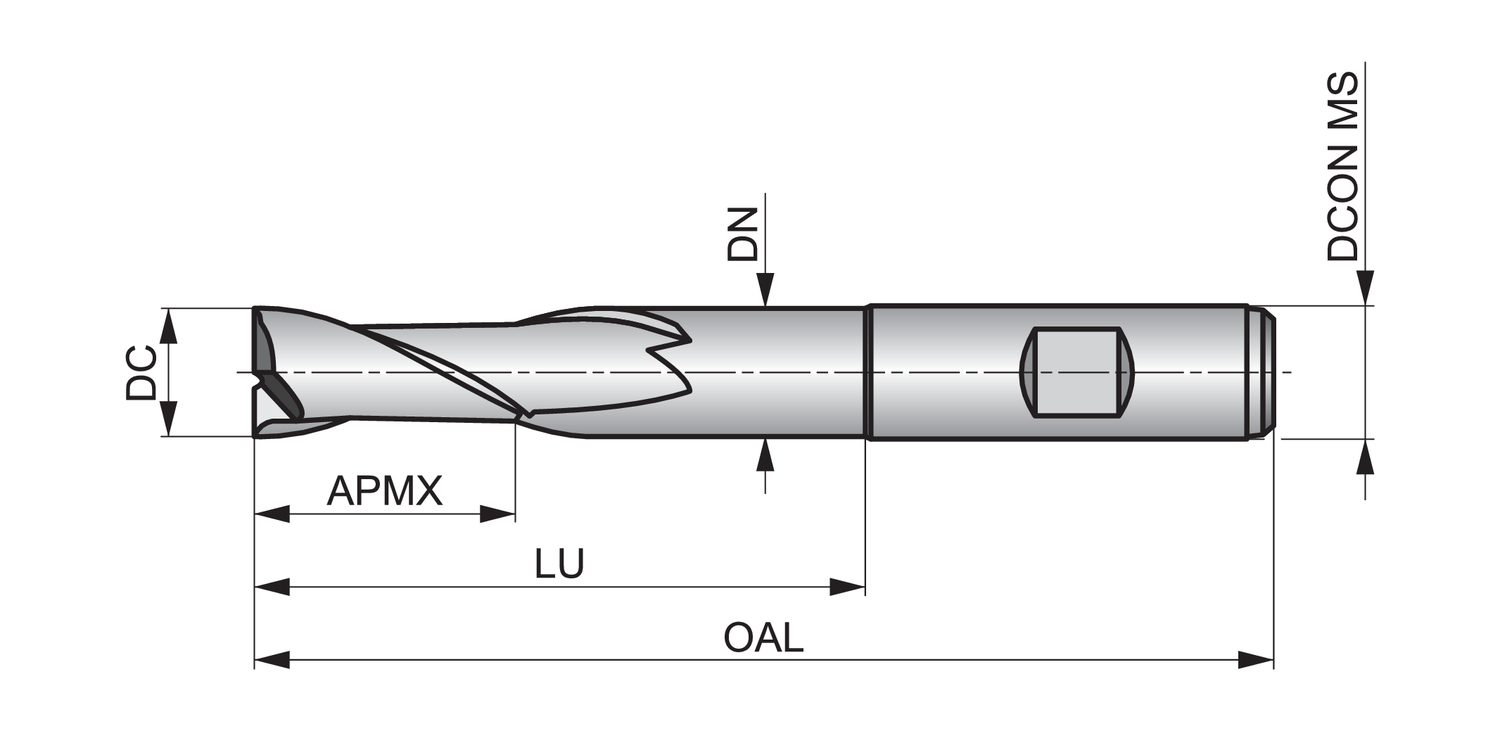

Description: Value
EAN number: 7320760057599
Product number (SAP): 86013499
Ordering code ANSI: C1352.0
Gross weight – grams: 11.1
Cutting diameter – millimeter (DC): 2 mm
Connection diameter – millimeter (DCON MS): 6 mm
Depth of cut maximum – millimeter (APMX): 7 mm
Overall length – millimeter (OAL): 54 mm
Flute count (NOF): 2
Usable Length – millimeter (LU): 18 mm
Neck diameter – millimeter (DN): 1.8 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C1352.0

Brand

DORMER
