DORMER C13520.0 HSCO Cutters

Product Code: C13520.0

$198.28$180.25 Ex. GST

Product Code: C13520.0 SKU C13520.0 Categories , ,
DORMER C13520.0 HSCO Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

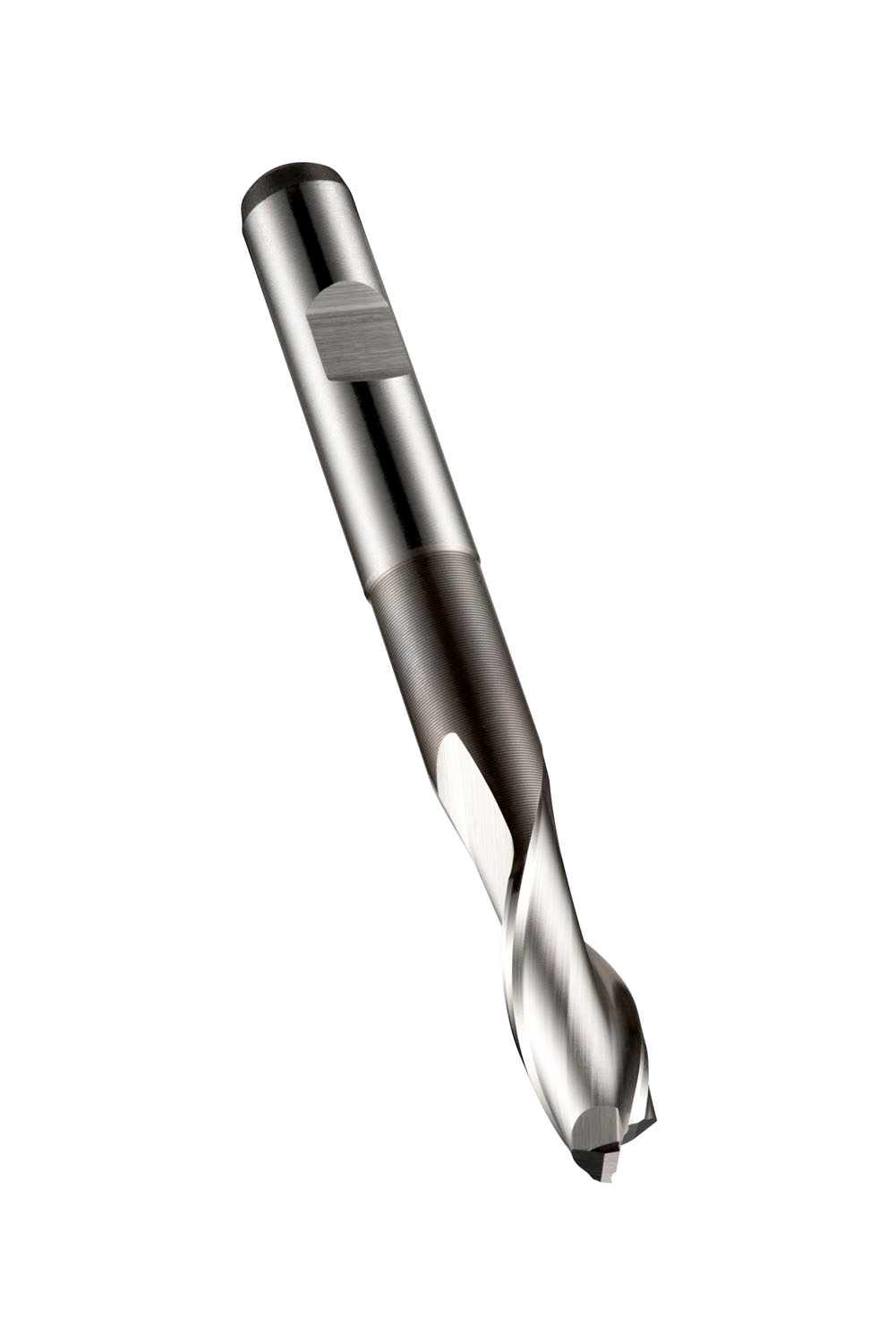

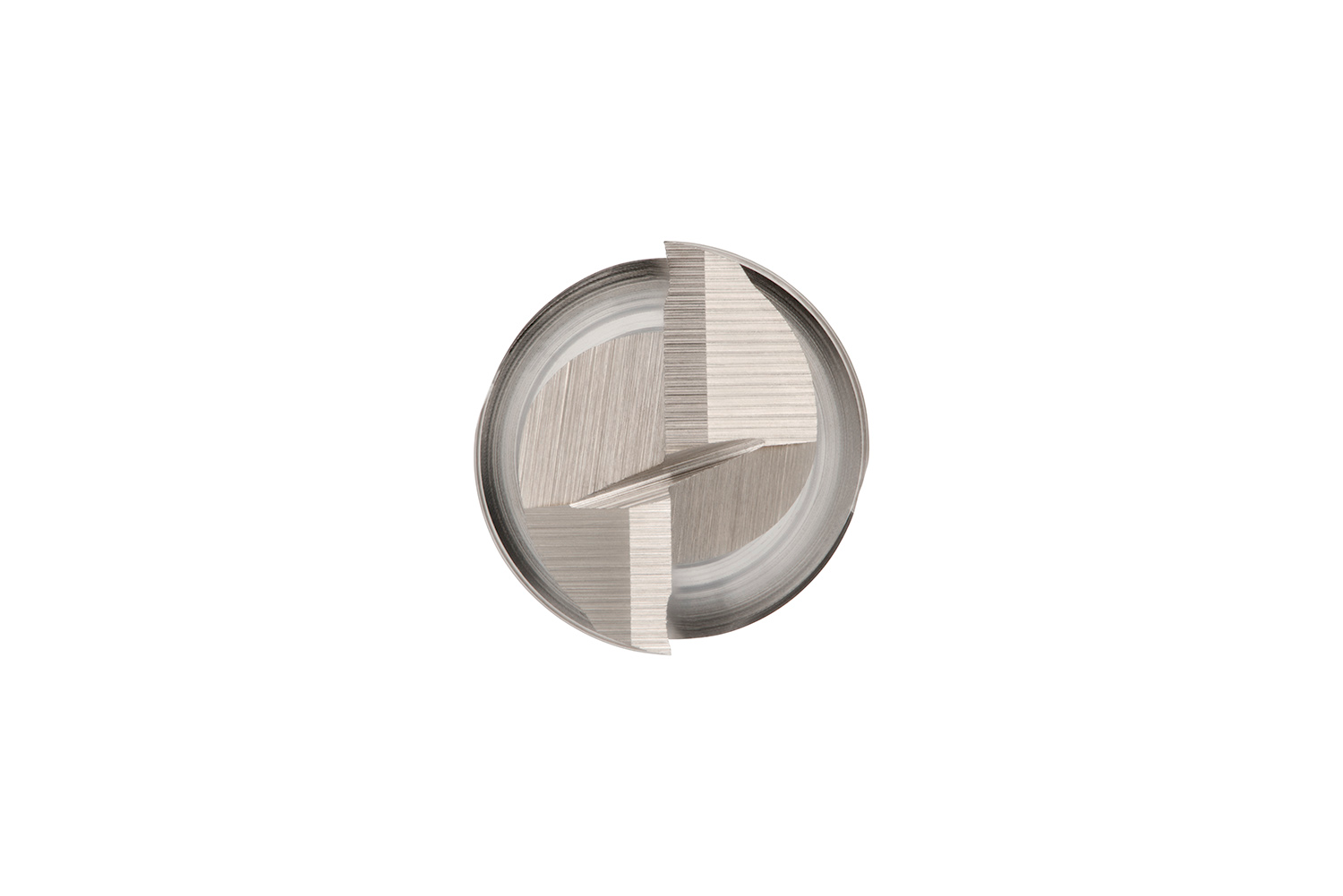

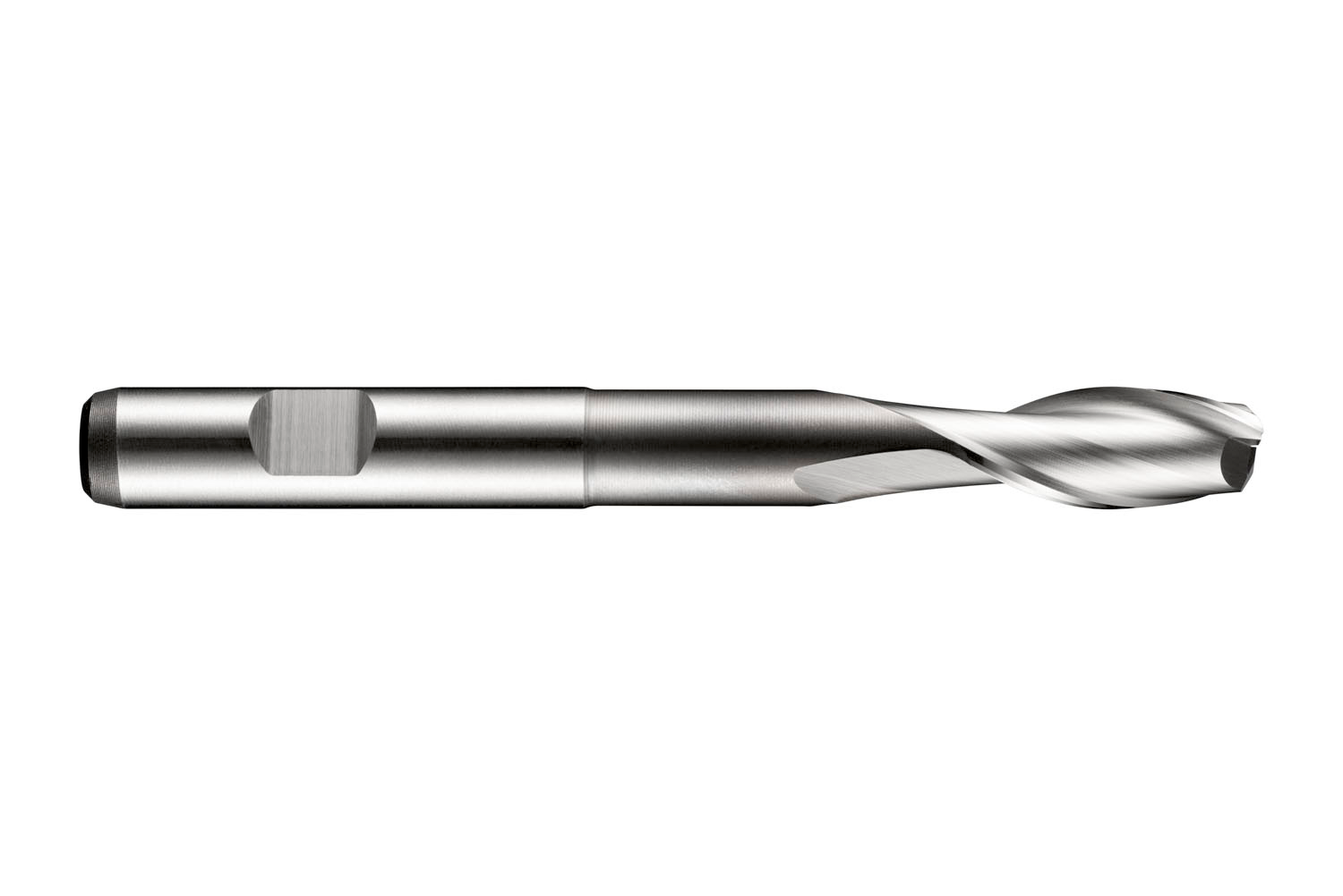

Short series slot drill with 2 flutes, diameter 20mm with 38mm length of cut, 141mm overall length and 90.5mm reach with neck relief, according to DORMER standard with a 20mm Weldon shank, cobalt based HSS-E with bright finish, 30° helix and 12° rake angle for slot milling in free machining steel and copper or copper alloys

Additional information

Weight 0.1925 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760057605
Product number (SAP): 86013500
Ordering code ANSI: C13520.0
Gross weight – grams: 309

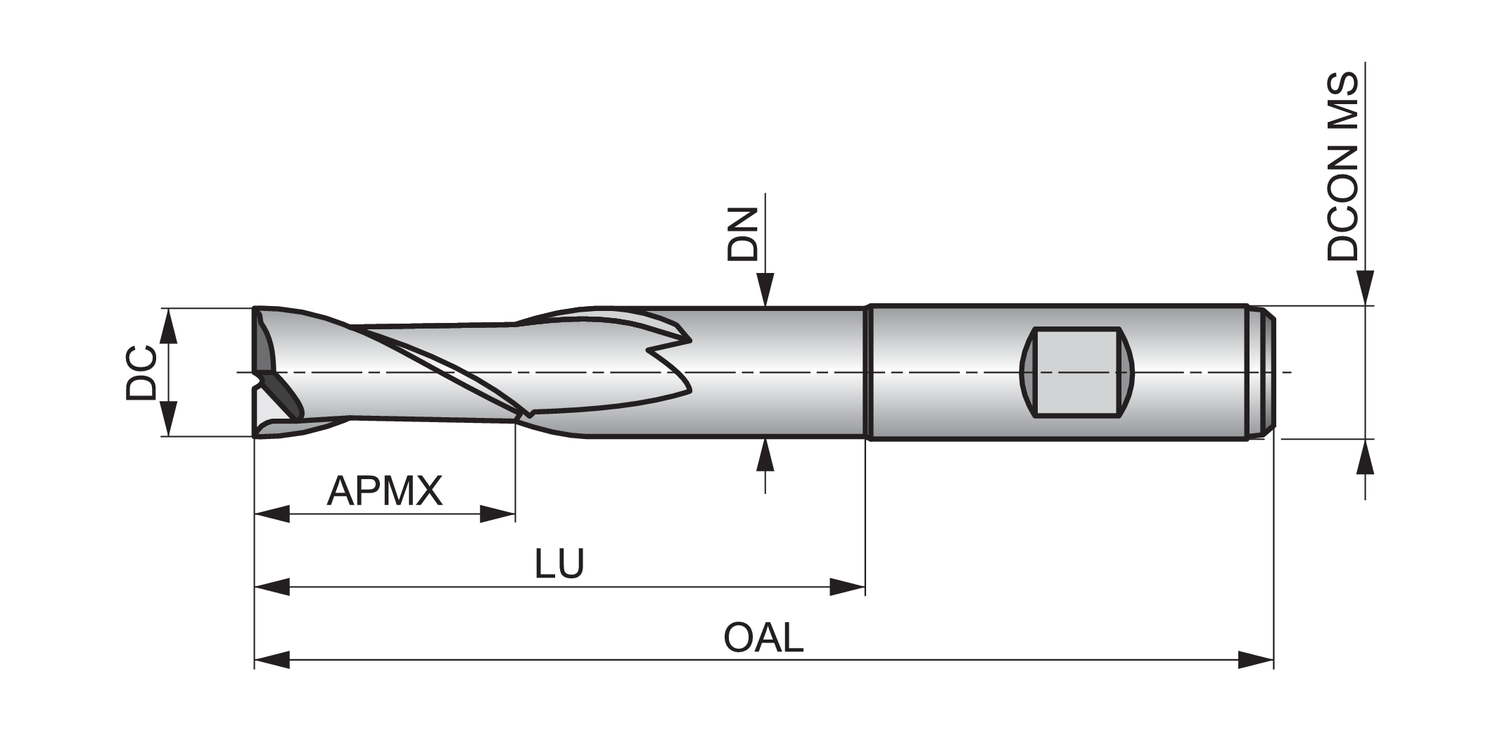

Cutting diameter – millimeter (DC): 20 mm
Connection diameter – millimeter (DCON MS): 20 mm
Depth of cut maximum – millimeter (APMX): 38 mm
Overall length – millimeter (OAL): 141 mm
Flute count (NOF): 2
Usable Length – millimeter (LU): 90.5 mm
Neck diameter – millimeter (DN): 19.5 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C13520.0

Brand

DORMER
