DORMER C1355.0 HSCO Cutters

Product Code: C1355.0

$60.62$55.11 Ex. GST

Product Code: C1355.0 SKU C1355.0 Categories , ,

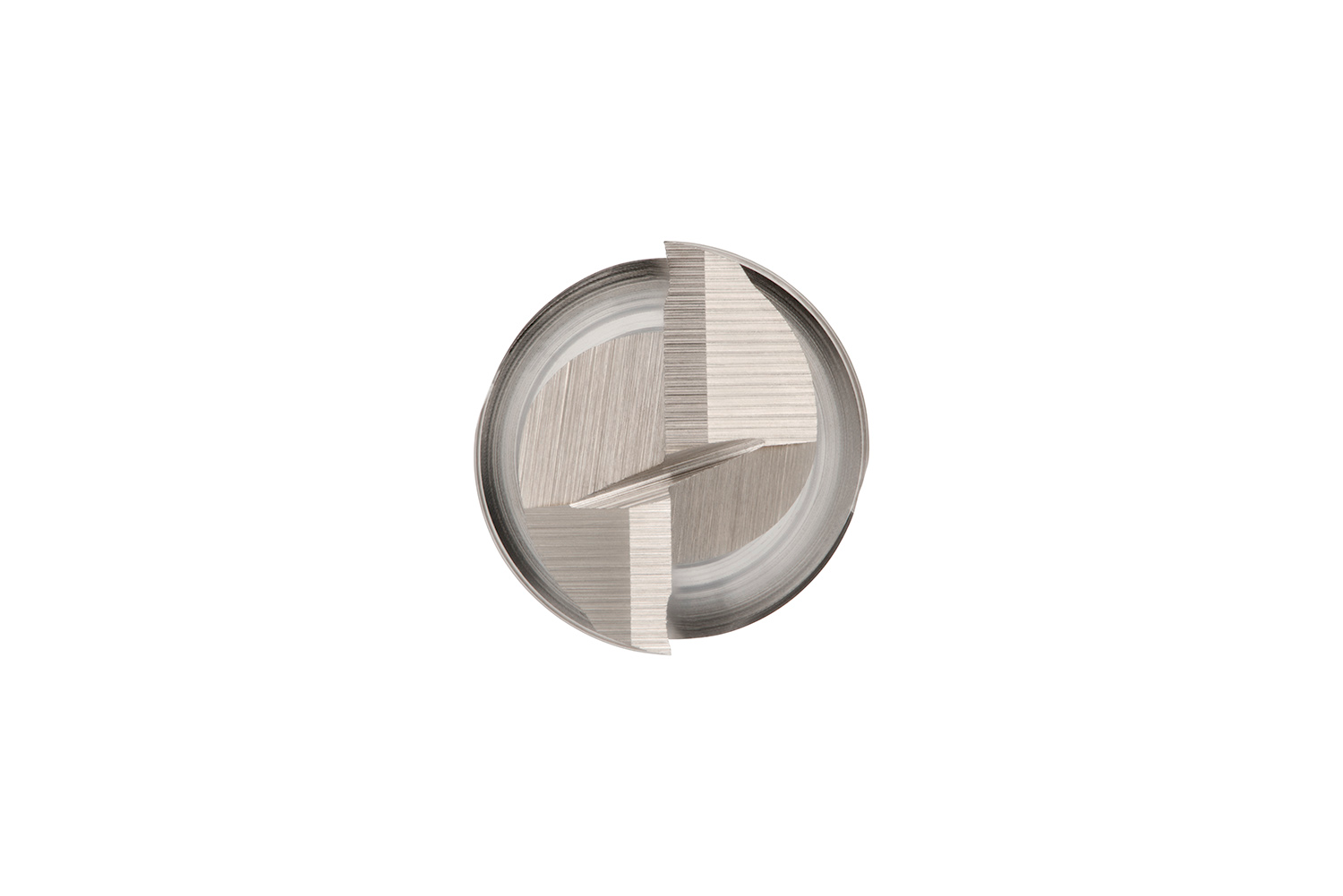

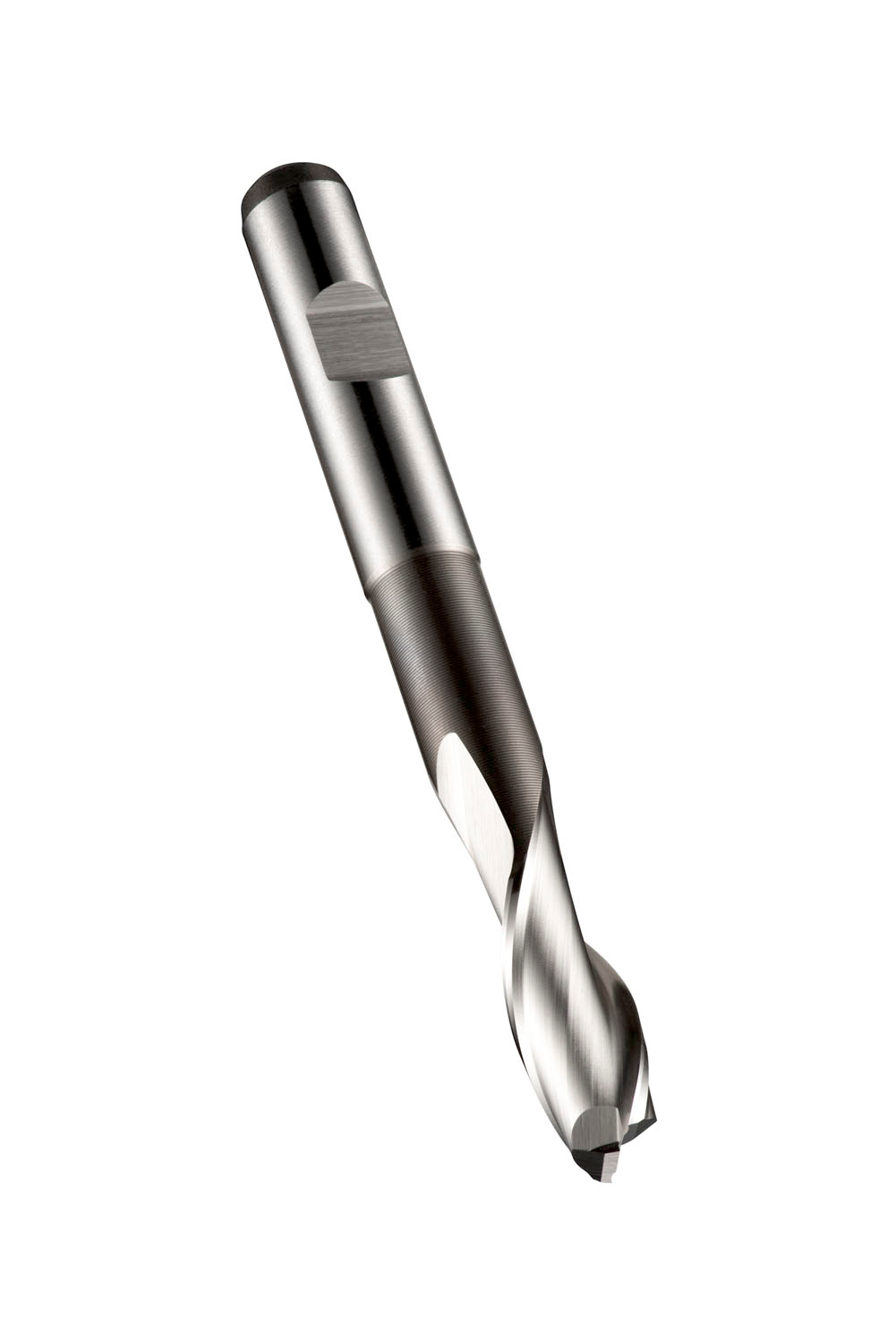

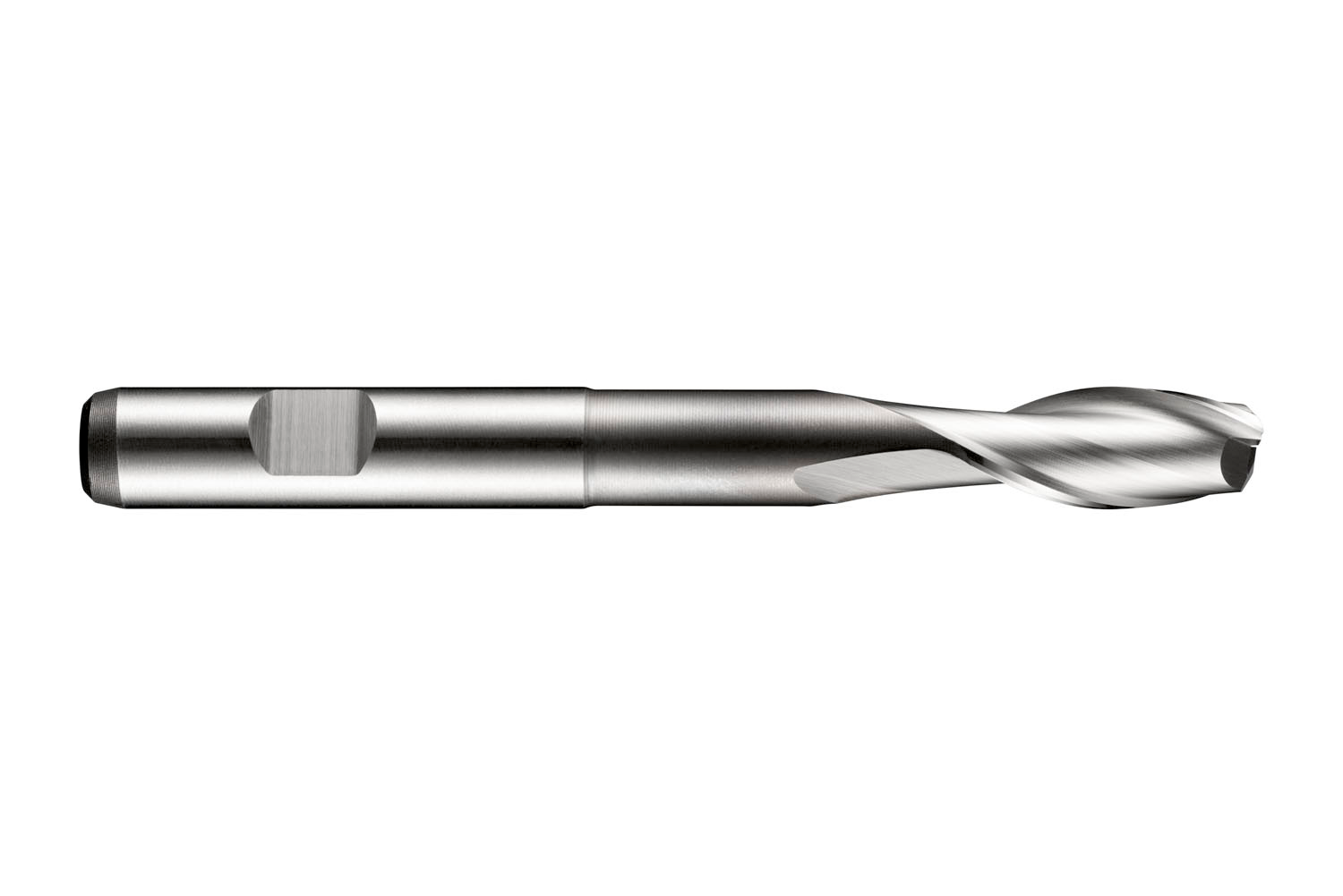

DORMER C1355.0 HSCO Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Short series slot drill with 2 flutes, diameter 5mm with 13mm length of cut, 68mm overall length and 32mm reach with neck relief, according to DORMER standard with a 6mm Weldon shank, cobalt based HSS-E with bright finish, 30° helix and 12° rake angle for slot milling in free machining steel and copper or copper alloys

Additional information

Weight 0.0588 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760057650
Product number (SAP): 86013505
Ordering code ANSI: C1355.0
Gross weight – grams: 14.2

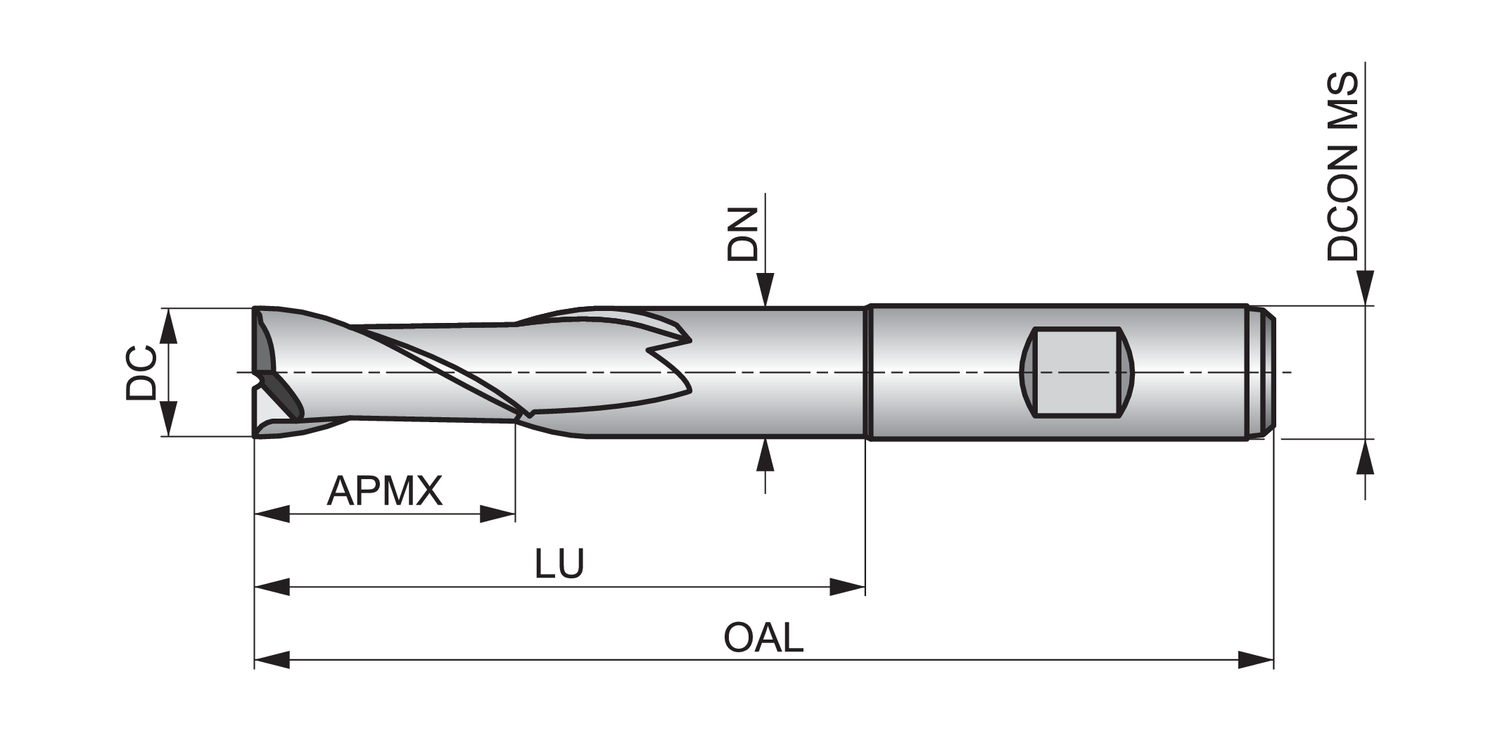

Cutting diameter – millimeter (DC): 5 mm
Connection diameter – millimeter (DCON MS): 6 mm
Depth of cut maximum – millimeter (APMX): 13 mm
Overall length – millimeter (OAL): 68 mm
Flute count (NOF): 2
Usable Length – millimeter (LU): 32 mm
Neck diameter – millimeter (DN): 4.7 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C1355.0

Brand

DORMER
