DORMER C13912.0 HSCO Cutters

Product Code: C13912.0

$121.23$110.21 Ex. GST

Product Code: C13912.0 SKU C13912.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

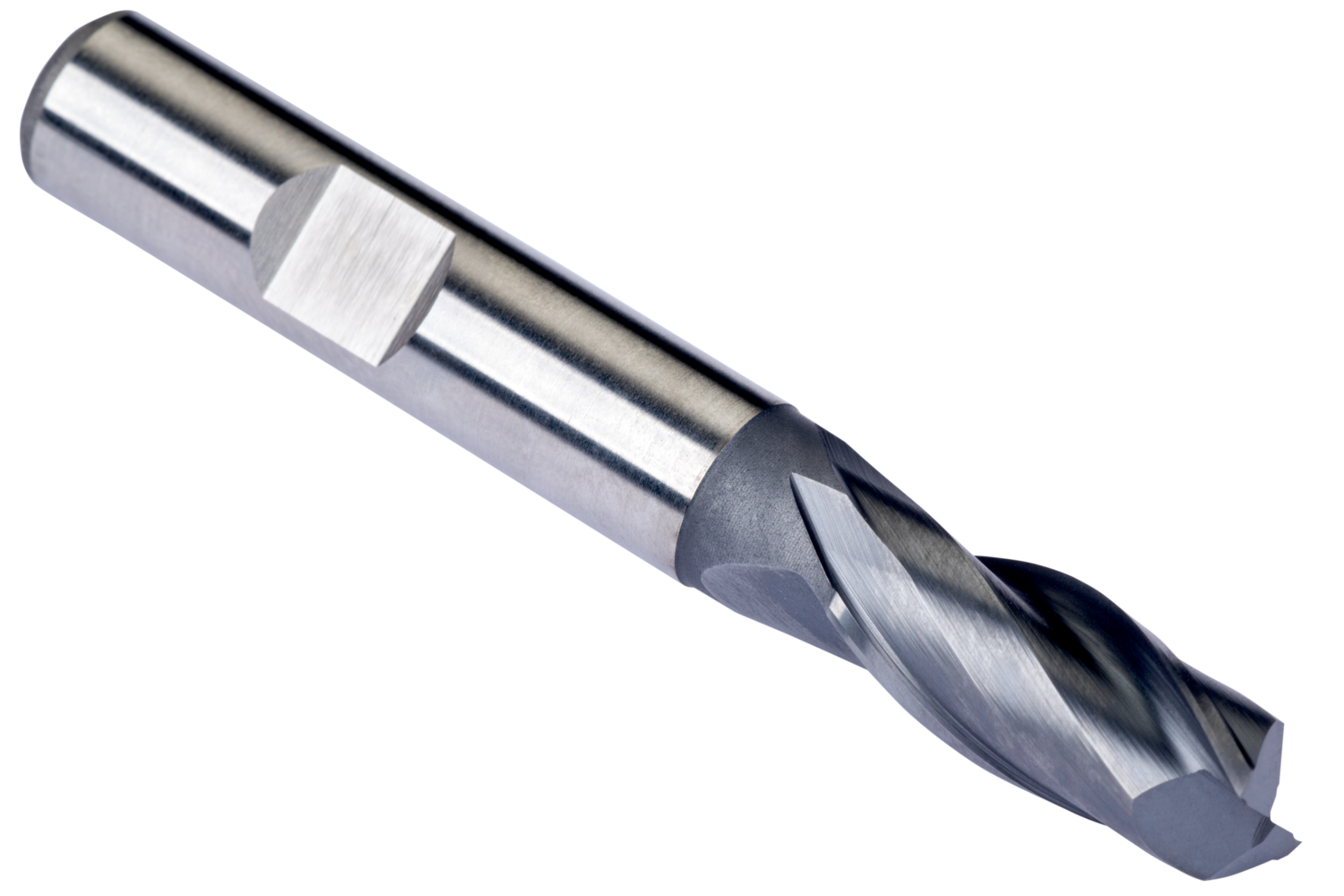

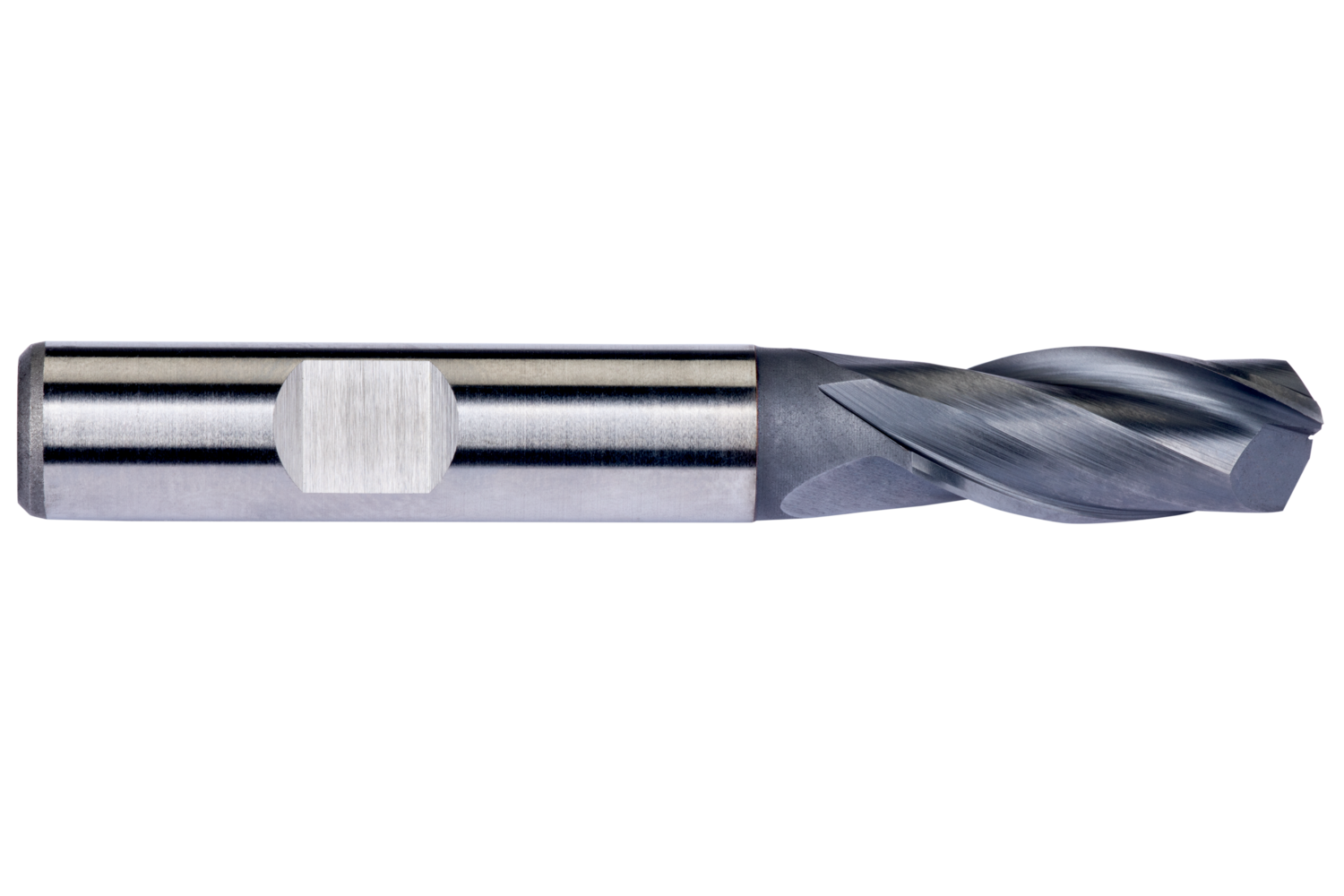

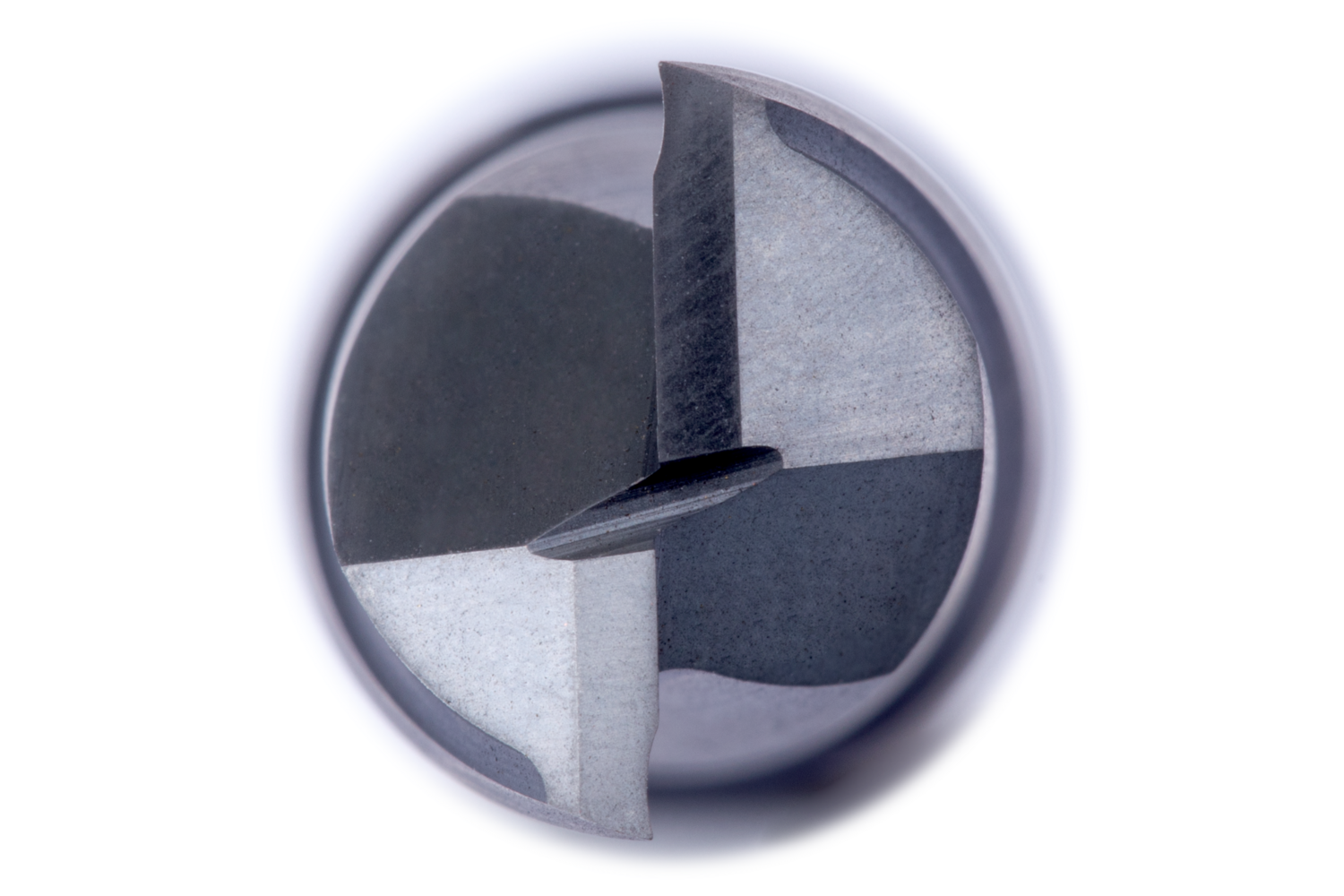

Short series slot drill with 2 flutes, diameter 12mm with 26mm length of cut, 83mm overall length and 37.5mm reach with neck relief, according to DIN 844 K standard with a 12mm Weldon shank, powder metallurgical HSS-E with TiCN coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining, plain carbon and alloy steel, cast-iron, copper or copper alloys and titanium or titanium alloys

Additional information

Weight 0.1177 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760354247
Product number (SAP): 86013512
Ordering code ANSI: C13912.0
Gross weight – grams: 68.1

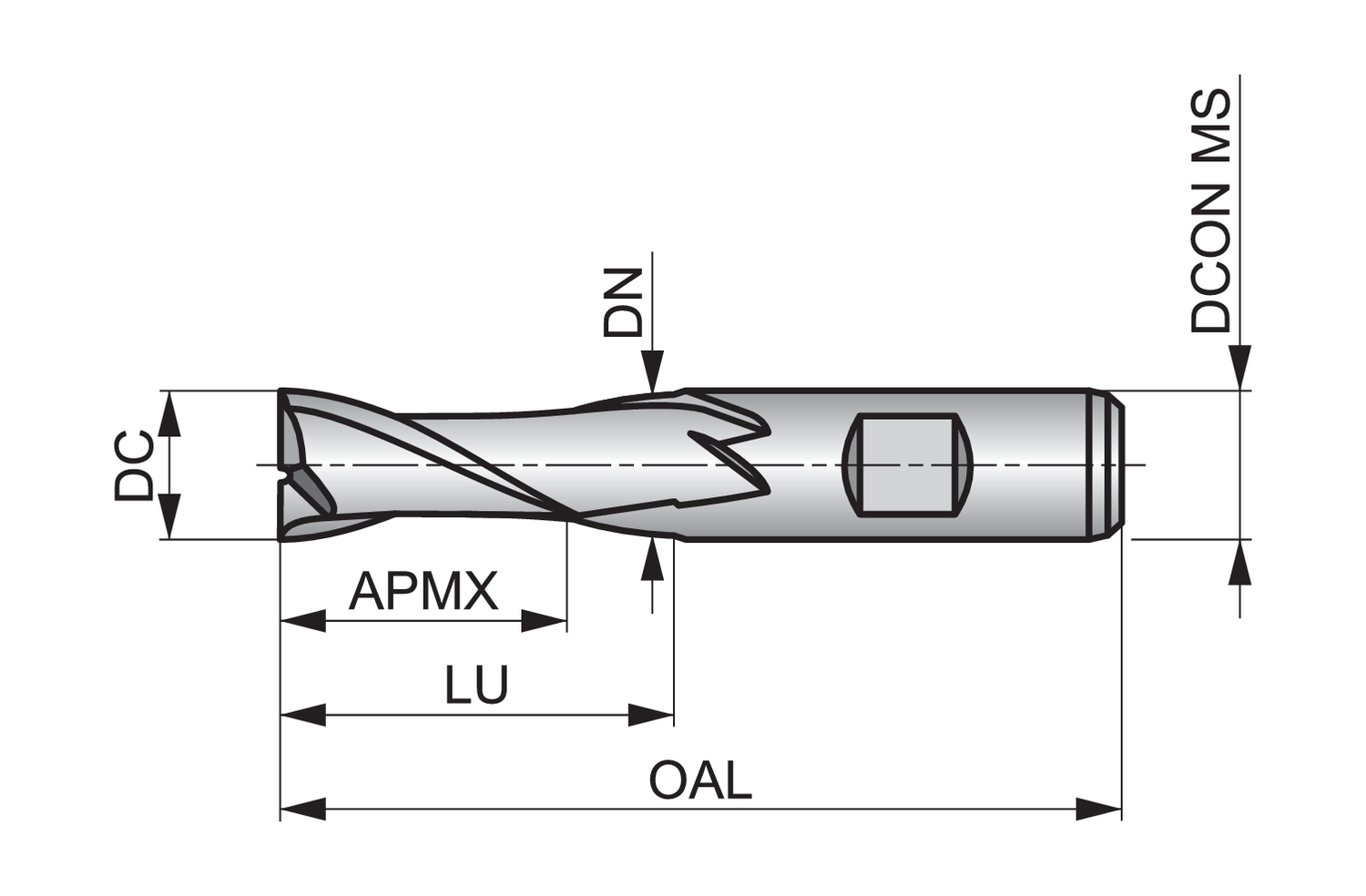

Cutting diameter – millimeter (DC): 12 mm
Connection diameter – millimeter (DCON MS): 12 mm
Depth of cut maximum – millimeter (APMX): 26 mm
Overall length – millimeter (OAL): 83 mm
Flute count (NOF): 2
Usable Length – millimeter (LU): 37.5 mm
Neck diameter – millimeter (DN): 11.5 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C13912.0
