DORMER C15912.0 HSCO Cutters

Product Code: C15912.0

$86.68$78.80 Ex. GST

Product Code: C15912.0 SKU C15912.0 Categories , ,
DORMER C15912.0 HSCO Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

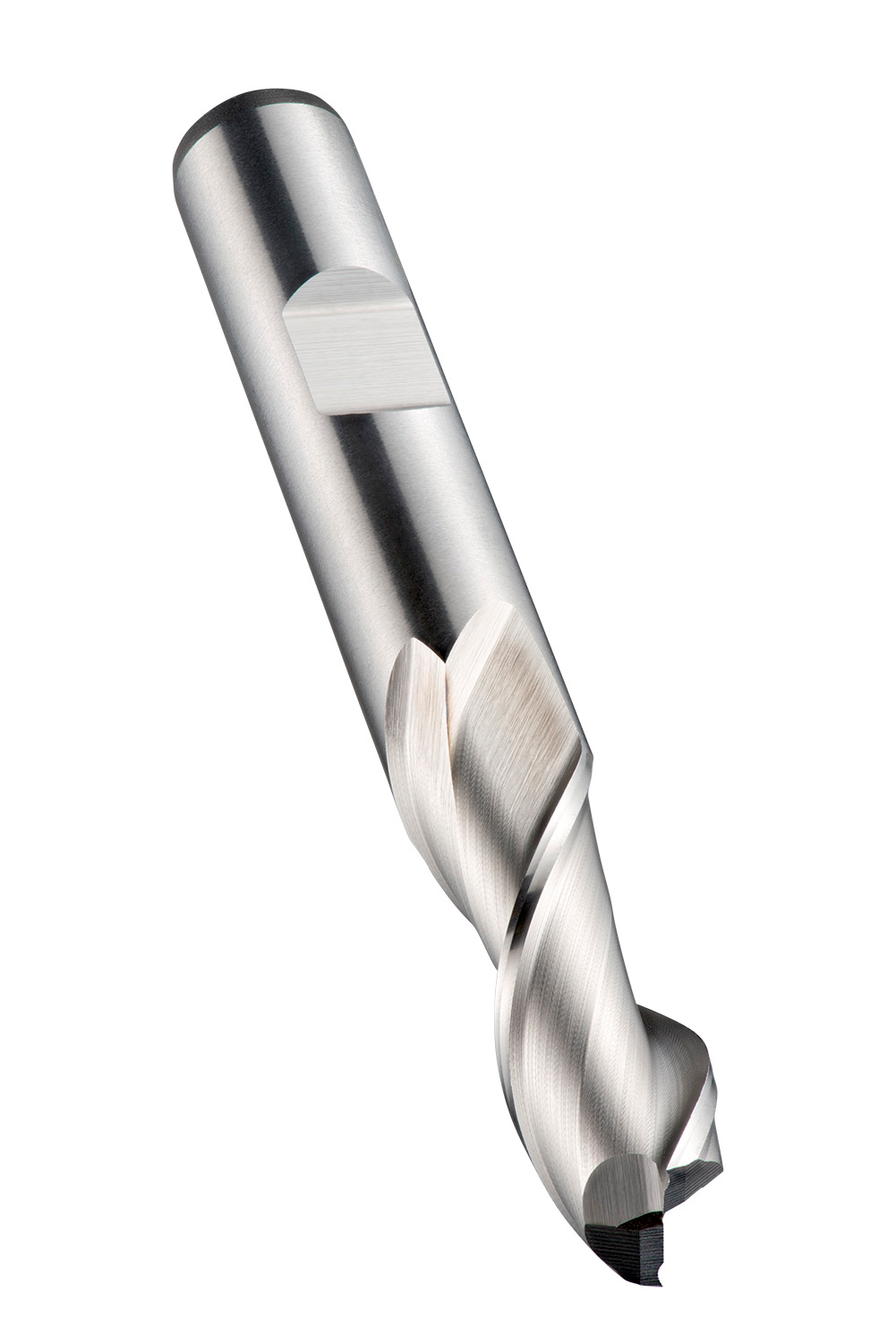

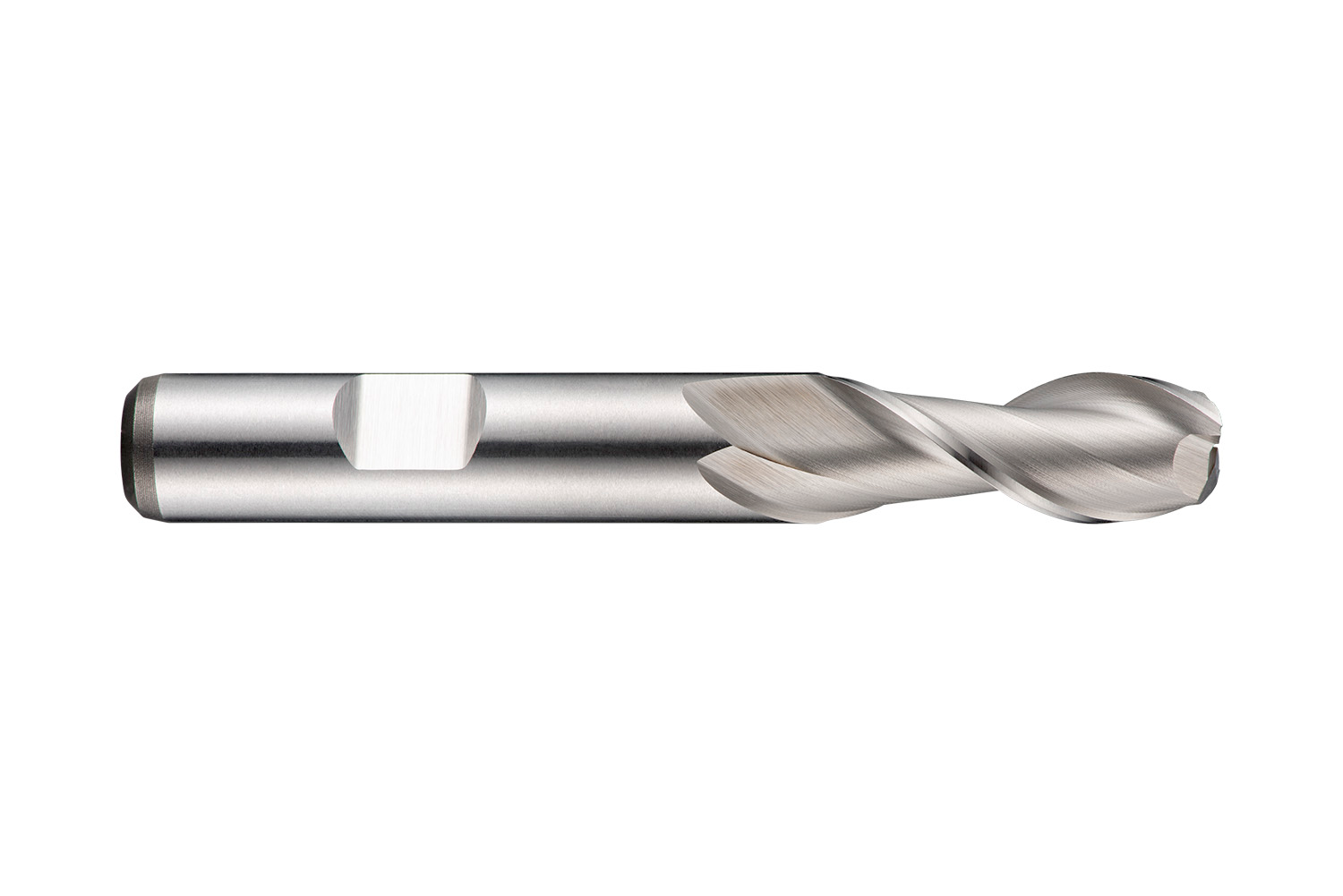

Short series slot drill with 2 flutes, diameter 12mm with 26mm length of cut and 83mm overall length, according to DIN 844 K standard with a 12mm Weldon shank, cobalt based HSS-E with bright finish, 40° helix and 20° rake angle for shoulder milling, slot milling and ramping in non-ferrous metals

Additional information

Weight 0.0842 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760059500
Product number (SAP): 86013540
Ordering code ANSI: C15912.0
Gross weight – grams: 66.1

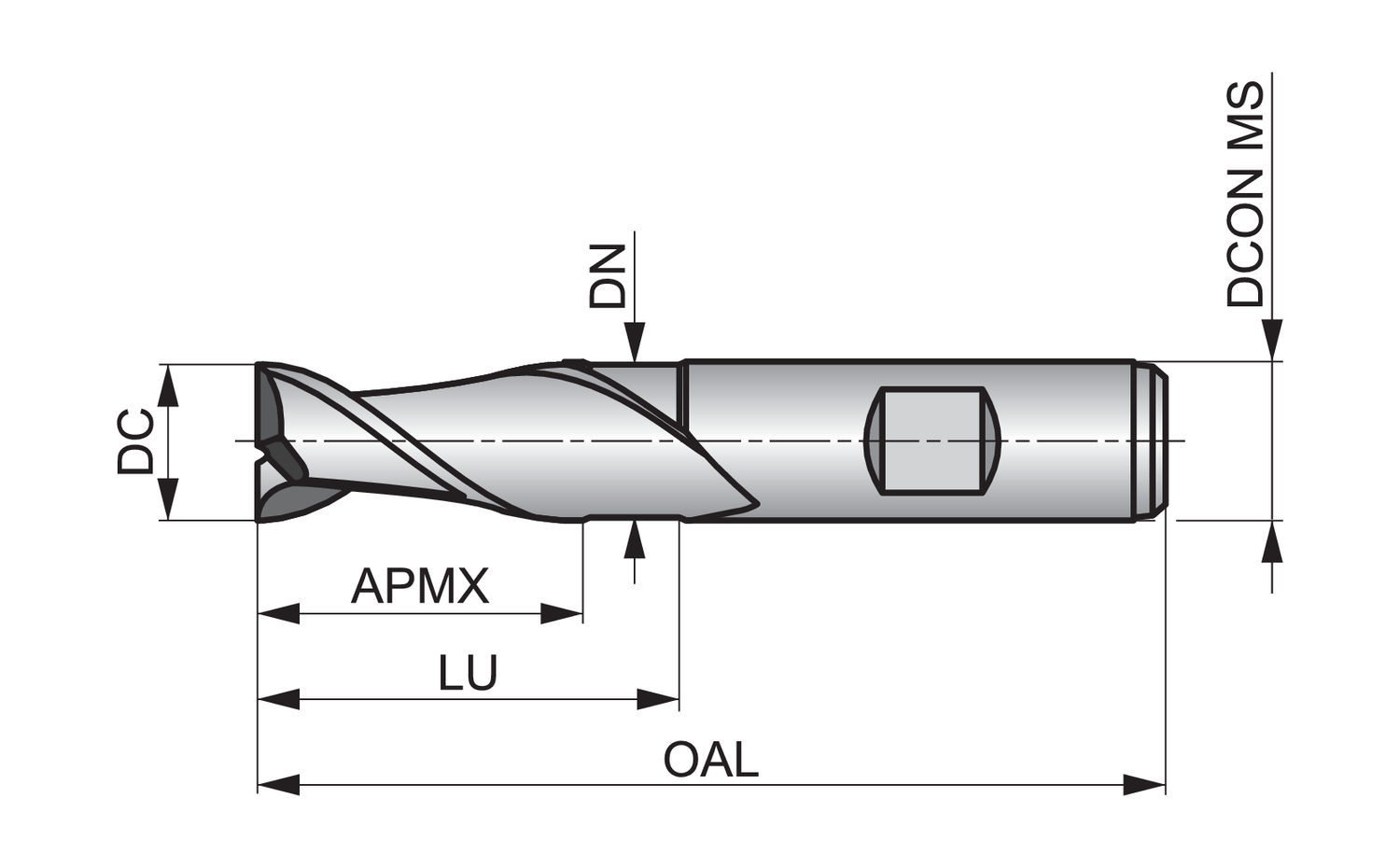

Cutting diameter – millimeter (DC): 12 mm
Connection diameter – millimeter (DCON MS): 12 mm
Depth of cut maximum – millimeter (APMX): 26 mm
Overall length – millimeter (OAL): 83 mm
Flute count (NOF): 2
Radial rake angle (GAMF): 20
ISO: C15912.0

Brand

DORMER
