DORMER C15914.0 HSCO Cutters

Product Code: C15914.0

$108.21$98.37 Ex. GST

Product Code: C15914.0 SKU C15914.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

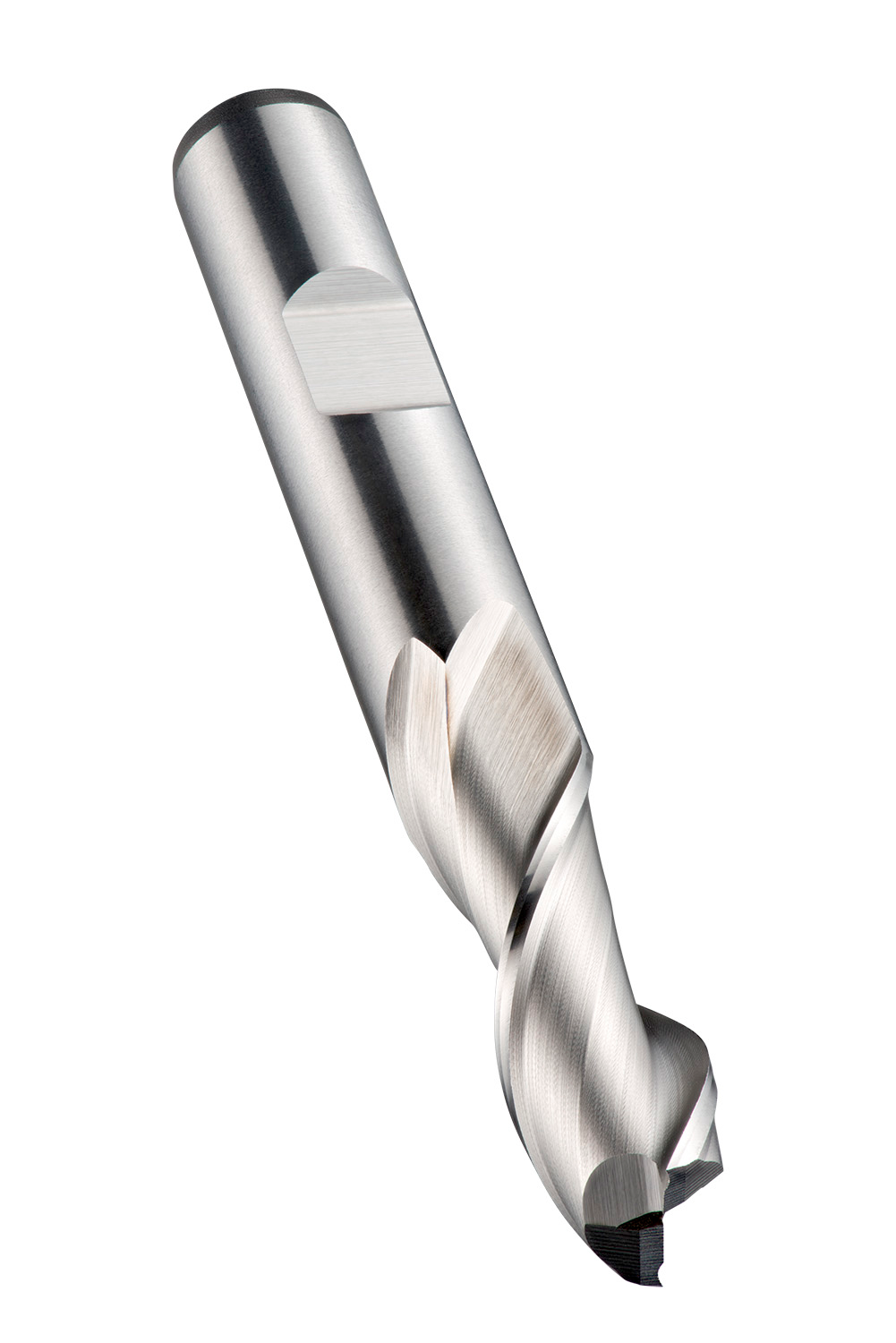

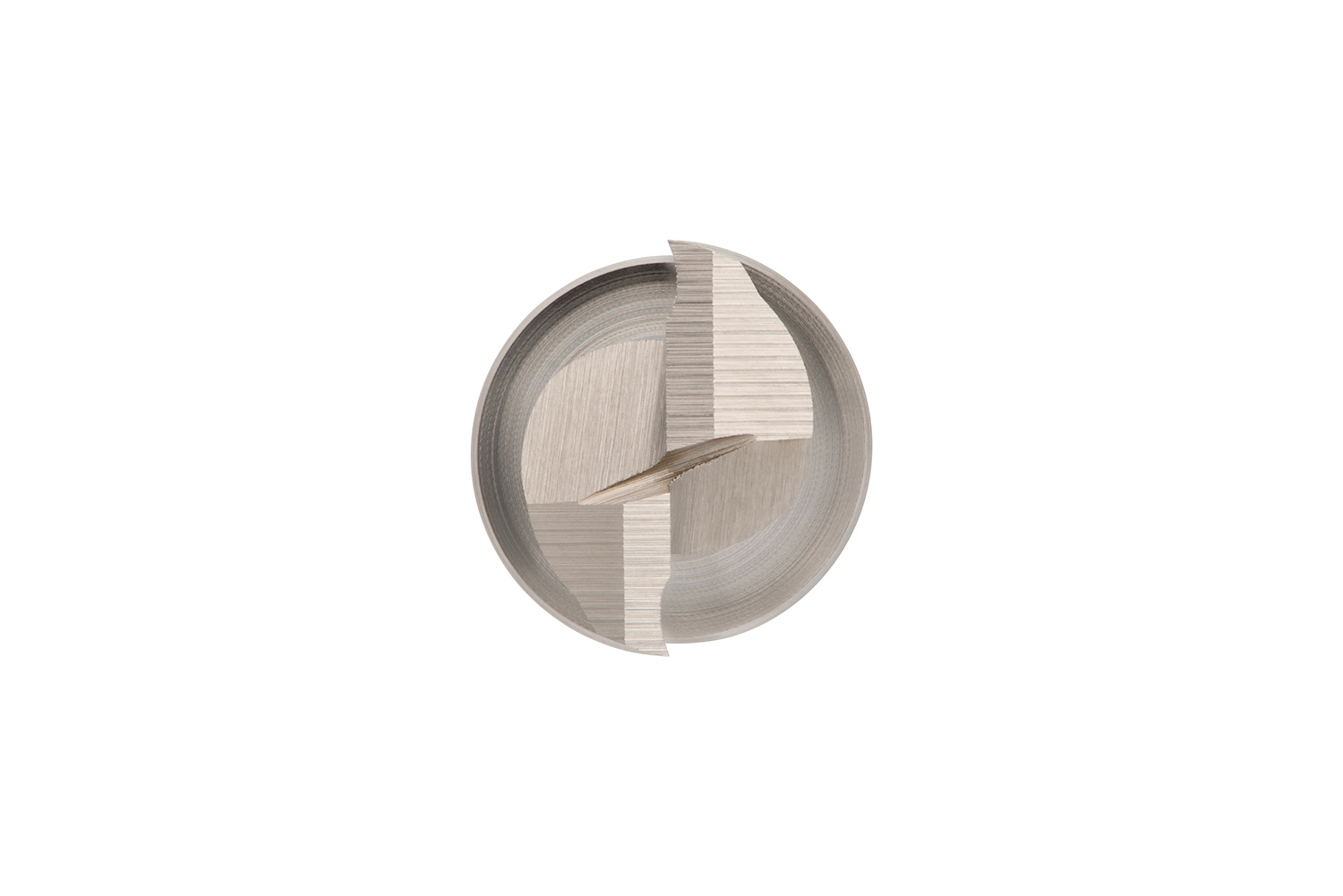

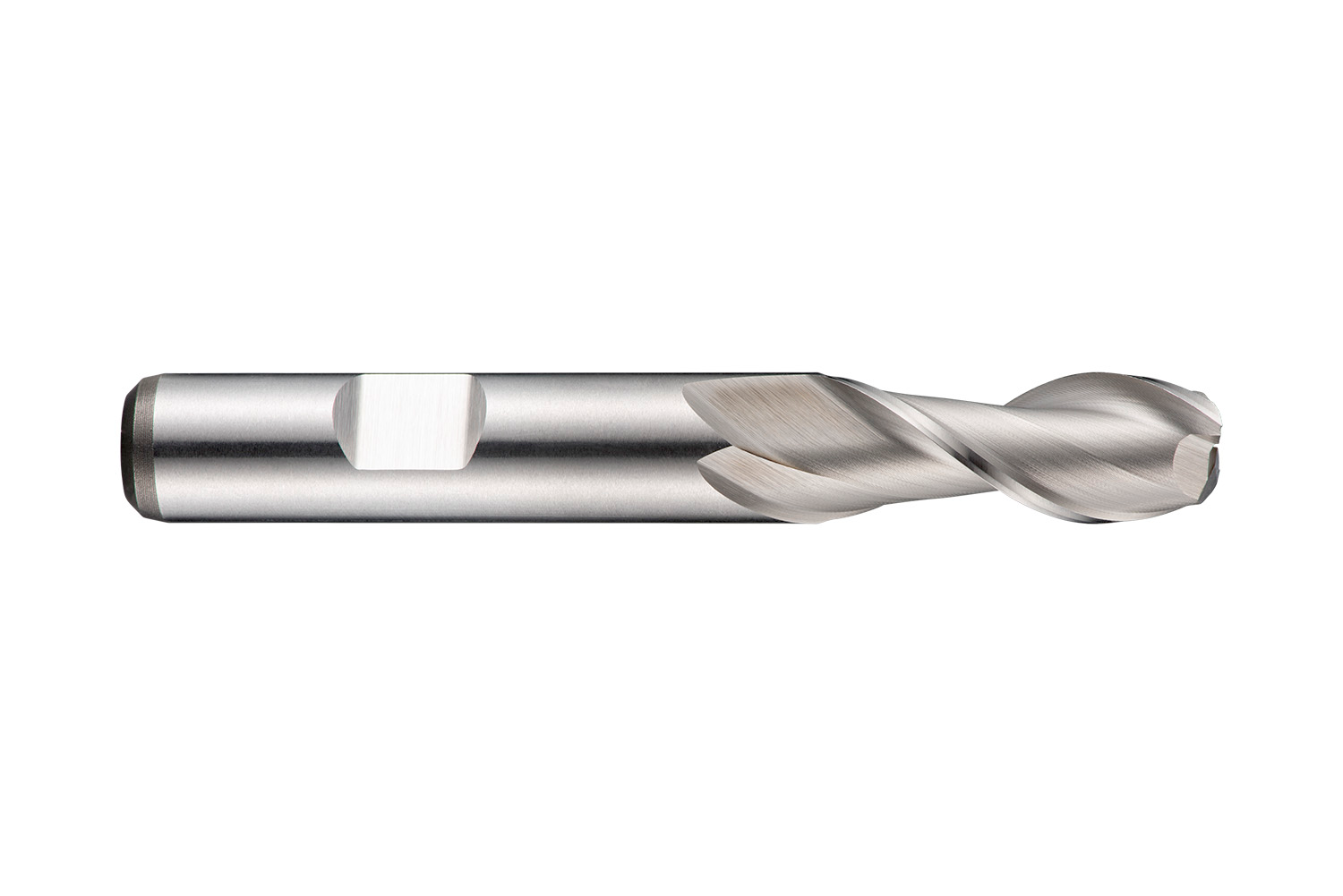

Short series slot drill with 2 flutes, diameter 14mm with 26mm length of cut, 83mm overall length and 37.5mm reach with neck relief, according to DIN 844 K standard with a 12mm Weldon shank, cobalt based HSS-E with bright finish, 40° helix and 20° rake angle for shoulder milling, slot milling and ramping in non-ferrous metals

Additional information

Weight 0.1051 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760059524
Product number (SAP): 86013542
Ordering code ANSI: C15914.0
Gross weight – grams: 68

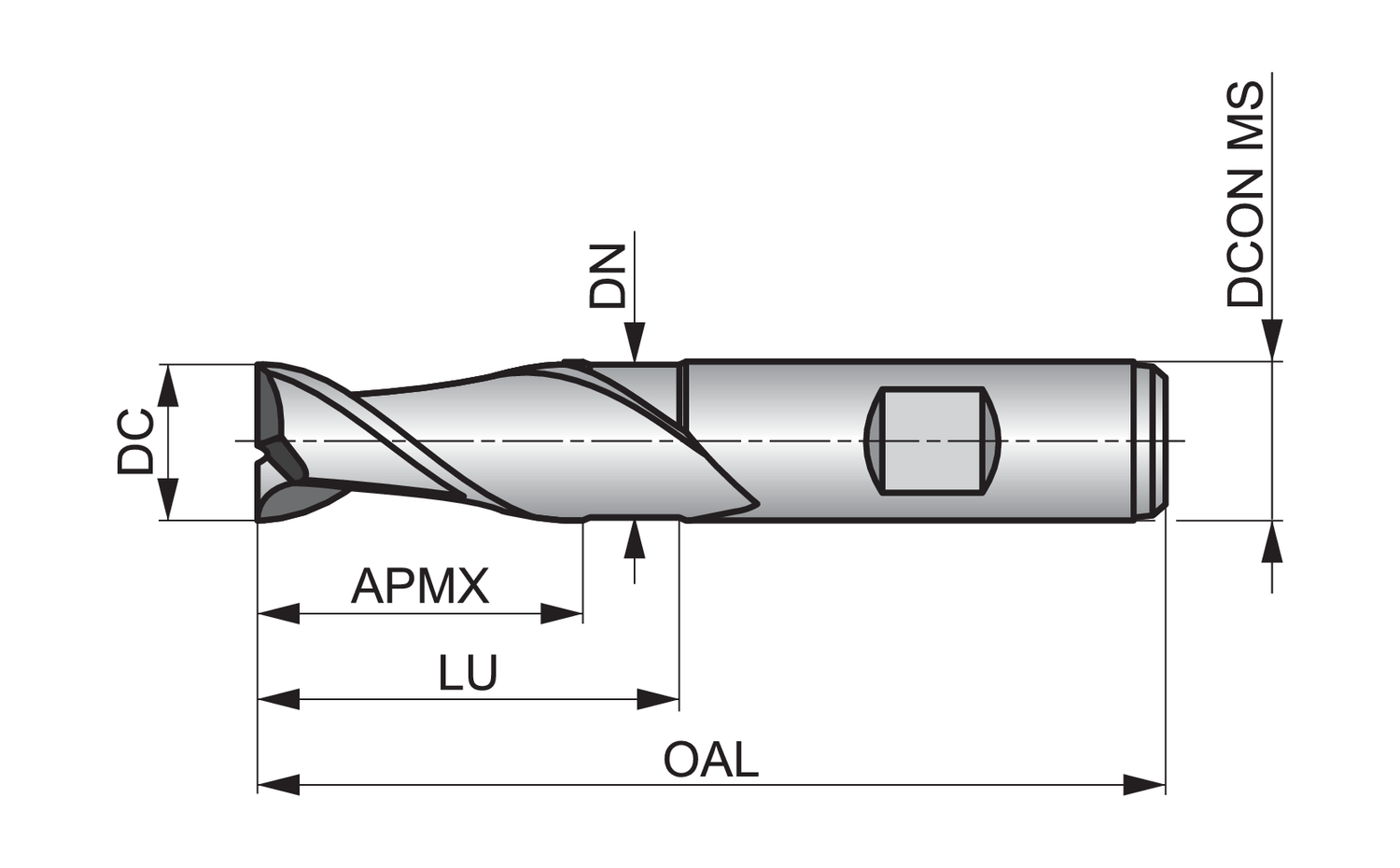

Cutting diameter – millimeter (DC): 14 mm
Connection diameter – millimeter (DCON MS): 12 mm
Depth of cut maximum – millimeter (APMX): 26 mm
Overall length – millimeter (OAL): 83 mm
Flute count (NOF): 2
Usable Length – millimeter (LU): 37.5 mm
Neck diameter – millimeter (DN): 11.5 mm
Radial rake angle (GAMF): 20
With Neck: Yes
ISO: C15914.0

Brand

DORMER
