DORMER C15920.0 HSCO Cutters

Product Code: C15920.0

$172.22$156.56 Ex. GST

Product Code: C15920.0 SKU C15920.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

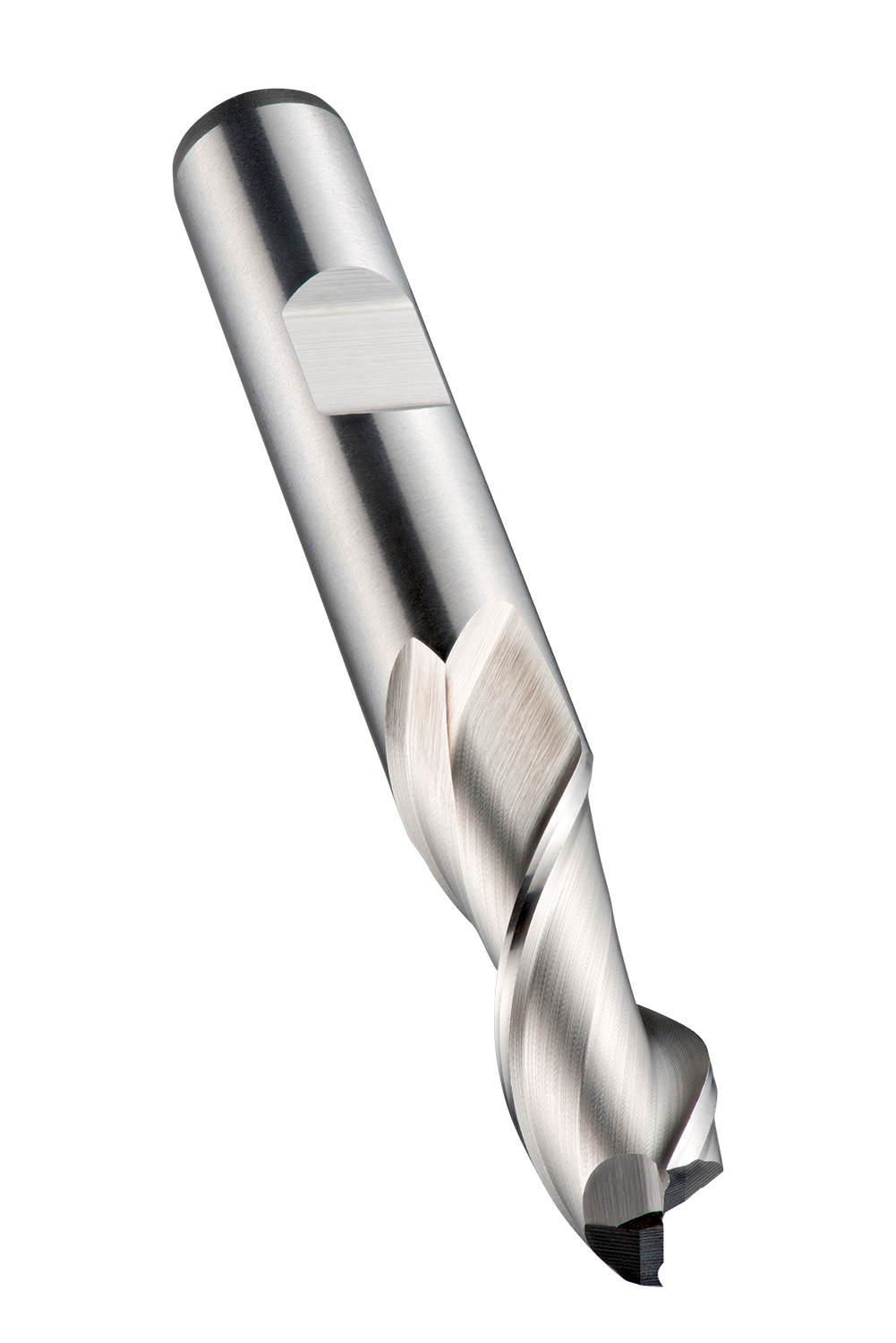

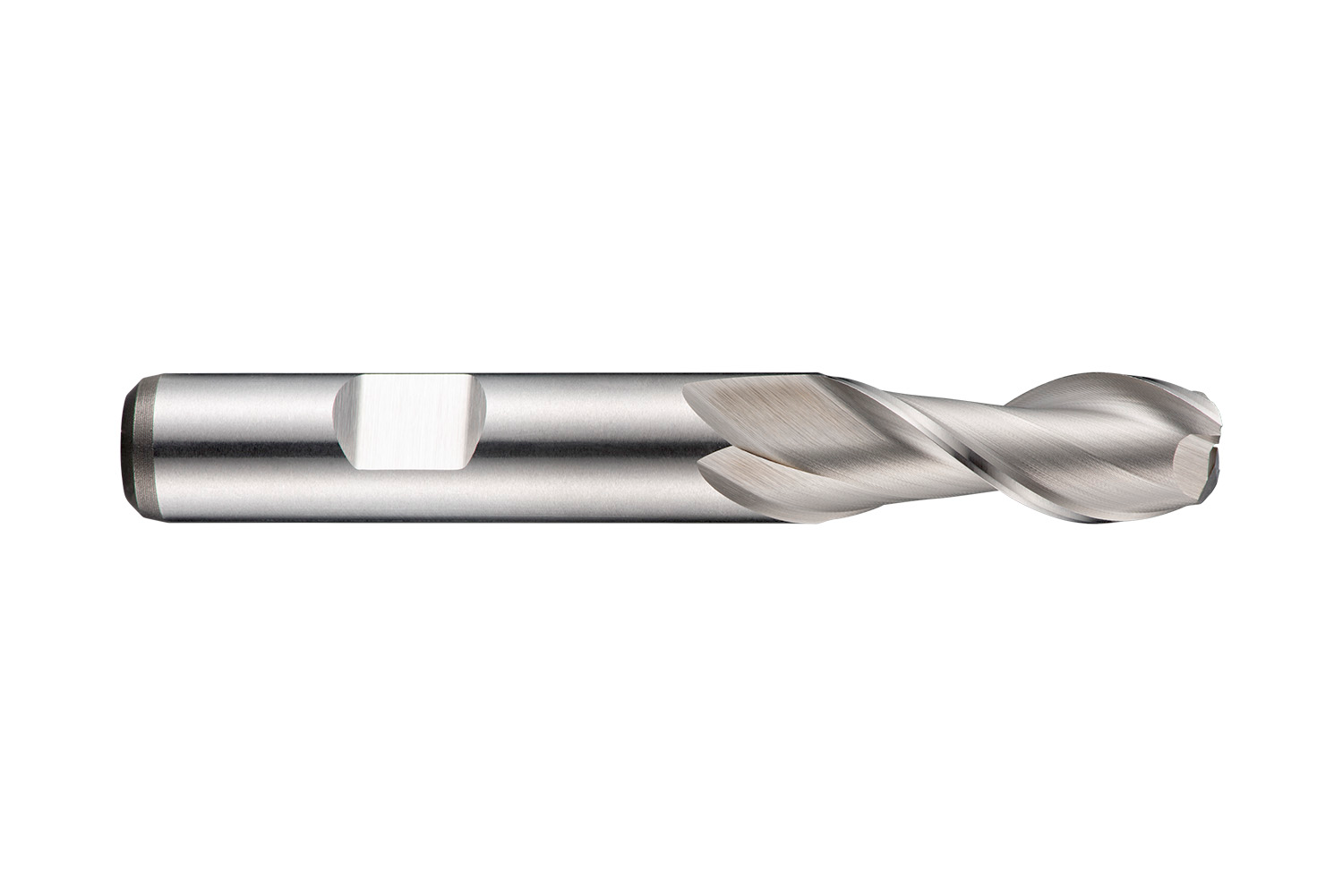

Short series slot drill with 2 flutes, diameter 20mm with 38mm length of cut, 104mm overall length and 53.5mm reach with neck relief, according to DIN 844 K standard with a 20mm Weldon shank, cobalt based HSS-E with bright finish, 40° helix and 20° rake angle for shoulder milling, slot milling and ramping in non-ferrous metals

Additional information

Weight 0.1672 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760059579
Product number (SAP): 86013547
Ordering code ANSI: C15920.0
Gross weight – grams: 217

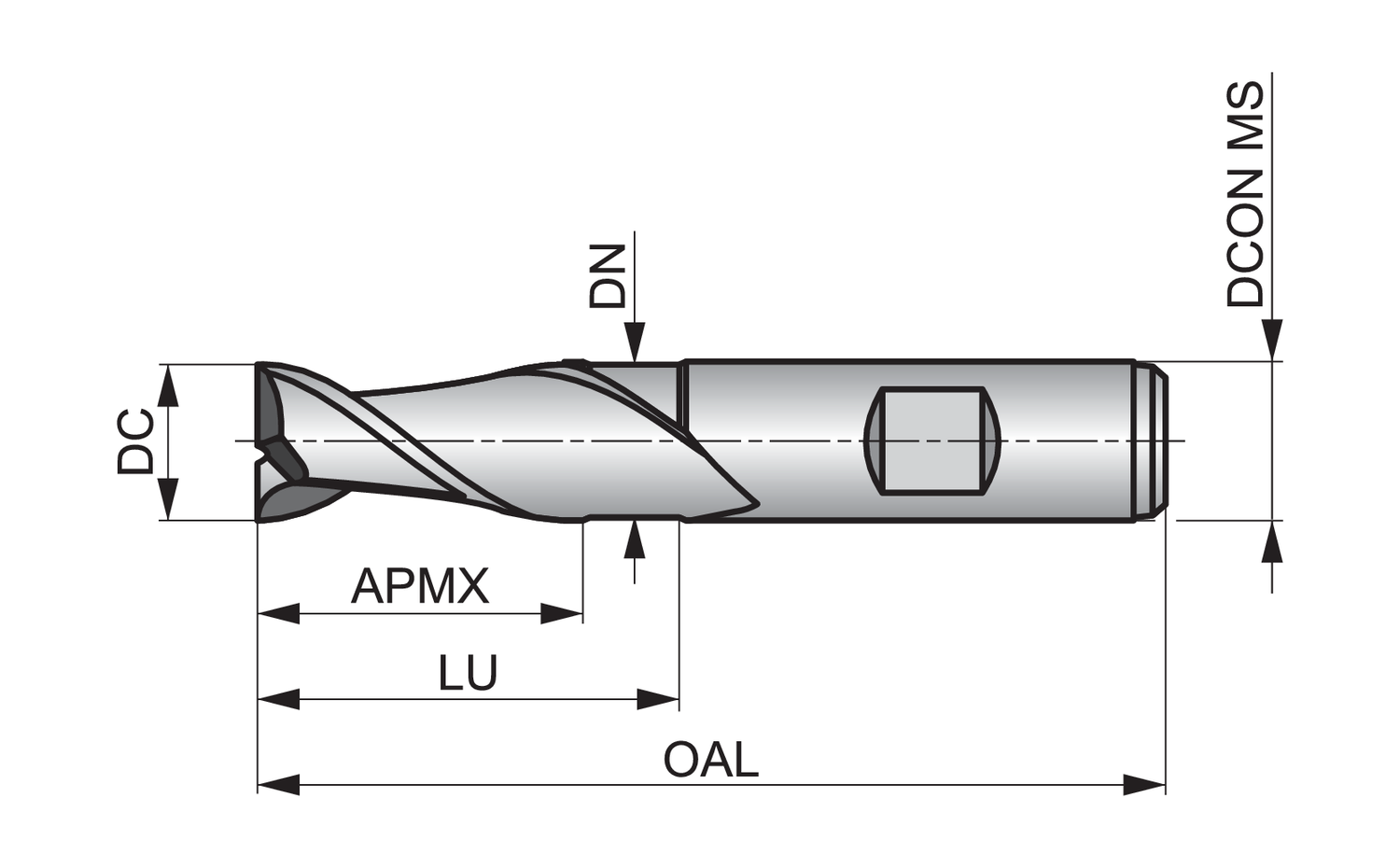

Cutting diameter – millimeter (DC): 20 mm
Connection diameter – millimeter (DCON MS): 20 mm
Depth of cut maximum – millimeter (APMX): 38 mm
Overall length – millimeter (OAL): 104 mm

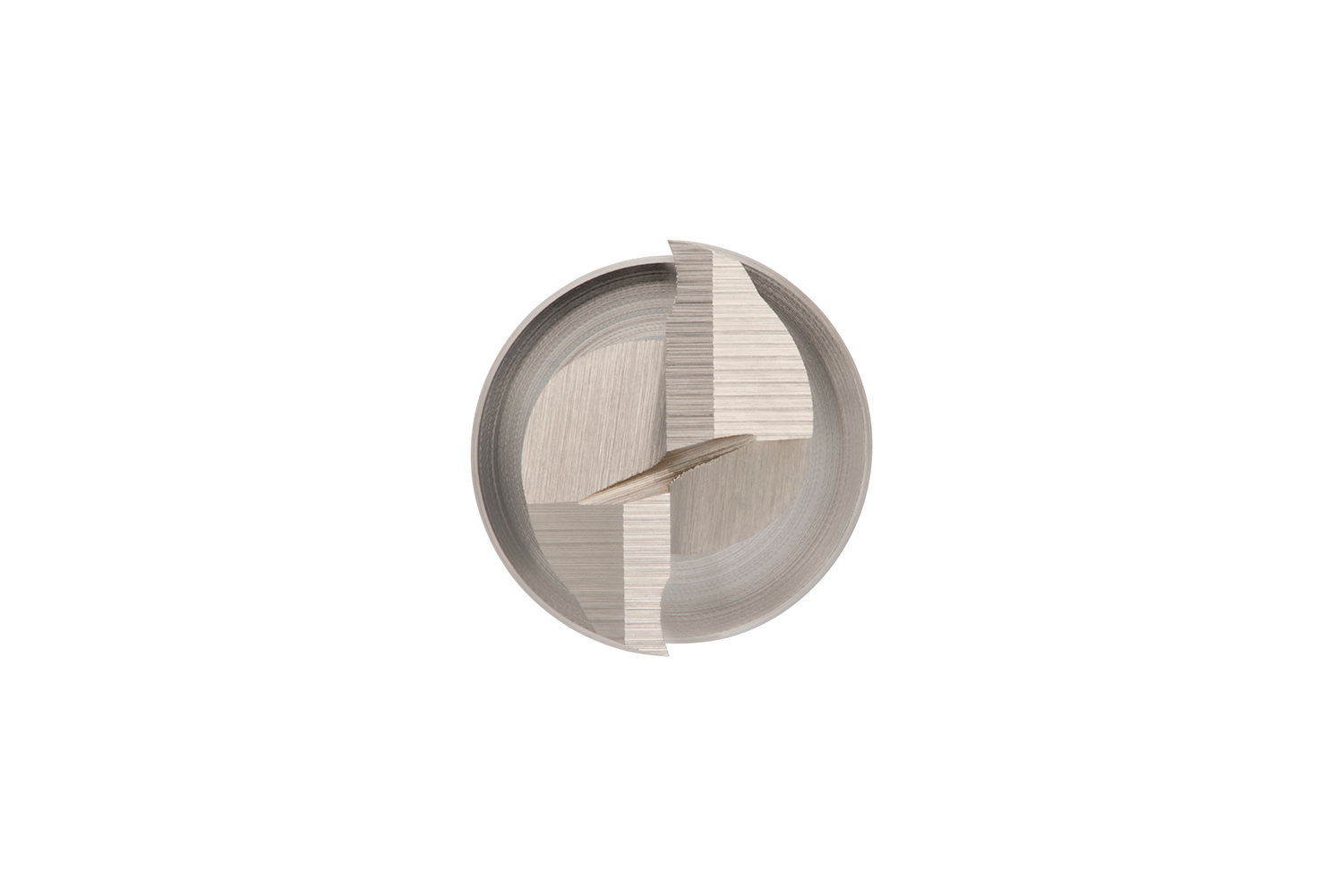

Flute count (NOF): 2
Usable Length – millimeter (LU): 53.5 mm
Neck diameter – millimeter (DN): 19 mm
Radial rake angle (GAMF): 20
With Neck: Yes
ISO: C15920.0

Brand

DORMER
