DORMER C16710.0 HSCO Cutters

Product Code: C16710.0

$211.87$192.61 Ex. GST

Product Code: C16710.0 SKU C16710.0 Categories 08 - HSS Cutters, CUTTING TOOLS (HSS & Carbide), Milling

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

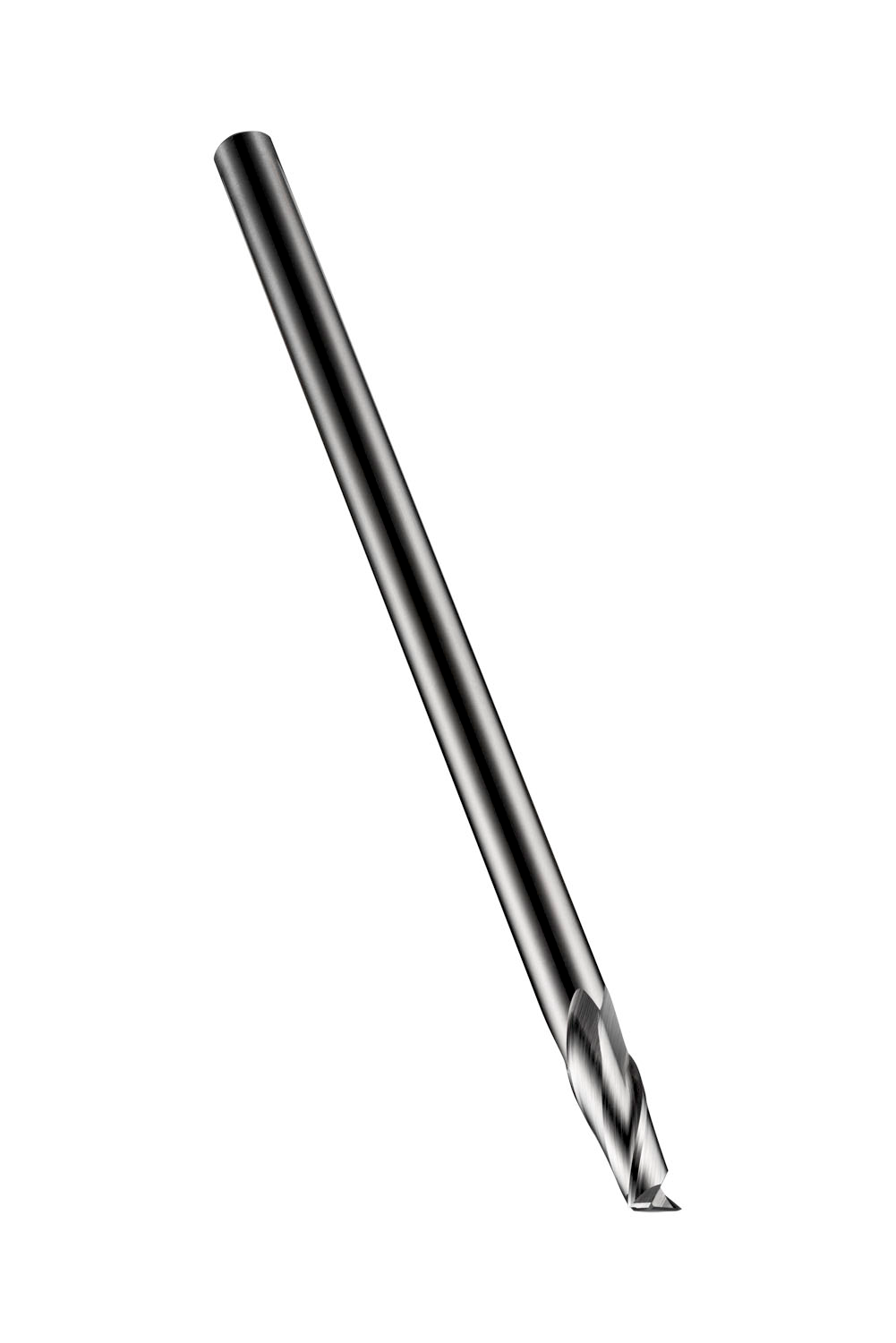

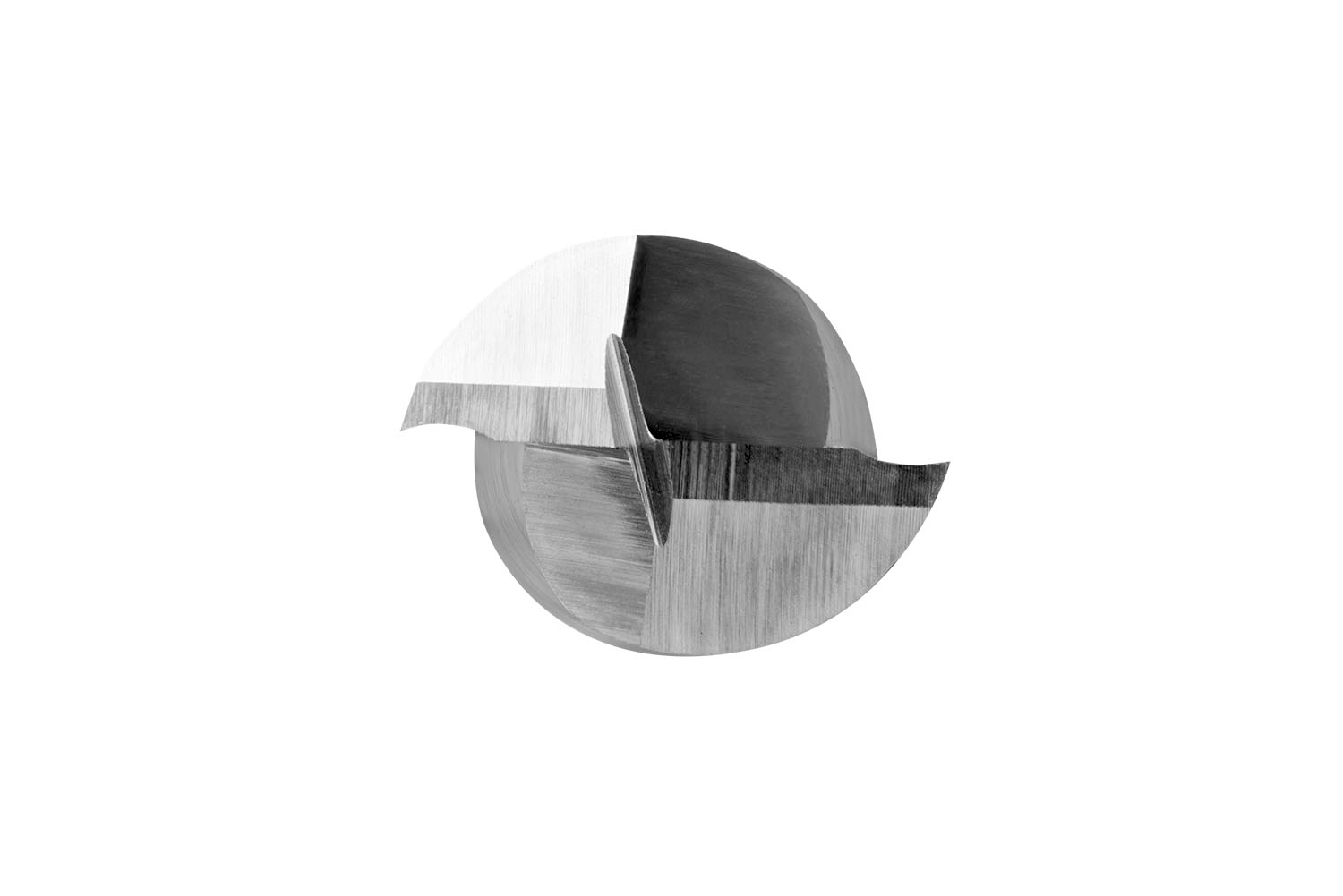

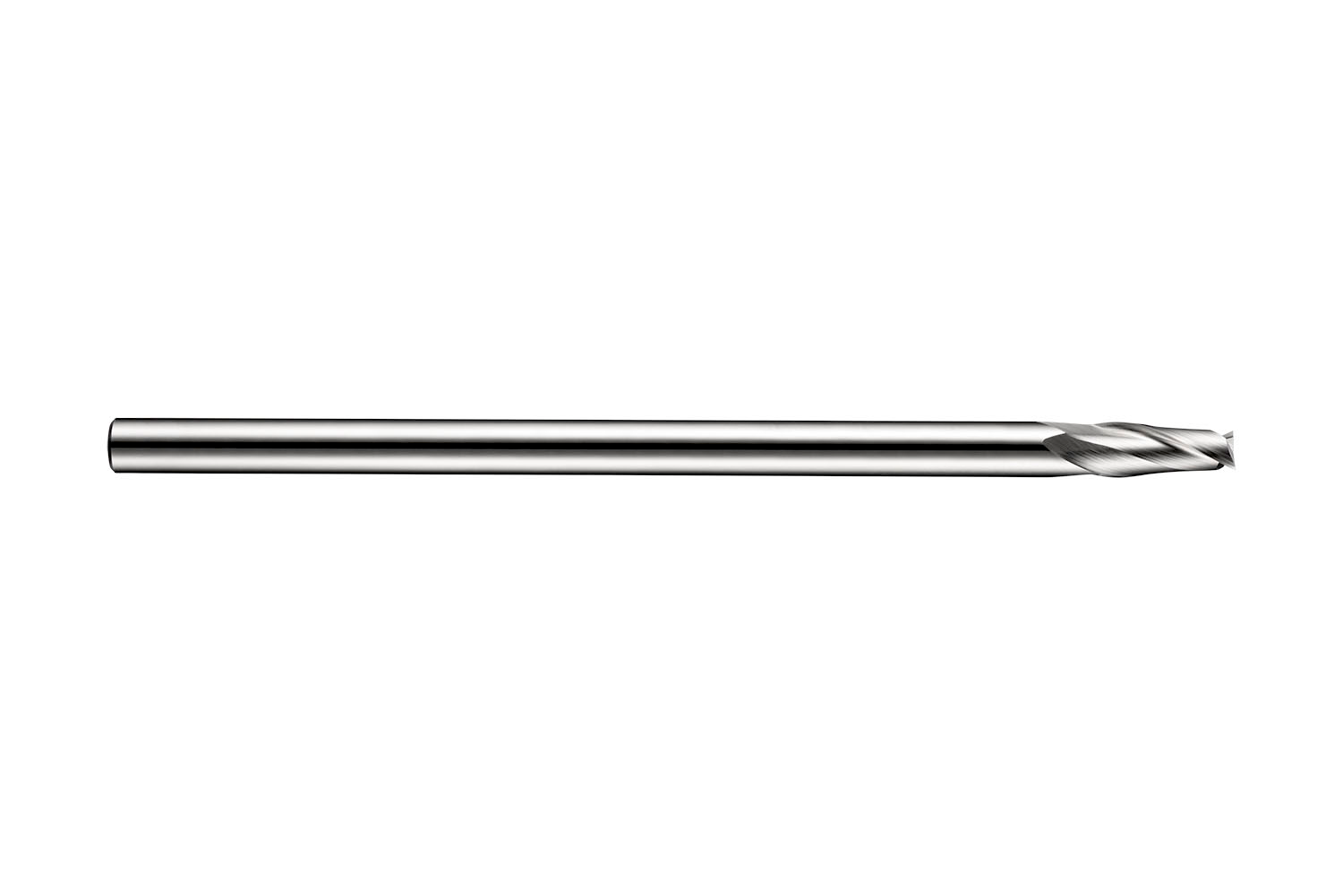

Short series end mill with 2 flutes, diameter 10mm with 22mm length of cut and 200mm overall length, according to DORMER standard with a 10mm plain shank, cobalt based HSS-E with bright finish, 30° helix and 12° rake angle for shoulder milling and slot milling in free machining steel and copper or copper alloys

Additional information

Weight	0.2057 kg
Dimensions
barcode

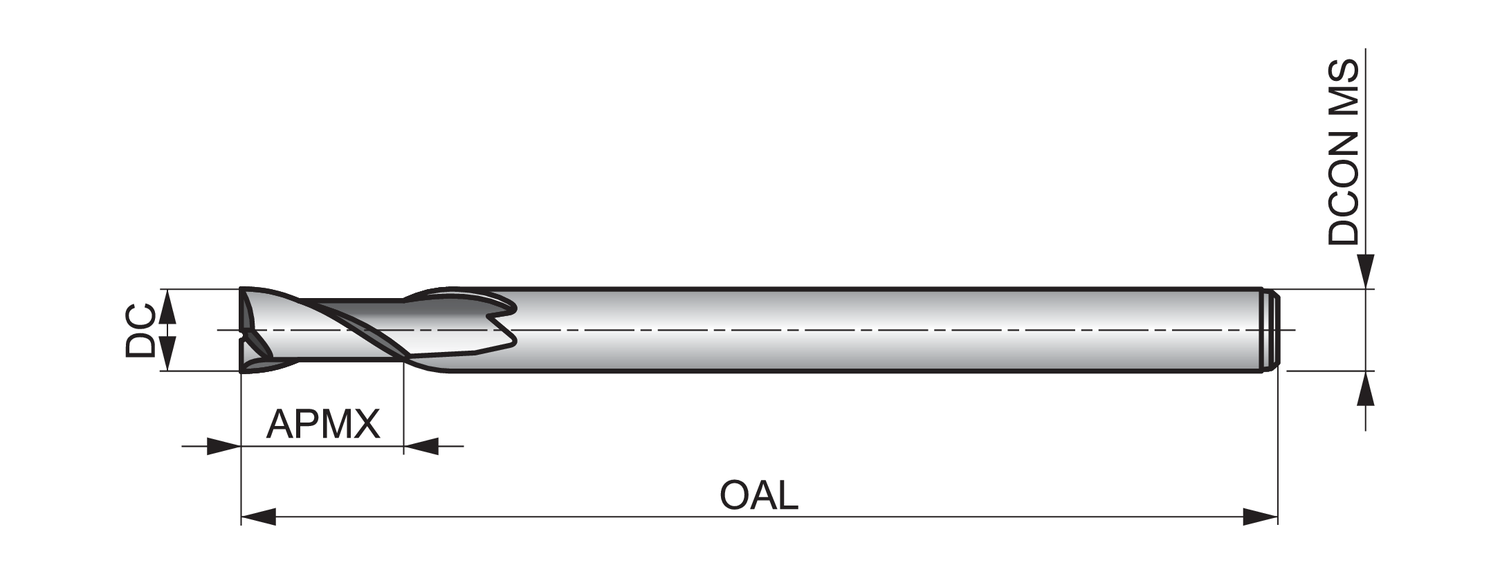

Additional Information	Description: Value EAN number: 7320760059883 Product number (SAP): 86013563 Ordering code ANSI: C16710.0 Gross weight – grams: 167 Cutting diameter – millimeter (DC): 10 mm Connection diameter – millimeter (DCON MS): 10 mm Depth of cut maximum – millimeter (APMX): 22 mm Overall length – millimeter (OAL): 200 mm Flute count (NOF): 2 Radial rake angle (GAMF): 12 ISO: C16710.0
