DORMER C16716.0 HSCO Cutters

Product Code: C16716.0

$375.02$340.93 Ex. GST

Product Code: C16716.0 SKU C16716.0 Categories , ,
DORMER C16716.0 HSCO Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

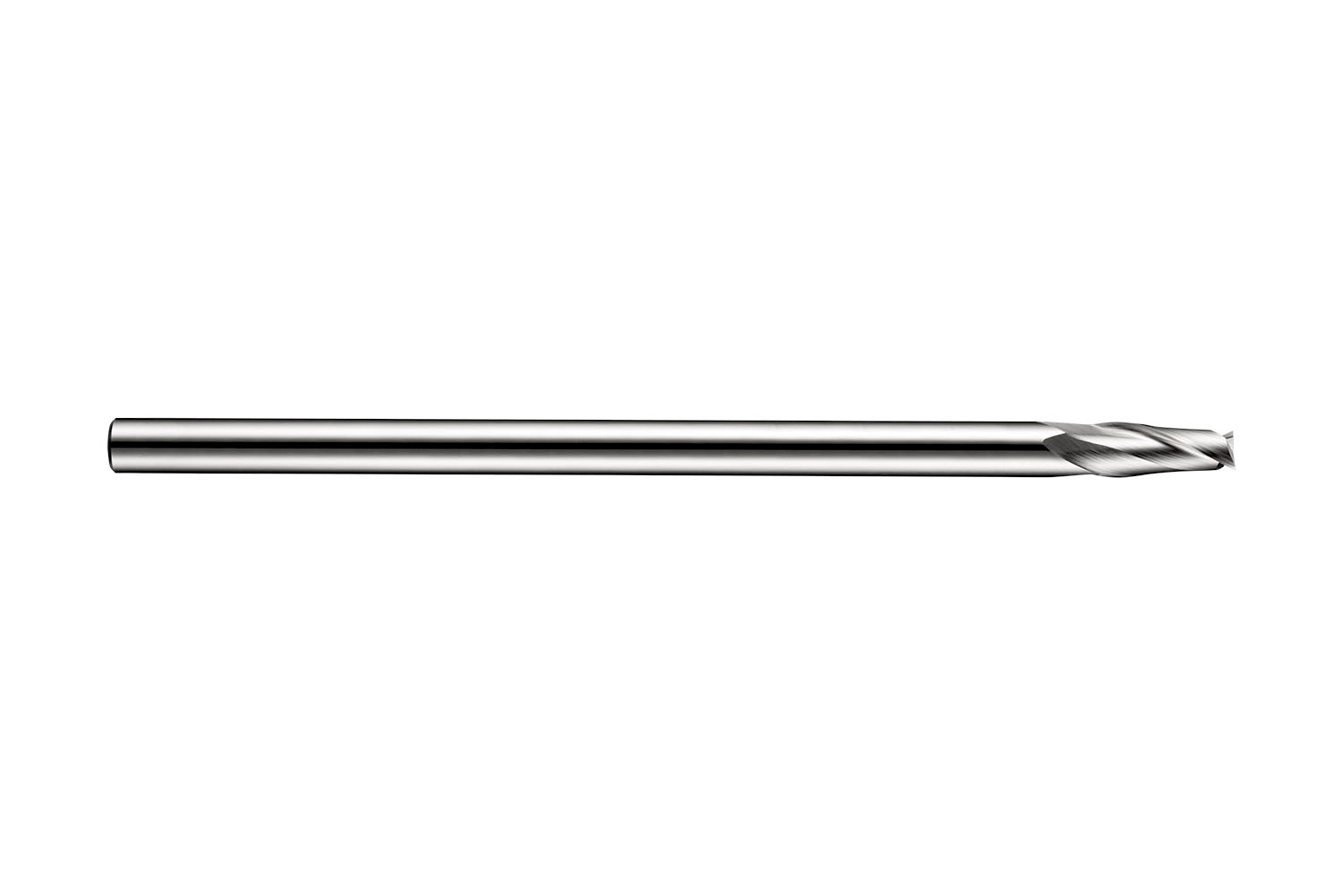

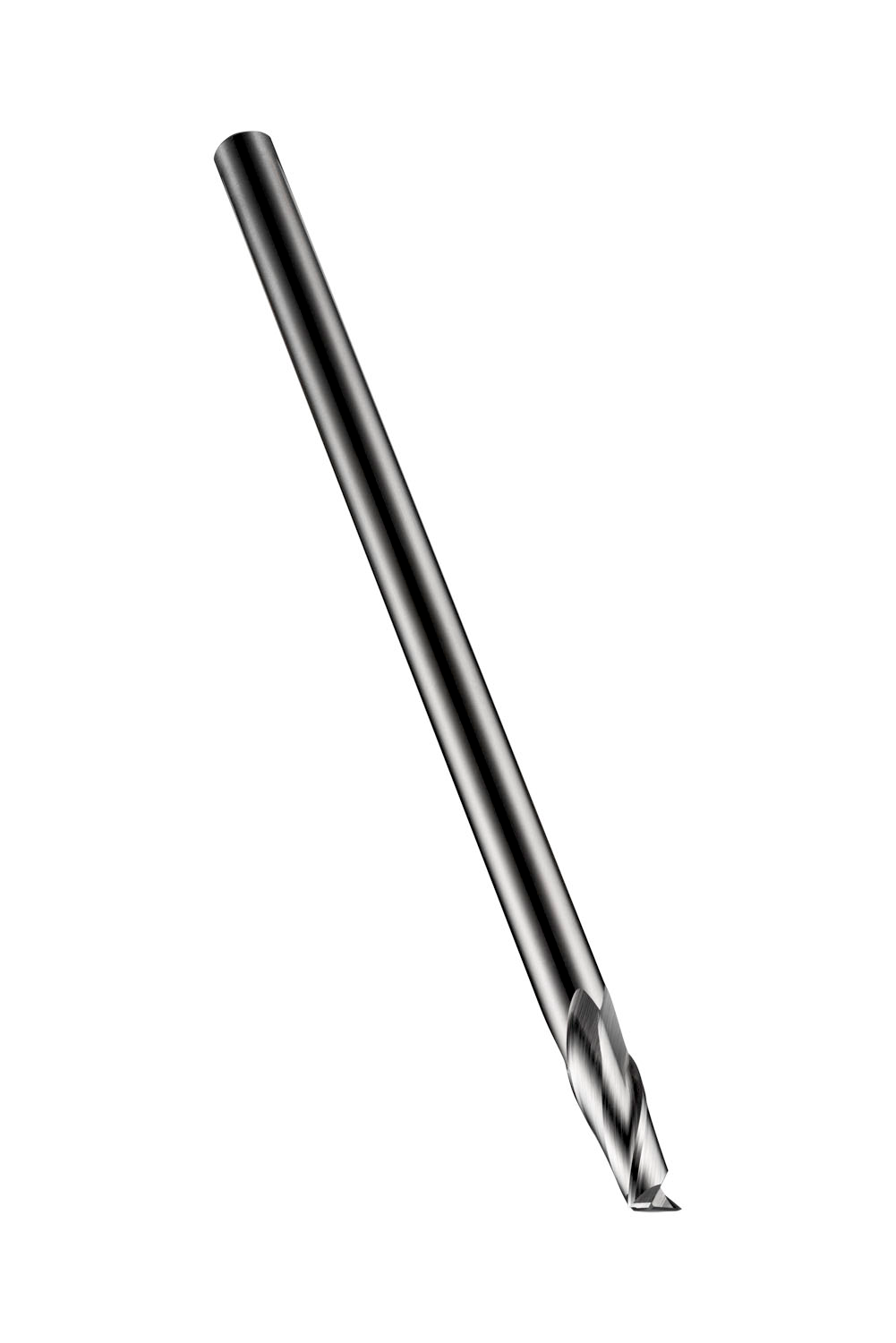

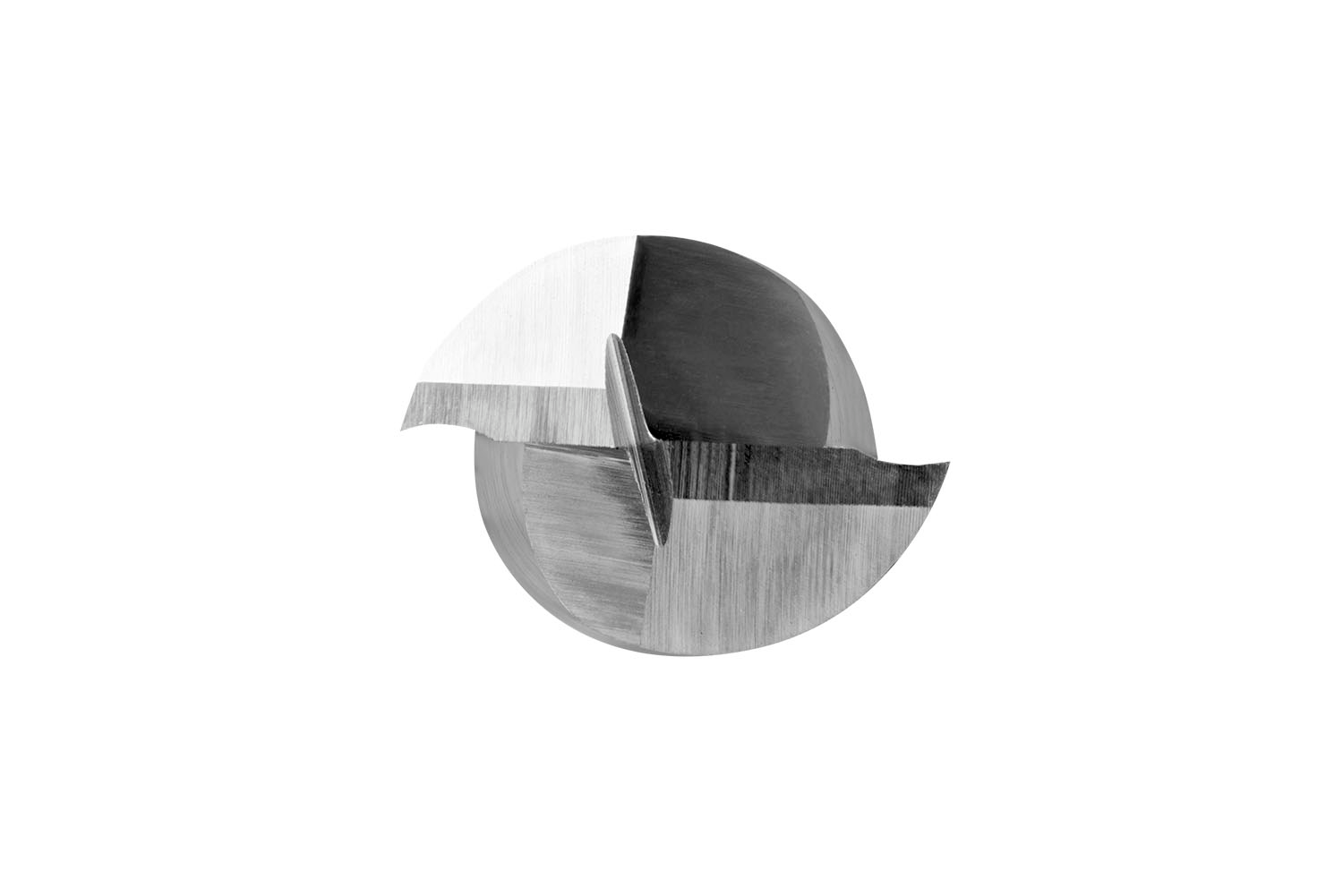

Short series end mill with 2 flutes, diameter 16mm with 32mm length of cut and 200mm overall length, according to DORMER standard with a 16mm plain shank, cobalt based HSS-E with bright finish, 30° helix and 12° rake angle for shoulder milling and slot milling in free machining steel and copper or copper alloys

Additional information

Weight 0.3641 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760059906
Product number (SAP): 86013565
Ordering code ANSI: C16716.0
Gross weight – grams: 343.5

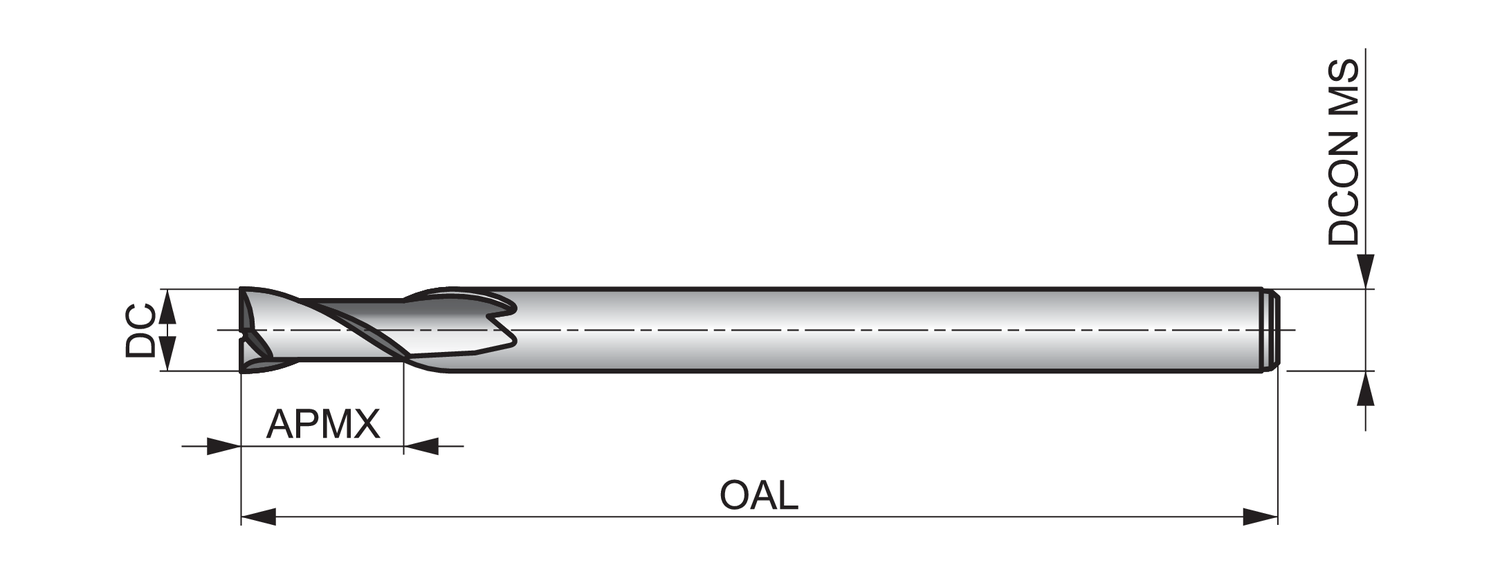

Cutting diameter – millimeter (DC): 16 mm
Connection diameter – millimeter (DCON MS): 16 mm
Depth of cut maximum – millimeter (APMX): 32 mm
Overall length – millimeter (OAL): 200 mm
Flute count (NOF): 2
Radial rake angle (GAMF): 12
ISO: C16716.0

Brand

DORMER
