DORMER C1676.0 HSCO Cutters

Product Code: C1676.0

$152.96$139.05 Ex. GST

Product Code: C1676.0 SKU C1676.0 Categories , ,
DORMER C1676.0 HSCO Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

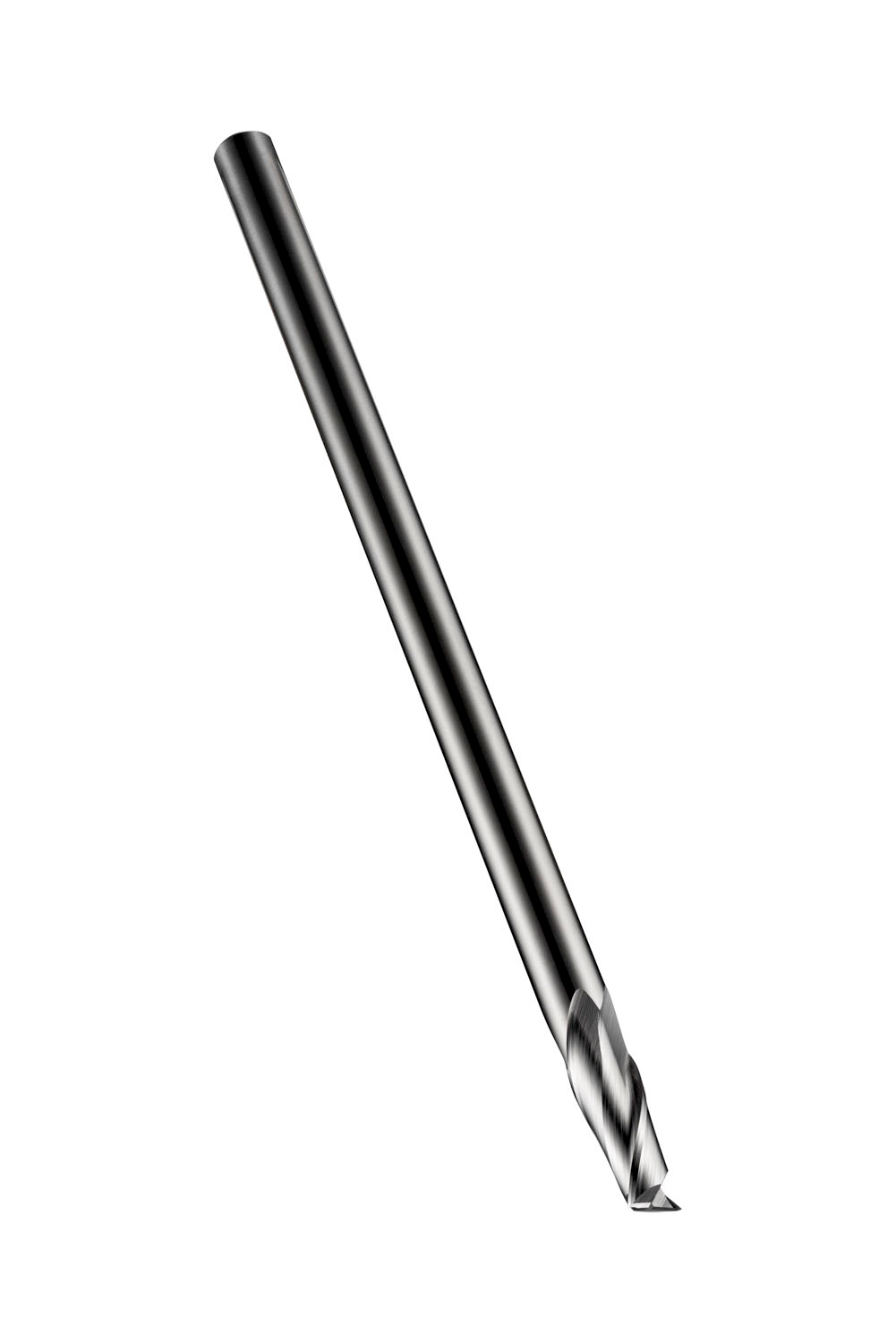

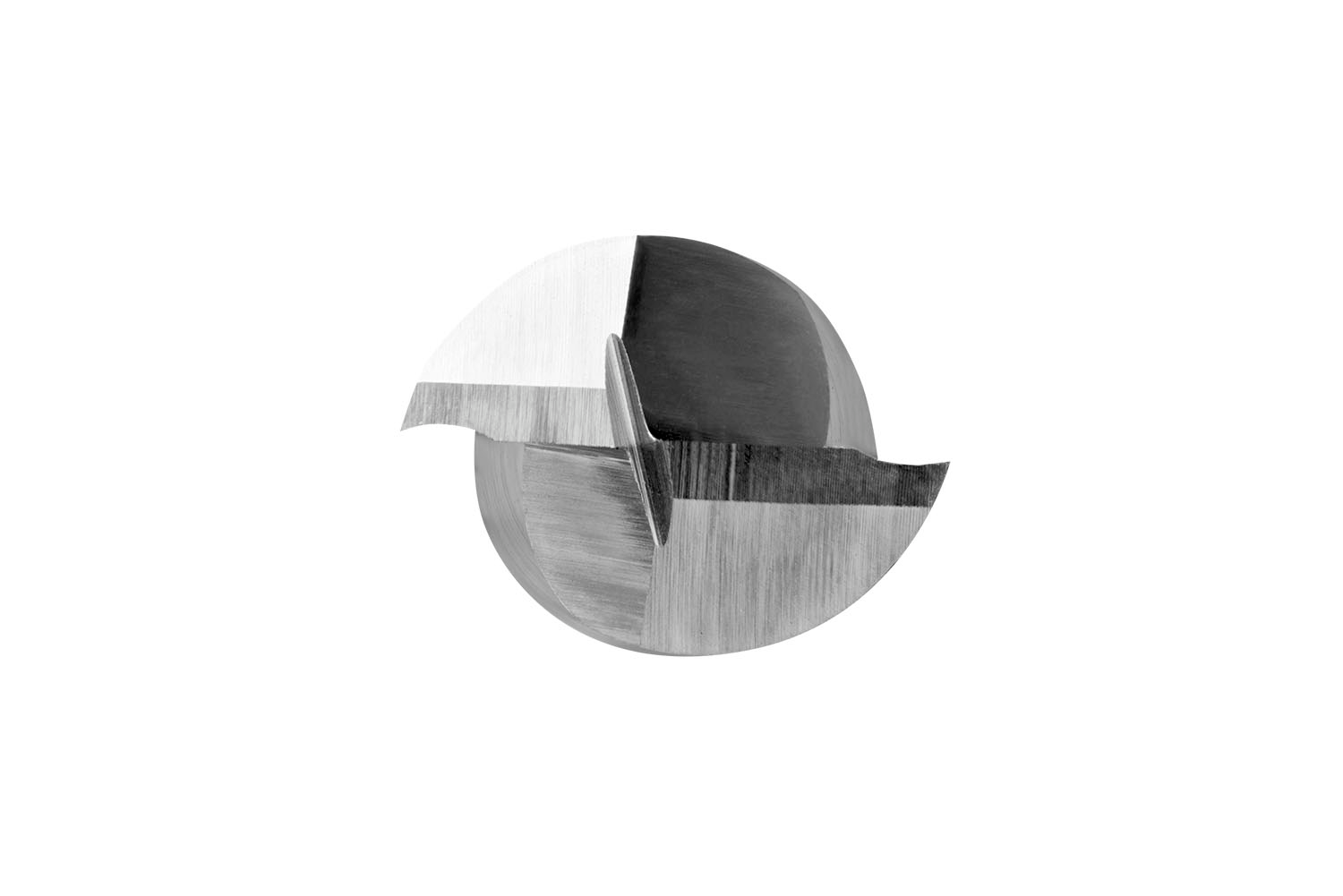

Short series end mill with 2 flutes, diameter 6mm with 13mm length of cut and 180mm overall length, according to DORMER standard with a 6mm plain shank, cobalt based HSS-E with bright finish, 30° helix and 12° rake angle for shoulder milling and slot milling in free machining steel and copper or copper alloys

Additional information

Weight 0.1485 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760059913
Product number (SAP): 86013566
Ordering code ANSI: C1676.0
Gross weight – grams: 89

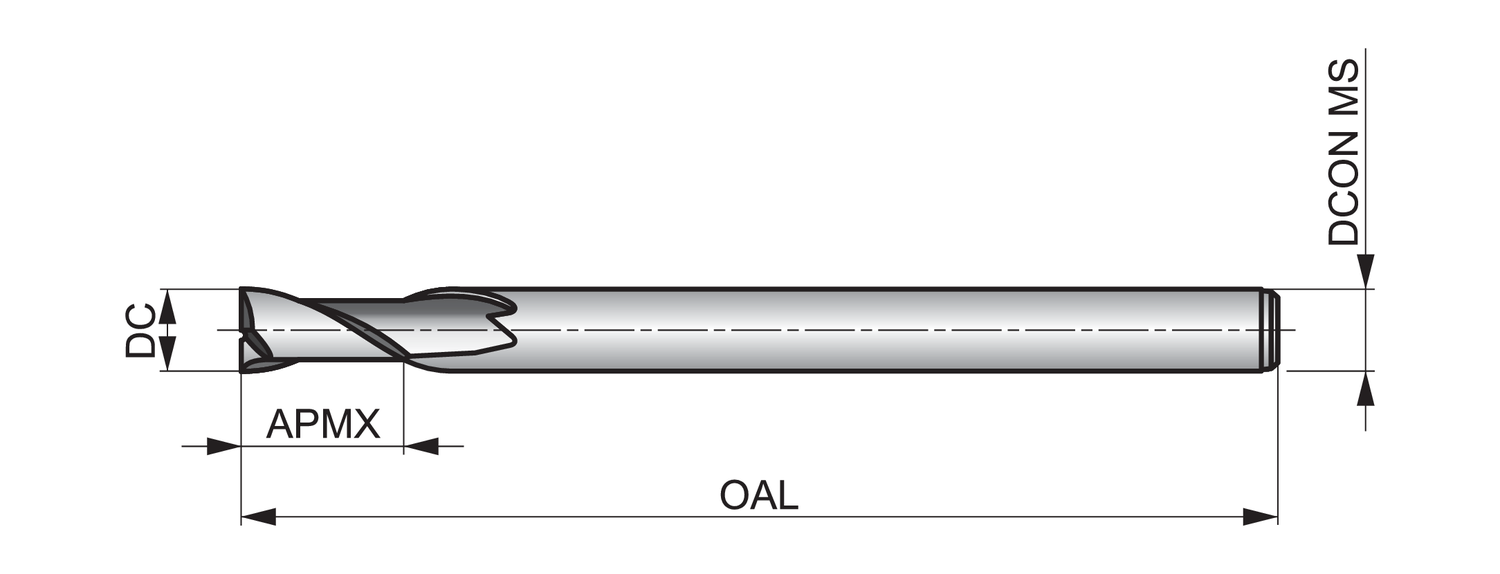

Cutting diameter – millimeter (DC): 6 mm
Connection diameter – millimeter (DCON MS): 6 mm
Depth of cut maximum – millimeter (APMX): 13 mm
Overall length – millimeter (OAL): 180 mm
Flute count (NOF): 2
Radial rake angle (GAMF): 12
ISO: C1676.0

Brand

DORMER
