DORMER C2464.0 HSCO Cutters

Product Code: C2464.0

$88.95$80.86 Ex. GST

Product Code: C2464.0 SKU C2464.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

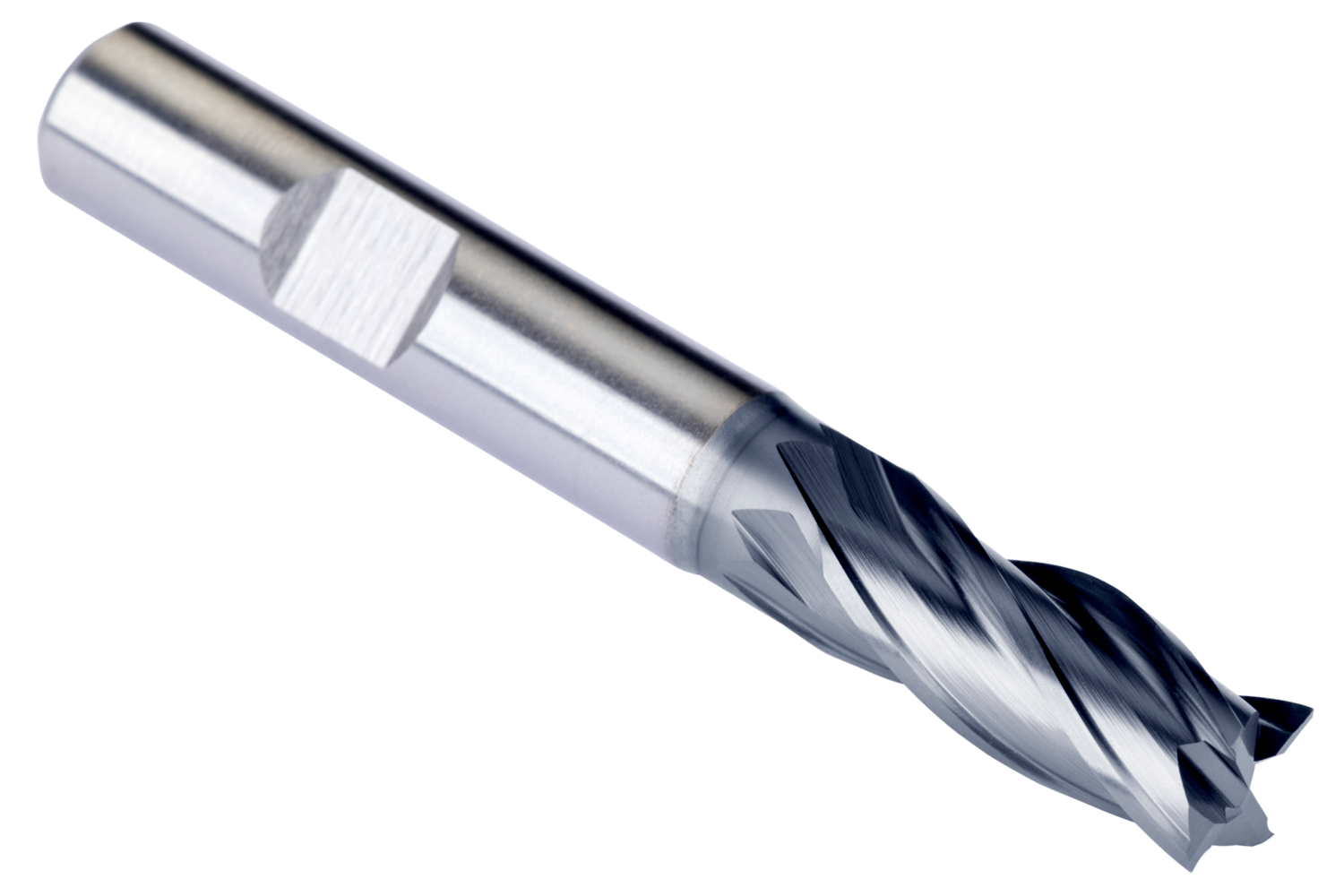

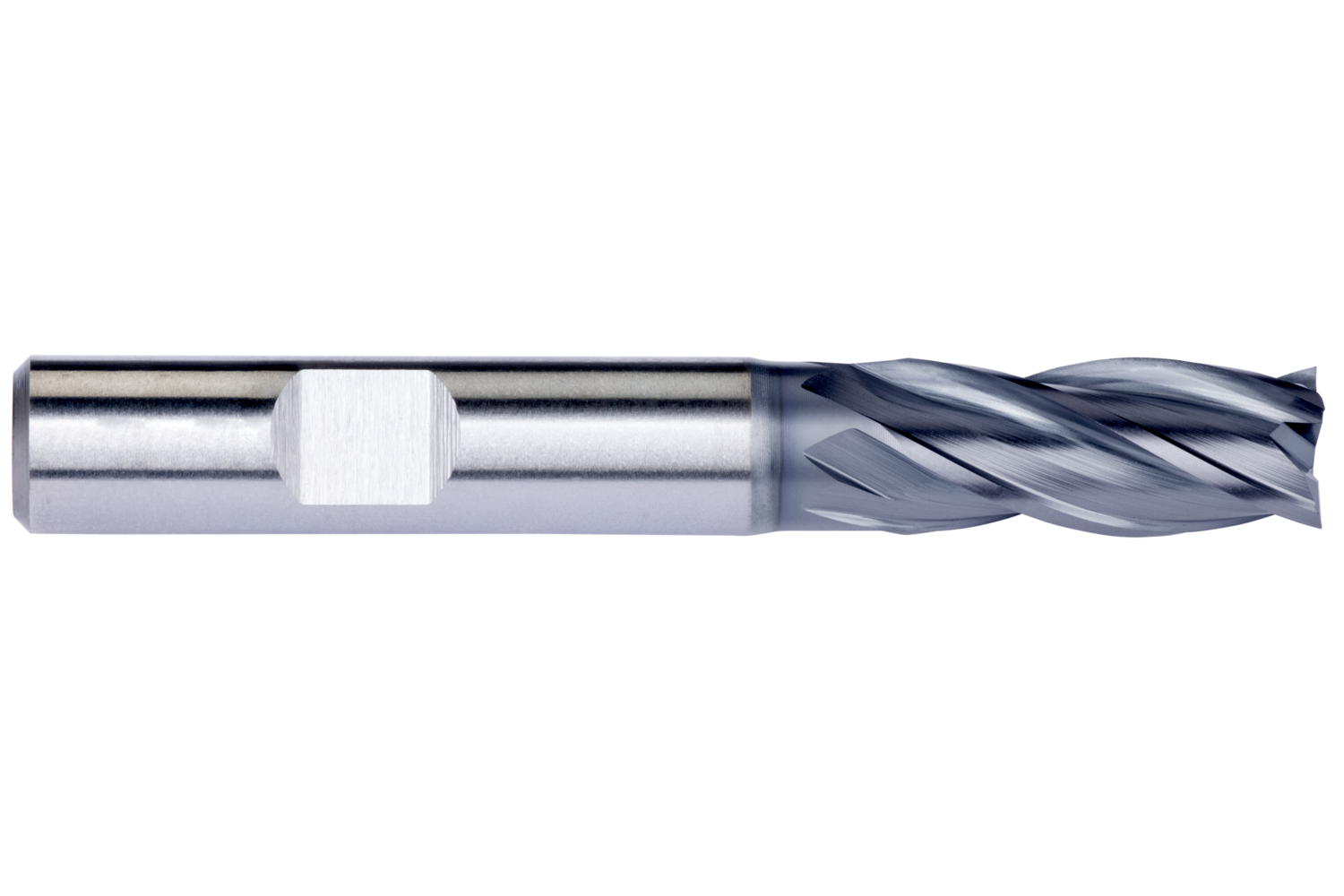

Short series end mill with 4 flutes, diameter 4mm with 11mm length of cut and 55mm overall length, according to DIN 844 K standard with a 6mm Weldon shank, powder metallurgical HSS-E with TiCN coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining, plain carbon and alloy steel, cast-iron, copper or copper alloys and titanium or titanium alloys

Additional information

Weight 0.0864 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760356227
Product number (SAP): 86013610
Ordering code ANSI: C2464.0
Gross weight – grams: 11.9

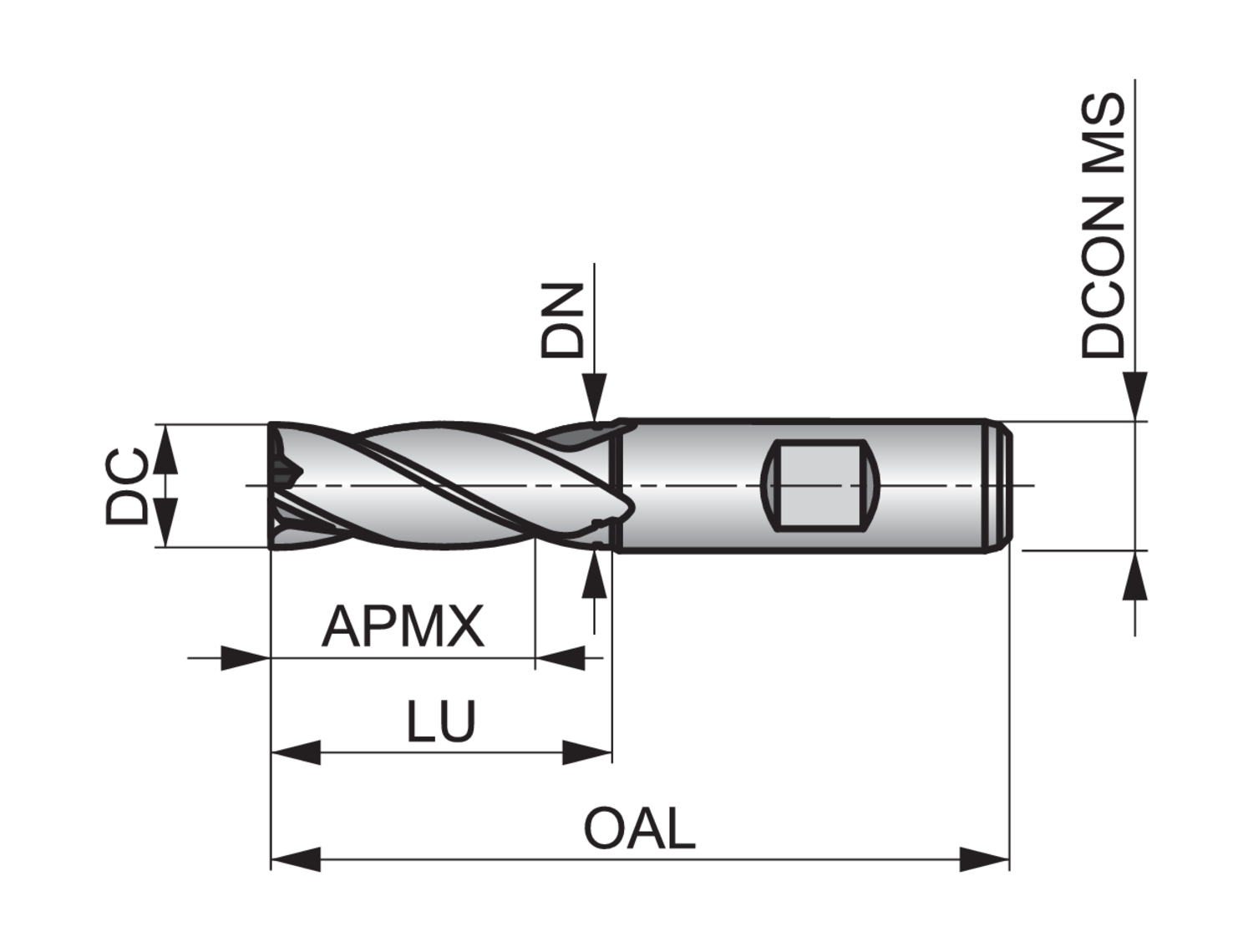

Cutting diameter – millimeter (DC): 4 mm
Connection diameter – millimeter (DCON MS): 6 mm
Depth of cut maximum – millimeter (APMX): 11 mm
Overall length – millimeter (OAL): 55 mm

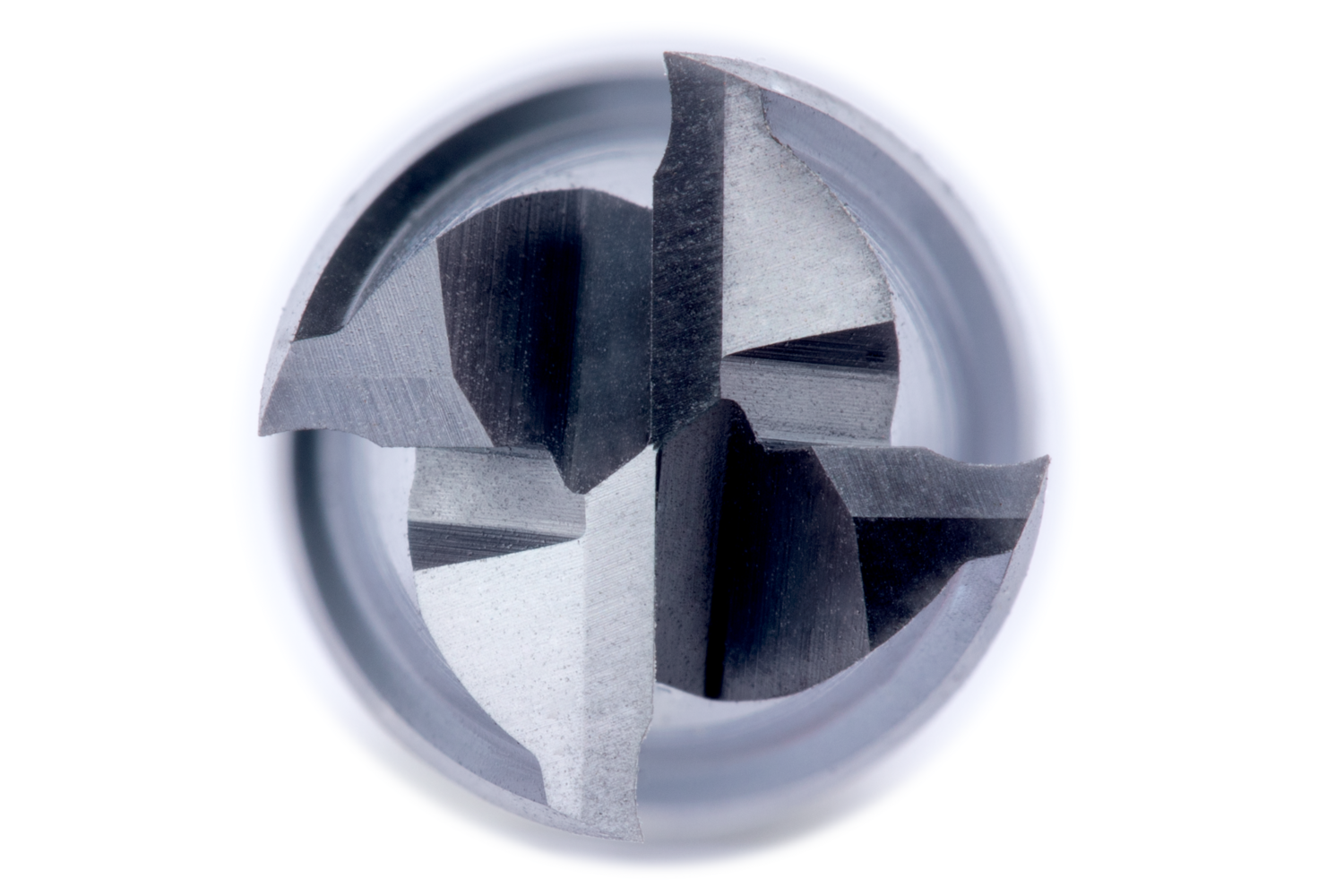

Flute count (NOF): 4
Neck diameter – millimeter (DN): 4 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C2464.0

Brand

DORMER
