DORMER C2467.0 HSCO Cutters

Product Code: C2467.0

$116.70$106.09 Ex. GST

Product Code: C2467.0 SKU C2467.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

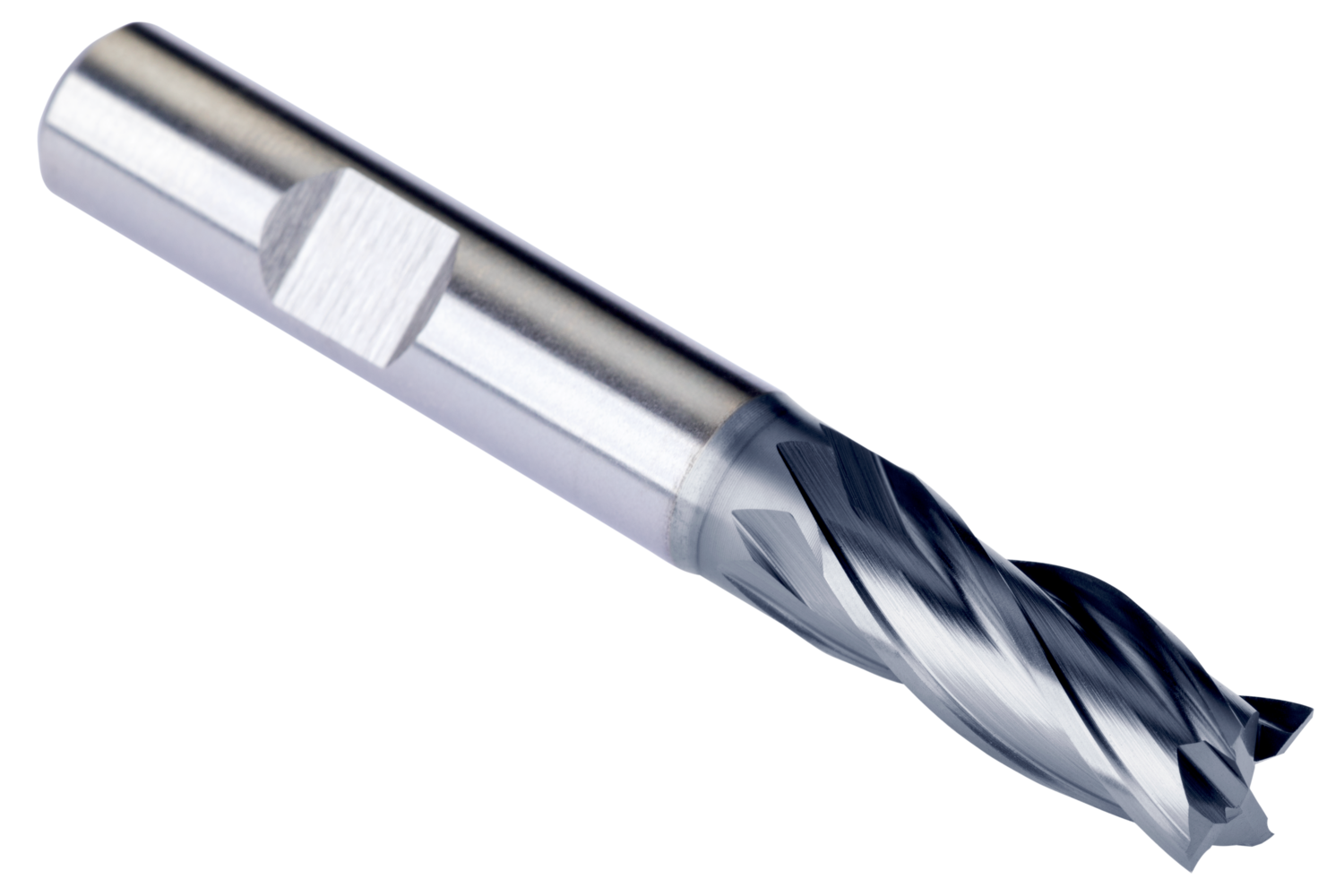

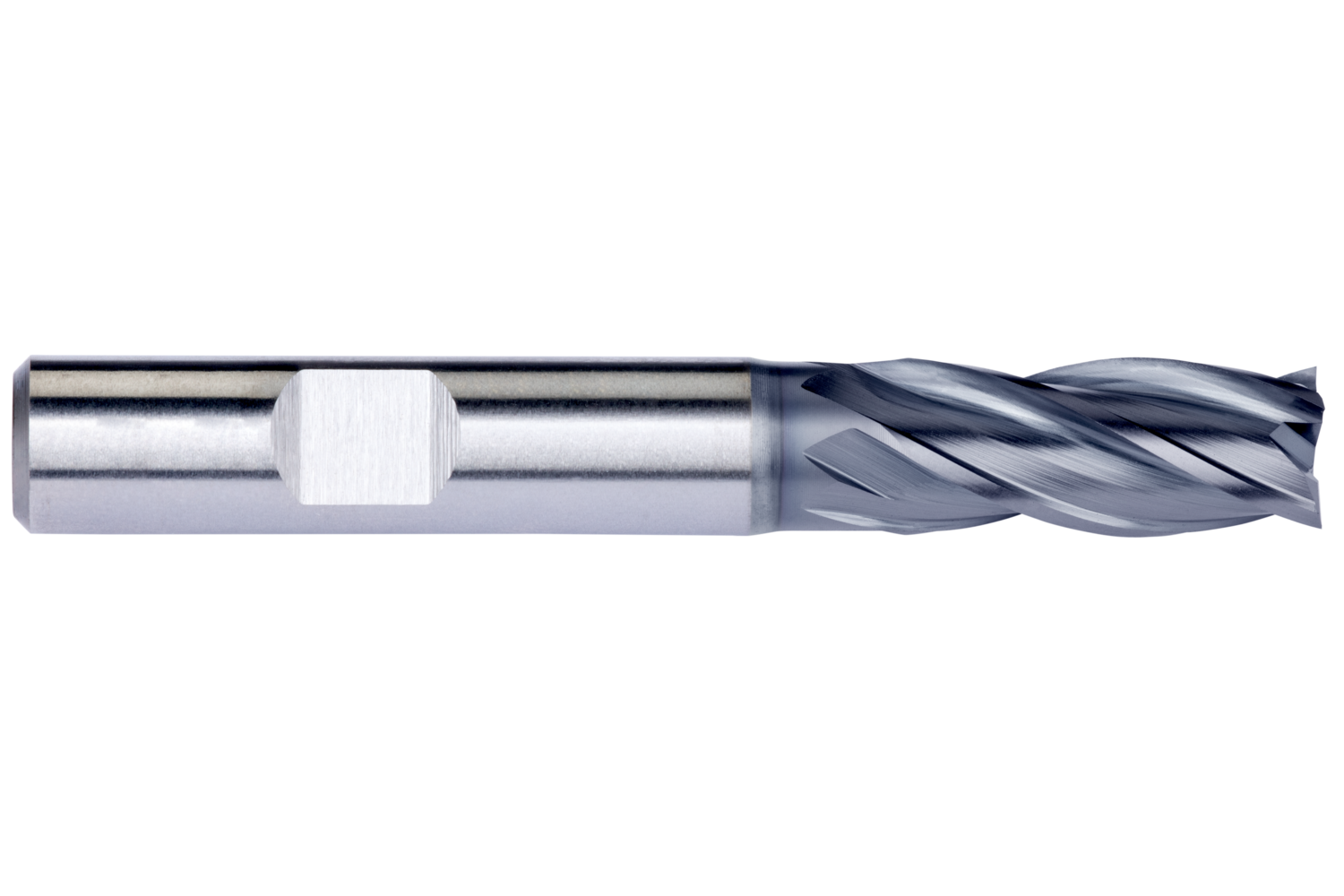

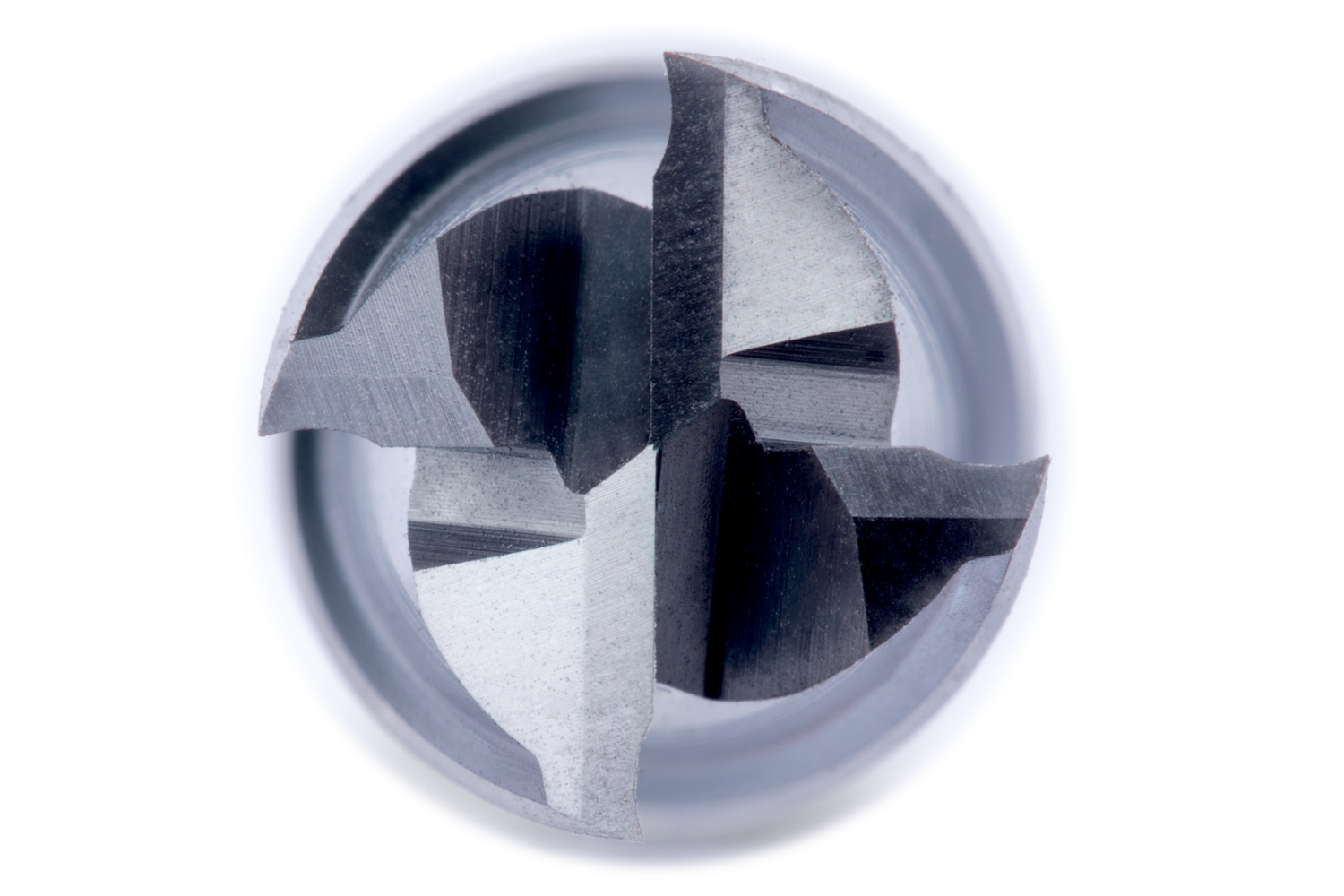

Short series end mill with 4 flutes, diameter 7mm with 16mm length of cut and 66mm overall length, according to DIN 844 K standard with a 10mm Weldon shank, powder metallurgical HSS-E with TiCN coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining, plain carbon and alloy steel, cast-iron, copper or copper alloys and titanium or titanium alloys

Additional information

Weight 0.1133 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760356241
Product number (SAP): 86013613
Ordering code ANSI: C2467.0
Gross weight – grams: 36.1

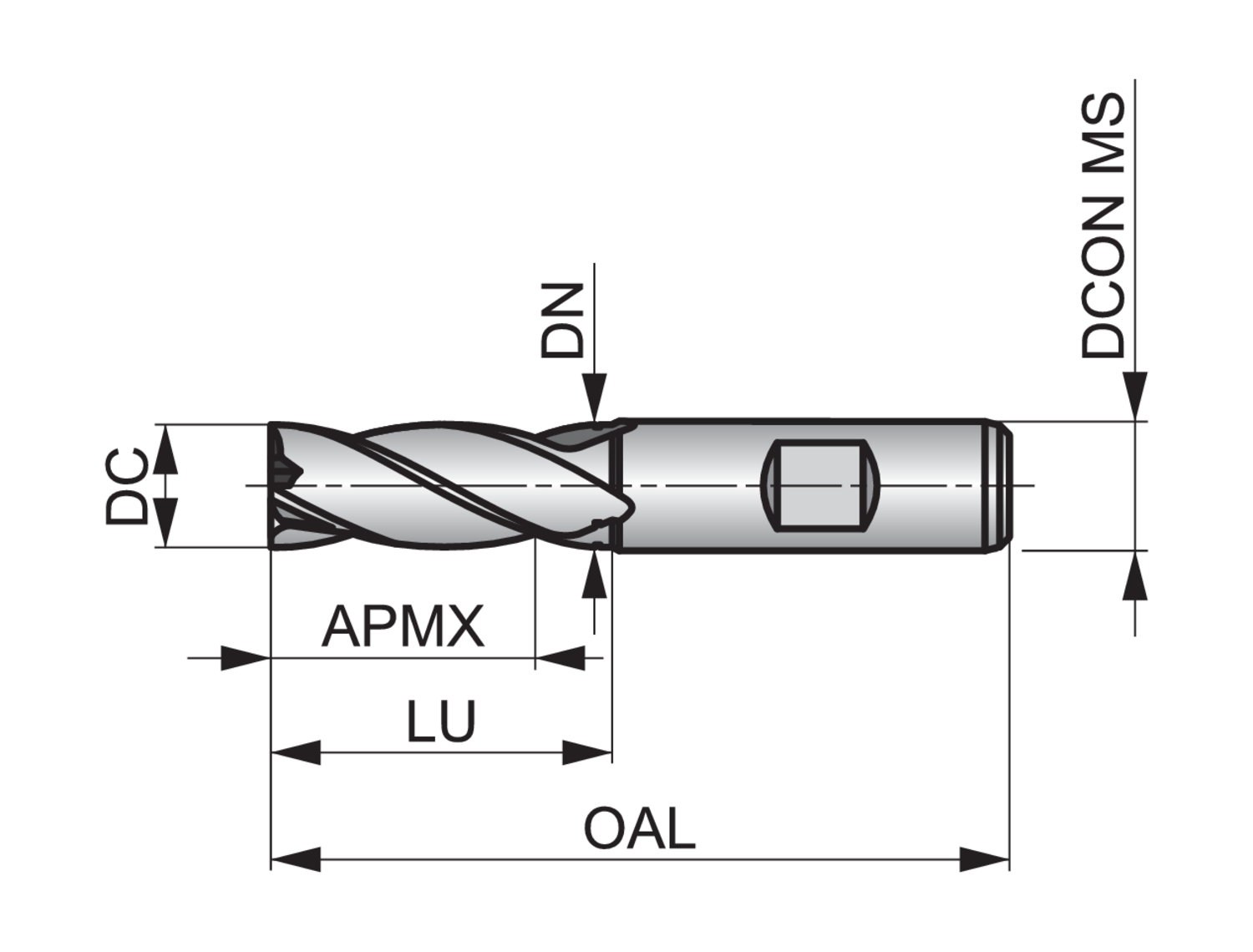

Cutting diameter – millimeter (DC): 7 mm
Connection diameter – millimeter (DCON MS): 10 mm
Depth of cut maximum – millimeter (APMX): 16 mm
Overall length – millimeter (OAL): 66 mm
Flute count (NOF): 4
Neck diameter – millimeter (DN): 7 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C2467.0

Brand
