DORMER C24711.0 HSCO Cutters

Product Code: C24711.0

$107.07$97.34 Ex. GST

Product Code: C24711.0 SKU C24711.0 Categories , ,
DORMER C24711.0 HSCO Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

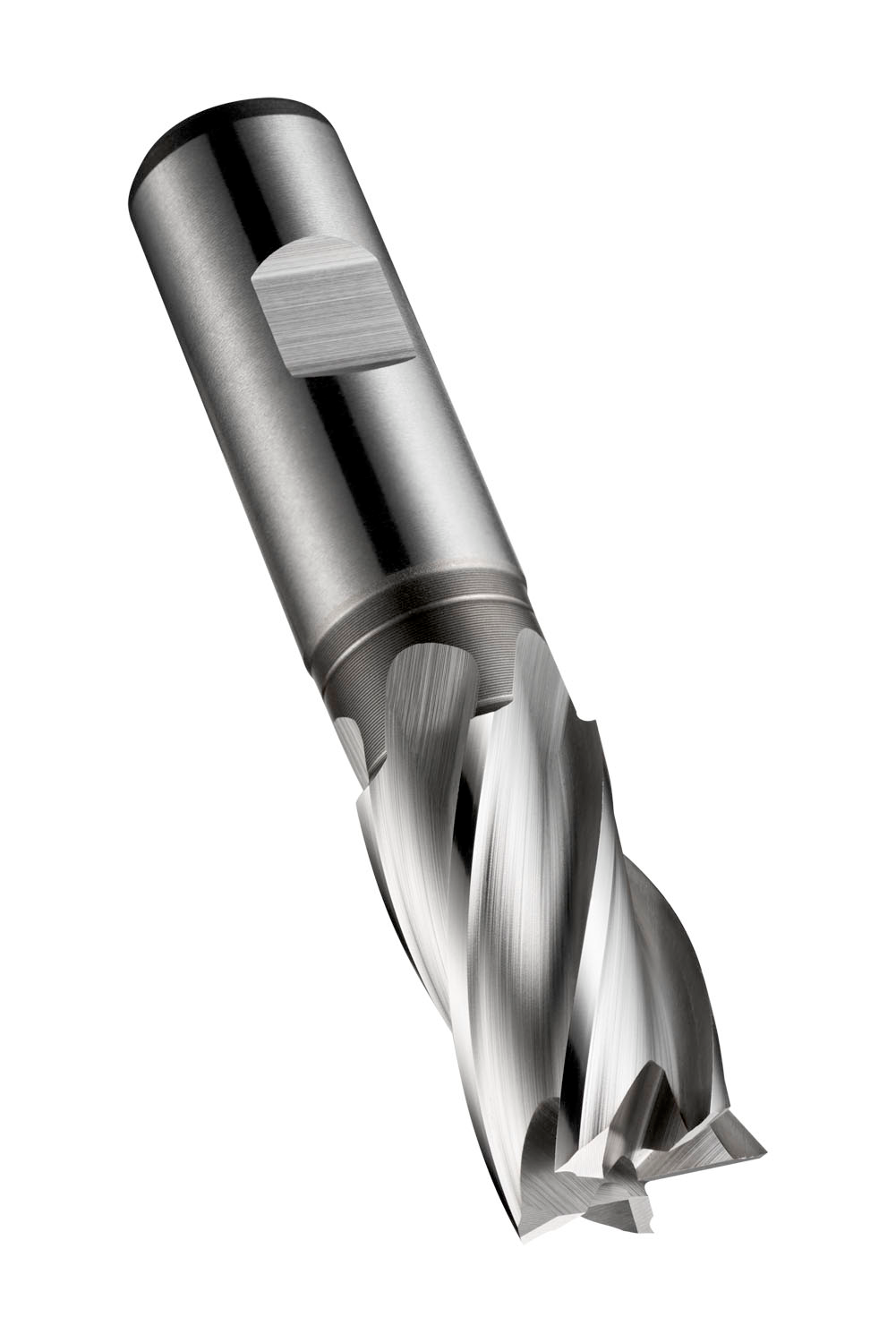

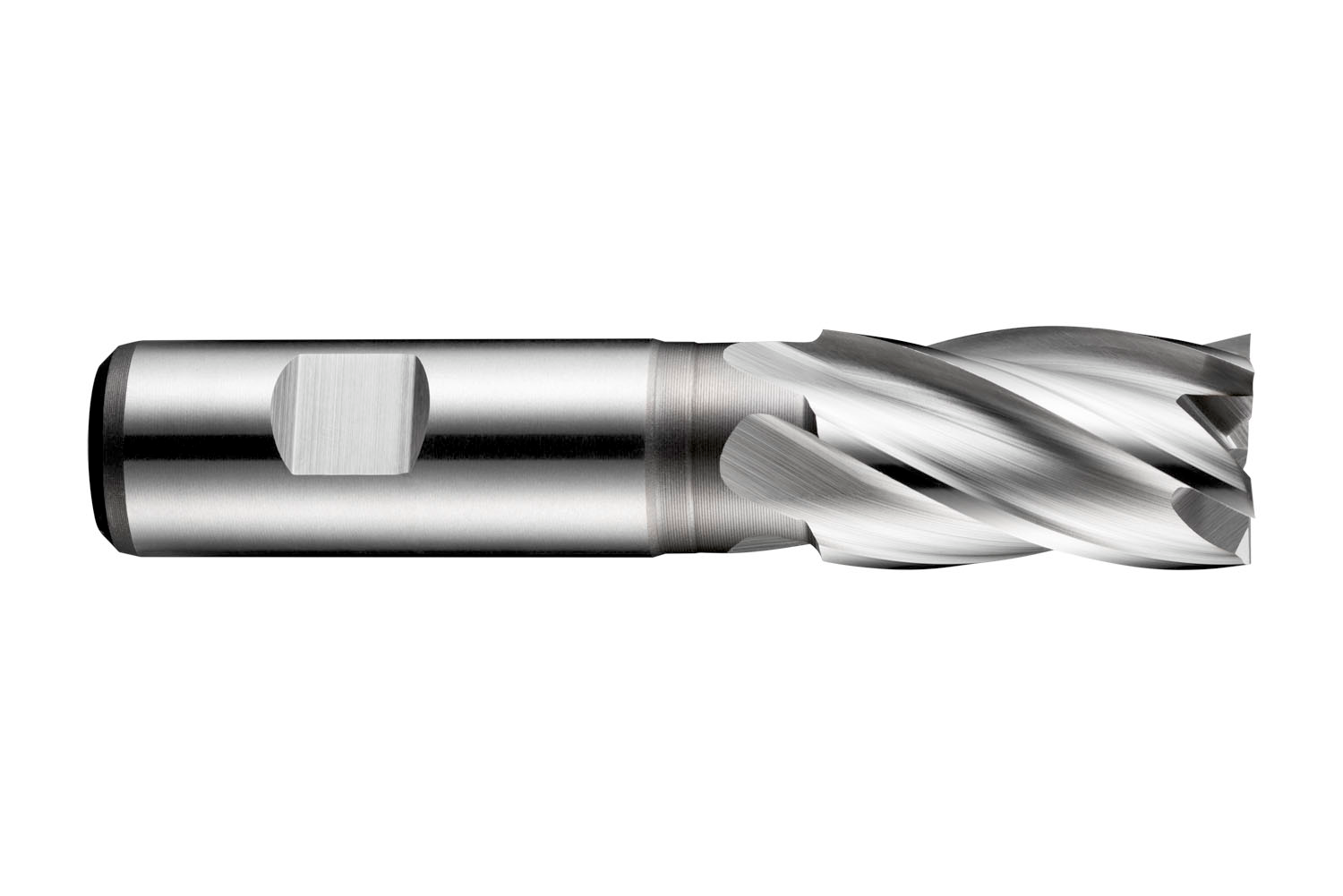

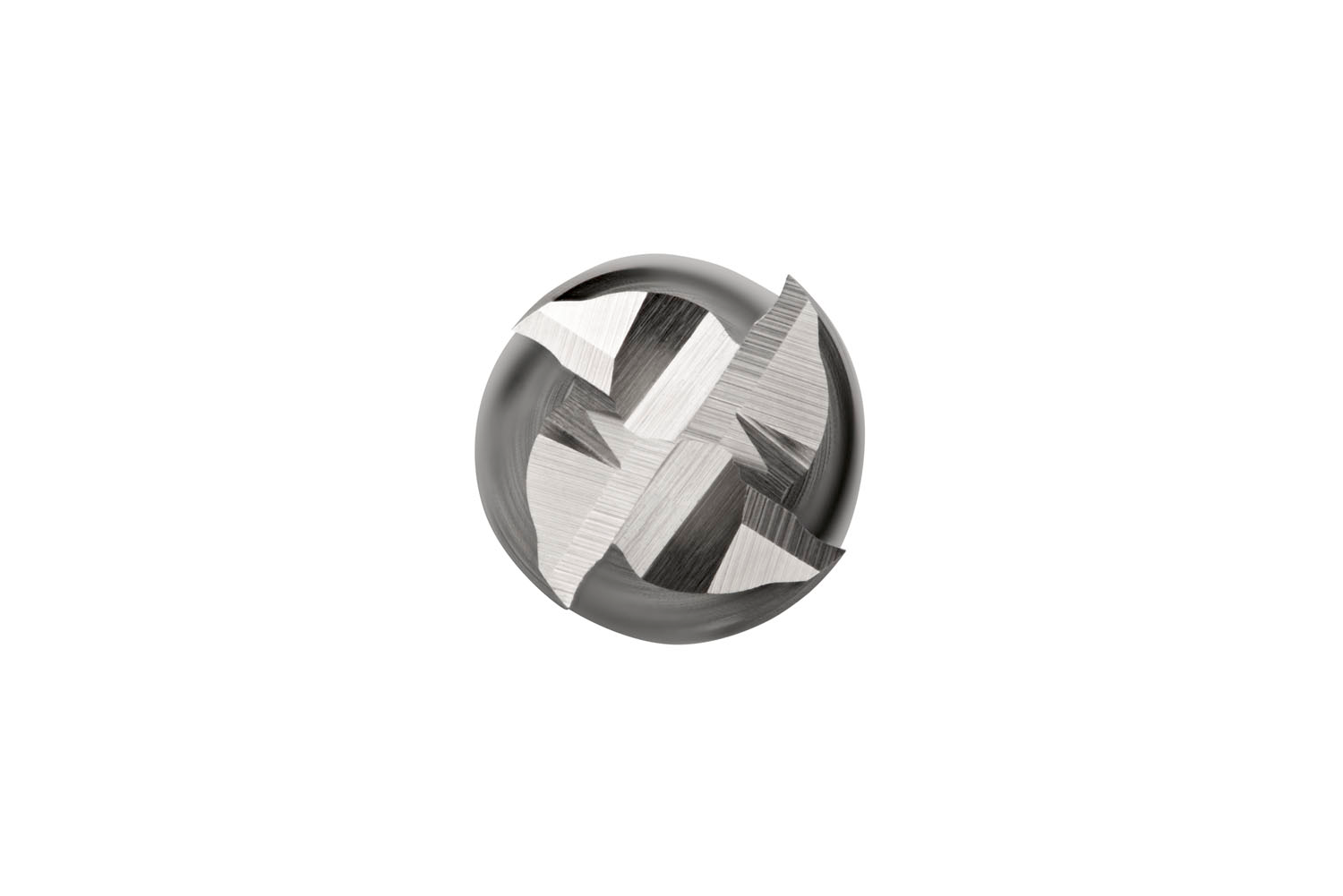

Short series end mill with 4 flutes, diameter 11mm with 22mm length of cut and 79mm overall length, according to DIN 844 K standard with a 12mm Weldon shank, powder metallurgical HSS-E with bright finish, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining and plain carbon steel and copper or copper alloys

Additional information

Weight 0.1040 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760354599
Product number (SAP): 86013621
Ordering code ANSI: C24711.0
Gross weight – grams: 62.5

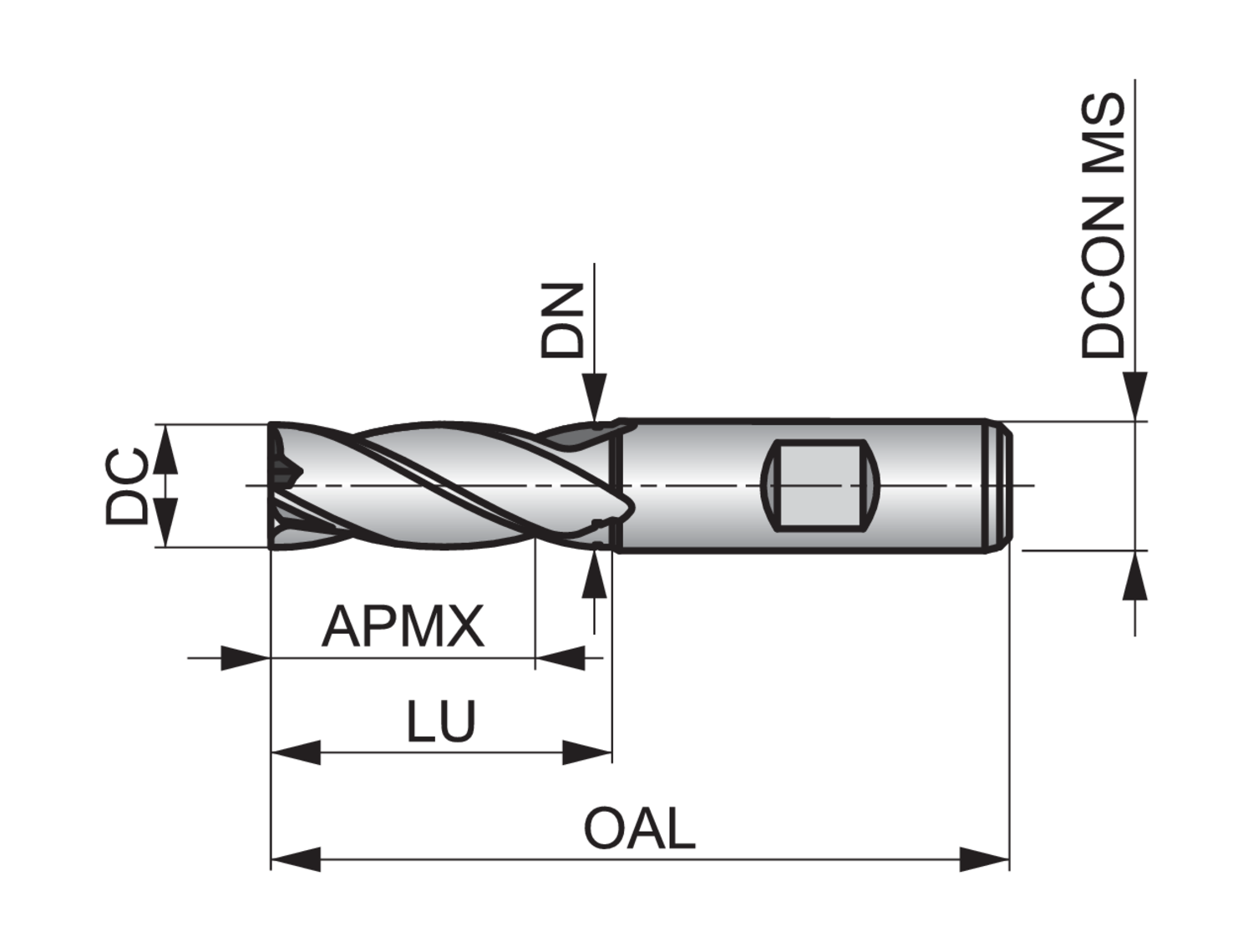

Cutting diameter – millimeter (DC): 11 mm
Connection diameter – millimeter (DCON MS): 12 mm
Depth of cut maximum – millimeter (APMX): 22 mm
Overall length – millimeter (OAL): 79 mm
Flute count (NOF): 4
Neck diameter – millimeter (DN): 11 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C24711.0

Brand

DORMER
