DORMER C24717.0 HSCO Cutters

Product Code: C24717.0

$176.75$160.68 Ex. GST

Product Code: C24717.0 SKU C24717.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

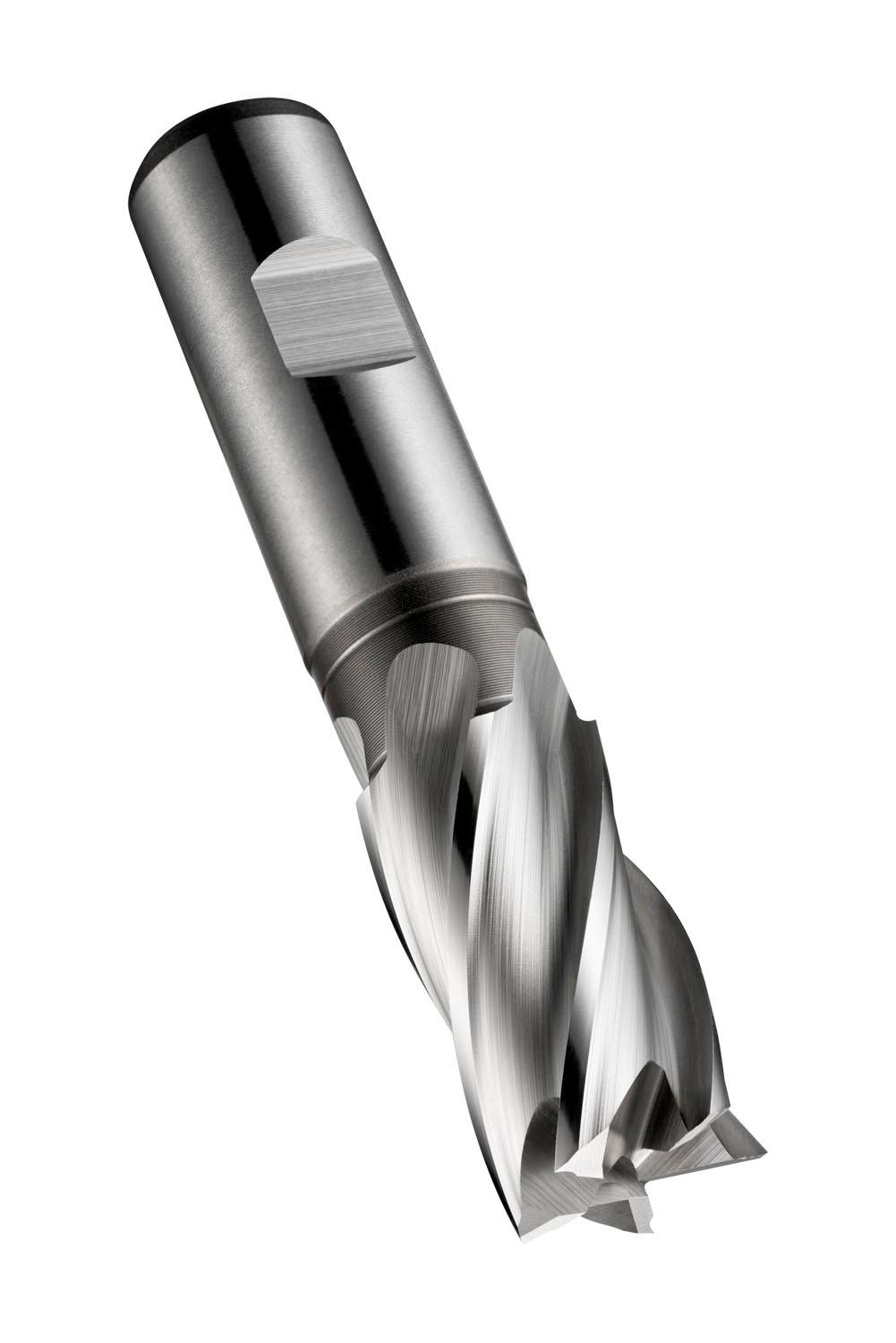

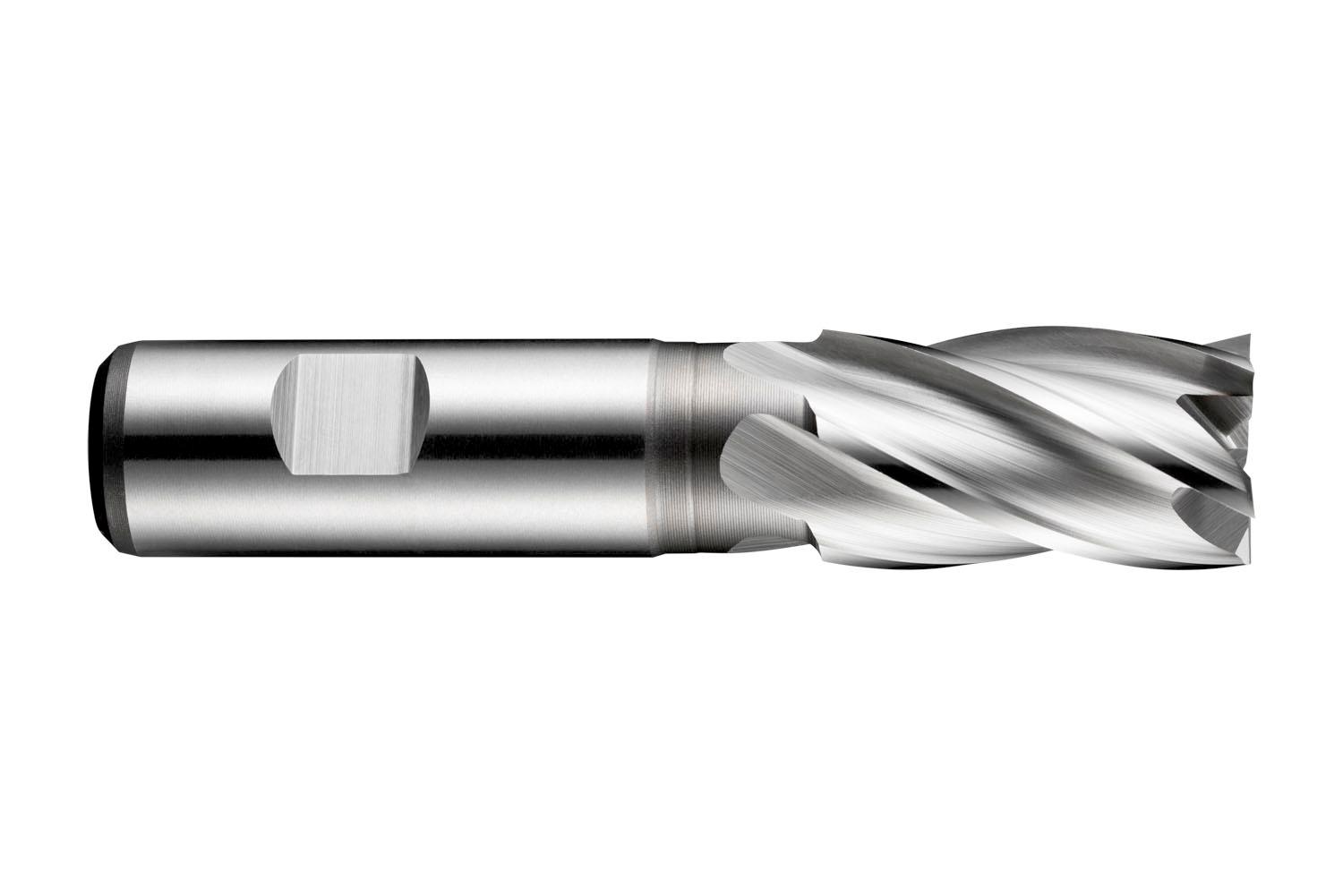

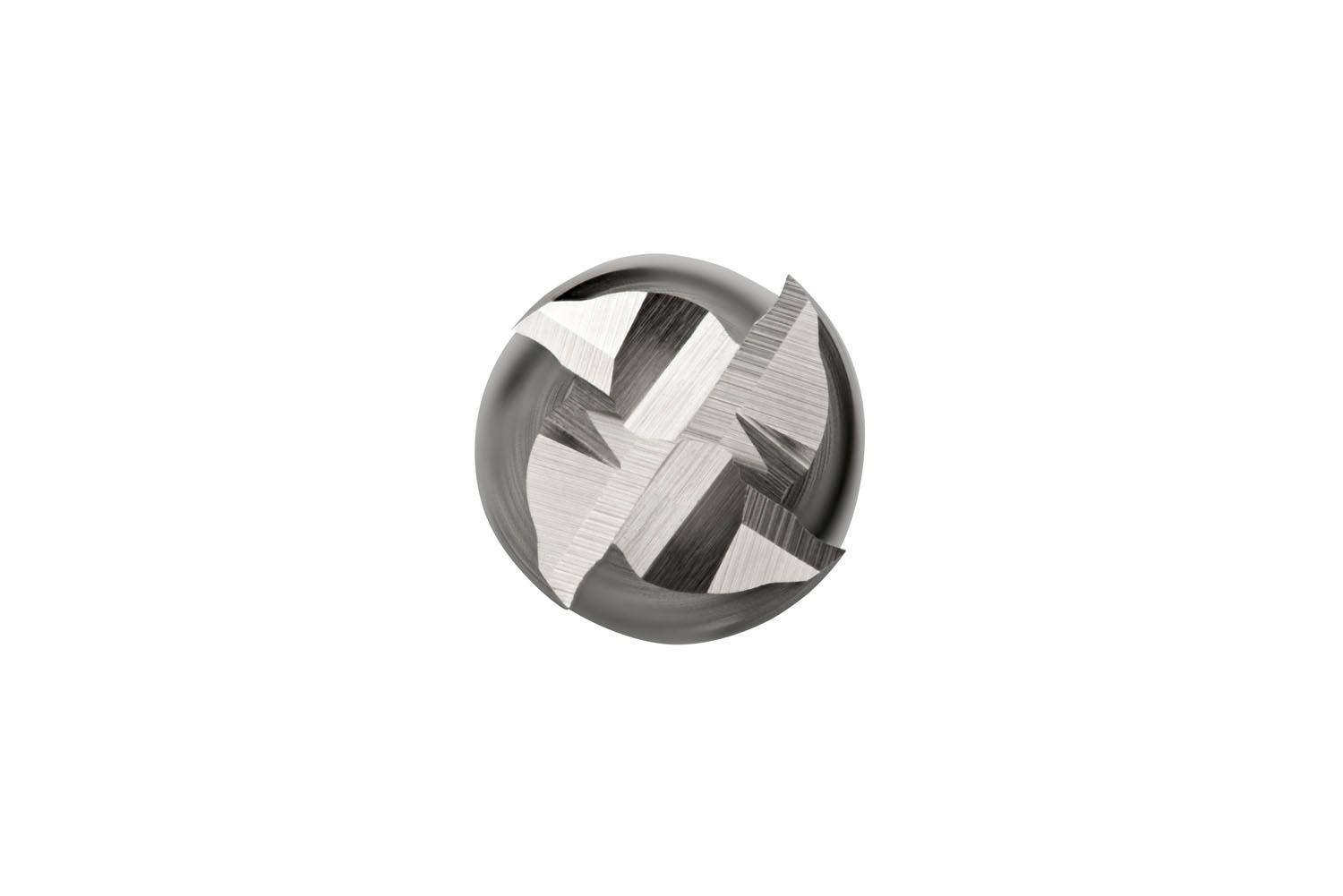

Short series end mill with 4 flutes, diameter 17mm with 32mm length of cut, 92mm overall length and 43.5mm reach with neck relief, according to DIN 844 K standard with a 16mm Weldon shank, powder metallurgical HSS-E with bright finish, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining and plain carbon steel and copper or copper alloys

Additional information

Weight 0.1716 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760609316
Product number (SAP): 86013627
Ordering code ANSI: C24717.0
Gross weight – grams: 133.1

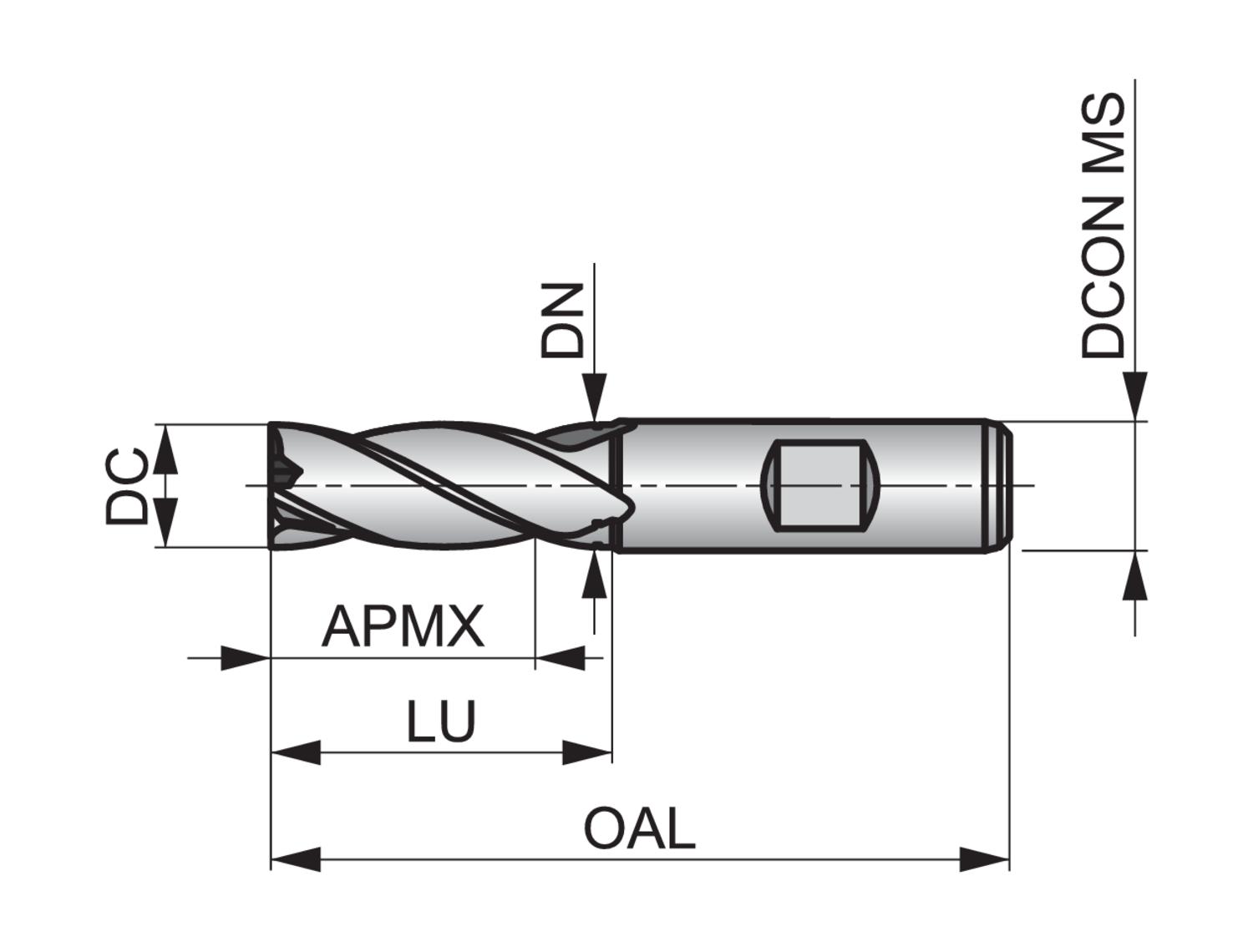

Cutting diameter – millimeter (DC): 17 mm
Connection diameter – millimeter (DCON MS): 16 mm
Depth of cut maximum – millimeter (APMX): 32 mm
Overall length – millimeter (OAL): 92 mm
Flute count (NOF): 4
Usable Length – millimeter (LU): 43.5 mm
Neck diameter – millimeter (DN): 15.5 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C24717.0

Brand

DORMER
