DORMER C2473.5 HSCO Cutters

Product Code: C2473.5

$60.05$54.59 Ex. GST

Product Code: C2473.5 SKU C2473.5 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

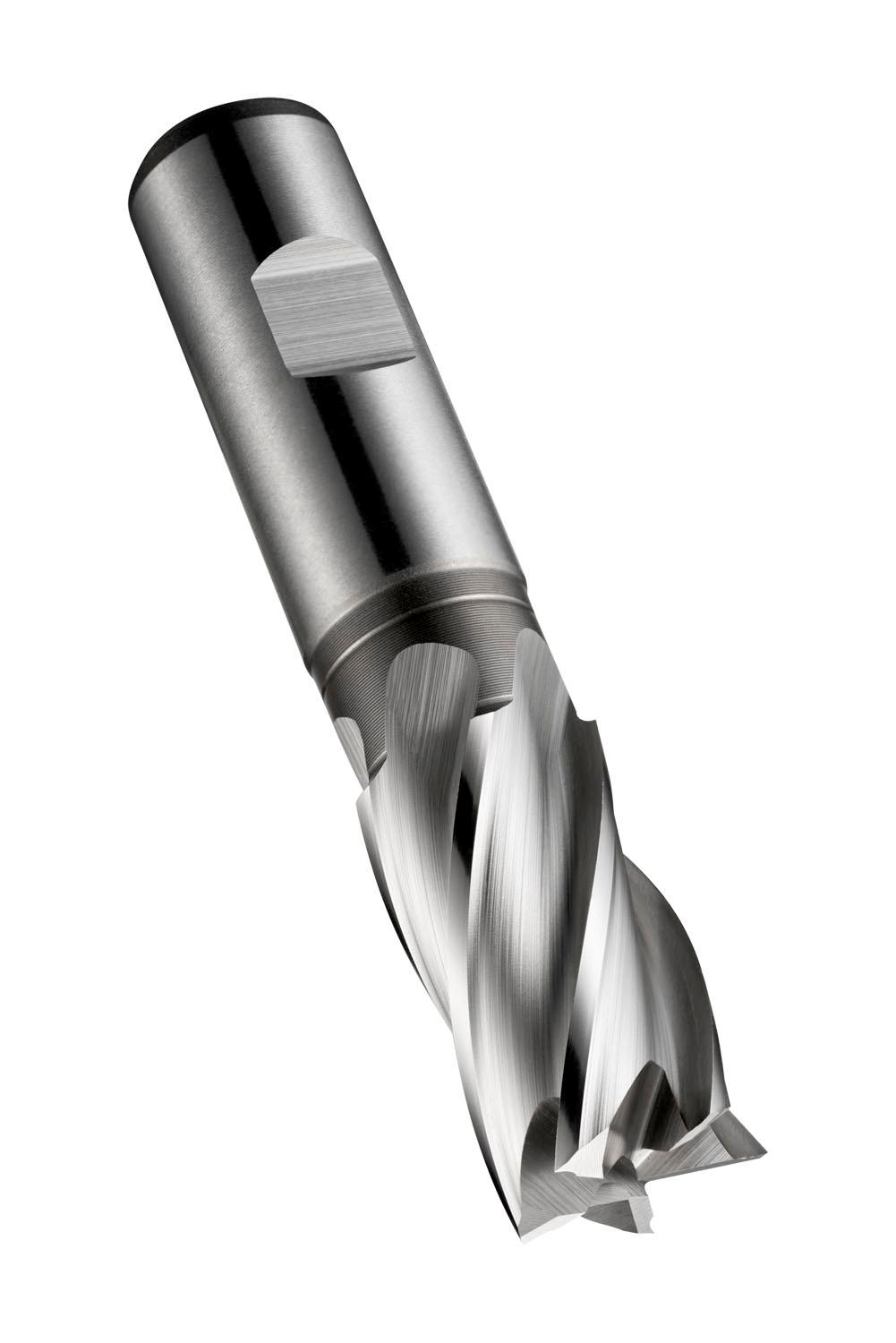

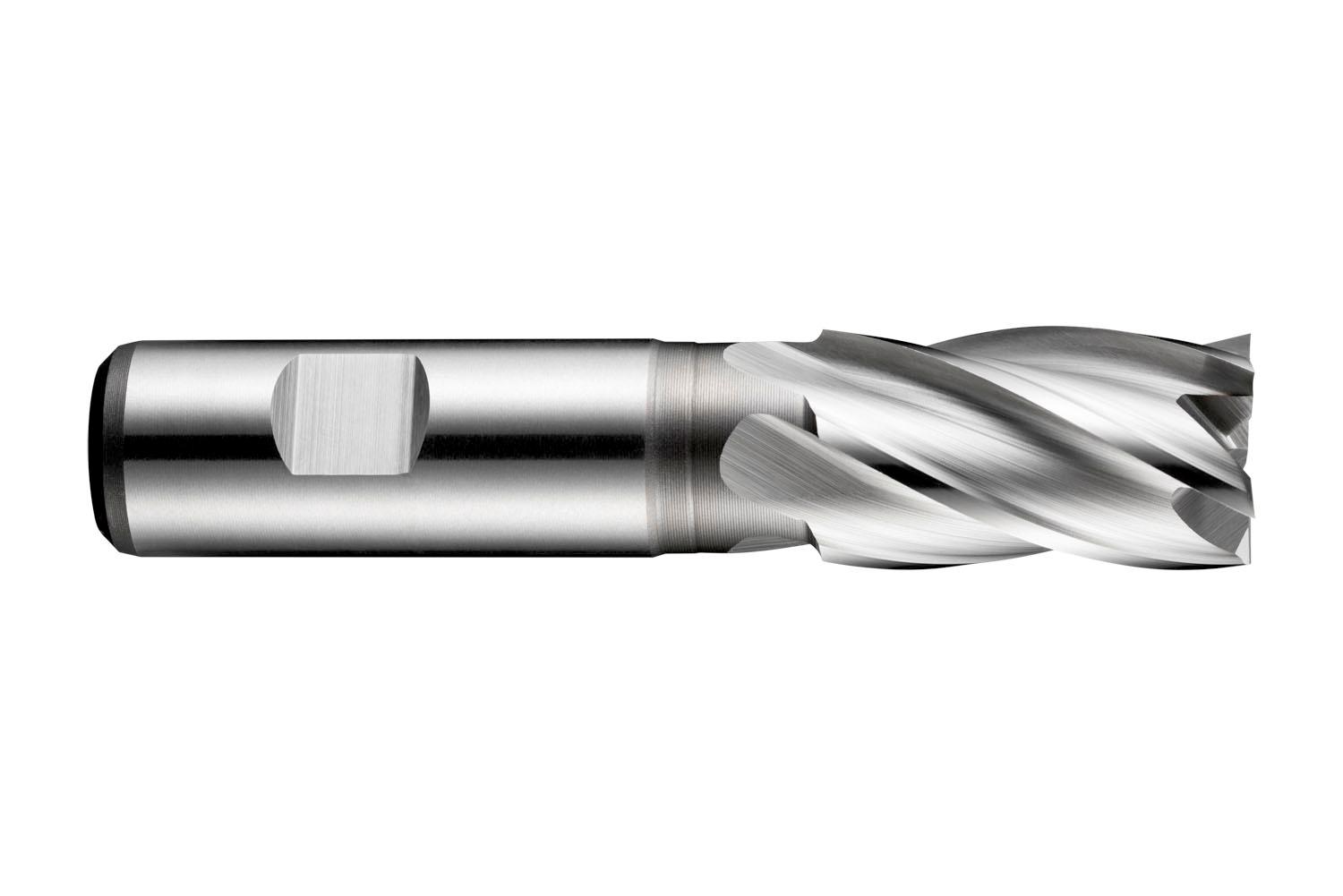

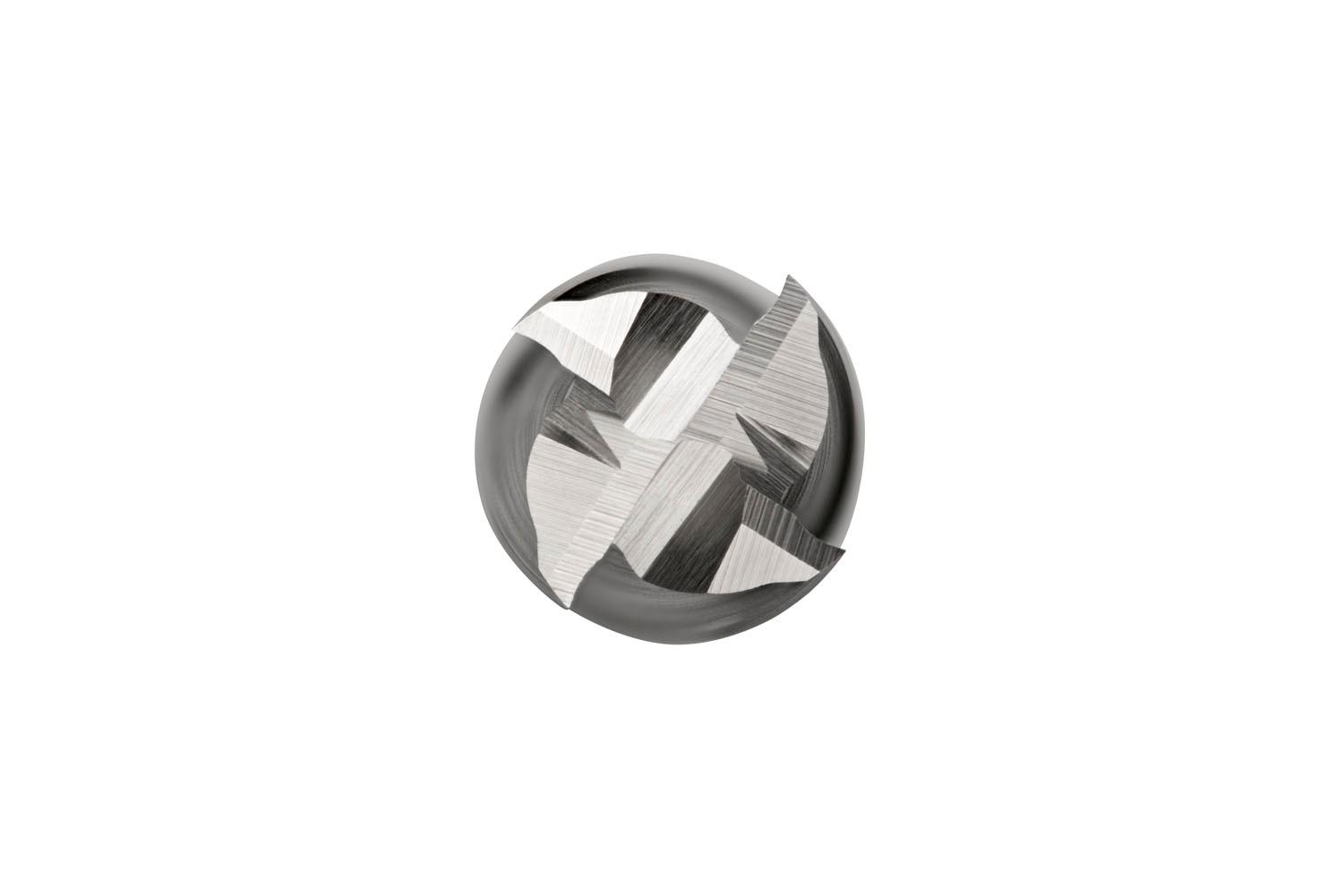

Short series end mill with 4 flutes, diameter 3.5mm with 10mm length of cut and 54mm overall length, according to DIN 844 K standard with a 6mm Weldon shank, powder metallurgical HSS-E with bright finish, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining and plain carbon steel and copper or copper alloys

Additional information

Weight 0.0583 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760354735
Product number (SAP): 86013641
Ordering code ANSI: C2473.5
Gross weight – grams: 11.5

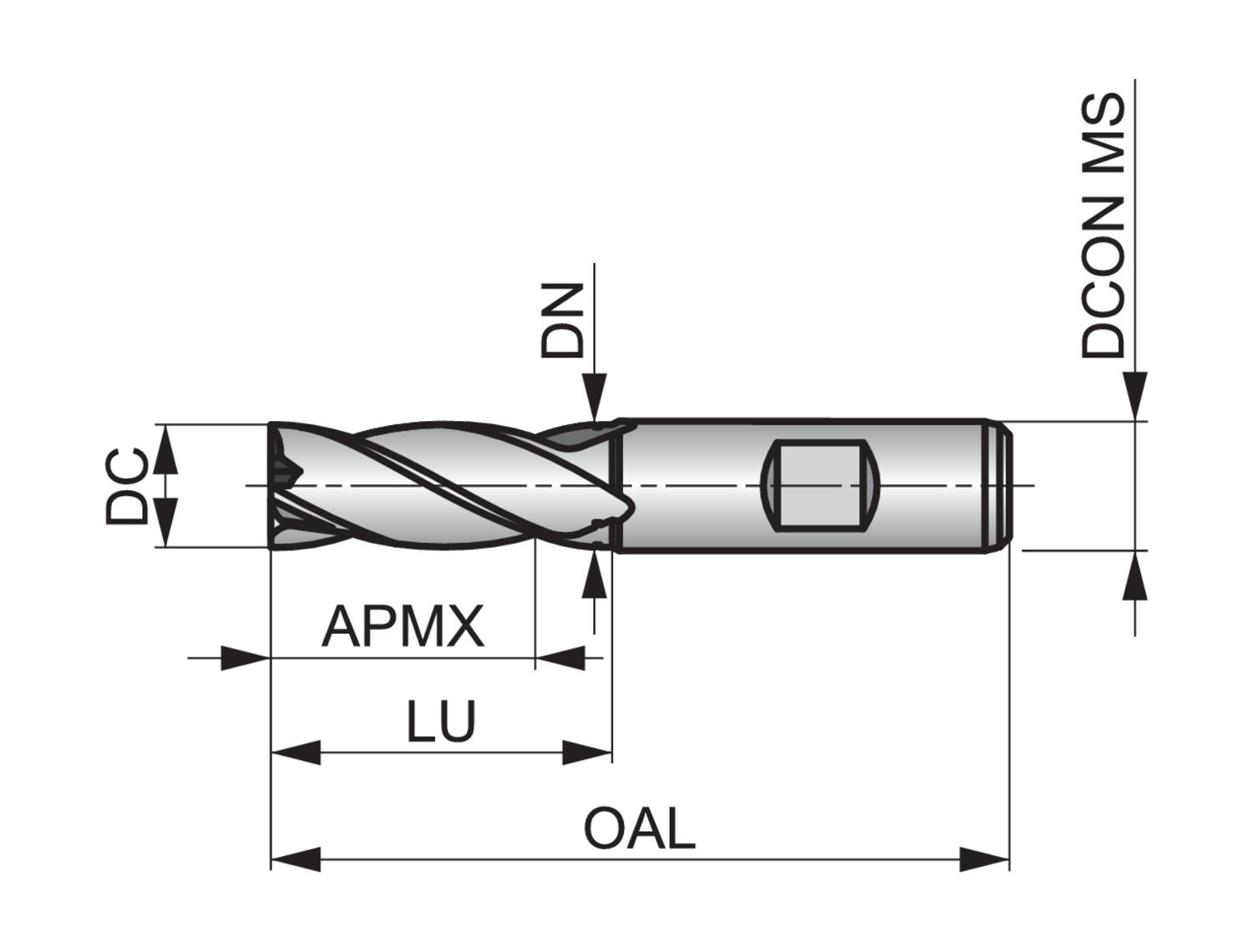

Cutting diameter – millimeter (DC): 3.5 mm
Connection diameter – millimeter (DCON MS): 6 mm
Depth of cut maximum – millimeter (APMX): 10 mm
Overall length – millimeter (OAL): 54 mm
Flute count (NOF): 4
Neck diameter – millimeter (DN): 3.5 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C2473.5

Brand

DORMER
