DORMER C24730.0 HSCO Cutters

Product Code: C24730.0

$403.35$366.68 Ex. GST

Product Code: C24730.0 SKU C24730.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

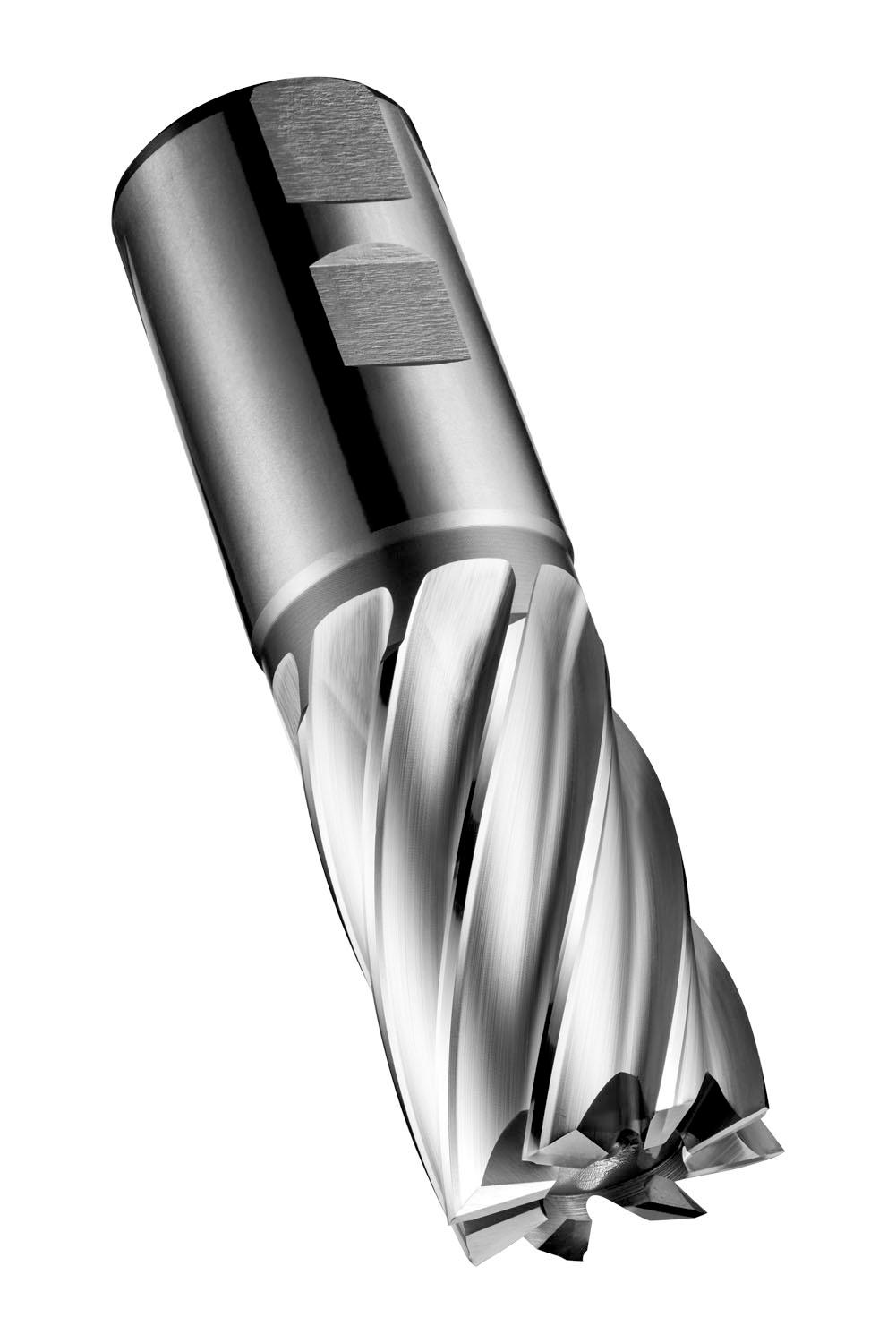

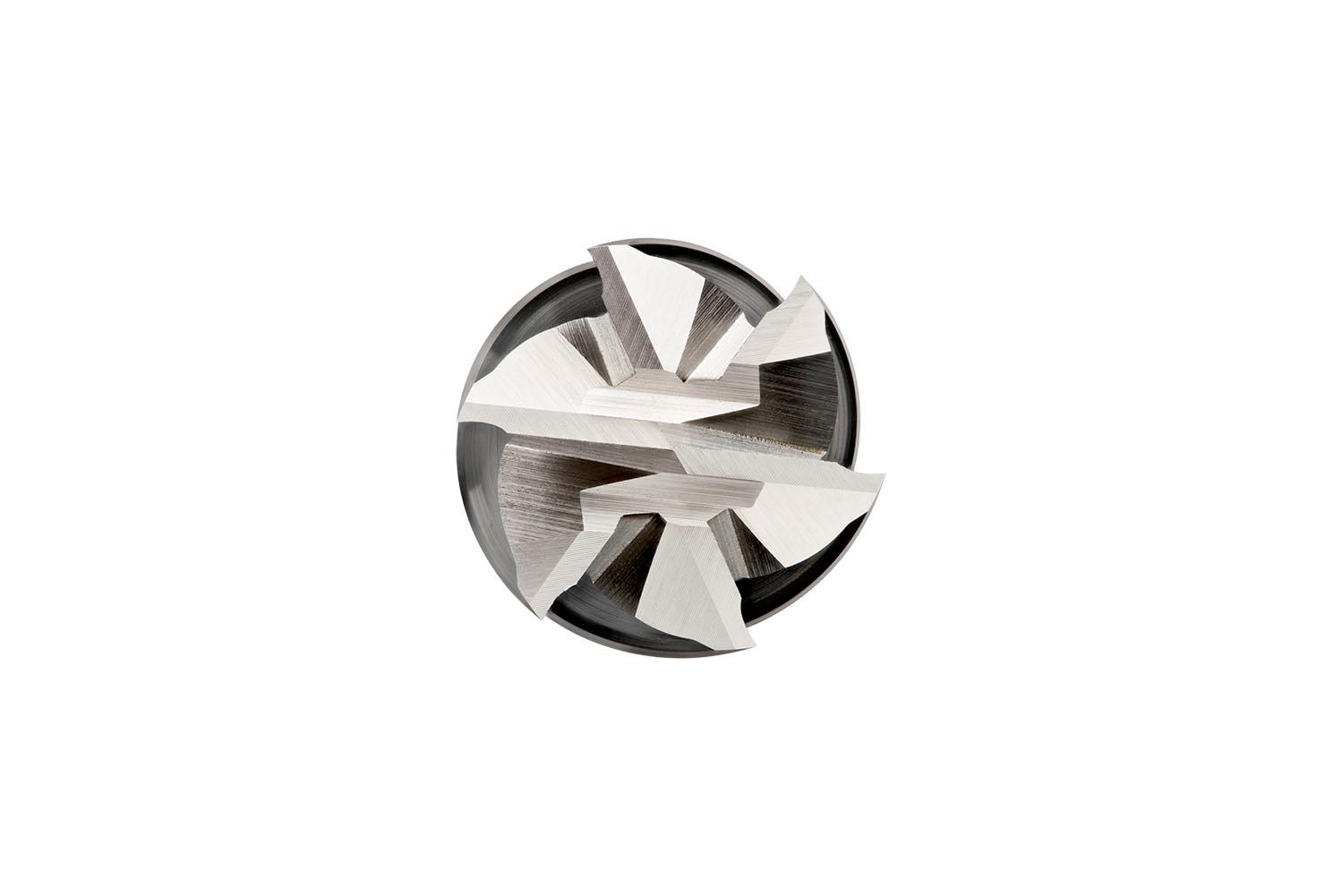

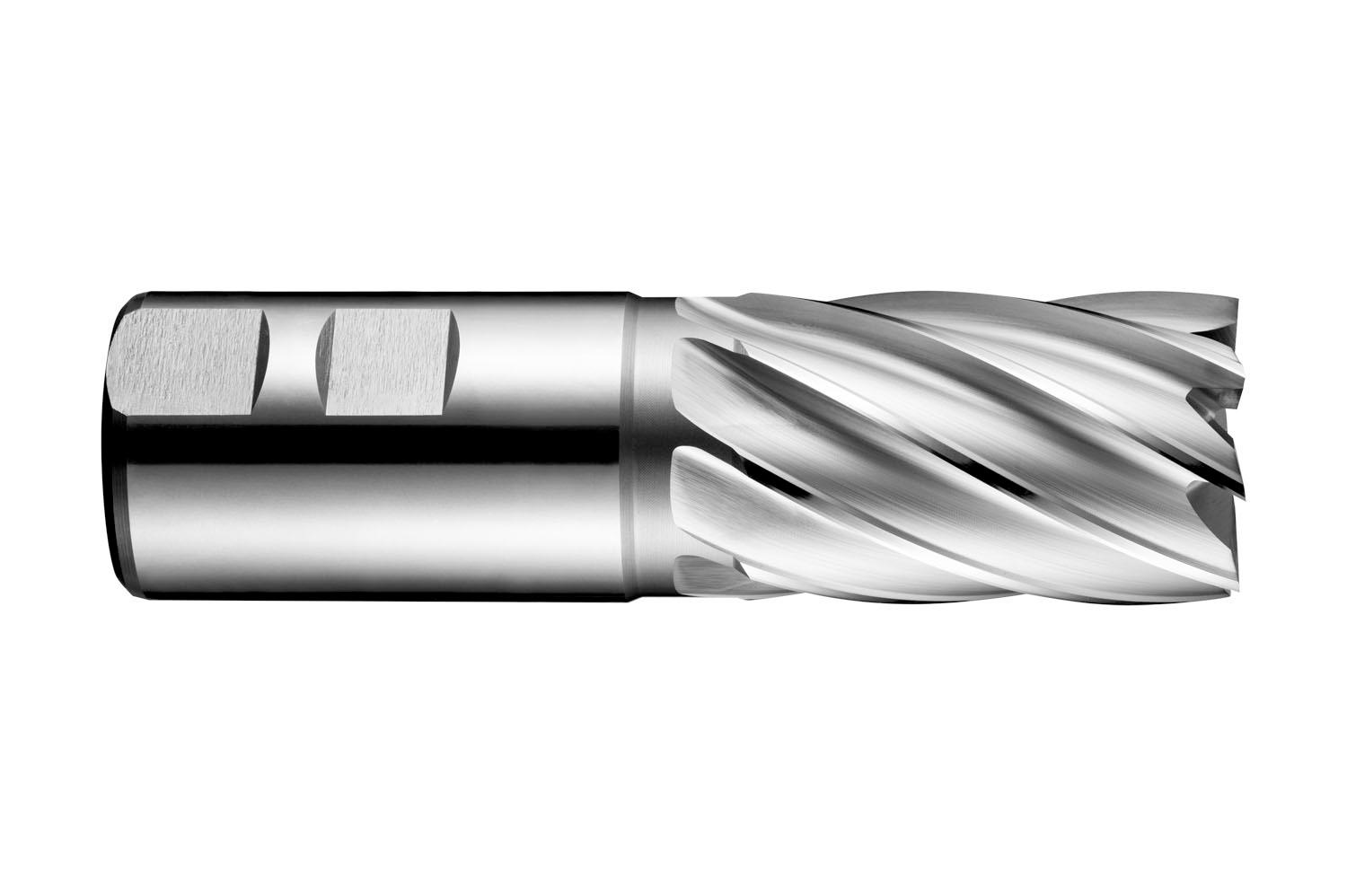

Short series end mill with 6 flutes, diameter 30mm with 45mm length of cut, 121mm overall length and 64.5mm reach with neck relief, according to DIN 844 K standard with a 25mm Weldon shank, powder metallurgical HSS-E with bright finish, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining and plain carbon steel and copper or copper alloys

Additional information

Weight 0.3916 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760354742
Product number (SAP): 86013645
Ordering code ANSI: C24730.0
Gross weight – grams: 484

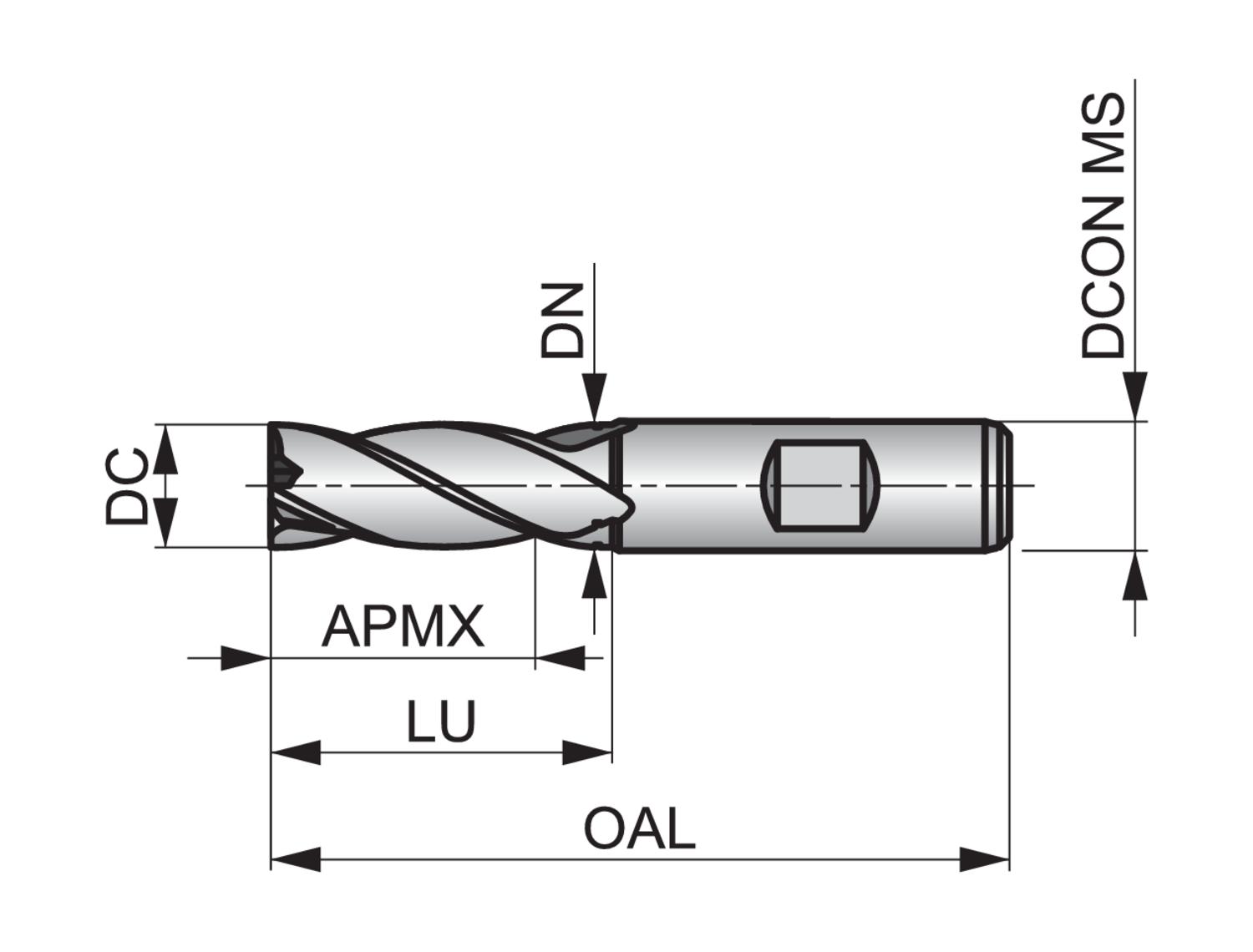

Cutting diameter – millimeter (DC): 30 mm
Connection diameter – millimeter (DCON MS): 25 mm
Depth of cut maximum – millimeter (APMX): 45 mm
Overall length – millimeter (OAL): 121 mm
Flute count (NOF): 6
Usable Length – millimeter (LU): 64.5 mm
Neck diameter – millimeter (DN): 24.5 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C24730.0

Brand

DORMER
