DORMER C24736.0 HSCO Cutters

Product Code: C24736.0

$514.38$467.62 Ex. GST

Product Code: C24736.0 SKU C24736.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

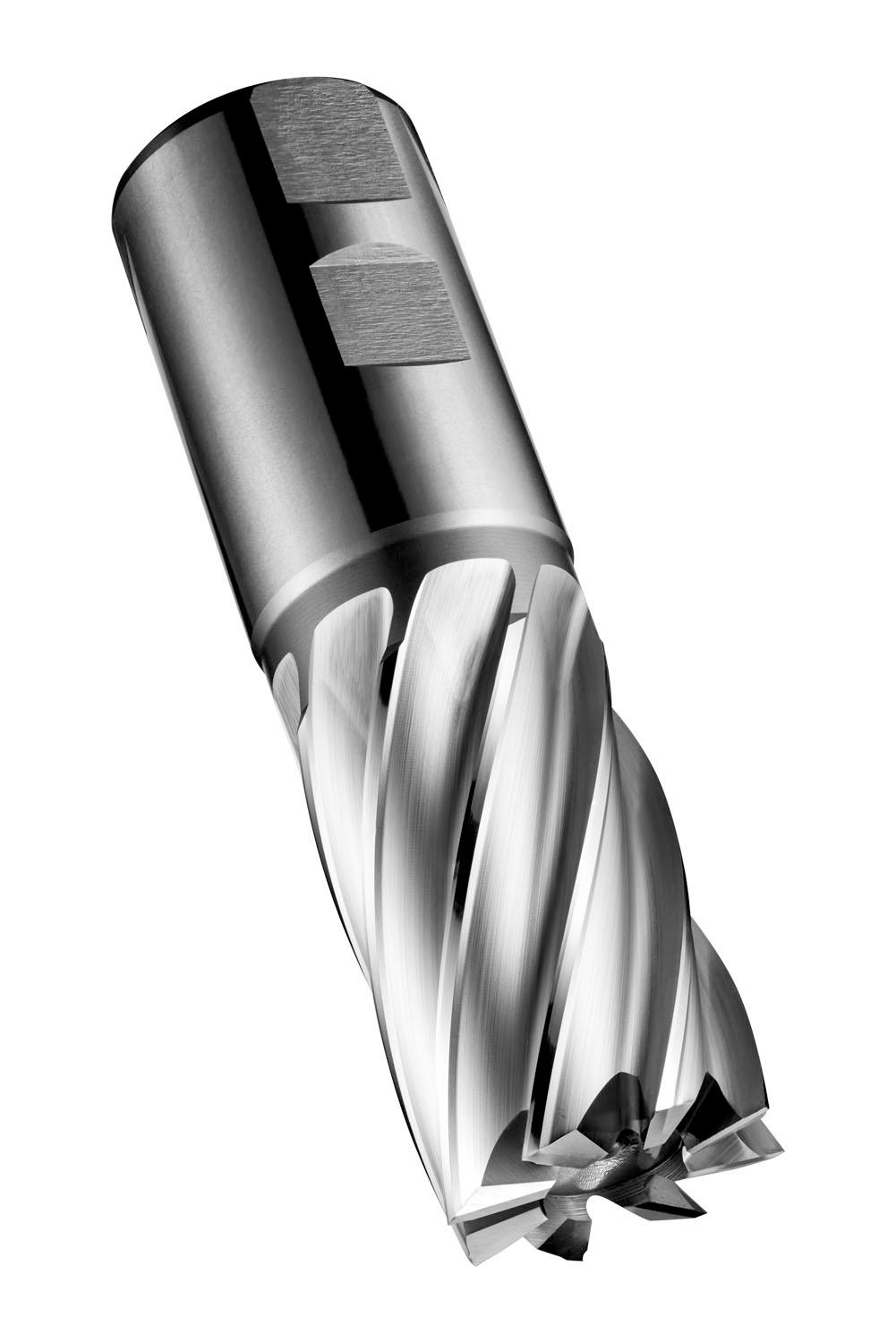

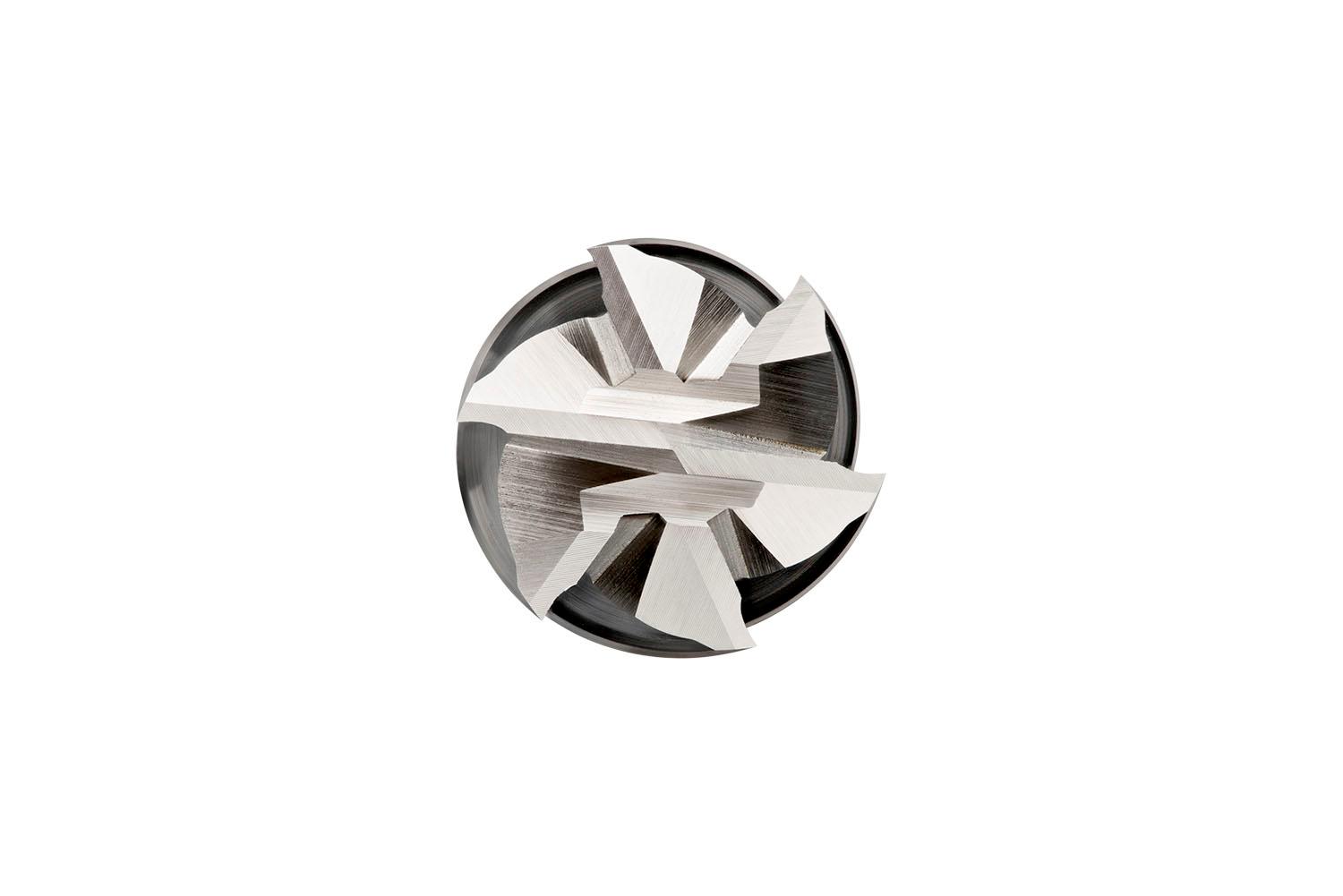

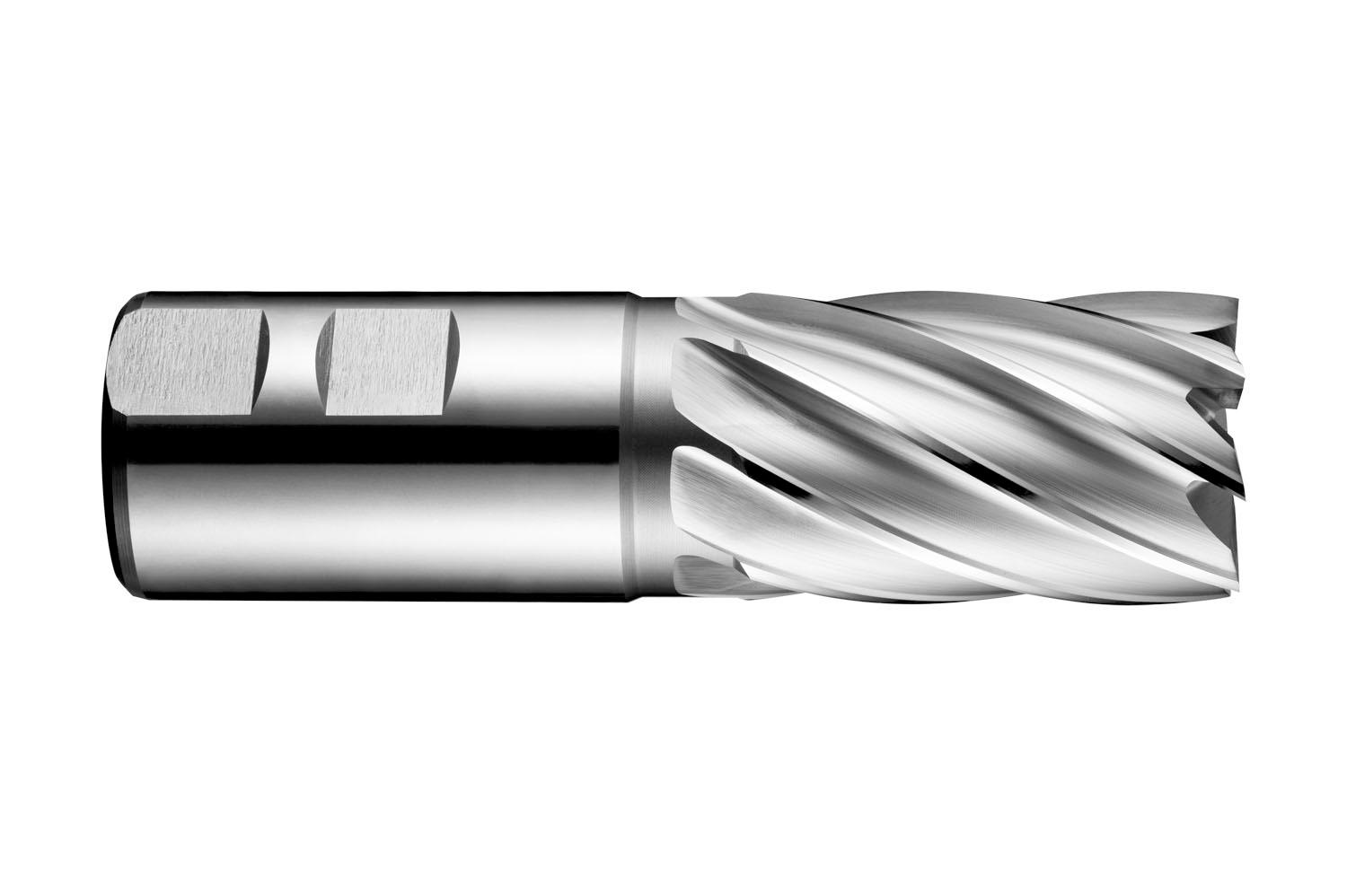

Short series end mill with 6 flutes, diameter 36mm with 53mm length of cut, 133mm overall length and 72.5mm reach with neck relief, according to DIN 844 K standard with a 32mm Weldon shank, powder metallurgical HSS-E with bright finish, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining and plain carbon steel and copper or copper alloys

Additional information

Weight 0.4994 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760609378
Product number (SAP): 86013647
Ordering code ANSI: C24736.0
Gross weight – grams: 834.4

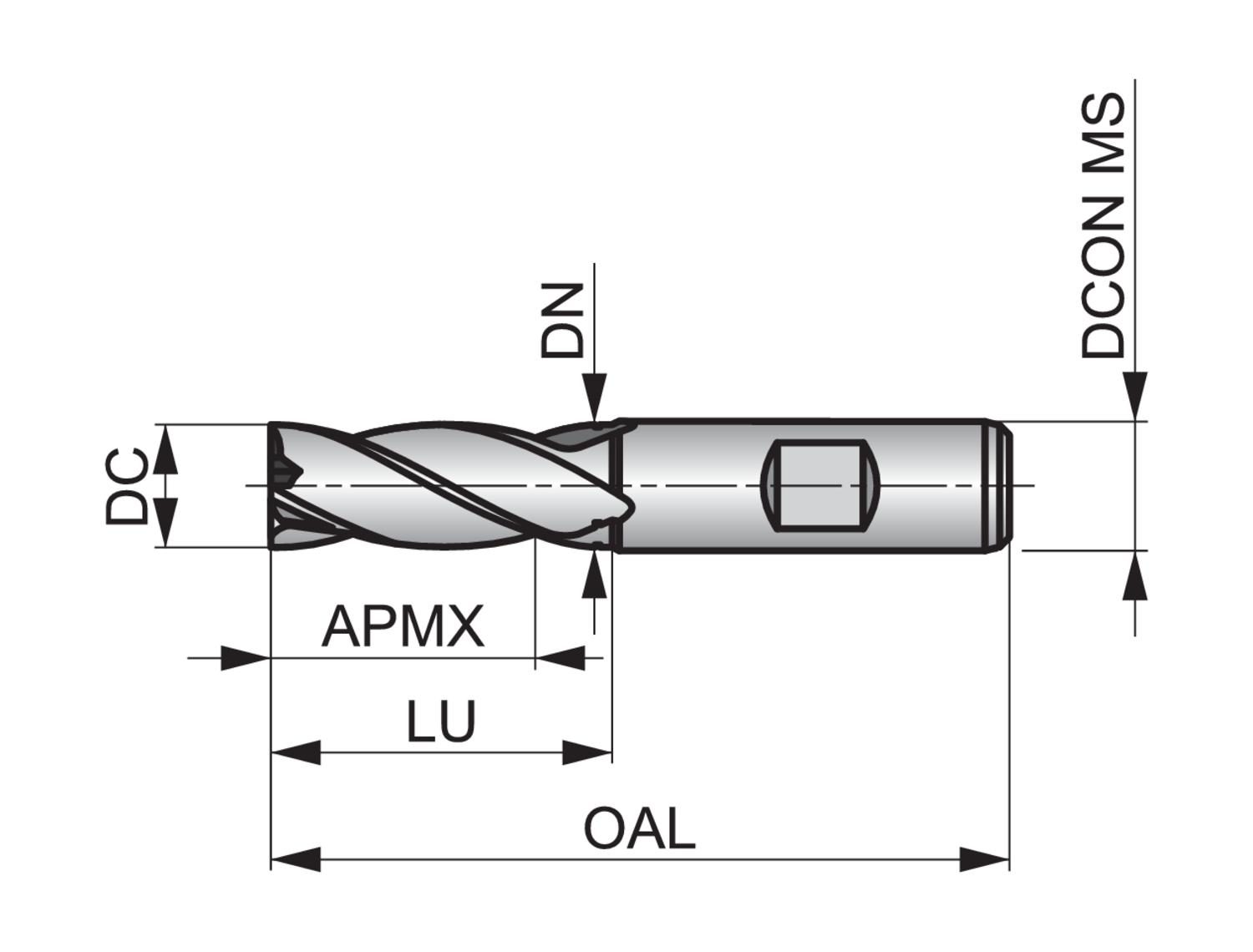

Cutting diameter – millimeter (DC): 36 mm
Connection diameter – millimeter (DCON MS): 32 mm
Depth of cut maximum – millimeter (APMX): 53 mm
Overall length – millimeter (OAL): 133 mm
Flute count (NOF): 6
Usable Length – millimeter (LU): 72.5 mm
Neck diameter – millimeter (DN): 31.5 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C24736.0

Brand

DORMER
