DORMER C24740.0 HSCO Cutters

Product Code: C24740.0

$635.61$577.83 Ex. GST

Product Code: C24740.0 SKU C24740.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

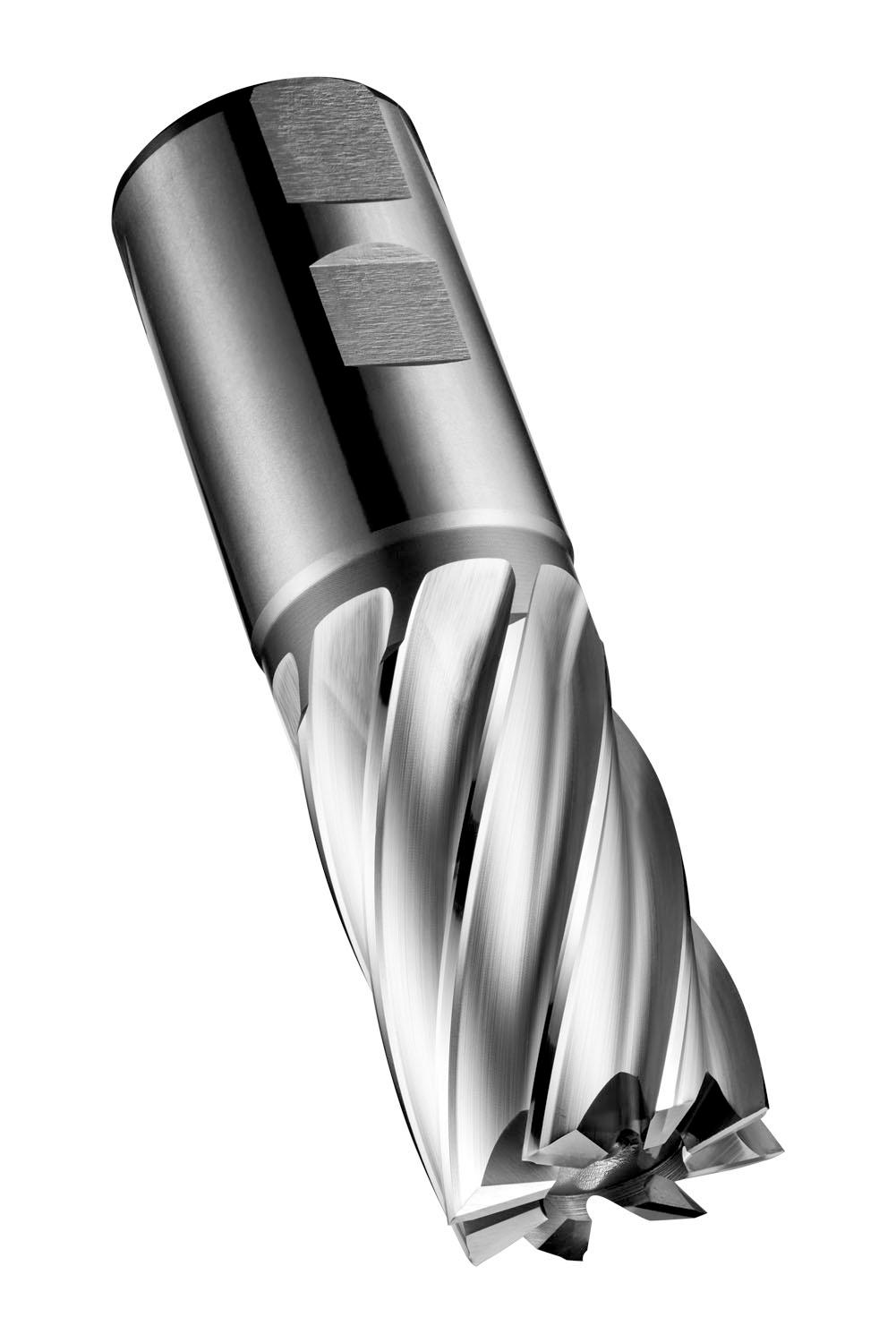

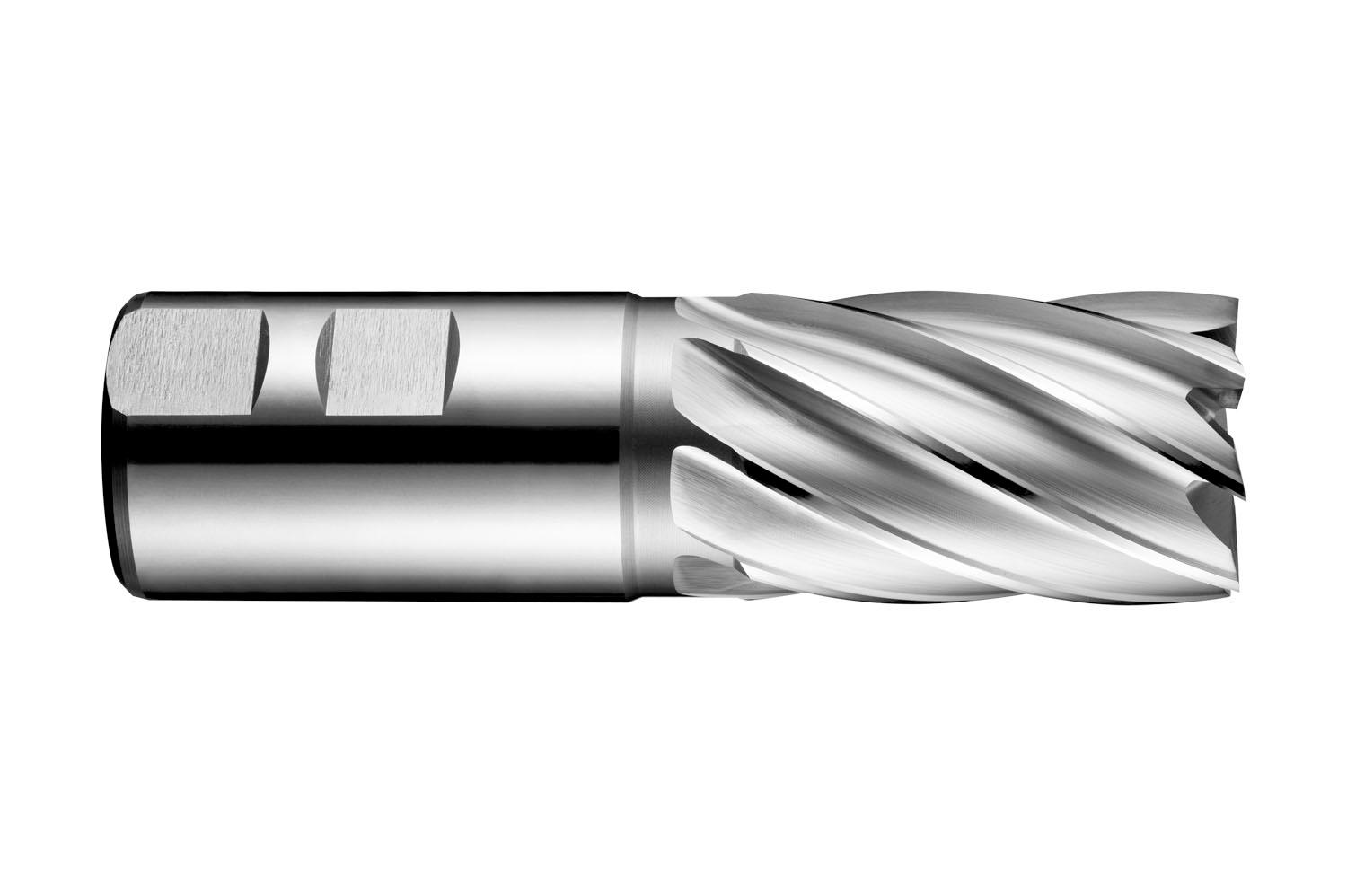

Short series end mill with 6 flutes, diameter 40mm with 63mm length of cut, 155mm overall length and 84.5mm reach with neck relief, according to DIN 844 K standard with a 40mm Weldon shank, powder metallurgical HSS-E with bright finish, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining and plain carbon steel and copper or copper alloys

Additional information

Weight 0.6171 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760609385
Product number (SAP): 86013650
Ordering code ANSI: C24740.0
Gross weight – grams: 1342.9

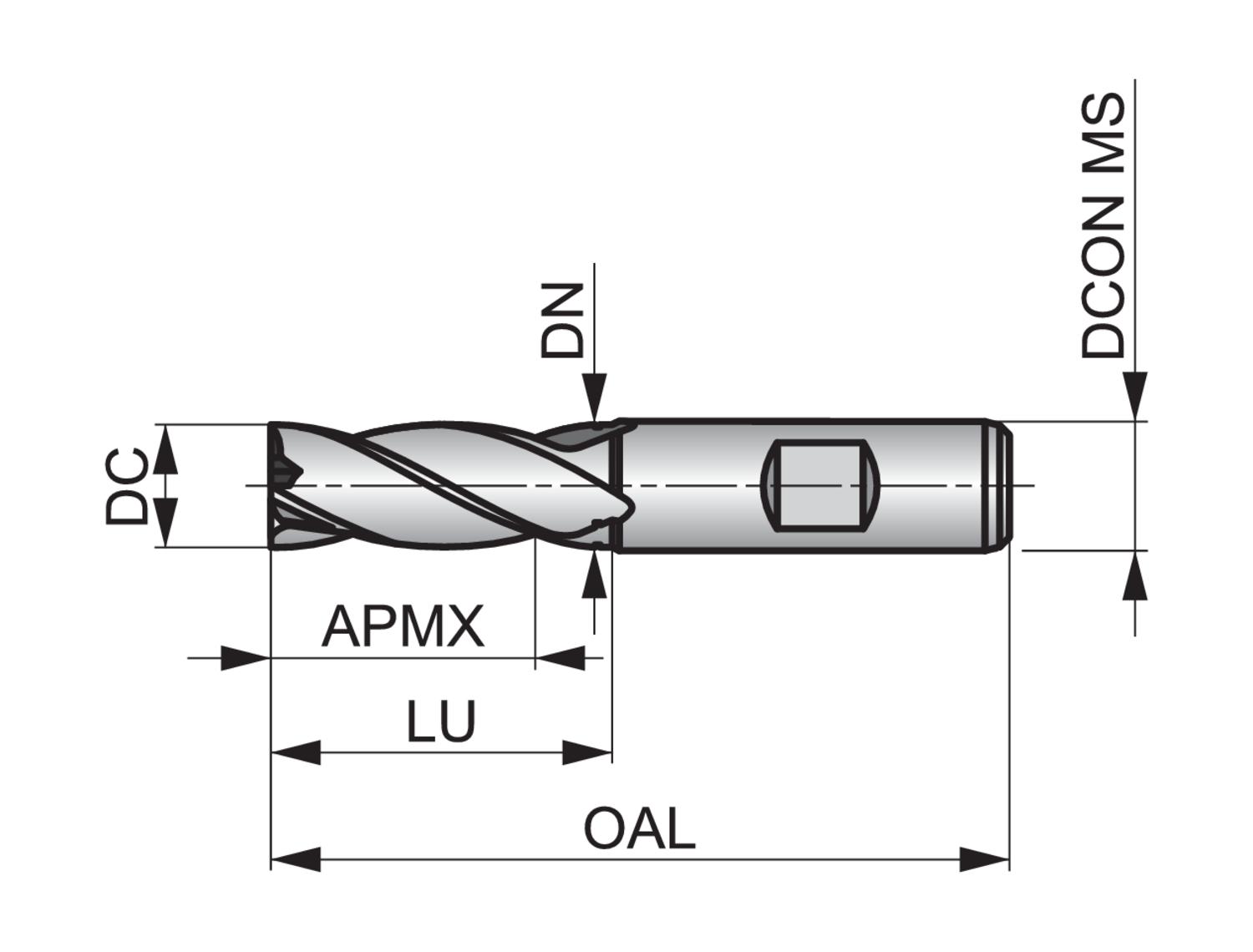

Cutting diameter – millimeter (DC): 40 mm
Connection diameter – millimeter (DCON MS): 40 mm
Depth of cut maximum – millimeter (APMX): 63 mm
Overall length – millimeter (OAL): 155 mm

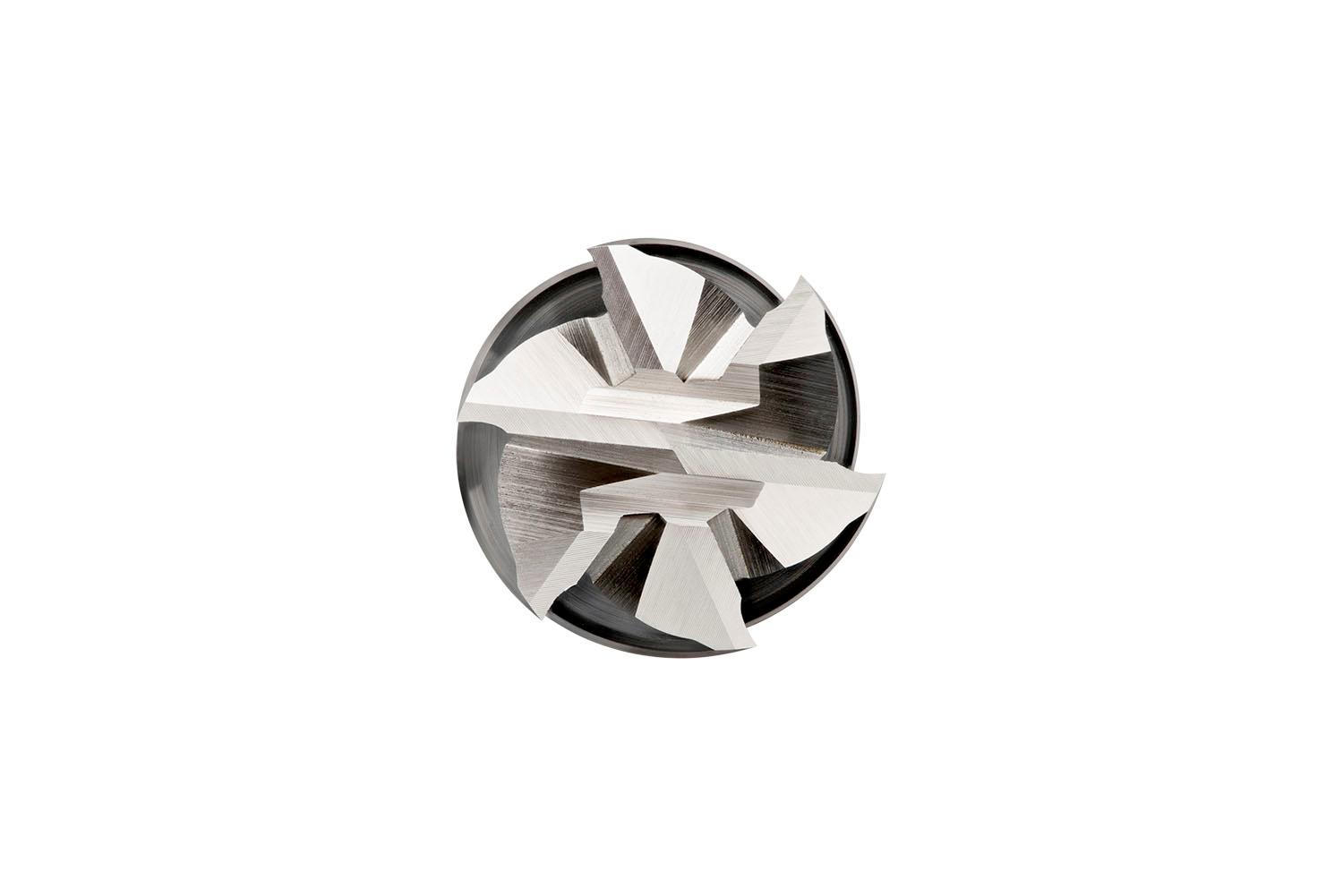

Flute count (NOF): 6
Usable Length – millimeter (LU): 84.5 mm
Neck diameter – millimeter (DN): 39 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C24740.0

Brand

DORMER
