DORMER C2475/16 HSCO Cutters

Product Code: C2475/16

$87.24$79.31 Ex. GST

Product Code: C2475/16 SKU C2475/16 Categories , ,
DORMER C2475/16 HSCO Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

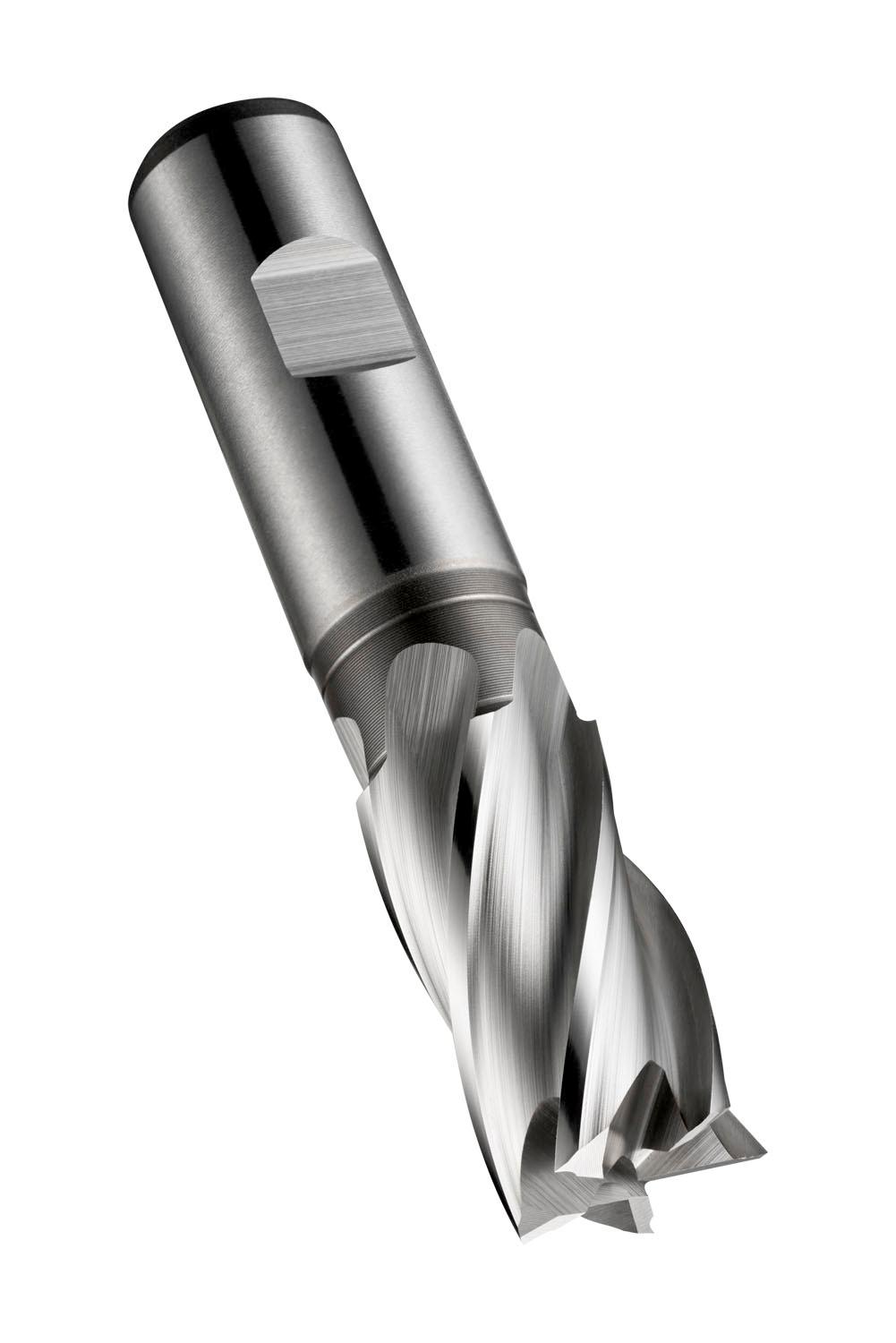

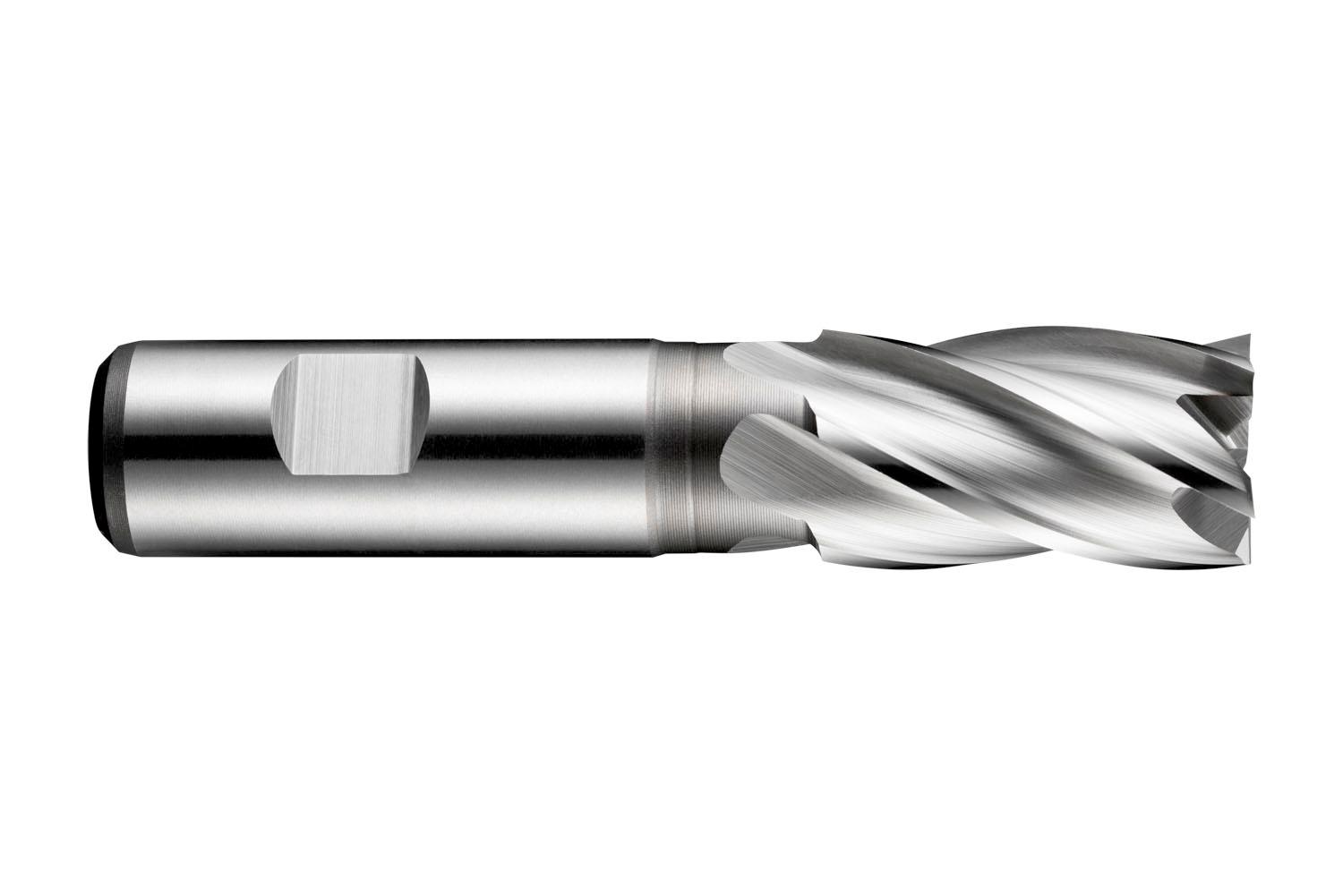

Short series end mill with 4 flutes, diameter 5/16″ with 19mm length of cut and 69mm overall length, according to DIN 844 K standard with a 10mm Weldon shank, powder metallurgical HSS-E with bright finish, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining and plain carbon steel and copper or copper alloys

Additional information

Weight 0.0847 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760640173
Product number (SAP): 86013653
Ordering code ANSI: C2475/16
Gross weight – grams: 38.9

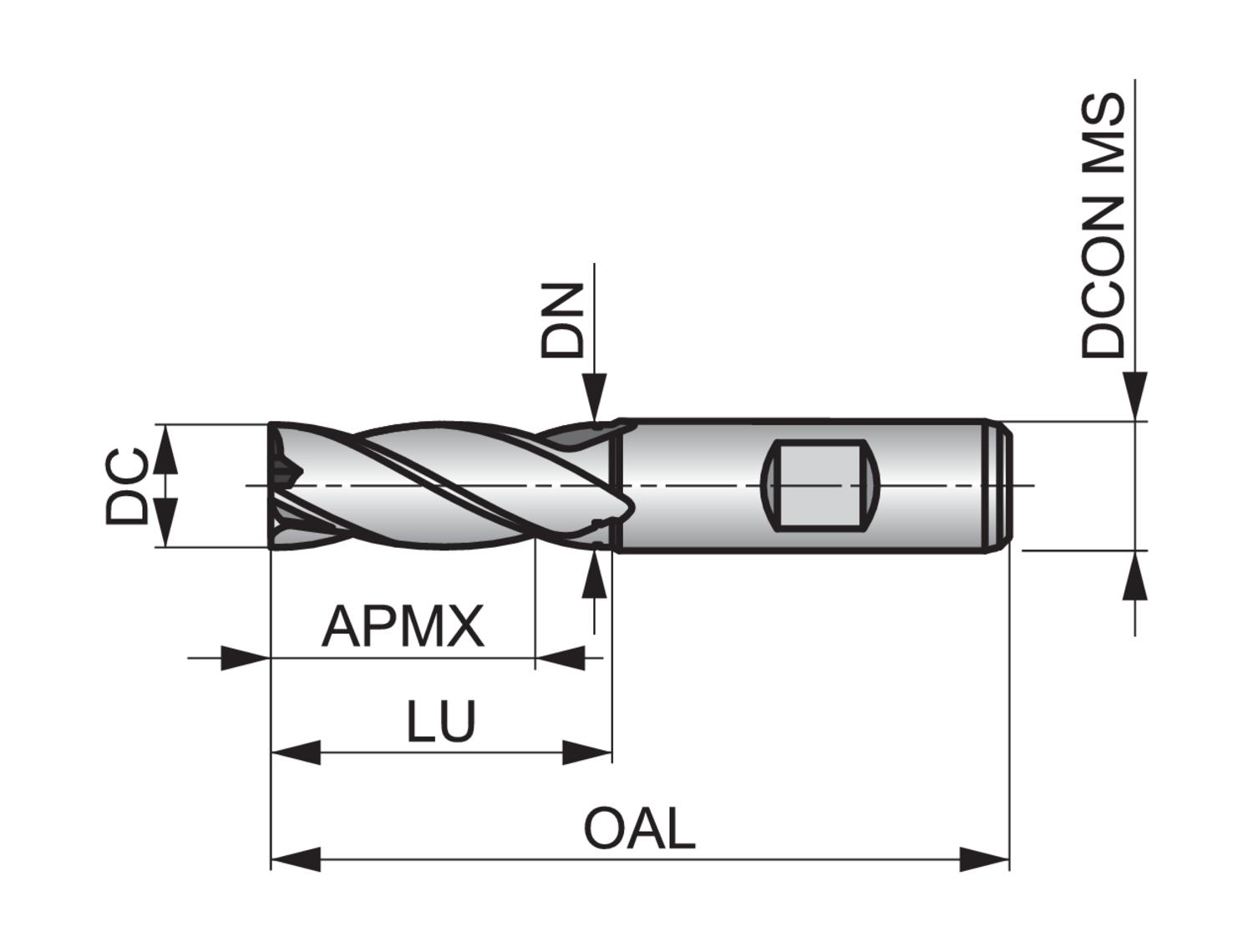

Cutting diameter – fractional inch (DC): 5/16
Cutting diameter – millimeter (DC): 7.94 mm
Connection diameter – millimeter (DCON MS): 10 mm
Depth of cut maximum – millimeter (APMX): 19 mm
Overall length – millimeter (OAL): 69 mm
Flute count (NOF): 4
Neck diameter – millimeter (DN): 7.94 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C2475/16

Brand

DORMER
