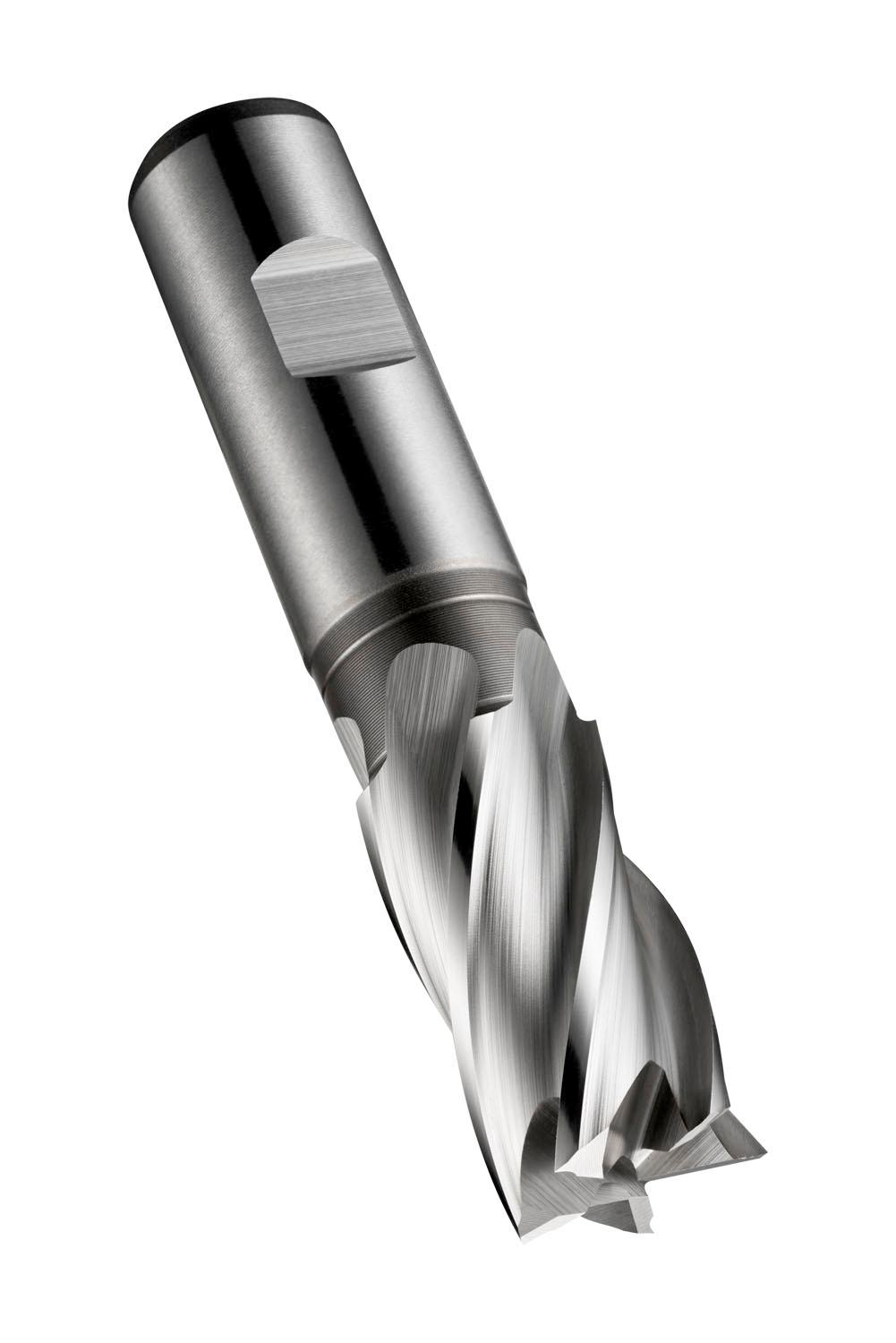

DORMER C2477/8 HSCO Cutters

Product Code: C2477/8

$287.78$261.62 Ex. GST

Product Code: C2477/8 SKU C2477/8 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

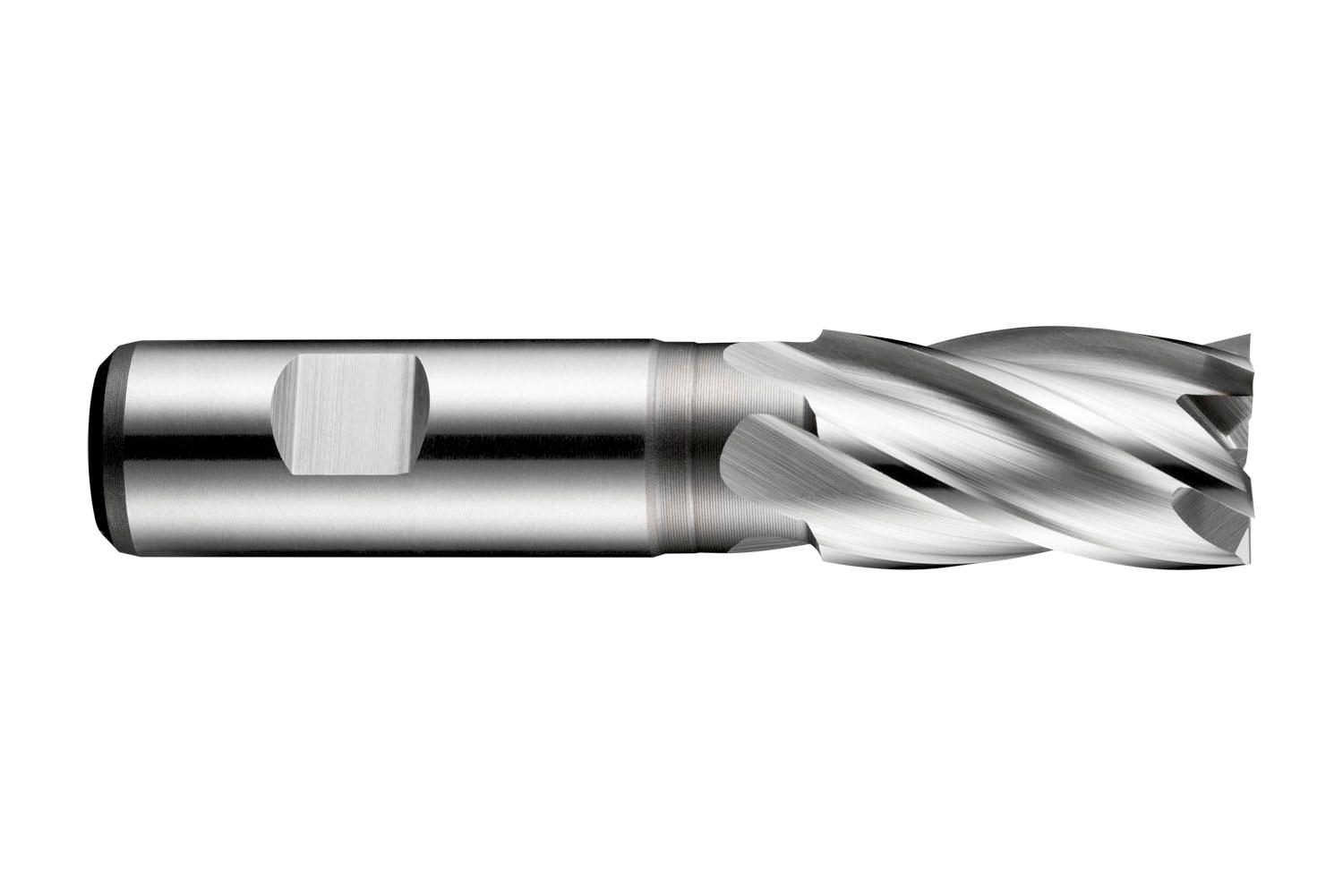

Short series end mill with 5 flutes, diameter 7/8″ with 38mm length of cut, 104mm overall length and 53.5mm reach with neck relief, according to DIN 844 K standard with a 20mm Weldon shank, powder metallurgical HSS-E with bright finish, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining and plain carbon steel and copper or copper alloys

Additional information

Weight 0.2794 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760640234
Product number (SAP): 86013660
Ordering code ANSI: C2477/8
Gross weight – grams: 242

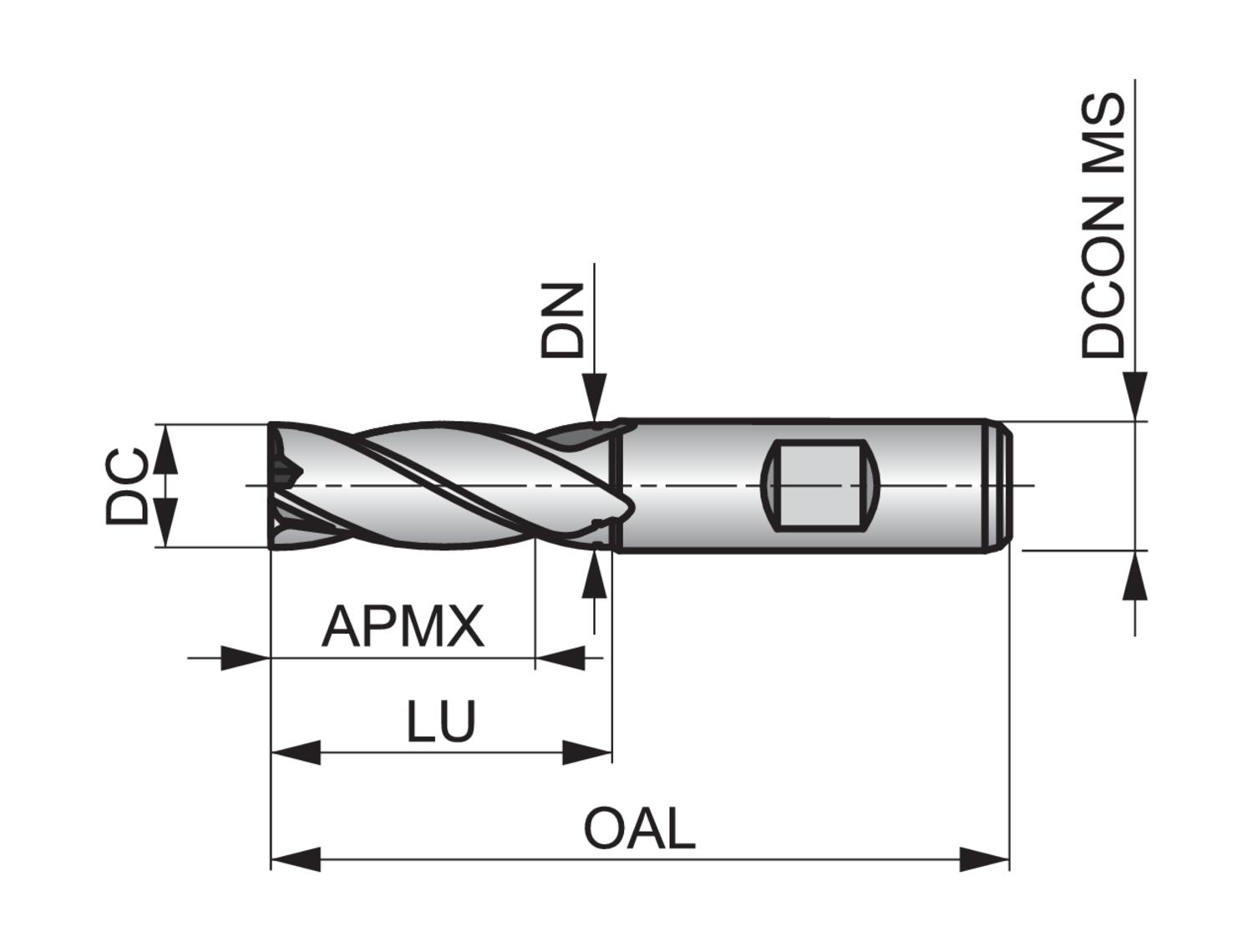

Cutting diameter – fractional inch (DC): 7/8
Cutting diameter – millimeter (DC): 22.22 mm
Connection diameter – millimeter (DCON MS): 20 mm
Depth of cut maximum – millimeter (APMX): 38 mm
Overall length – millimeter (OAL): 104 mm

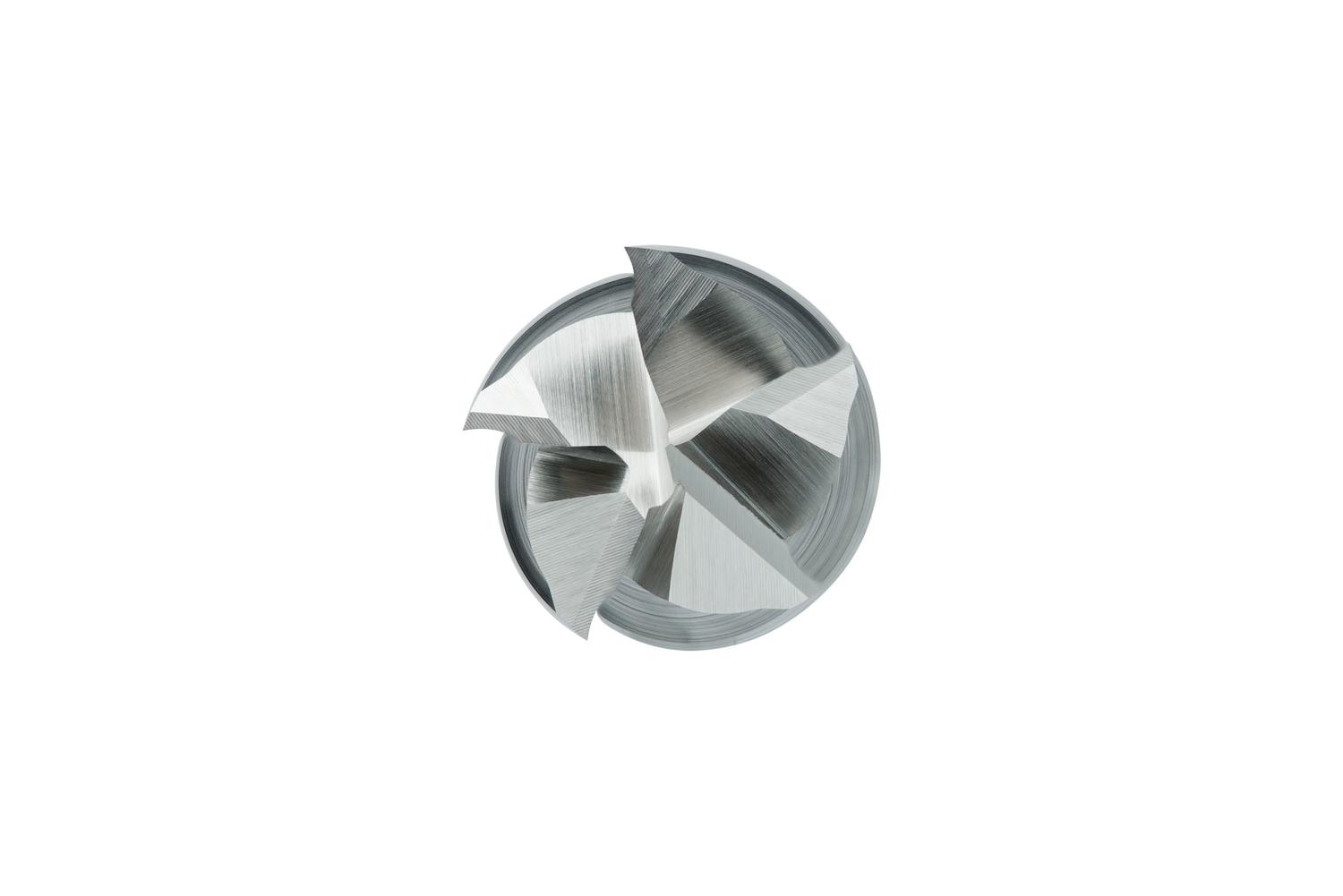

Flute count (NOF): 5
Usable Length – millimeter (LU): 53.5 mm
Neck diameter – millimeter (DN): 19.5 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C2477/8

Brand

DORMER
