DORMER C2731 HSCO Cutters

Product Code: C2731

$483.79$439.81 Ex. GST

Product Code: C2731 SKU C2731 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

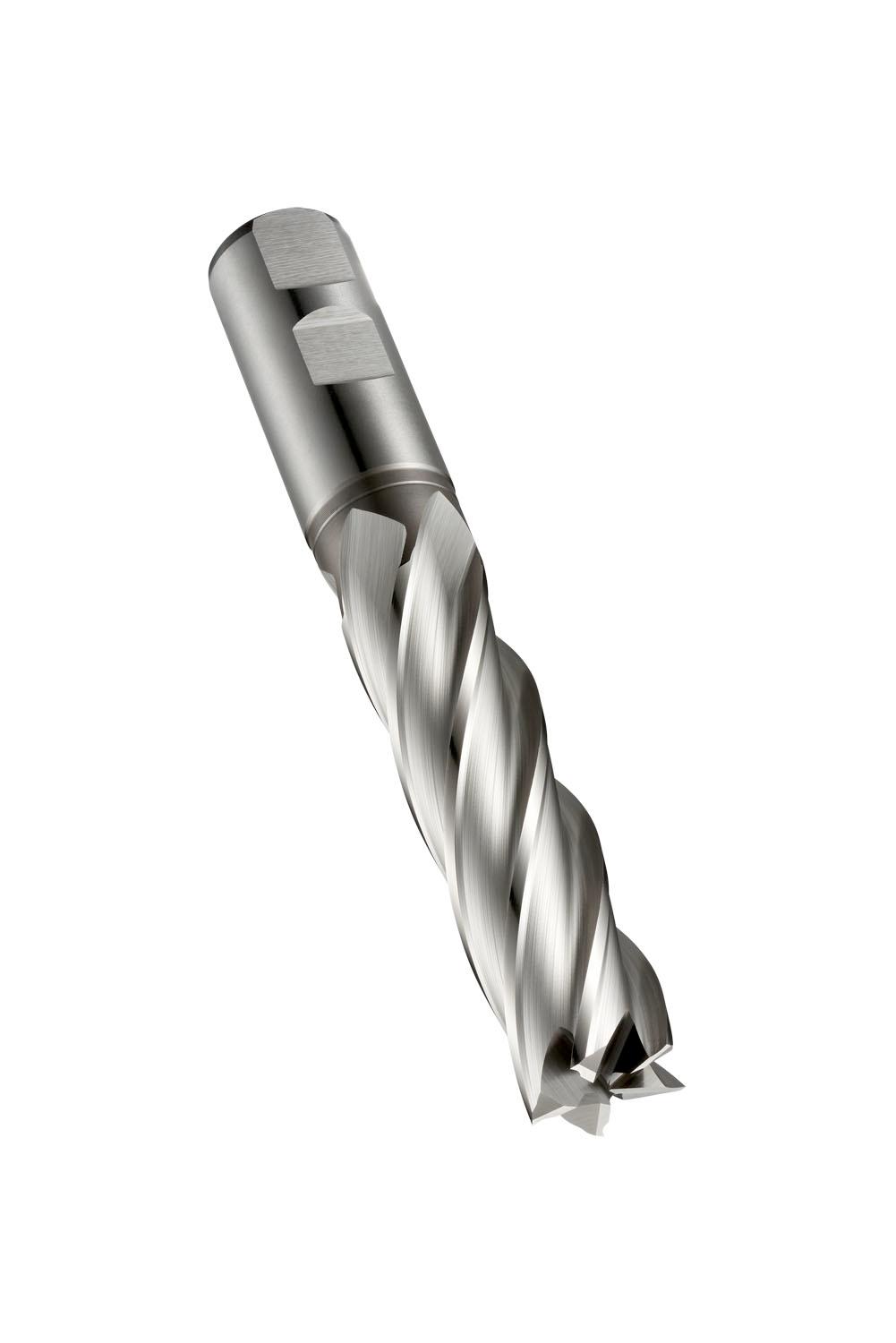

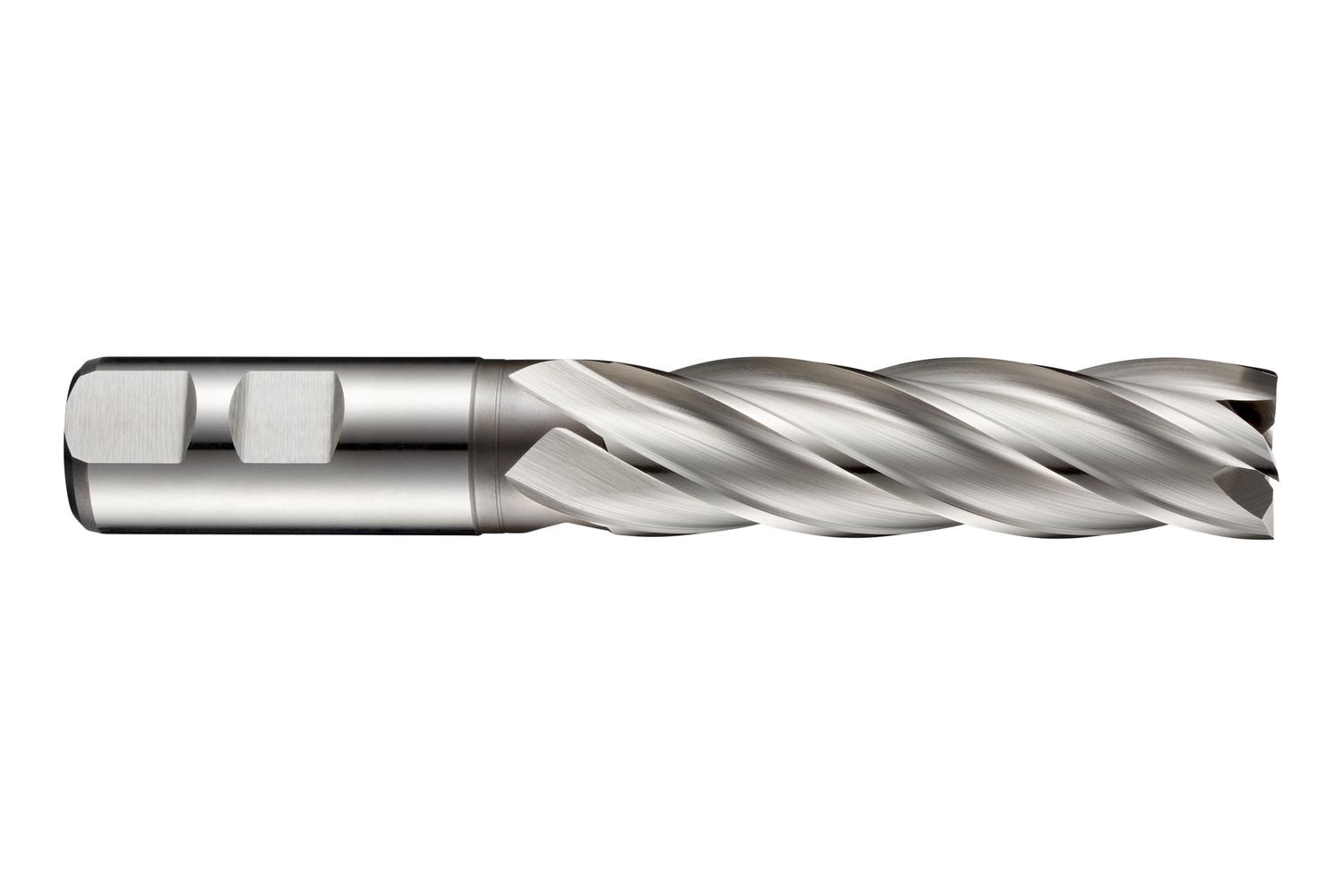

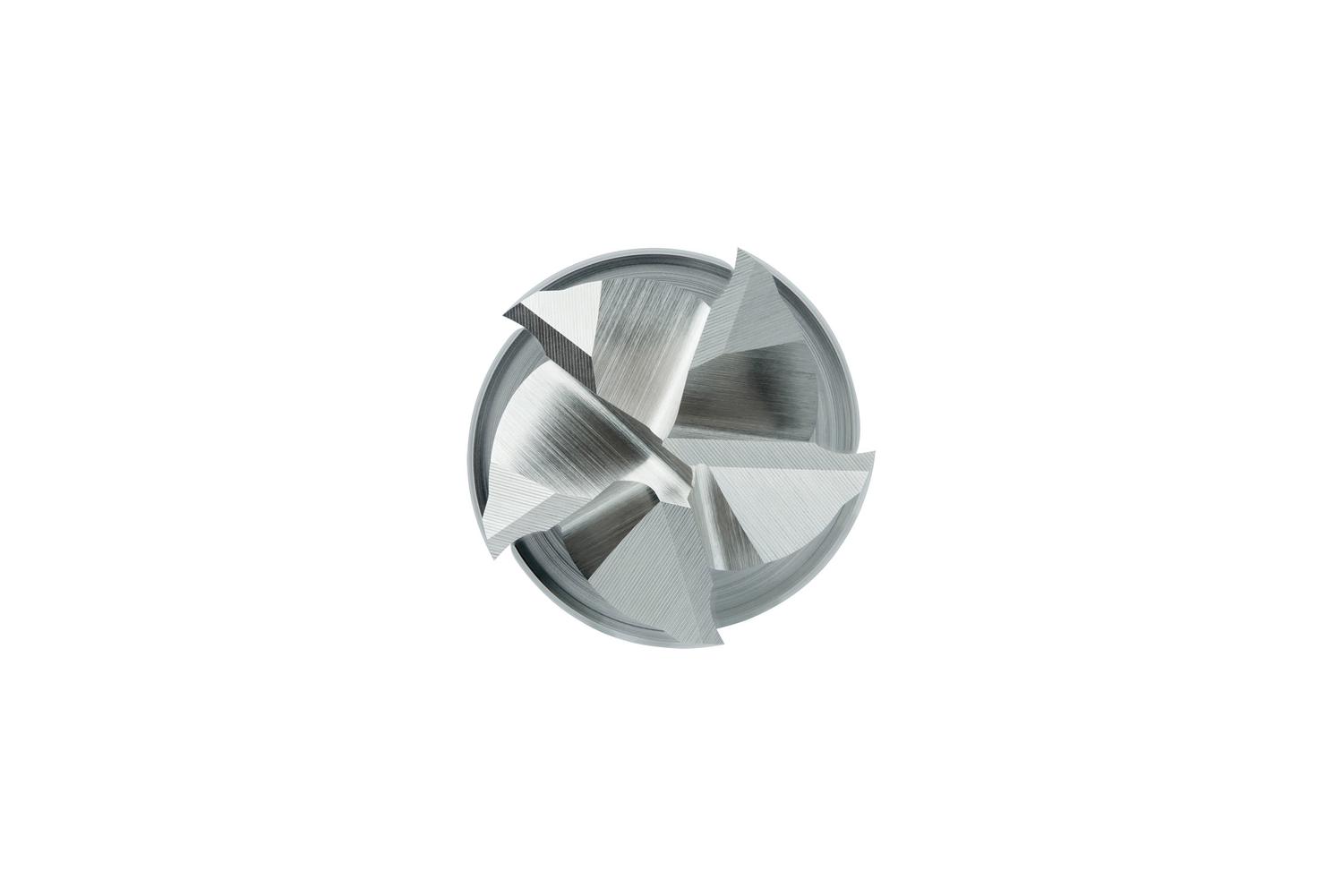

Long series end mill with 5 flutes, diameter 1″ with 90mm length of cut, 166mm overall length and 109.5mm reach with neck relief, according to DIN 844 L standard with a 25mm Weldon shank, powder metallurgical HSS-E with bright finish, 30° helix and 12° rake angle for shoulder milling and slot milling in free machining and plain carbon steel and copper or copper alloys

Additional information

Weight 0.4697 kg
Dimensions
barcode
Additional Information

Description: Value

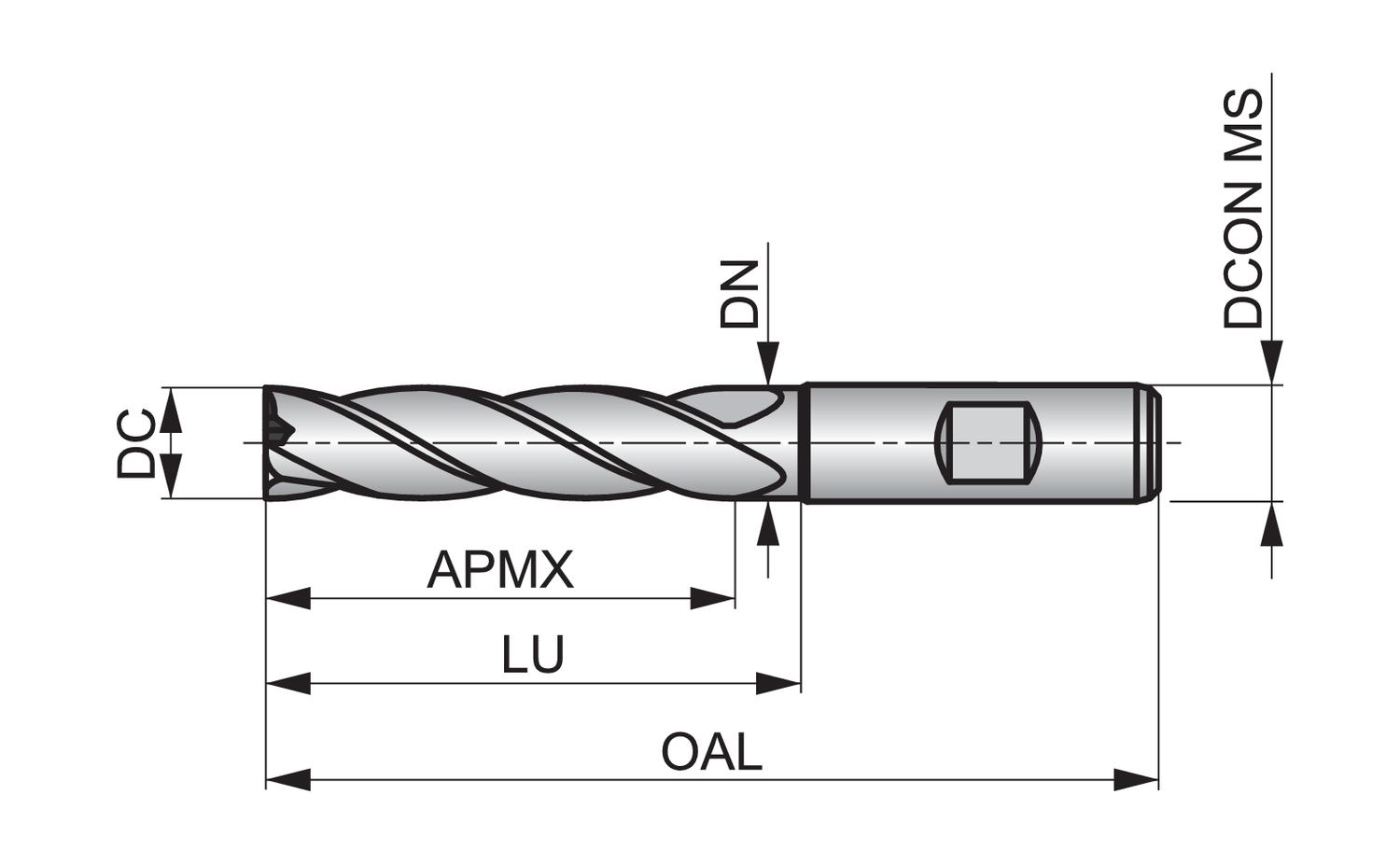

EAN number: 7320760640340 Product number (SAP): 86013666 Ordering code ANSI: C2731 Gross weight: 536.5 g Cutting diameter (DC): 1 inch Cutting diameter (DC): 25.4 mm Connection diameter (DCON MS): 25 mm Depth of cut maximum (APMX): 90 mm Overall length (OAL): 166 mm Flute count (NOF): 5 Usable Length (LU): 109.5 mm Neck diameter (DN): 24.5 mm Radial rake angle (GAMF): 12 With Neck: Yes ISO: C2731

Brand

DORMER
