DORMER C27310.0 HSCO Cutters

Product Code: C27310.0

$101.41$92.19 Ex. GST

Product Code: C27310.0 SKU C27310.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

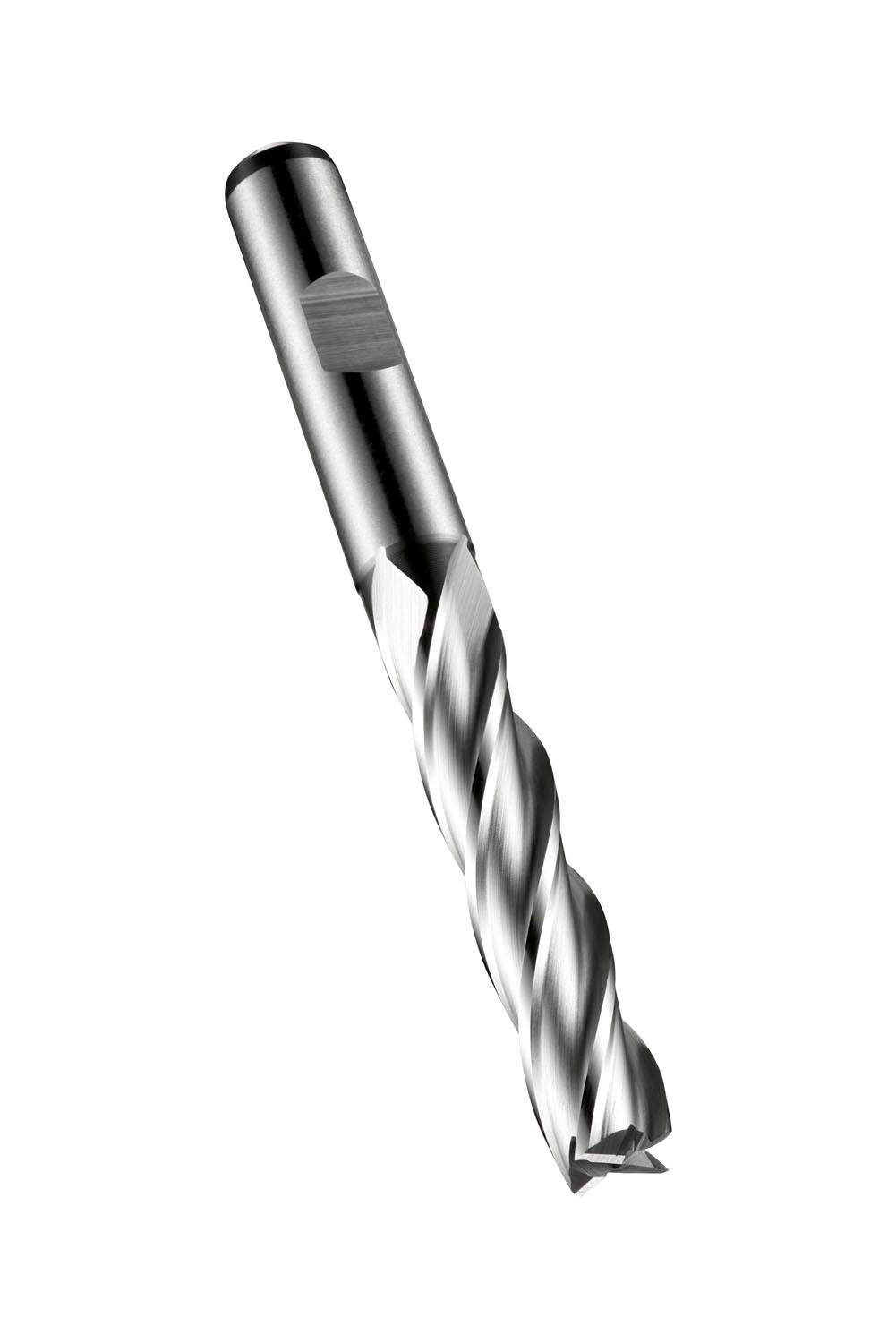

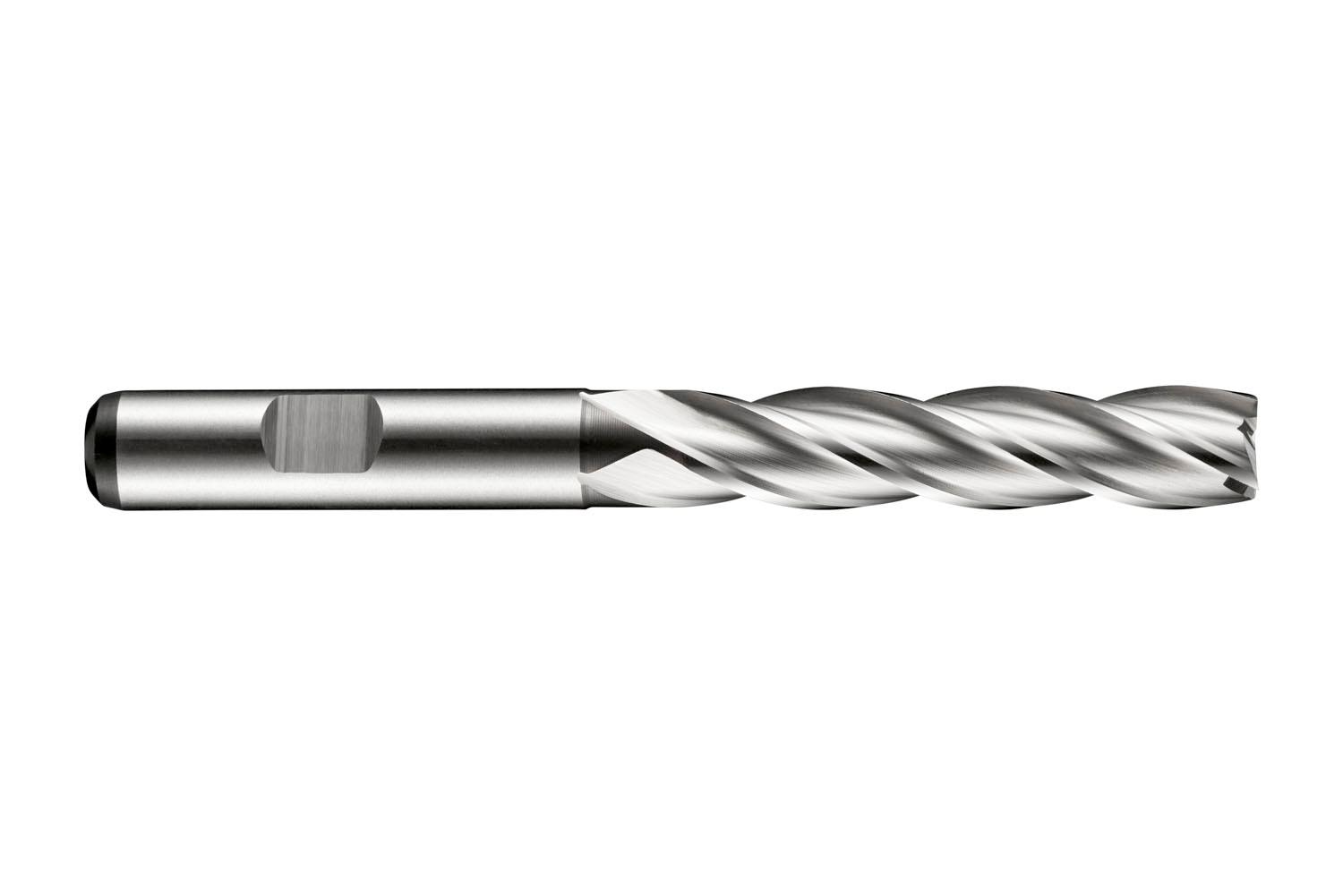

Long series end mill with 4 flutes, diameter 10mm with 45mm length of cut, 95mm overall length and 54.5mm reach with neck relief, according to DIN 844 L standard with a 10mm Weldon shank, powder metallurgical HSS-E with bright finish, 30° helix and 12° rake angle for shoulder milling and slot milling in free machining and plain carbon steel and copper or copper alloys

Additional information

Weight 0.0985 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760354889
Product number (SAP): 86013671
Ordering code ANSI: C27310.0
Gross weight – grams: 53.6

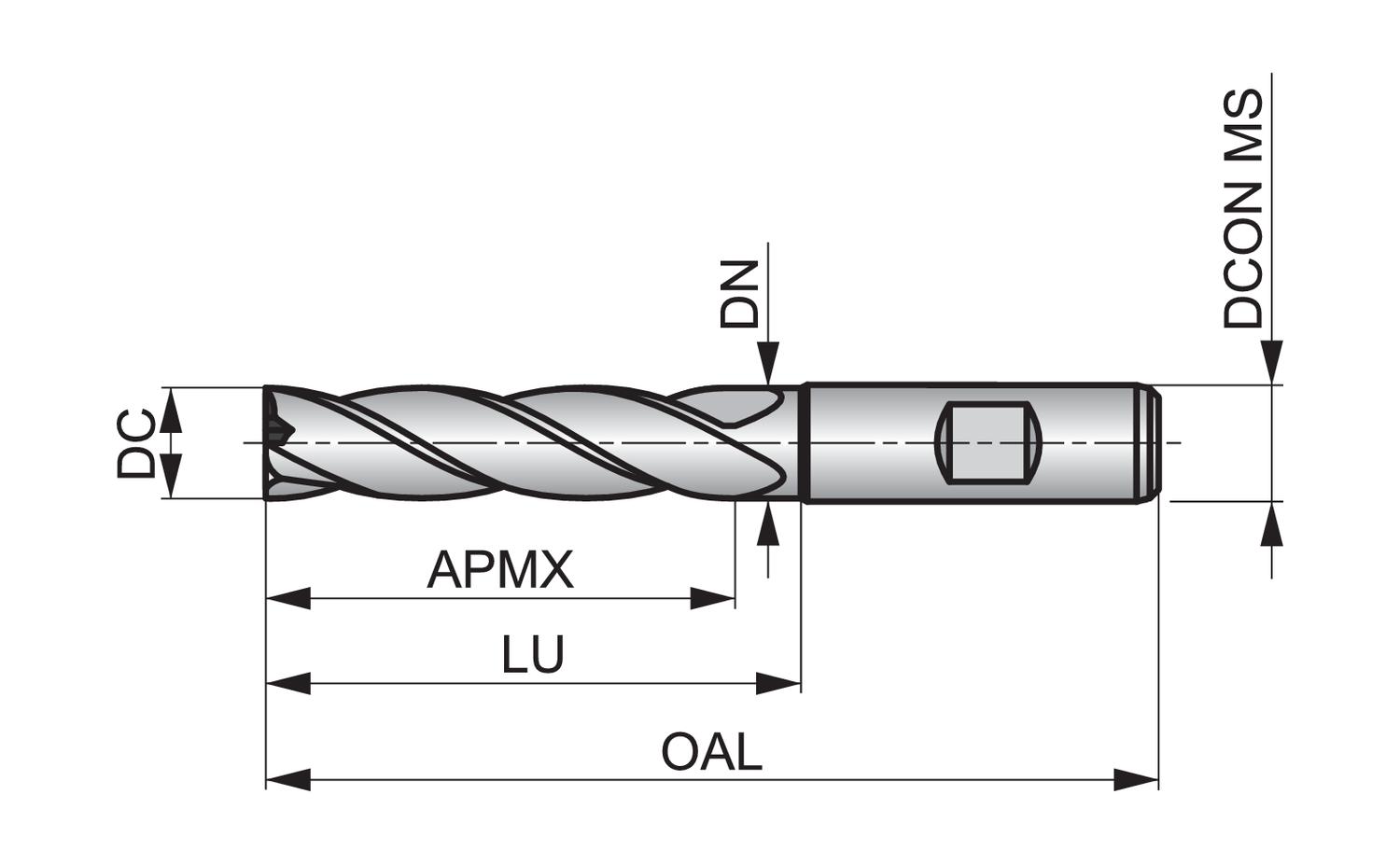

Cutting diameter – millimeter (DC): 10 mm
Connection diameter – millimeter (DCON MS): 10 mm
Depth of cut maximum – millimeter (APMX): 45 mm
Overall length – millimeter (OAL): 95 mm
Flute count (NOF): 4
Usable Length – millimeter (LU): 54.5 mm
Neck diameter – millimeter (DN): 9.5 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C27310.0
