DORMER C27311.0 HSCO Cutters

Product Code: C27311.0

$132.56$120.51 Ex. GST

Product Code: C27311.0 SKU C27311.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

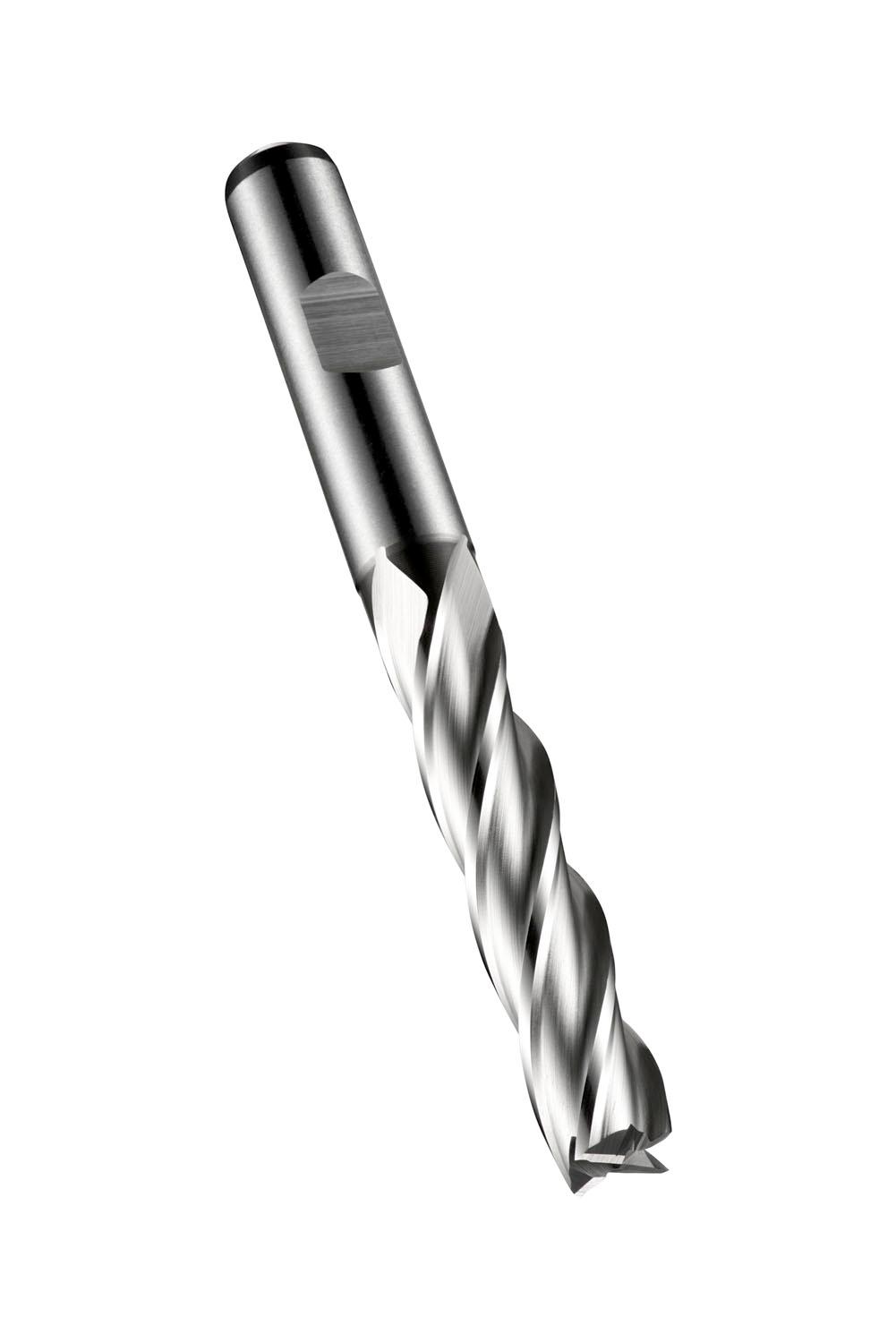

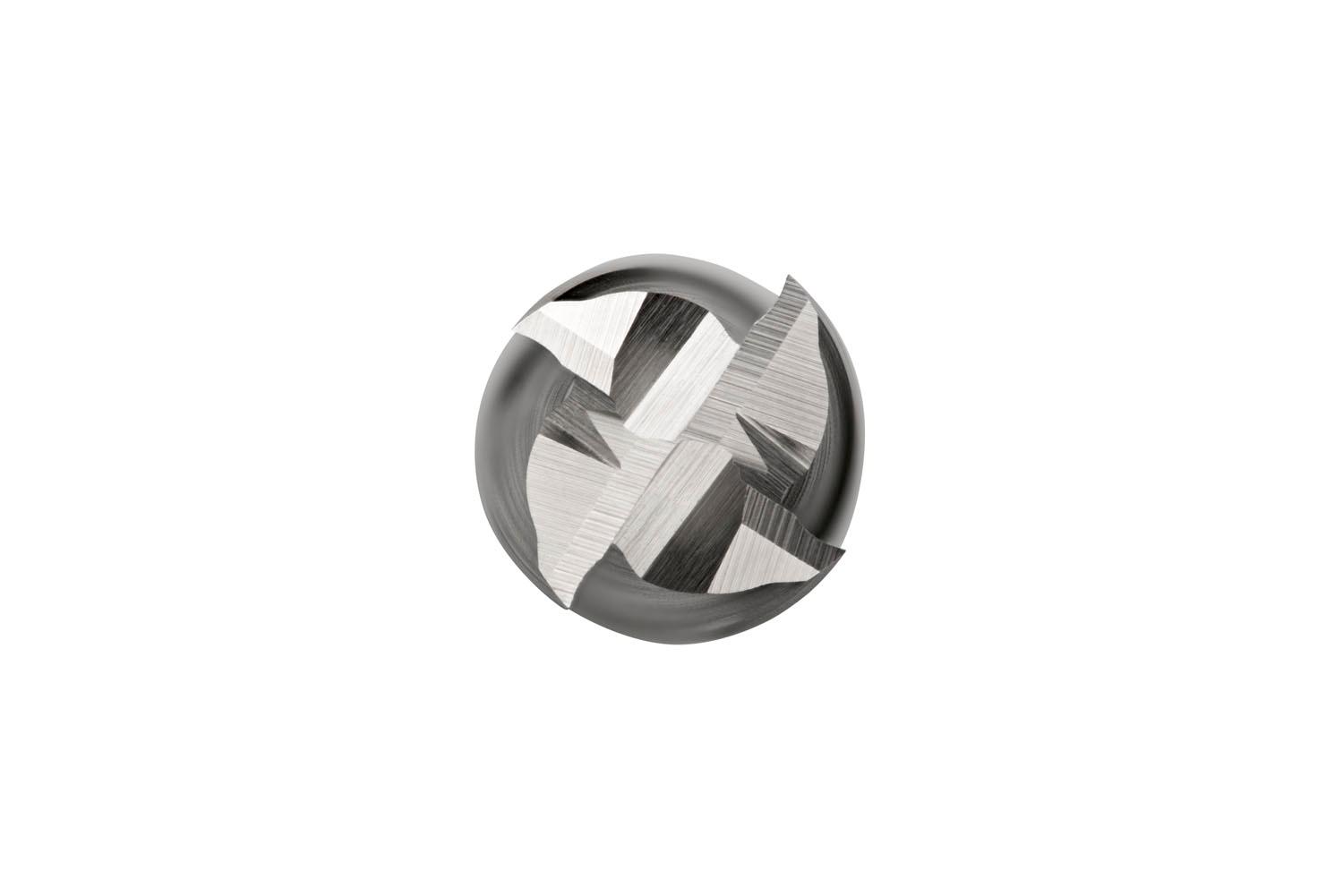

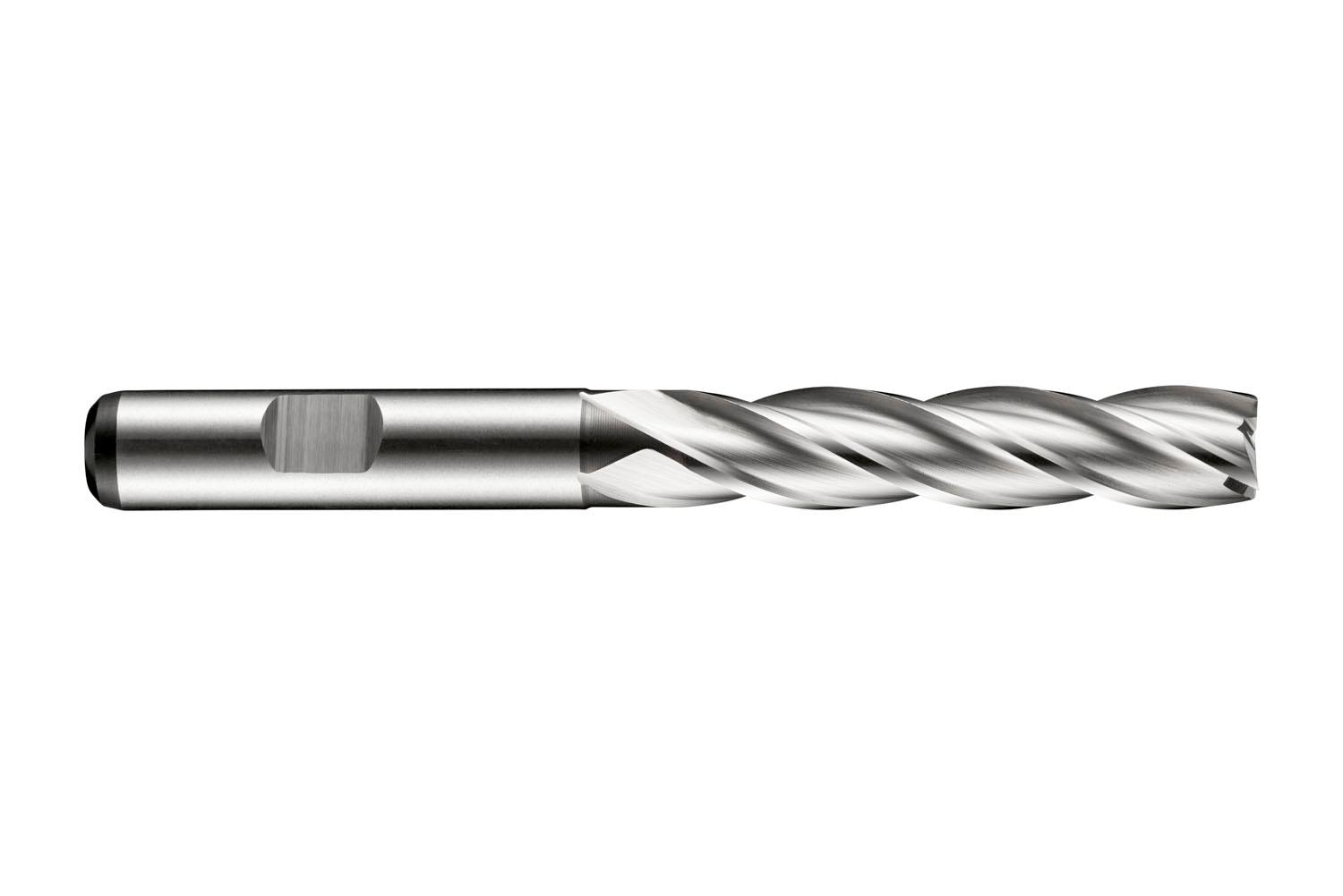

Long series end mill with 4 flutes, diameter 11mm with 45mm length of cut and 102mm overall length, according to DIN 844 L standard with a 12mm Weldon shank, powder metallurgical HSS-E with bright finish, 30° helix and 12° rake angle for shoulder milling and slot milling in free machining and plain carbon steel and copper or copper alloys

Additional information

Weight 0.1287 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760354896
Product number (SAP): 86013672
Ordering code ANSI: C27311.0
Gross weight – grams: 75.7

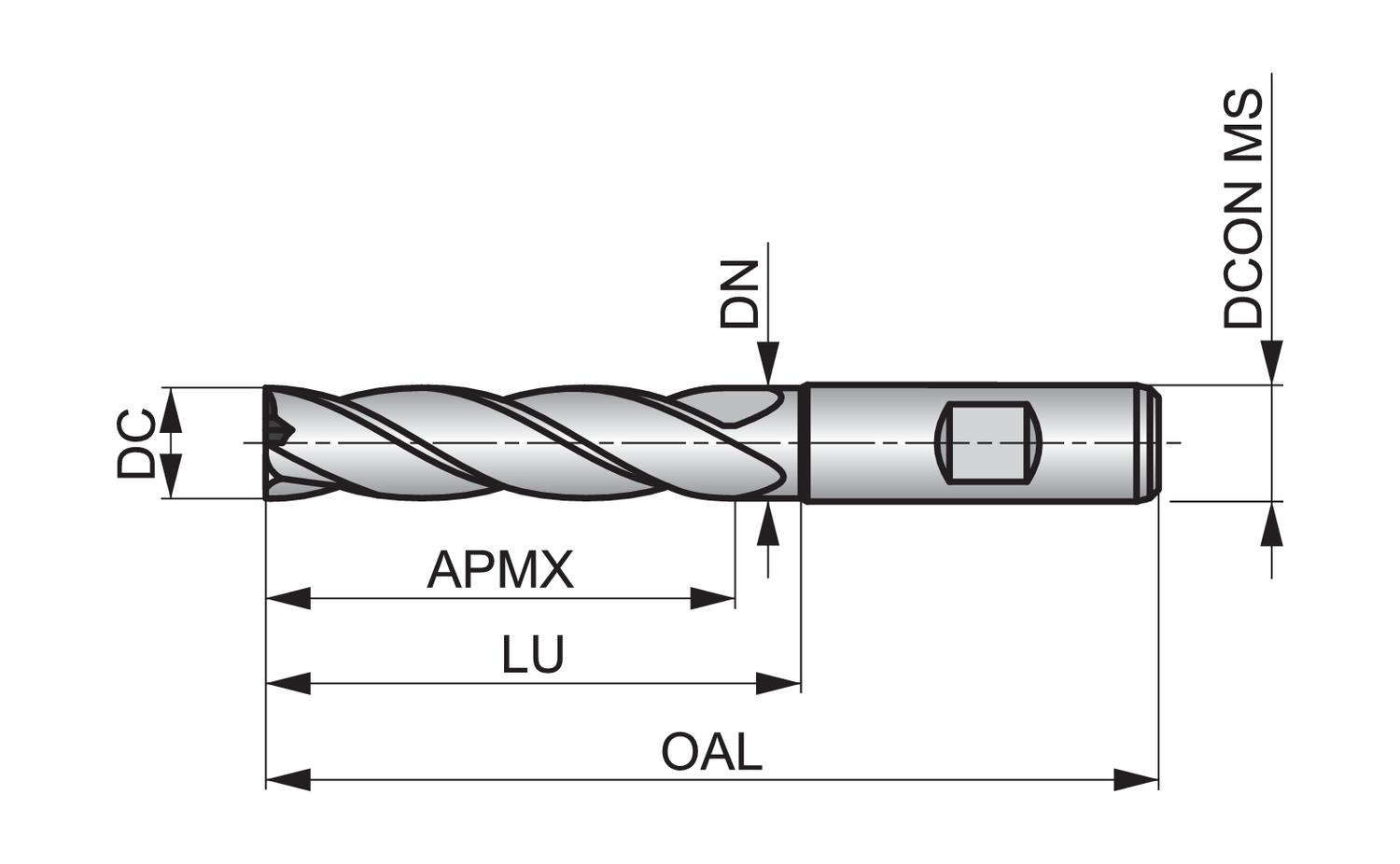

Cutting diameter – millimeter (DC): 11 mm
Connection diameter – millimeter (DCON MS): 12 mm
Depth of cut maximum – millimeter (APMX): 45 mm
Overall length – millimeter (OAL): 102 mm
Flute count (NOF): 4
Neck diameter – millimeter (DN): 11 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C27311.0

Brand

DORMER
