DORMER C2733/16 HSCO Cutters

Product Code: C2733/16

$79.88$72.62 Ex. GST

Product Code: C2733/16 SKU C2733/16 Categories , ,
DORMER C2733/16 HSCO Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

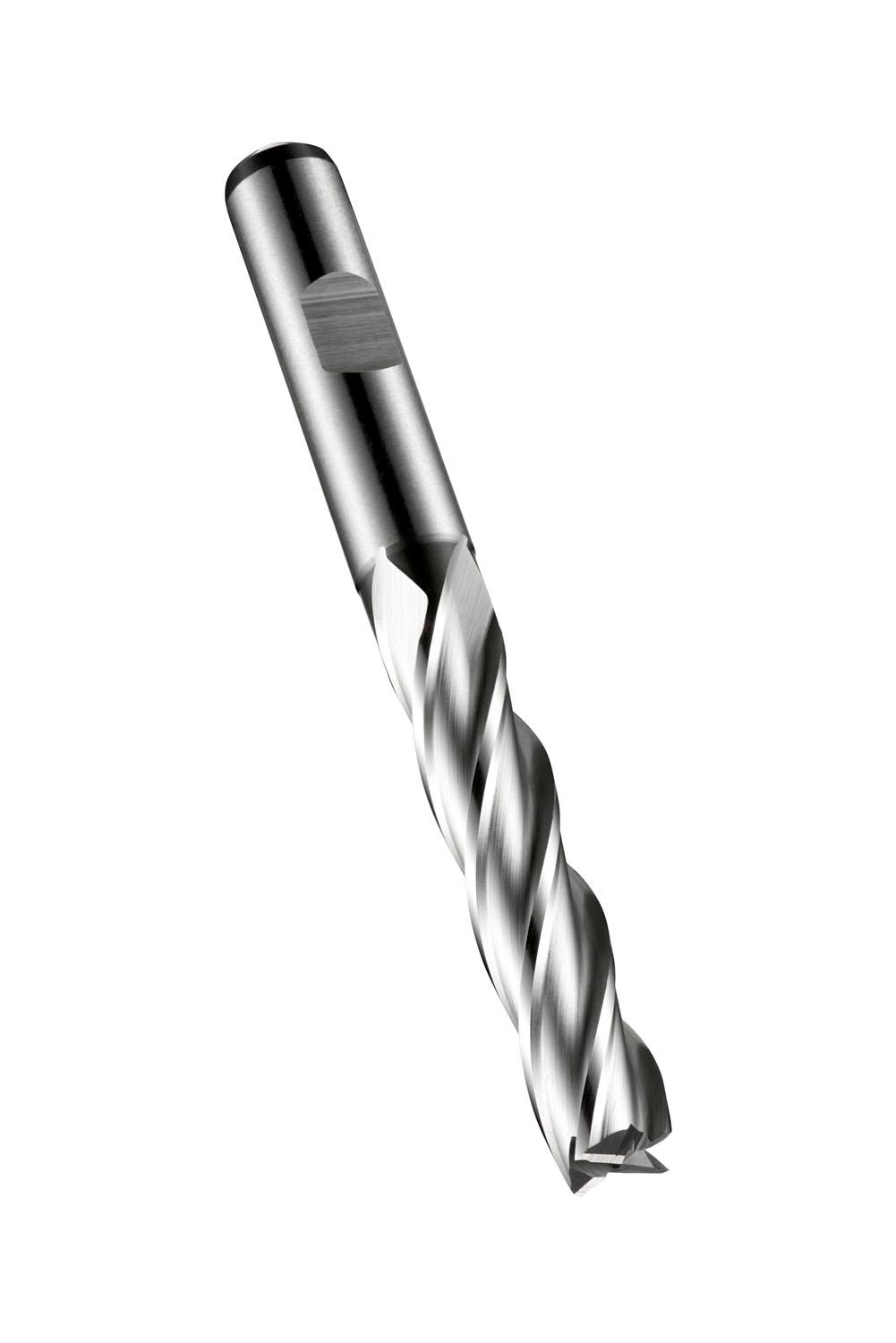

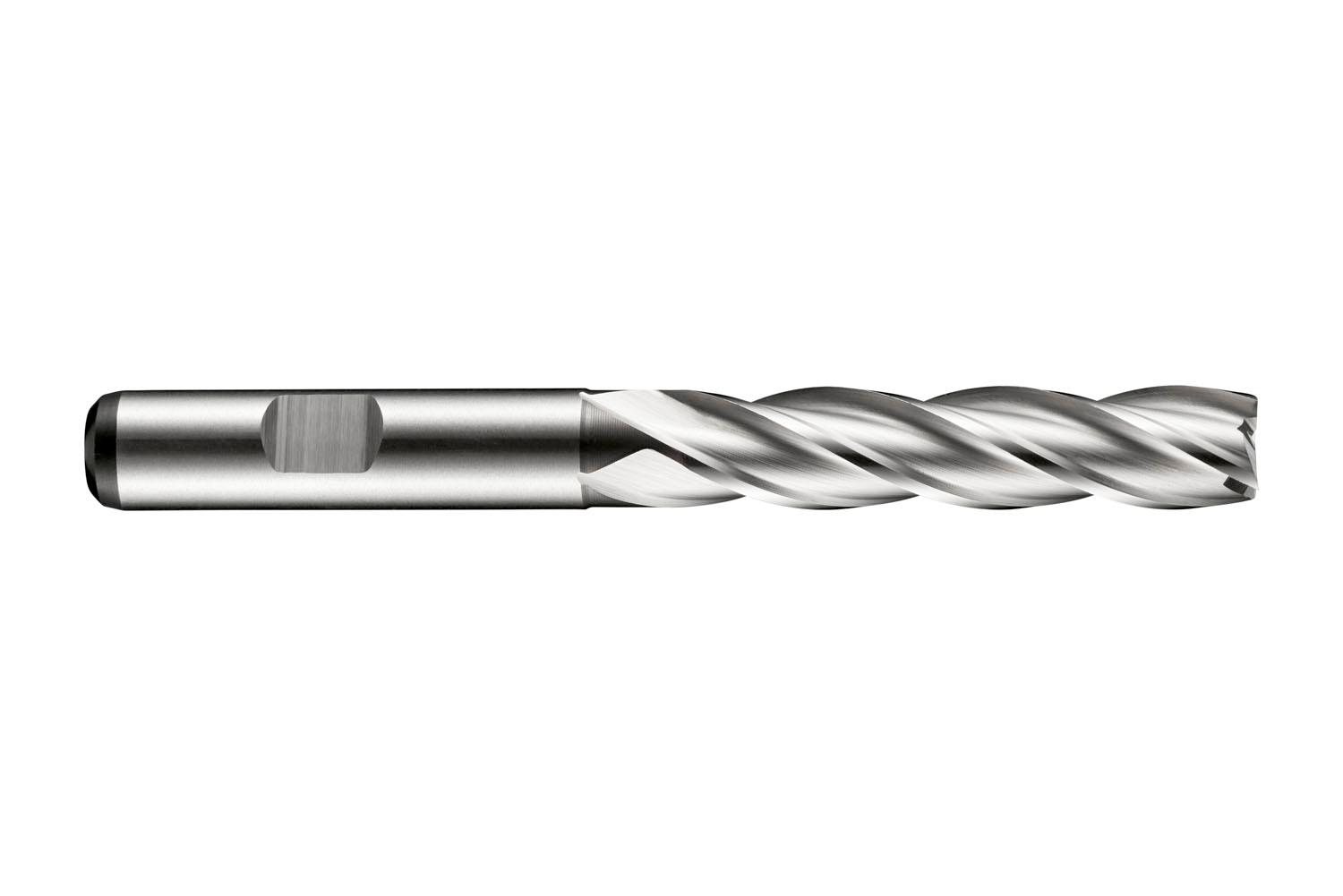

Long series end mill with 4 flutes, diameter 3/16″ with 24mm length of cut and 68mm overall length, according to DIN 844 L standard with a 6mm Weldon shank, powder metallurgical HSS-E with bright finish, 30° helix and 12° rake angle for shoulder milling and slot milling in free machining and plain carbon steel and copper or copper alloys

Additional information

Weight 0.0776 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760640272
Product number (SAP): 86013687
Ordering code ANSI: C2733/16
Gross weight – grams: 14.1

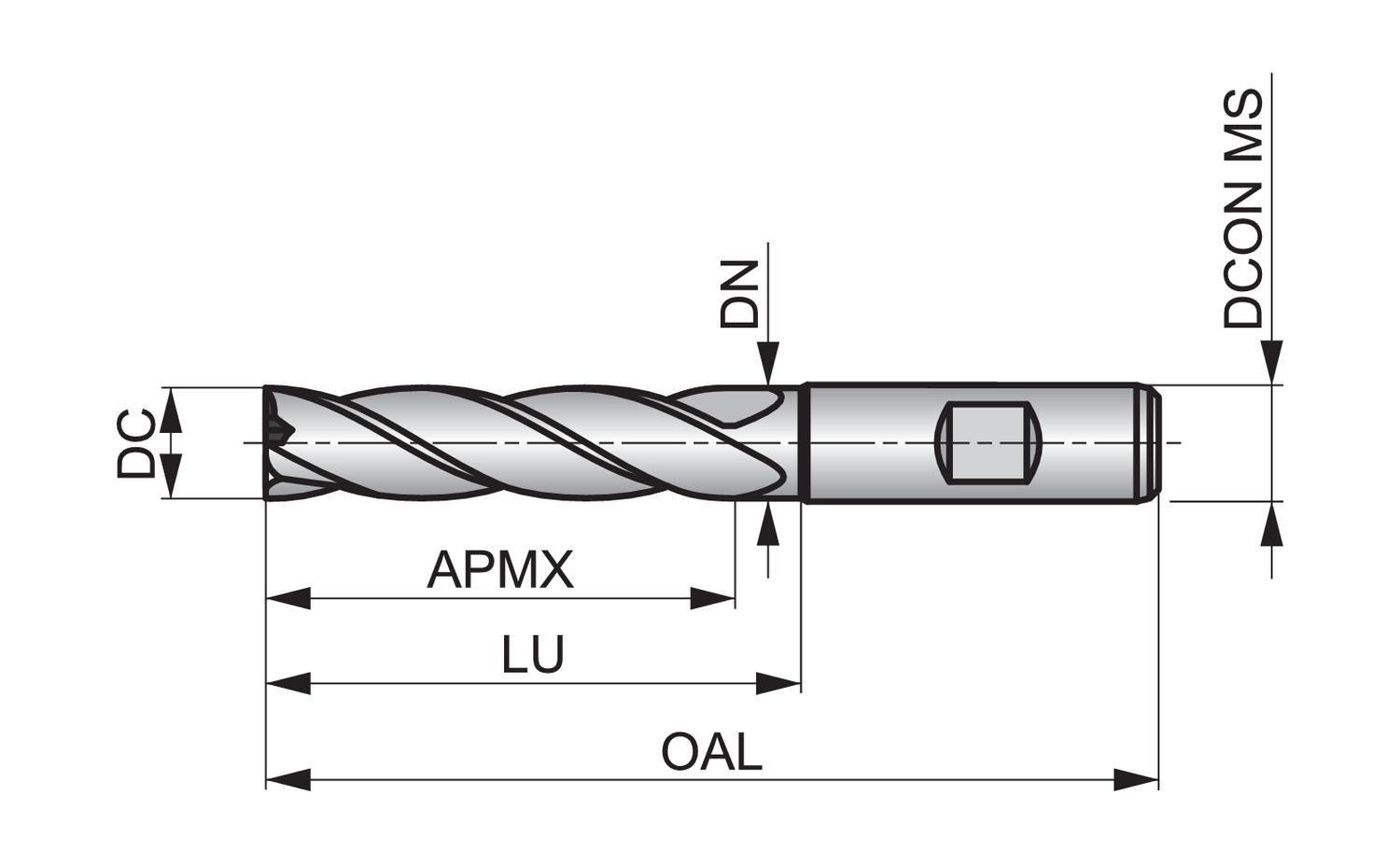

Cutting diameter – fractional inch (DC): 3/16
Cutting diameter – millimeter (DC): 4.76 mm
Connection diameter – millimeter (DCON MS): 6 mm
Depth of cut maximum – millimeter (APMX): 24 mm
Overall length – millimeter (OAL): 68 mm

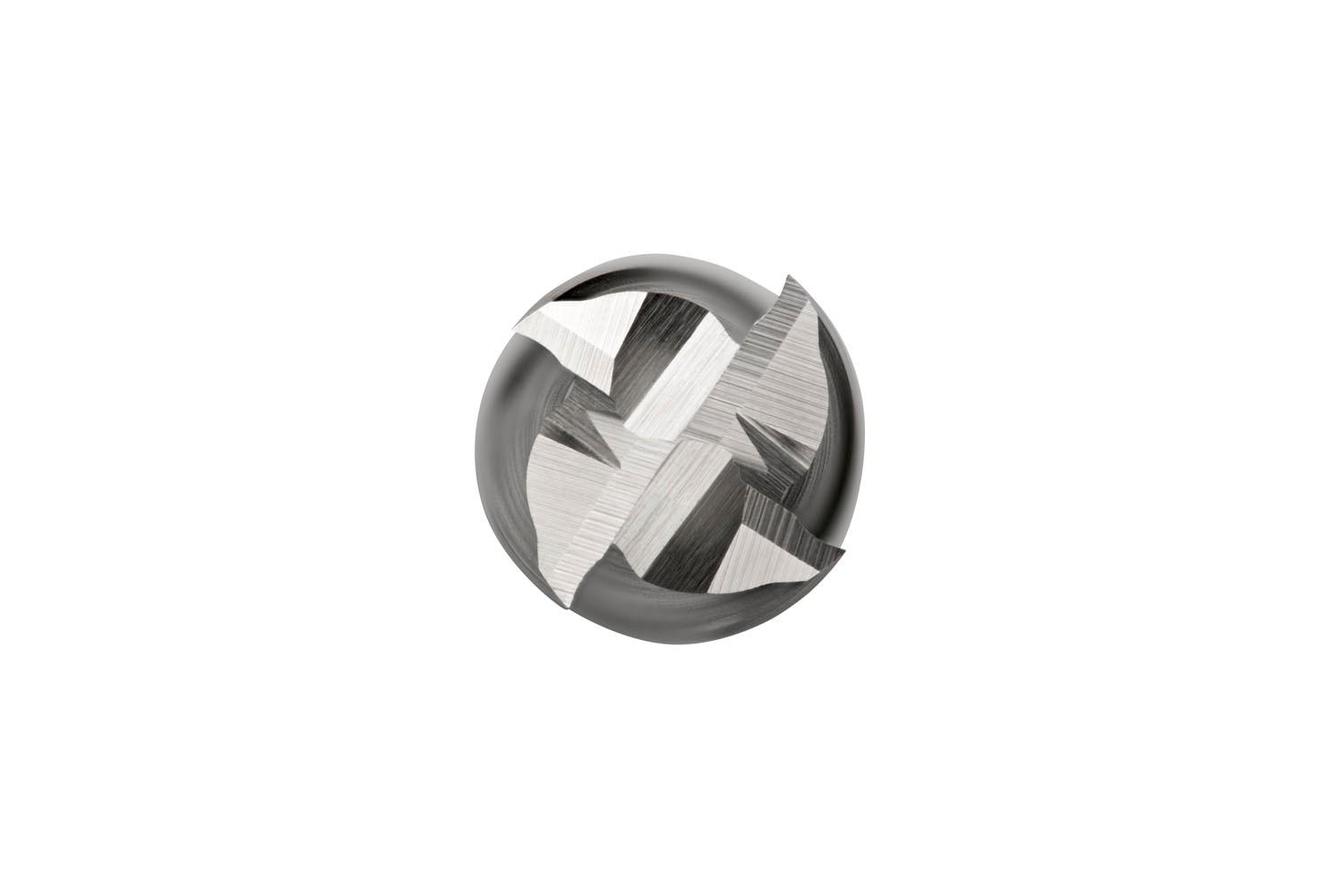

Flute count (NOF): 4
Neck diameter – millimeter (DN): 4.76 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C2733/16

Brand

DORMER
