DORMER C2733/4 HSCO Cutters

Product Code: C2733/4

$237.93$216.30 Ex. GST

Product Code: C2733/4 SKU C2733/4 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

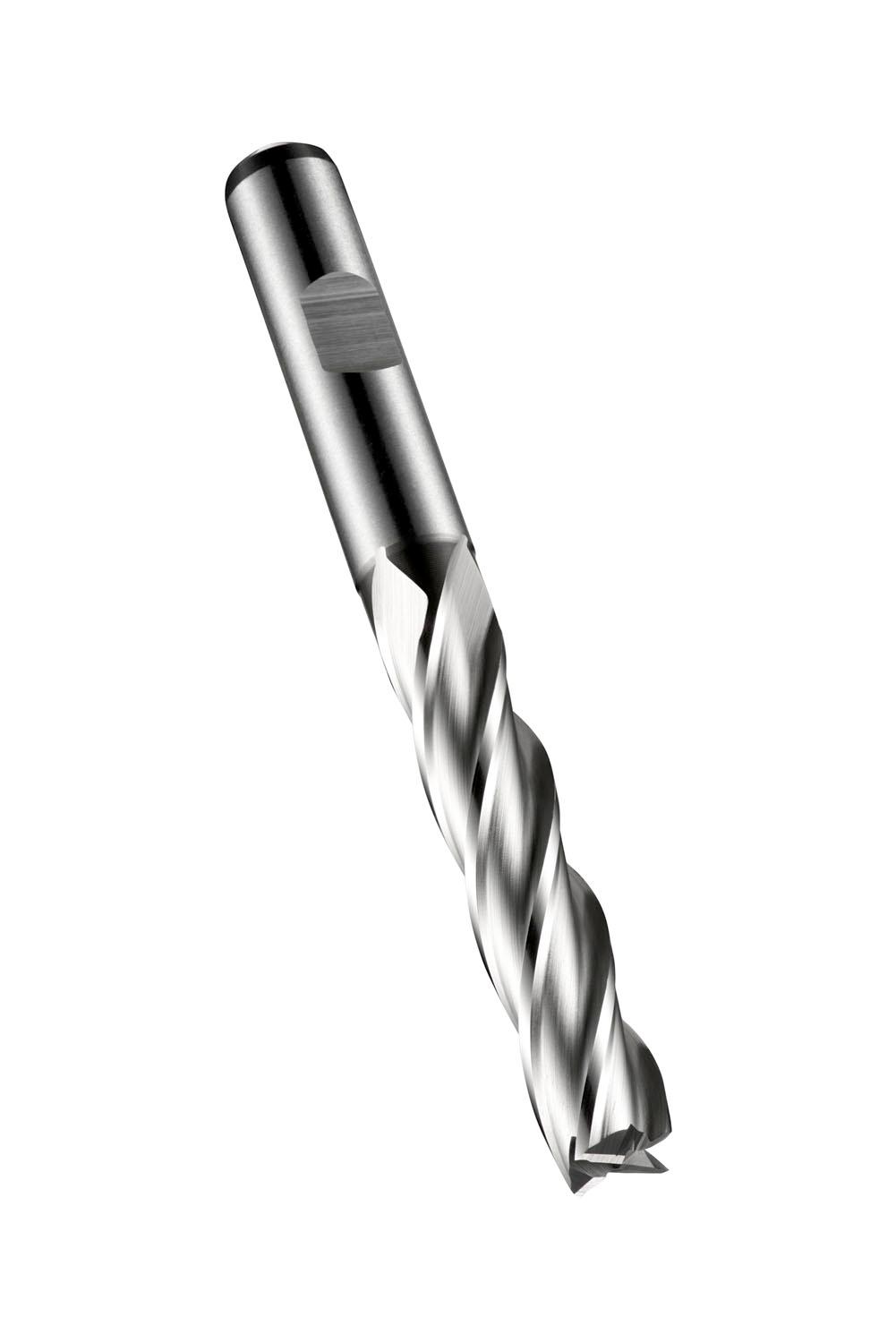

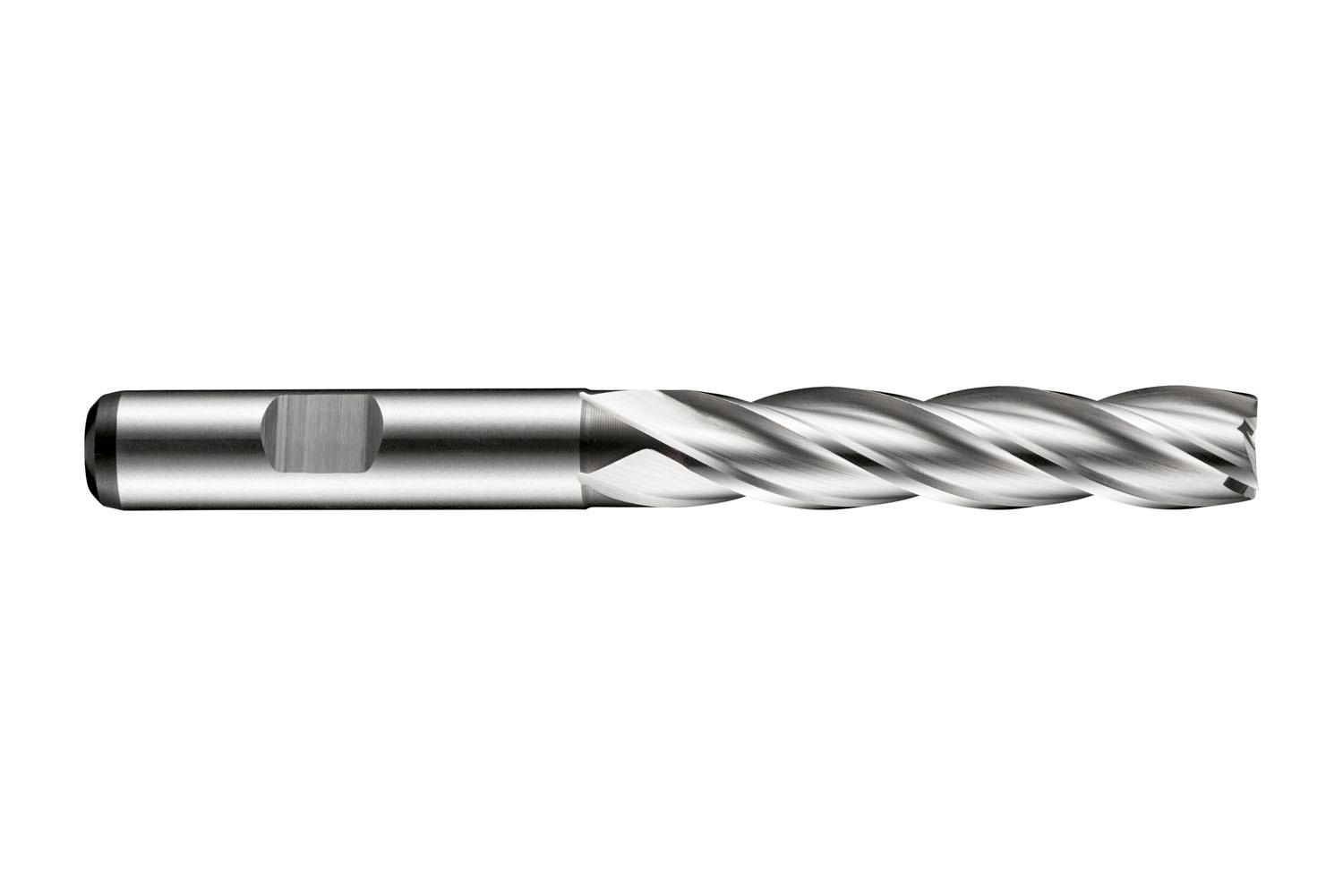

Long series end mill with 4 flutes, diameter 3/4″ with 75mm length of cut, 141mm overall length and 90.5mm reach with neck relief, according to DIN 844 L standard with a 20mm Weldon shank, powder metallurgical HSS-E with bright finish, 30° helix and 12° rake angle for shoulder milling and slot milling in free machining and plain carbon steel and copper or copper alloys

Additional information

Weight 0.2310 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760640326
Product number (SAP): 86013688
Ordering code ANSI: C2733/4
Gross weight – grams: 267.5

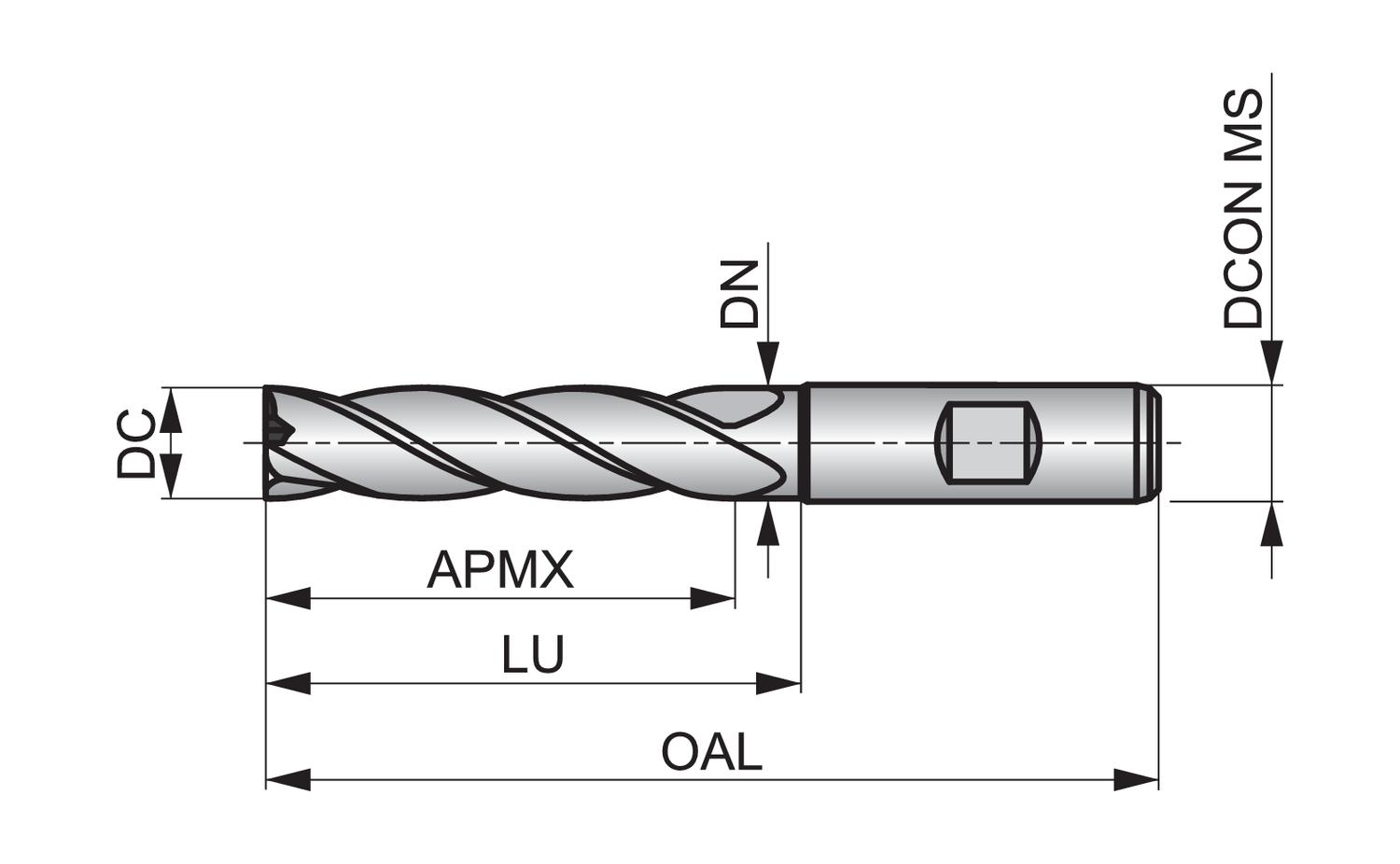

Cutting diameter – fractional inch (DC): 3/4
Cutting diameter – millimeter (DC): 19.05 mm
Connection diameter – millimeter (DCON MS): 20 mm
Depth of cut maximum – millimeter (APMX): 75 mm
Overall length – millimeter (OAL): 141 mm

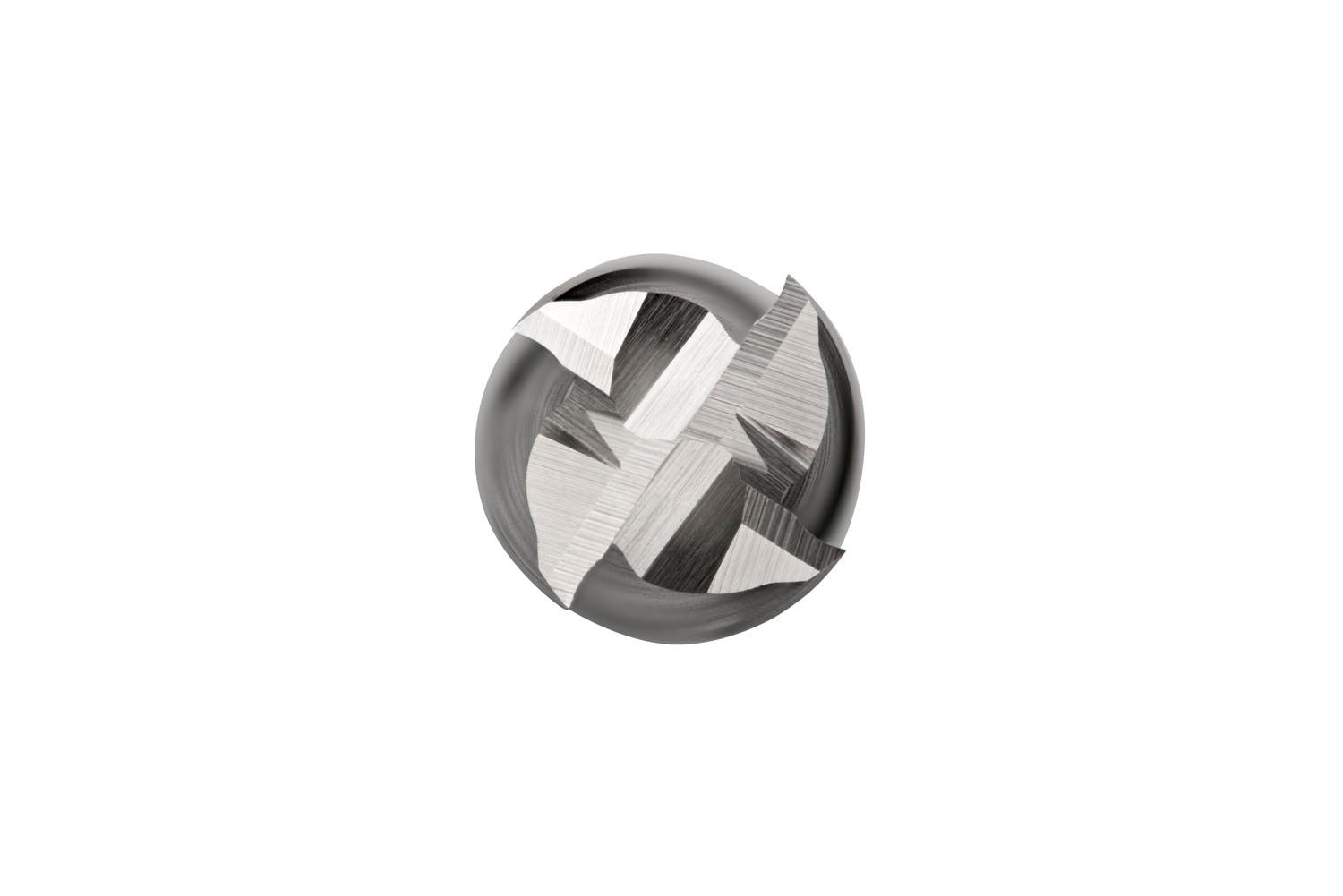

Flute count (NOF): 4
Usable Length – millimeter (LU): 90.5 mm
Neck diameter – millimeter (DN): 19.5 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C2733/4

Brand

DORMER
