DORMER C29540.0 HSCO Cutters

Product Code: C29540.0

$1,066.15$969.23 Ex. GST

Product Code: C29540.0 SKU C29540.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

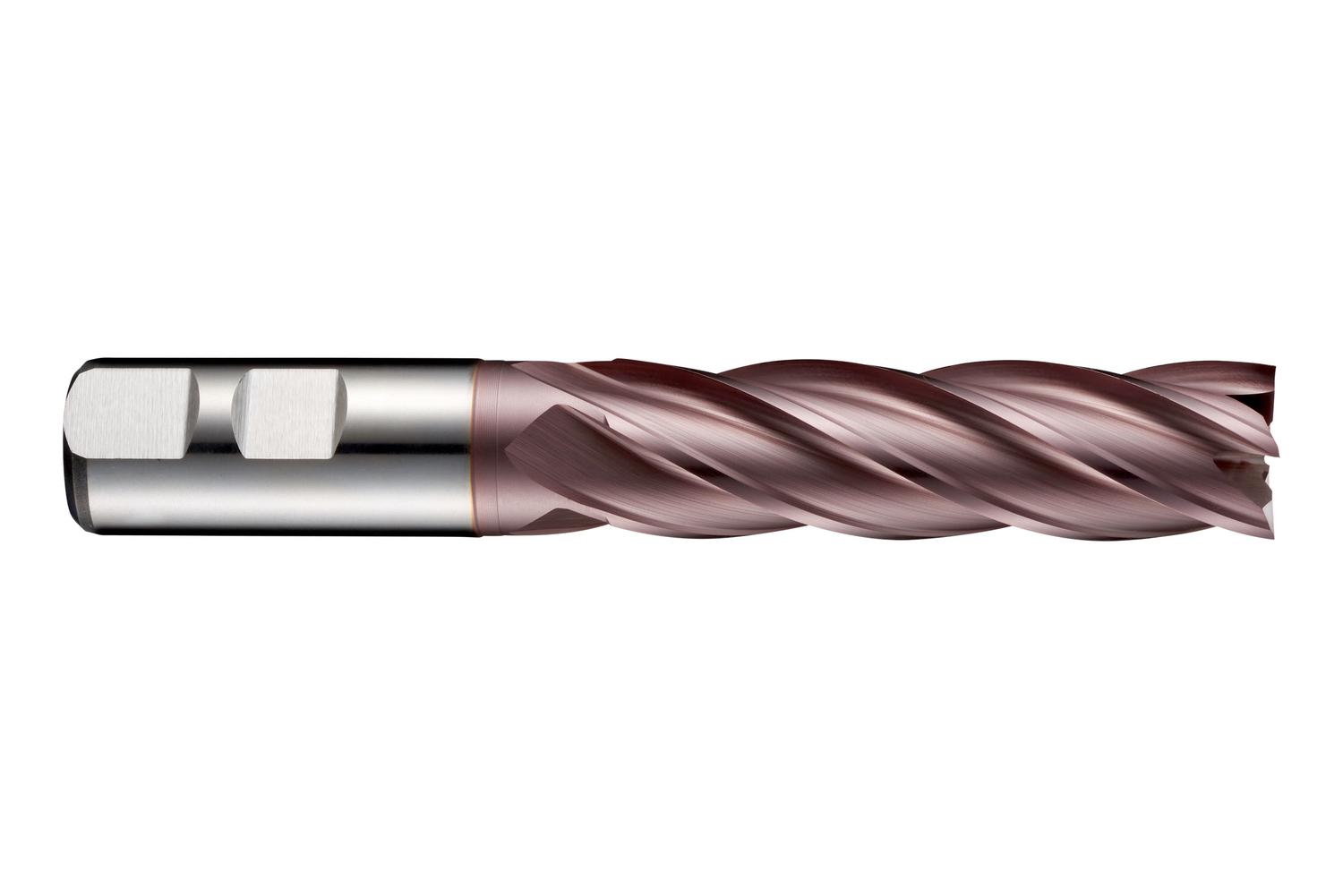

Long series end mill with 6 flutes, diameter 40mm with 125mm length of cut, 217mm overall length and 146.5mm reach with neck relief, according to DIN 844 L standard with a 40mm Weldon shank, powder metallurgical HSS-E with TiCN coating, 30° helix and 12° rake angle for shoulder milling and slot milling in free machining, plain carbon and alloy steel, cast-iron, copper or copper alloys and titanium or titanium alloys

Additional information

Weight 1.0351 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760609286
Product number (SAP): 86013734
Ordering code ANSI: C29540.0
Gross weight – grams: 1861.3

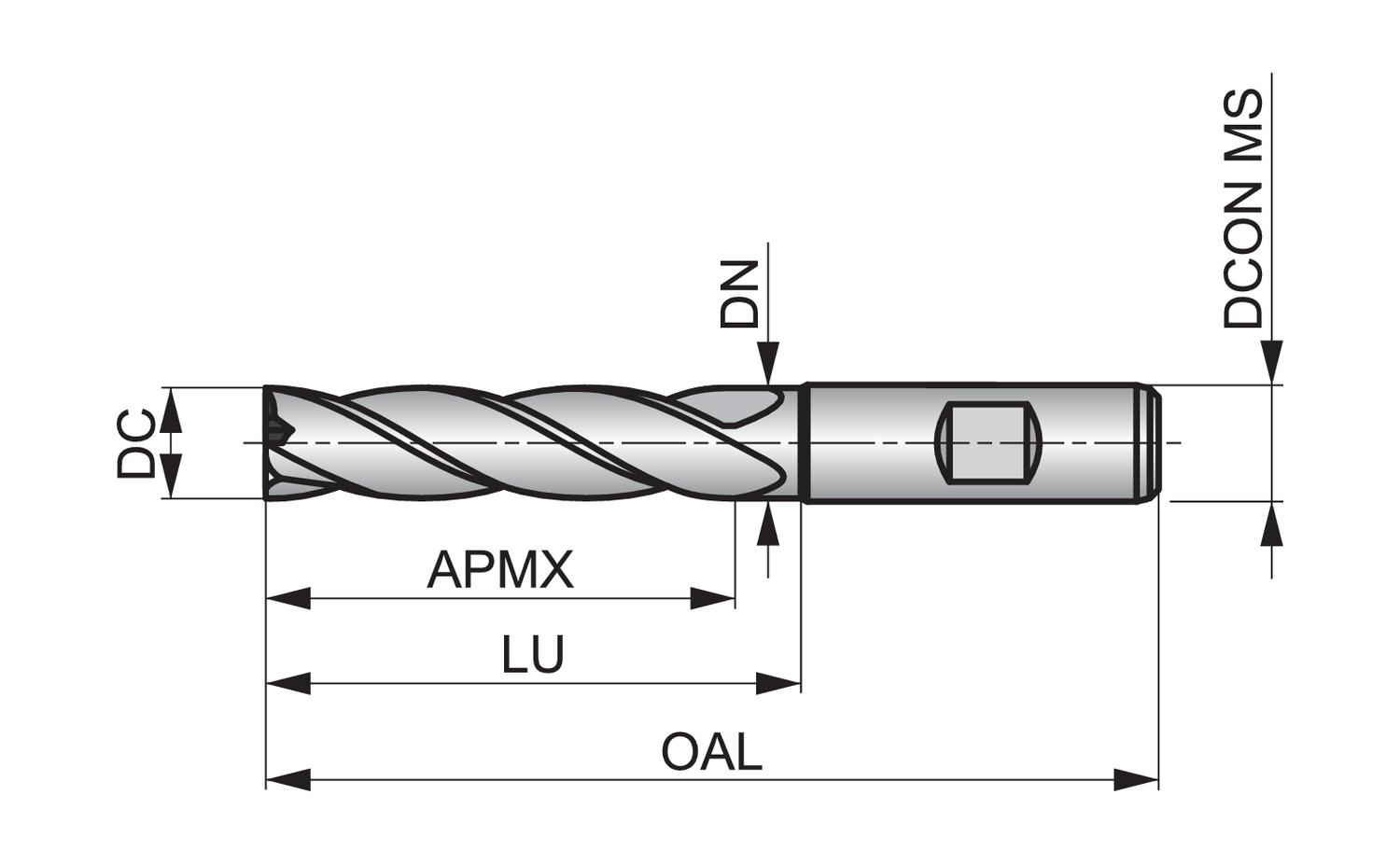

Cutting diameter – millimeter (DC): 40 mm
Connection diameter – millimeter (DCON MS): 40 mm
Depth of cut maximum – millimeter (APMX): 125 mm
Overall length – millimeter (OAL): 217 mm

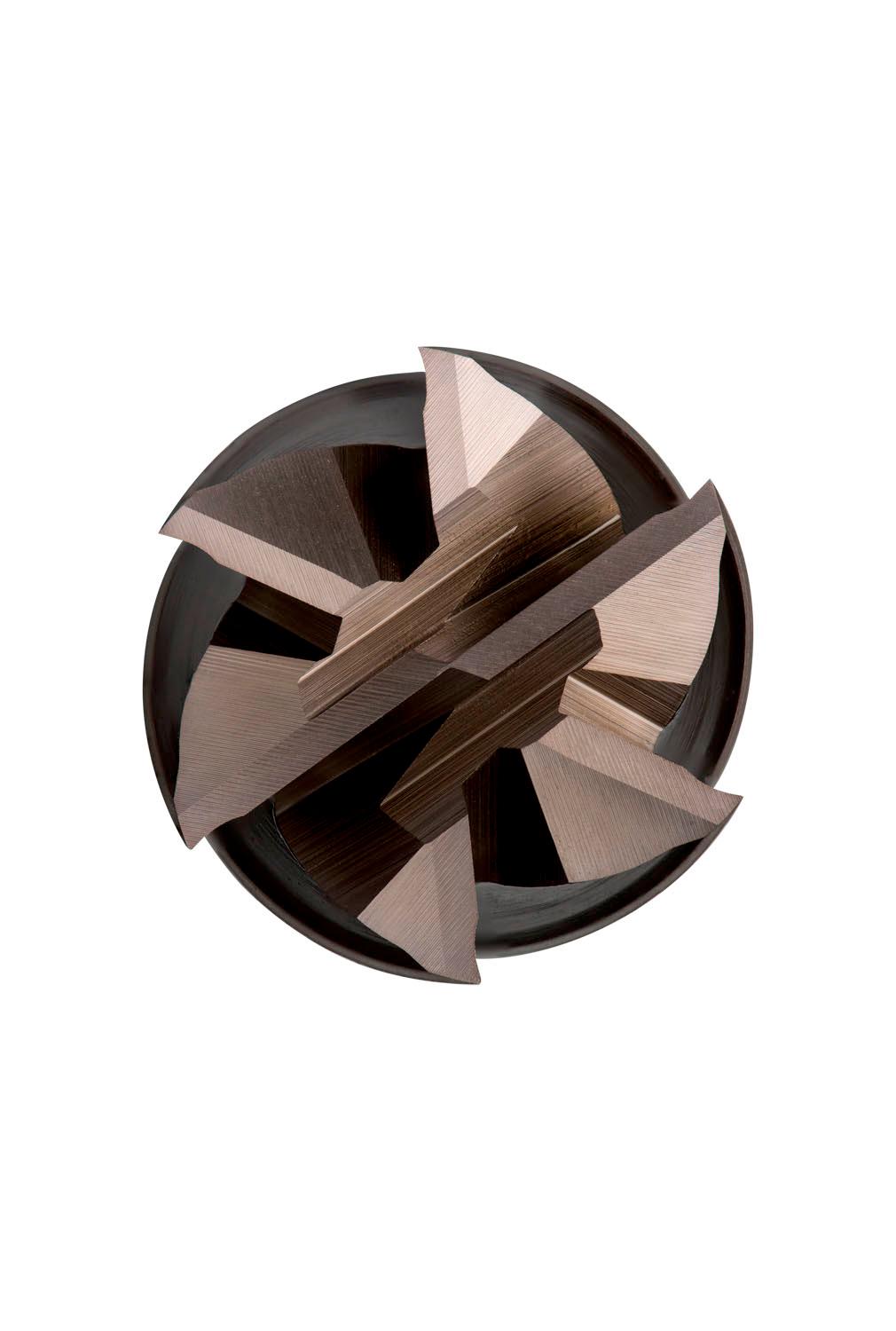

Flute count (NOF): 6
Usable Length – millimeter (LU): 146.5 mm
Neck diameter – millimeter (DN): 39 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C29540.0
