DORMER C29916.0 Primax Cutters

Product Code: C29916.0

$165.42$150.38 Ex. GST

Product Code: C29916.0 SKU C29916.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

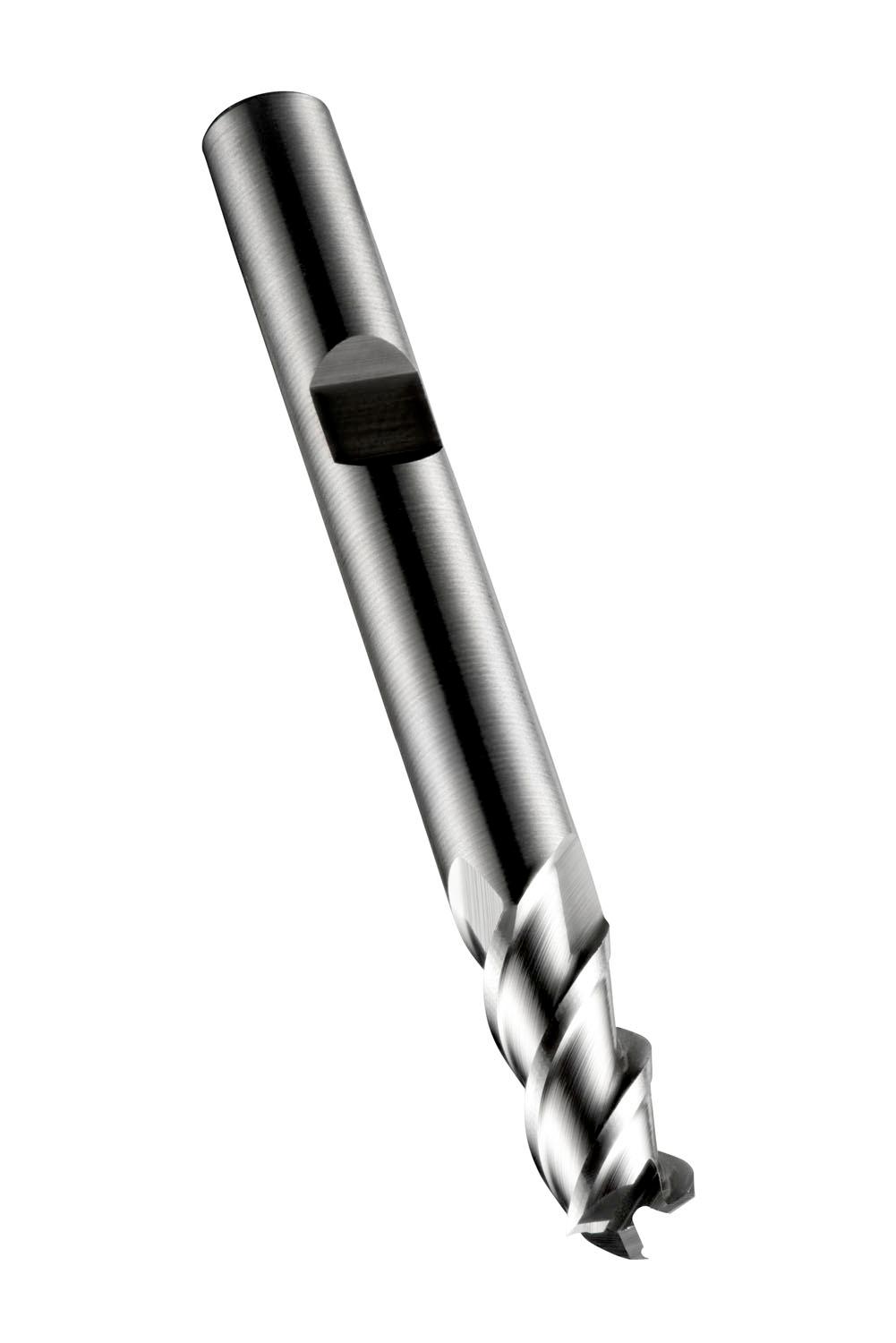

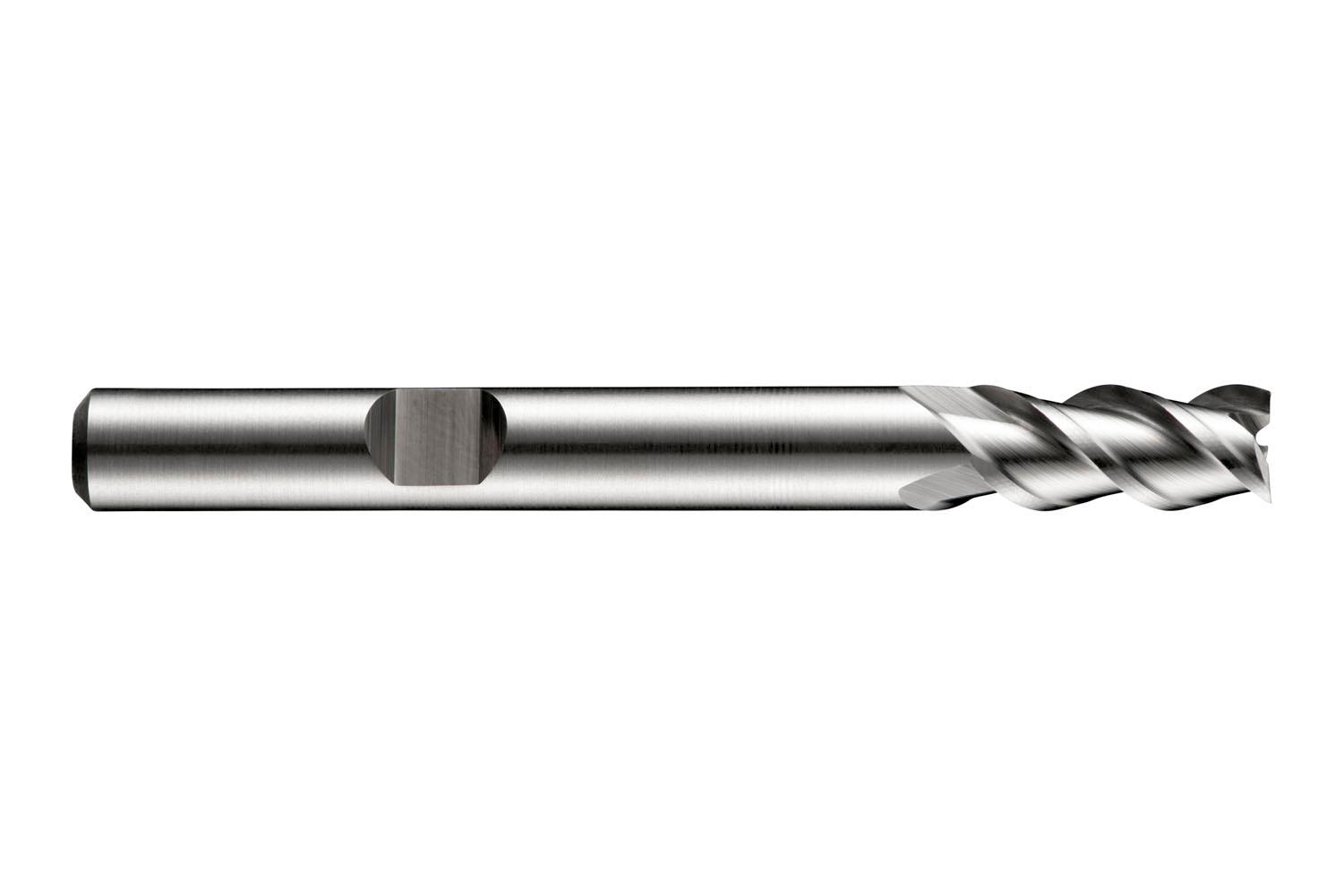

Short series end mill with 4 flutes, diameter 16mm with 32mm length of cut, 92mm overall length and 43.5mm reach with neck relief, according to DIN 844 K standard with a 16mm Weldon shank, powder metallurgical HSS-E with bright finish, 45° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, ferritic, martensitic and super-austenitic, Duplex or precipitation hardening stainless steel, cast-iron, copper or copper alloys and high-temperature alloys

Additional information

Weight 0.1606 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760064344
Product number (SAP): 86013743
Ordering code ANSI: C29916.0
Gross weight – grams: 130.2

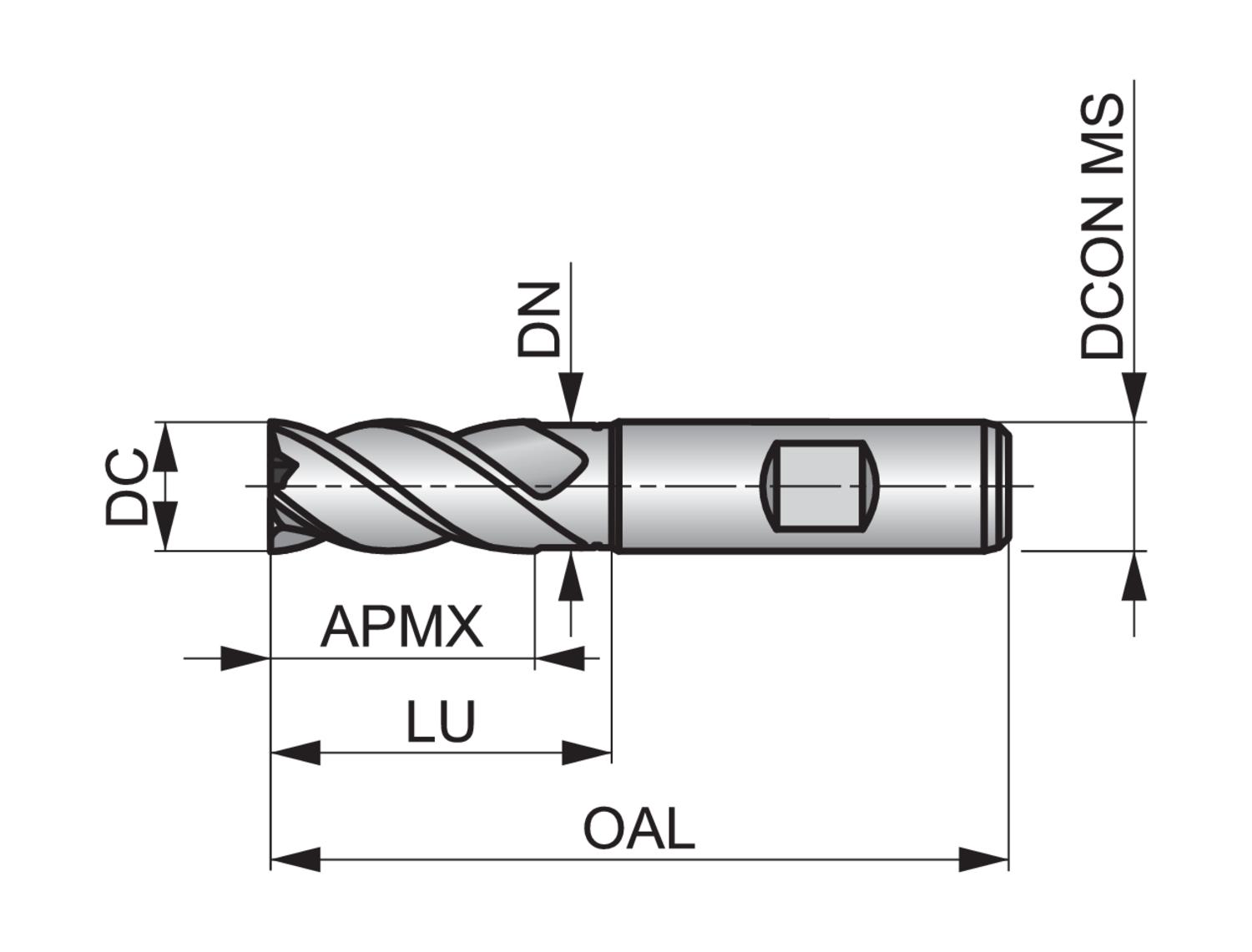

Cutting diameter – millimeter (DC): 16 mm
Connection diameter – millimeter (DCON MS): 16 mm
Depth of cut maximum – millimeter (APMX): 32 mm
Overall length – millimeter (OAL): 92 mm

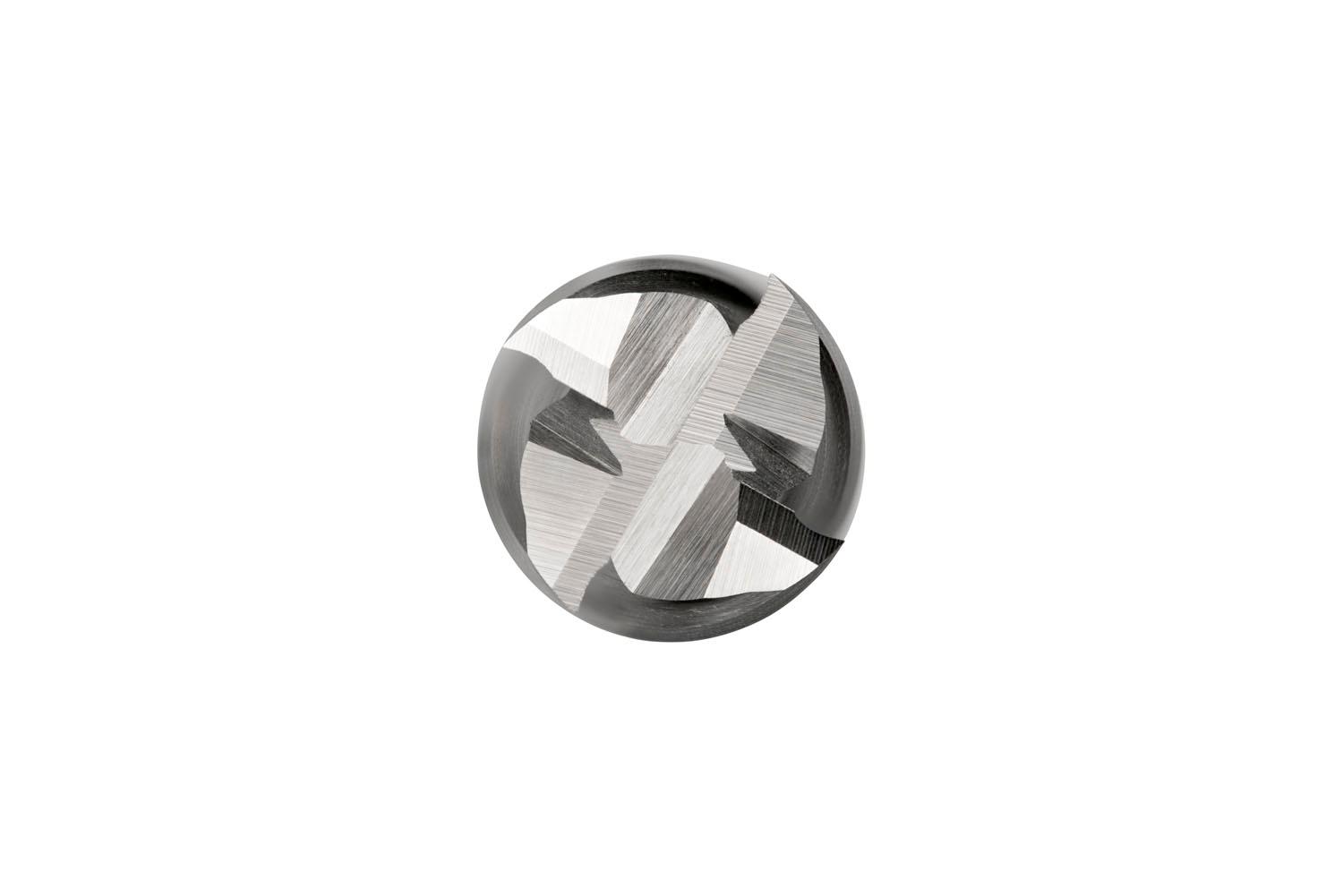

Flute count (NOF): 4
Usable Length – millimeter (LU): 43.5 mm
Neck diameter – millimeter (DN): 15.5 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C29916.0

Brand

DORMER
