DORMER C29920.0 Primax Cutters

Product Code: C29920.0

$218.67$198.79 Ex. GST

Product Code: C29920.0 SKU C29920.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

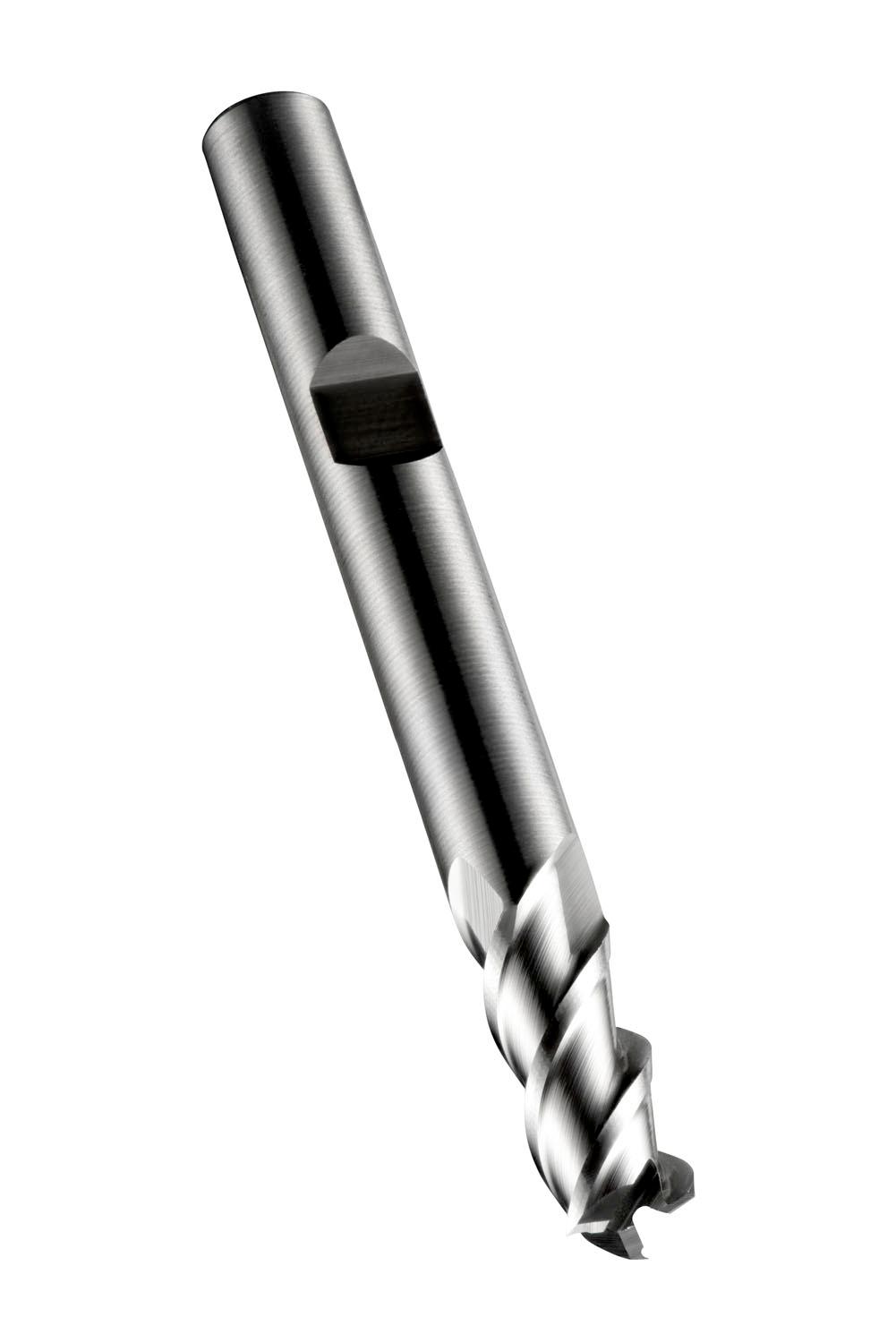

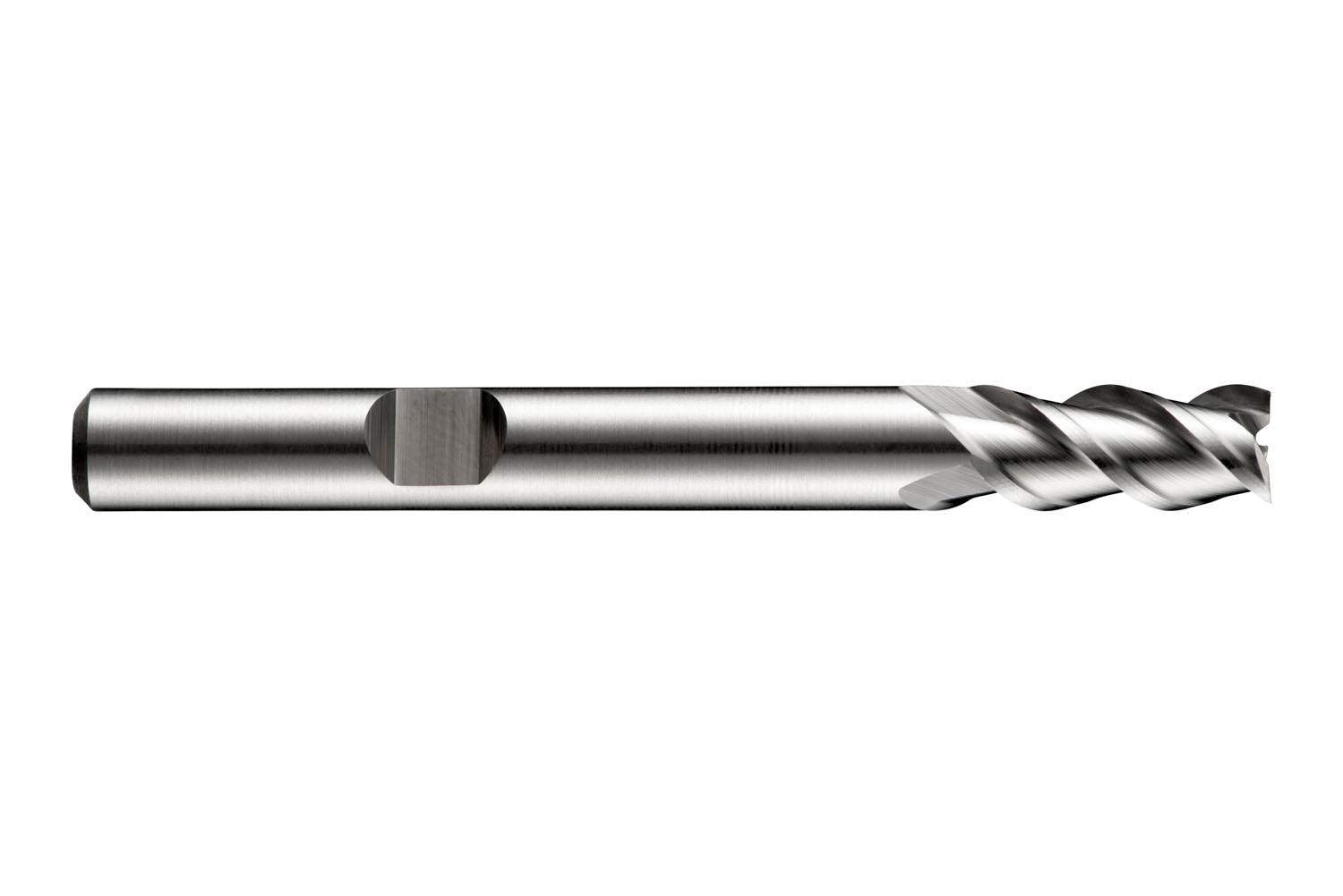

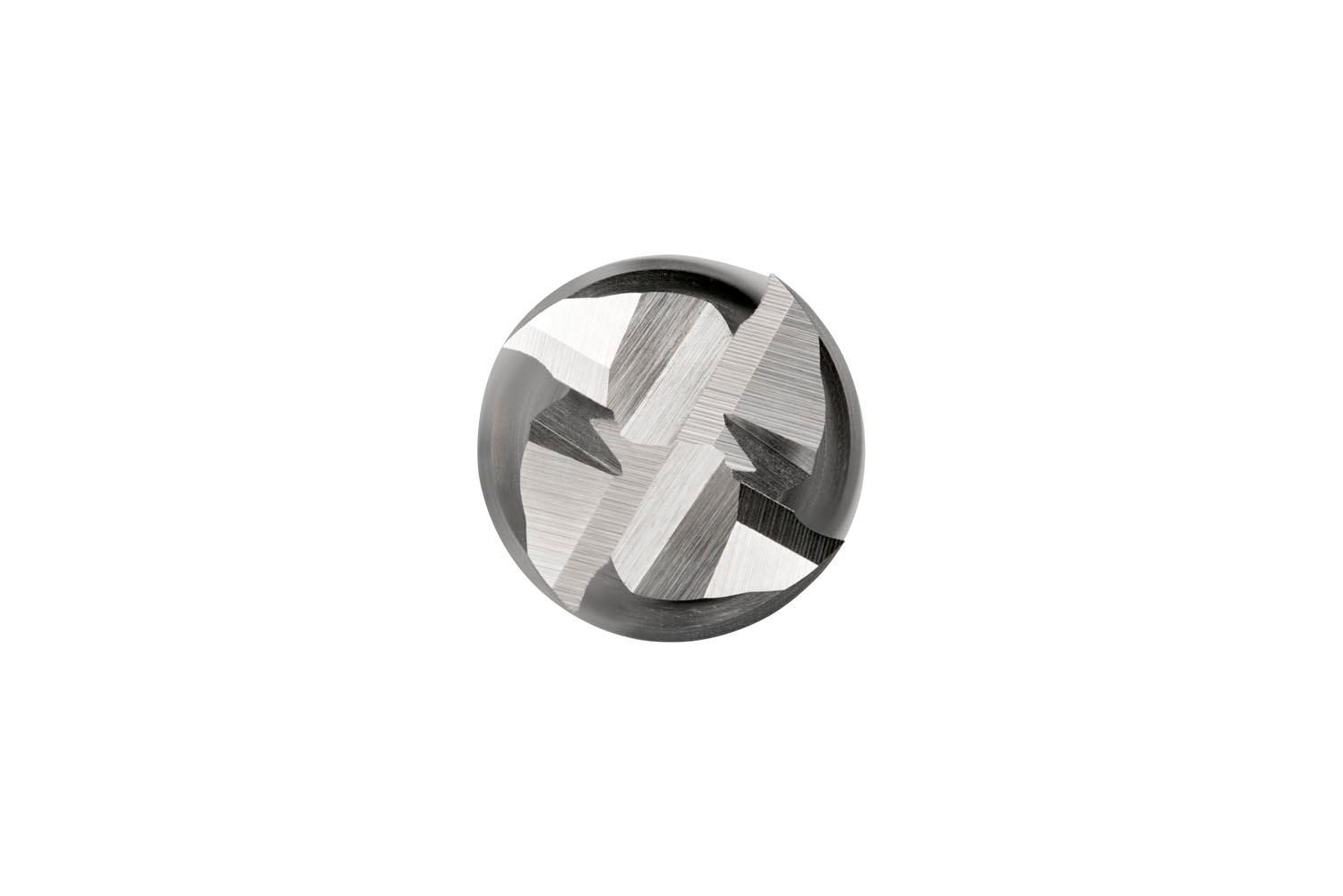

Short series end mill with 4 flutes, diameter 20mm with 38mm length of cut, 104mm overall length and 53.5mm reach with neck relief, according to DIN 844 K standard with a 20mm Weldon shank, powder metallurgical HSS-E with bright finish, 45° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, ferritic, martensitic and super-austenitic, Duplex or precipitation hardening stainless steel, cast-iron, copper or copper alloys and high-temperature alloys

Additional information

Weight 0.2123 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760064368
Product number (SAP): 86013745
Ordering code ANSI: C29920.0
Gross weight – grams: 230

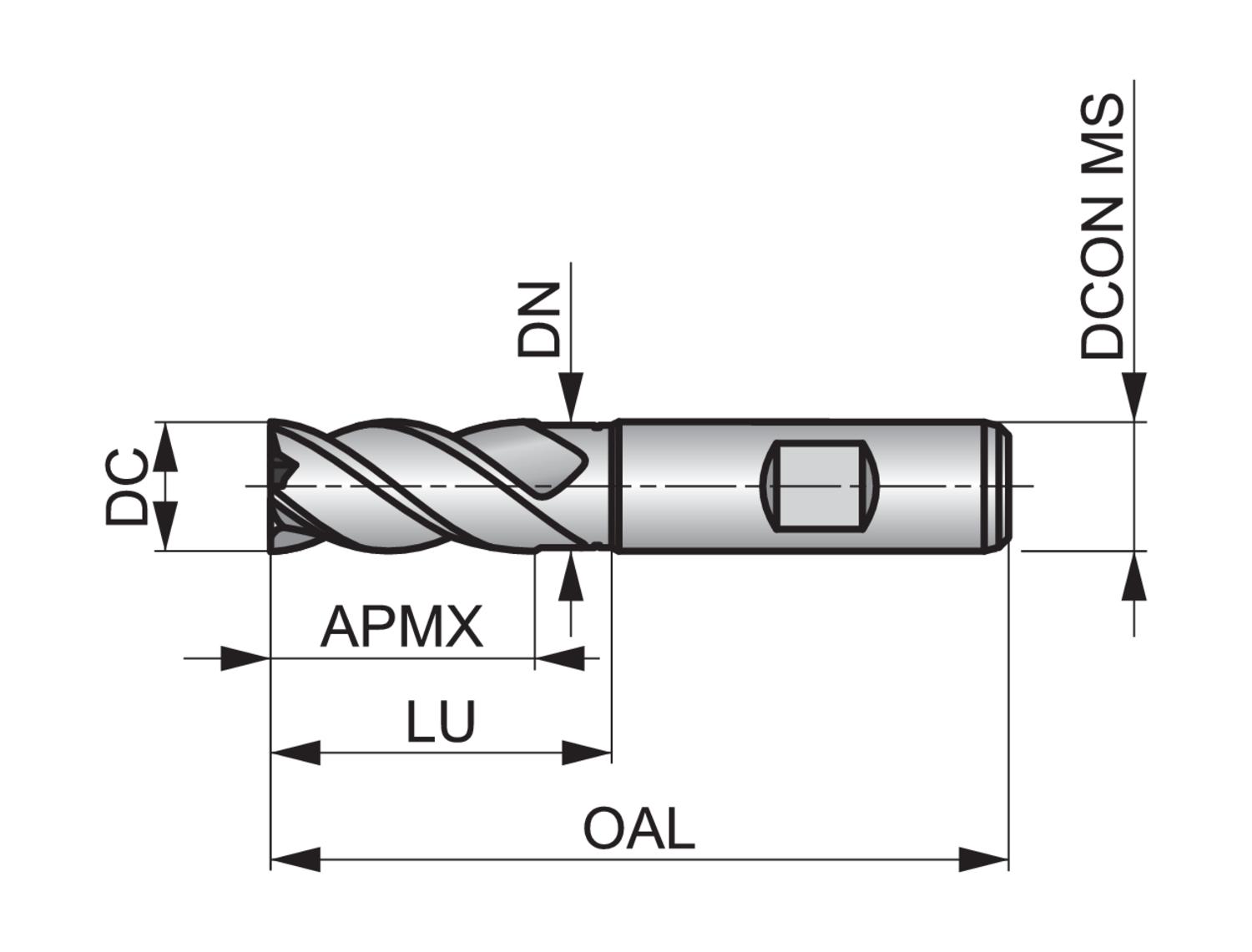

Cutting diameter – millimeter (DC): 20 mm
Connection diameter – millimeter (DCON MS): 20 mm
Depth of cut maximum – millimeter (APMX): 38 mm
Overall length – millimeter (OAL): 104 mm
Flute count (NOF): 4
Usable Length – millimeter (LU): 53.5 mm
Neck diameter – millimeter (DN): 19.5 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C29920.0

Brand

DORMER
