DORMER C2995.0 Primax Cutters

Product Code: C2995.0

$66.85$60.77 Ex. GST

Product Code: C2995.0 SKU C2995.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

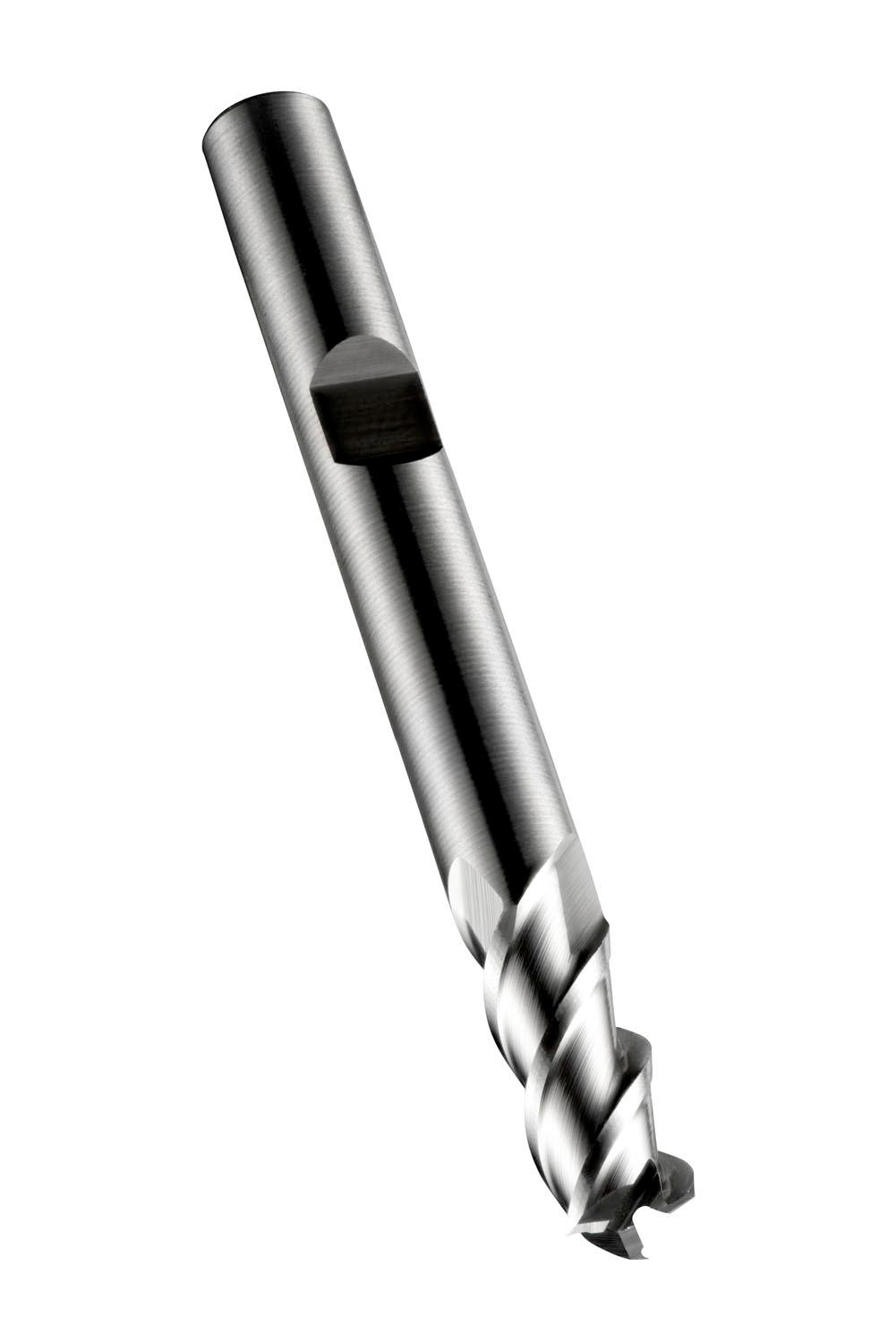

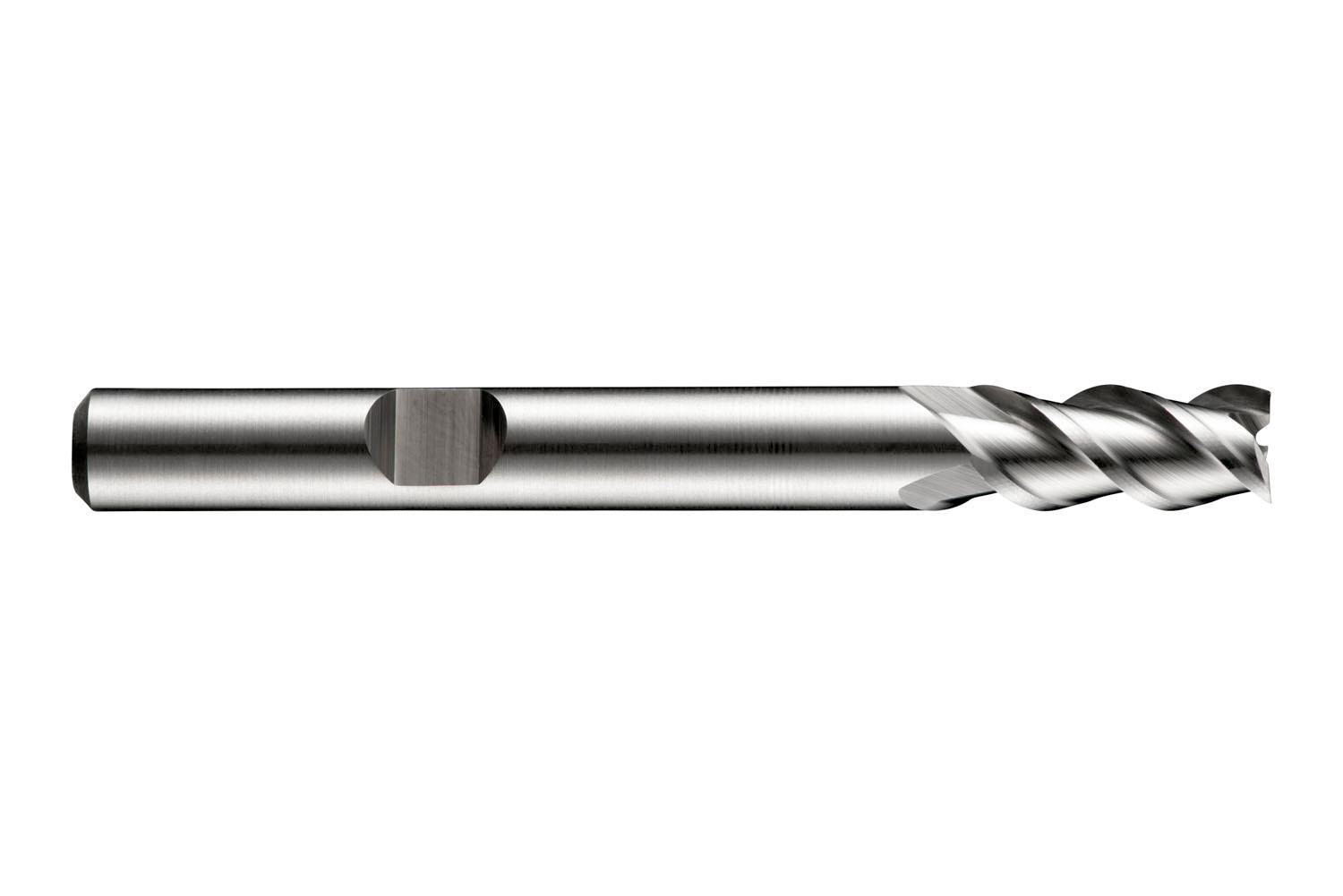

Short series end mill with 3 flutes, diameter 5mm with 13mm length of cut and 57mm overall length, according to DIN 844 K standard with a 6mm Weldon shank, powder metallurgical HSS-E with bright finish, 45° helix and 12° rake angle for shoulder milling, slot milling and ramping in plain carbon, alloy and tool steel, ferritic, martensitic and super-austenitic, Duplex or precipitation hardening stainless steel, cast-iron, copper or copper alloys and high-temperature alloys

Additional information

Weight 0.0649 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760064443
Product number (SAP): 86013749
Ordering code ANSI: C2995.0
Gross weight – grams: 13

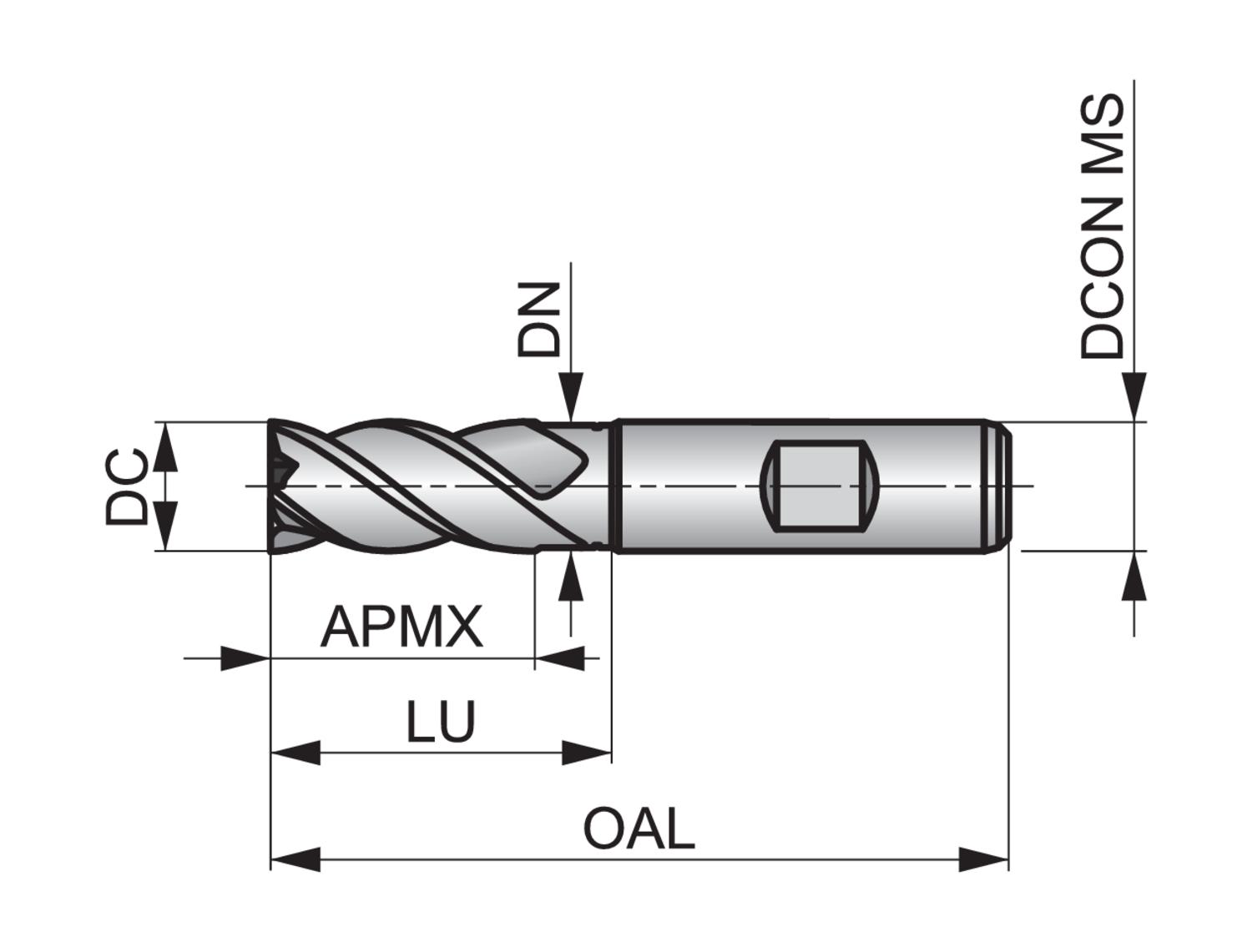

Cutting diameter – millimeter (DC): 5 mm
Connection diameter – millimeter (DCON MS): 6 mm
Depth of cut maximum – millimeter (APMX): 13 mm
Overall length – millimeter (OAL): 57 mm

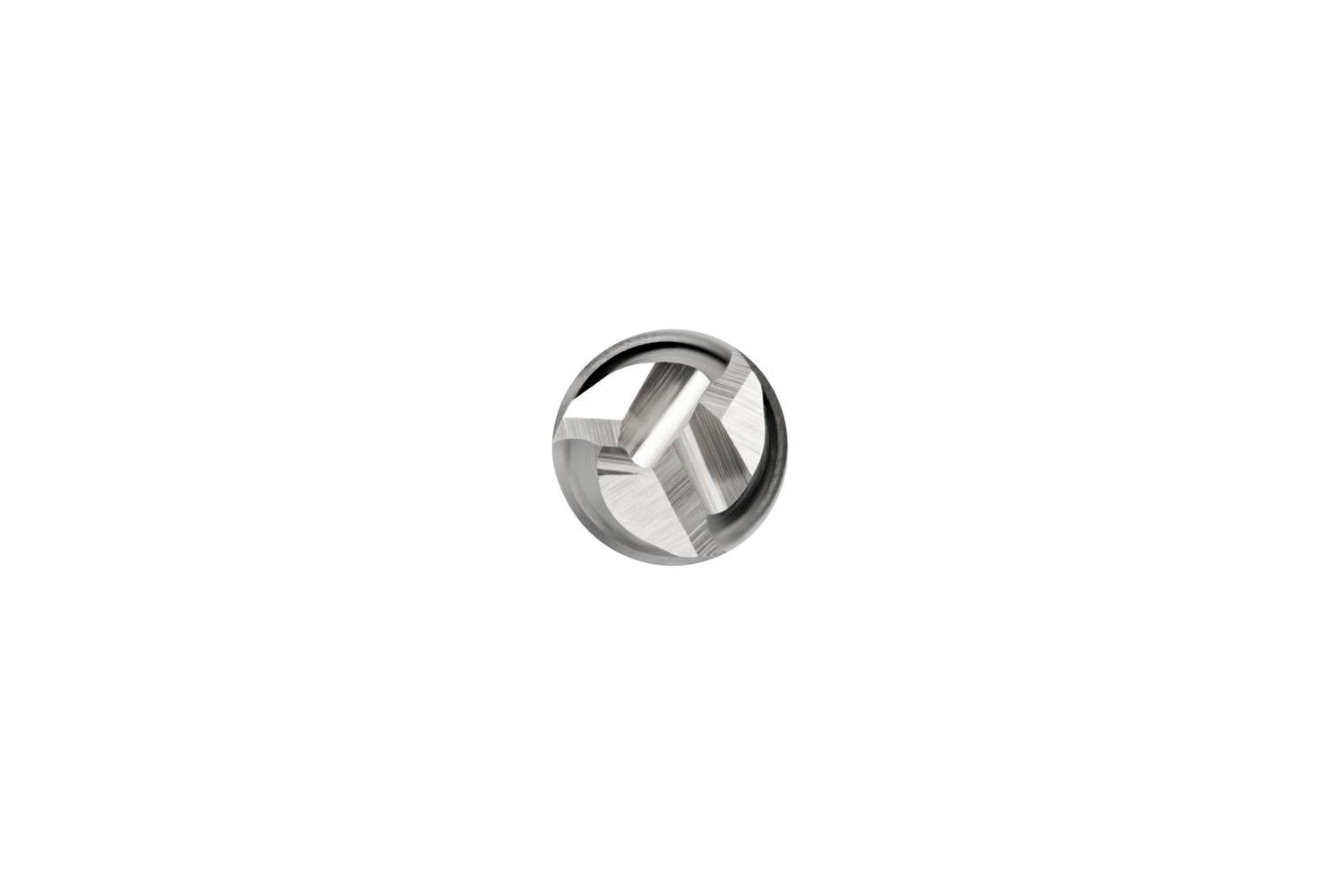

Flute count (NOF): 3
Neck diameter – millimeter (DN): 5 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C2995.0

Brand

DORMER
