DORMER C30512.0 Primax Cutters

Product Code: C30512.0

$98.57$89.61 Ex. GST

Product Code: C30512.0 SKU C30512.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

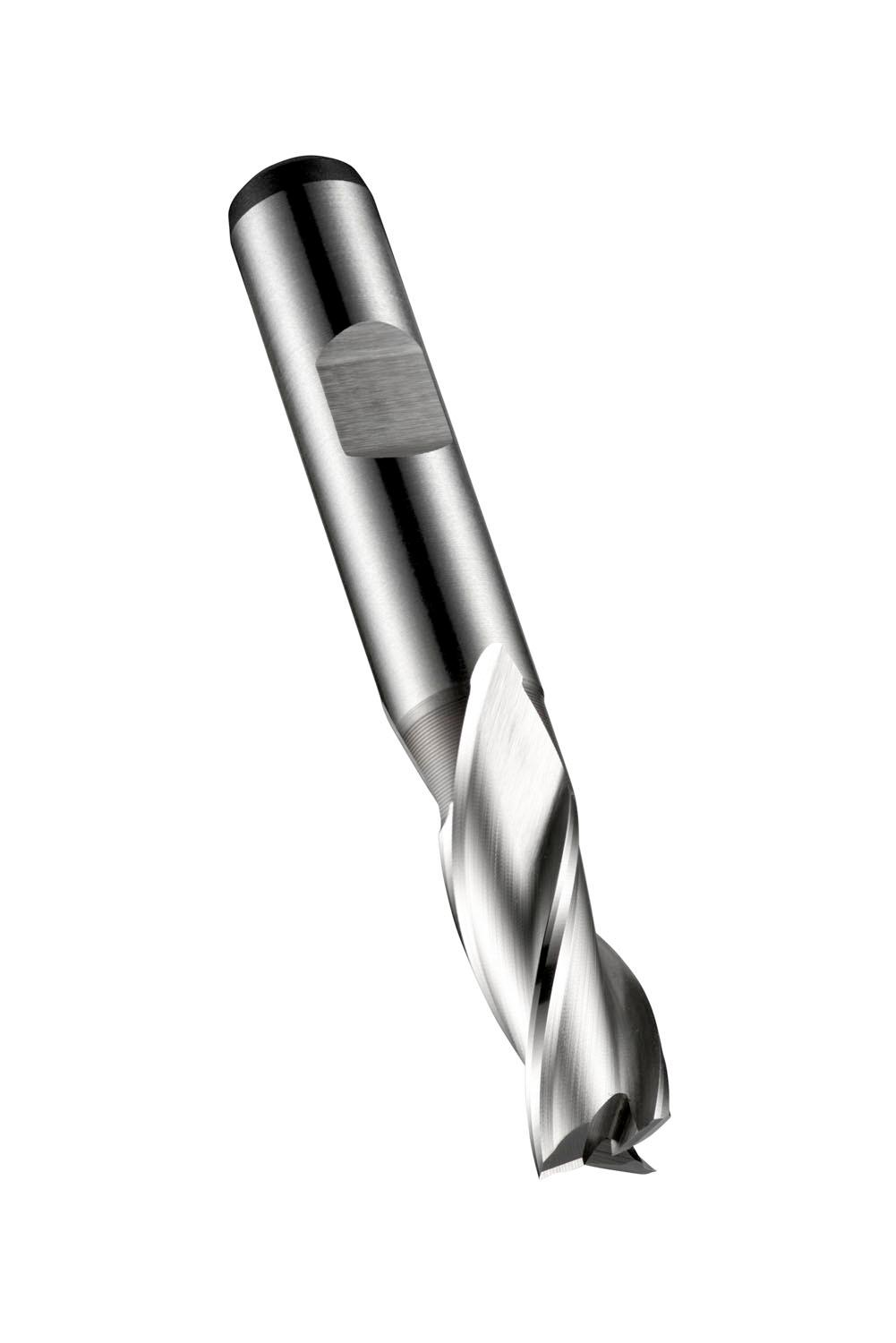

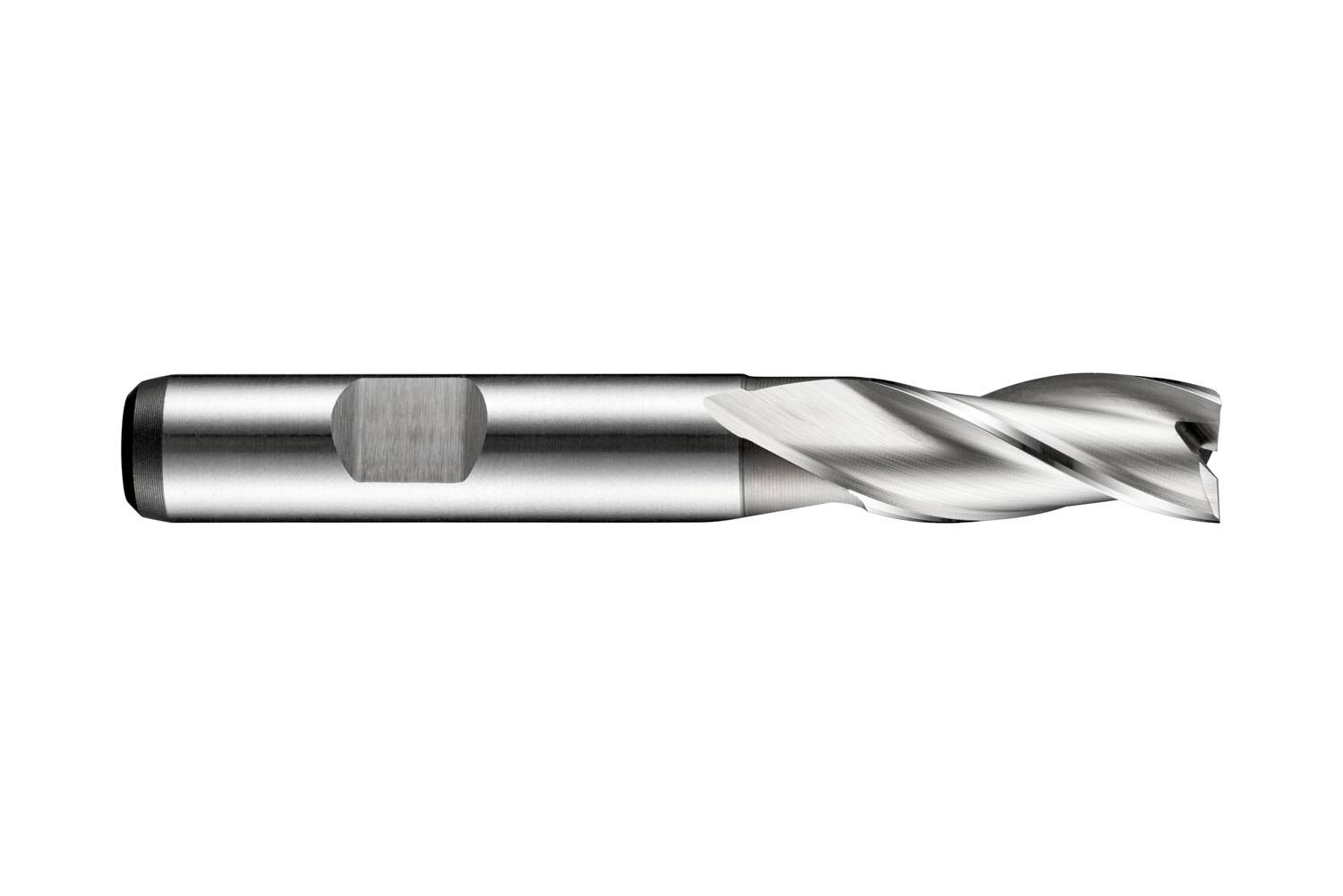

Short series slot drill with 3 flutes, diameter 12mm with 26mm length of cut, 83mm overall length and 37.5mm reach with neck relief, according to DIN 844 K standard with a 12mm Weldon shank, powder metallurgical HSS-E with bright finish, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining and plain carbon steel, copper or copper alloys and Fe-based, Ni-based and Co-based high-temperature alloys

Additional information

Weight 0.0957 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760572245
Product number (SAP): 86013754
Ordering code ANSI: C30512.0
Gross weight – grams: 66.6

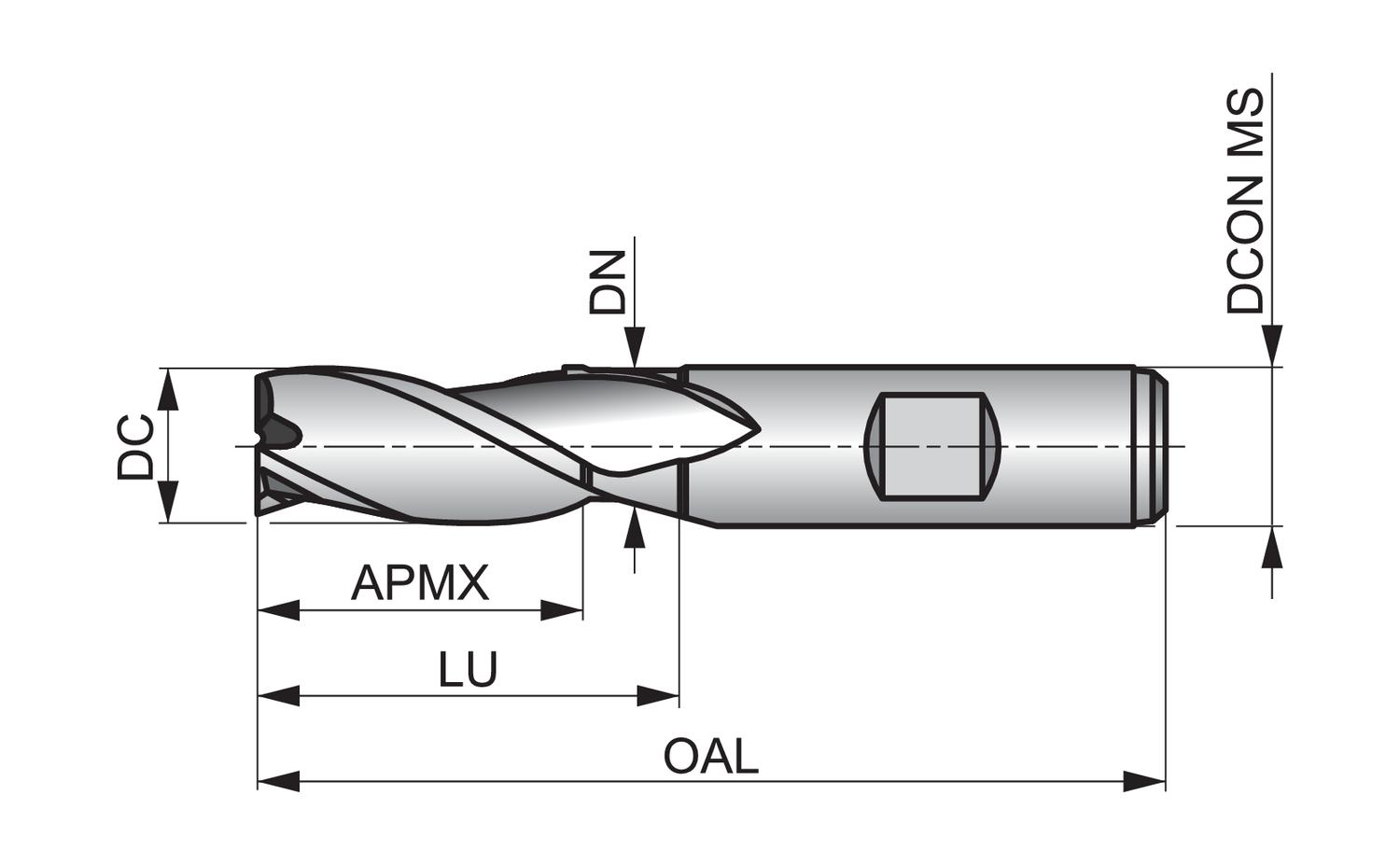

Cutting diameter – millimeter (DC): 12 mm
Connection diameter – millimeter (DCON MS): 12 mm
Depth of cut maximum – millimeter (APMX): 26 mm
Overall length – millimeter (OAL): 83 mm

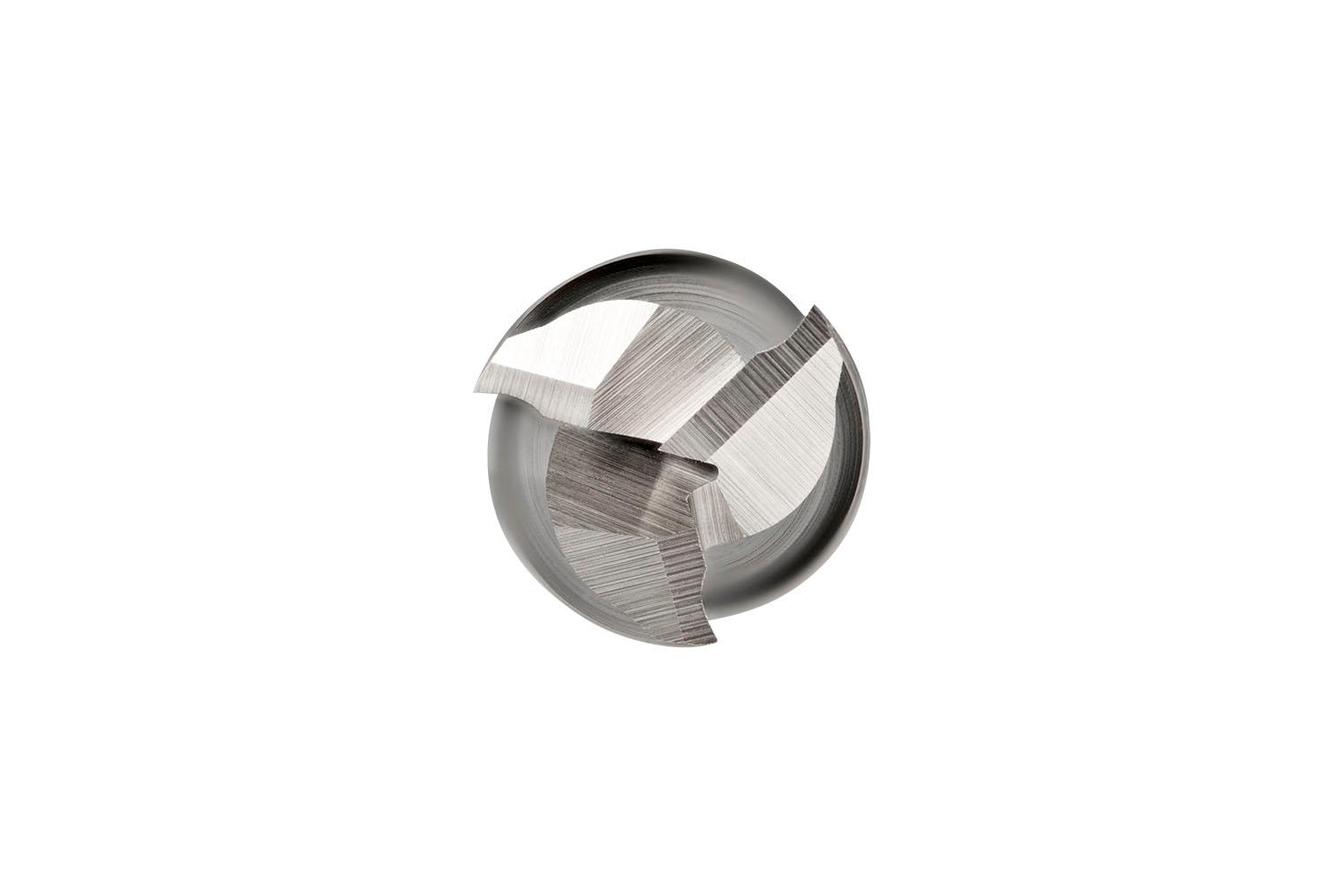

Flute count (NOF): 3
Usable Length – millimeter (LU): 37.5 mm
Neck diameter – millimeter (DN): 11.5 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C30512.0

Brand

DORMER
