DORMER C3052.5 Primax Cutters

Product Code: C3052.5

$65.71$59.74 Ex. GST

Product Code: C3052.5 SKU C3052.5 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

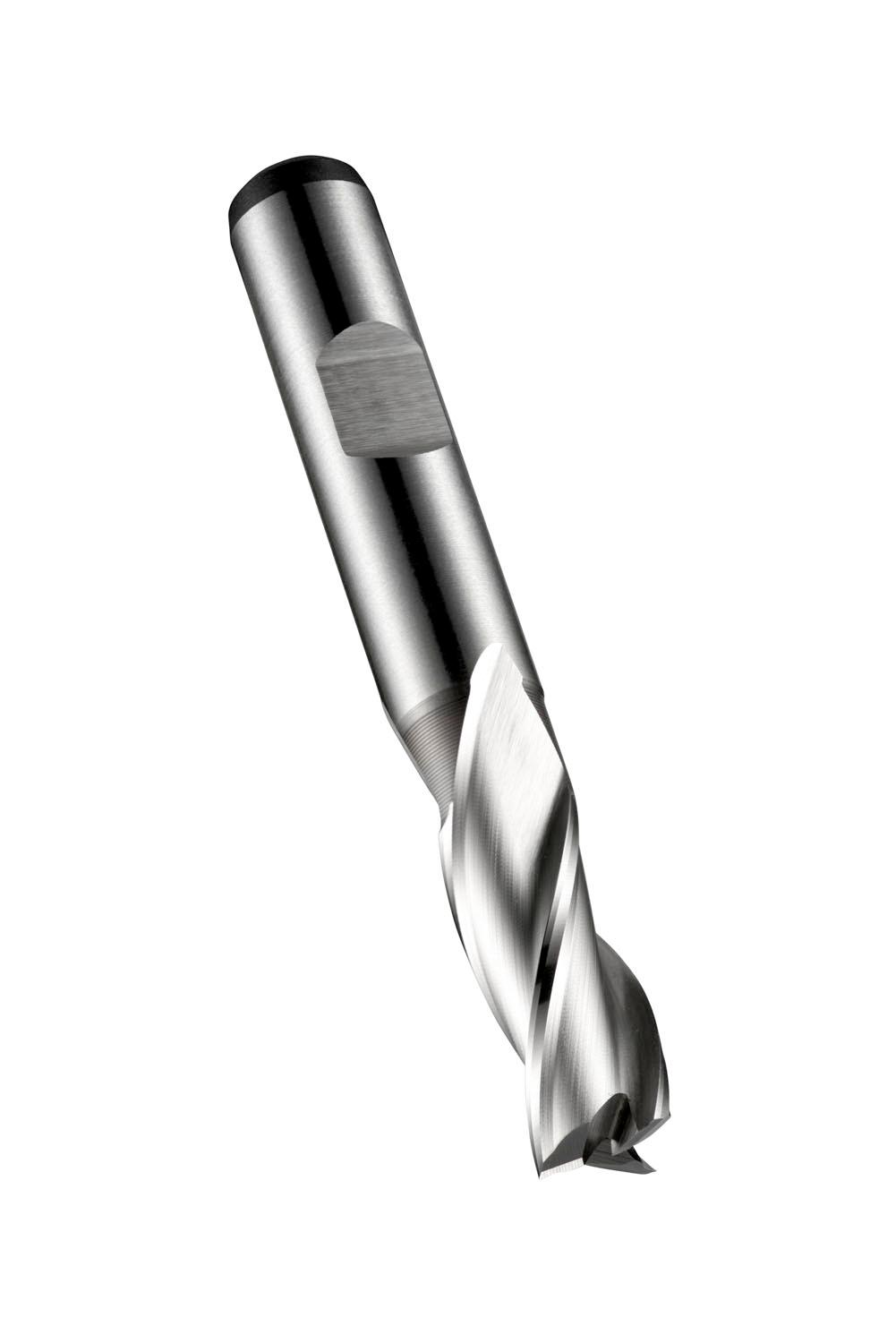

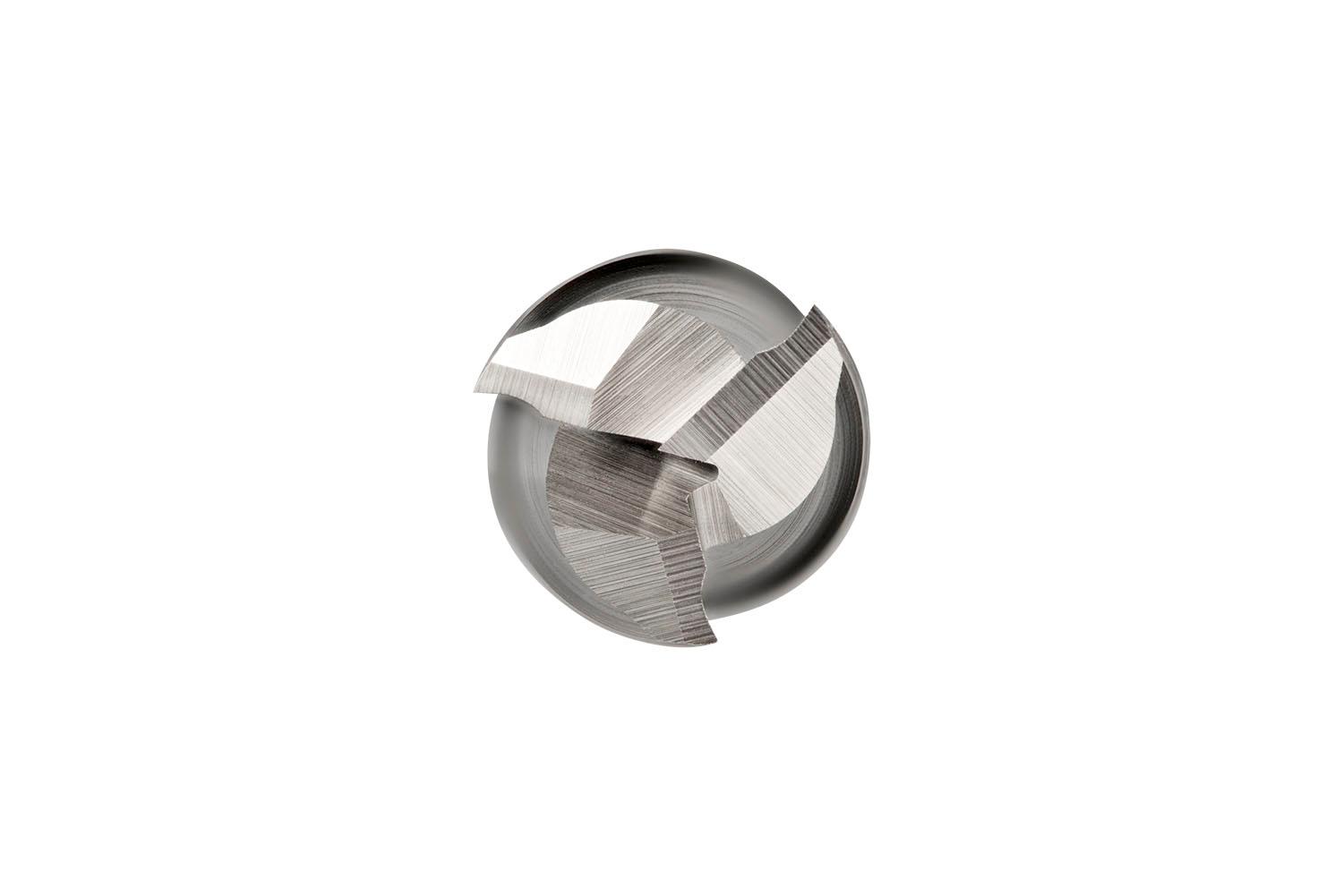

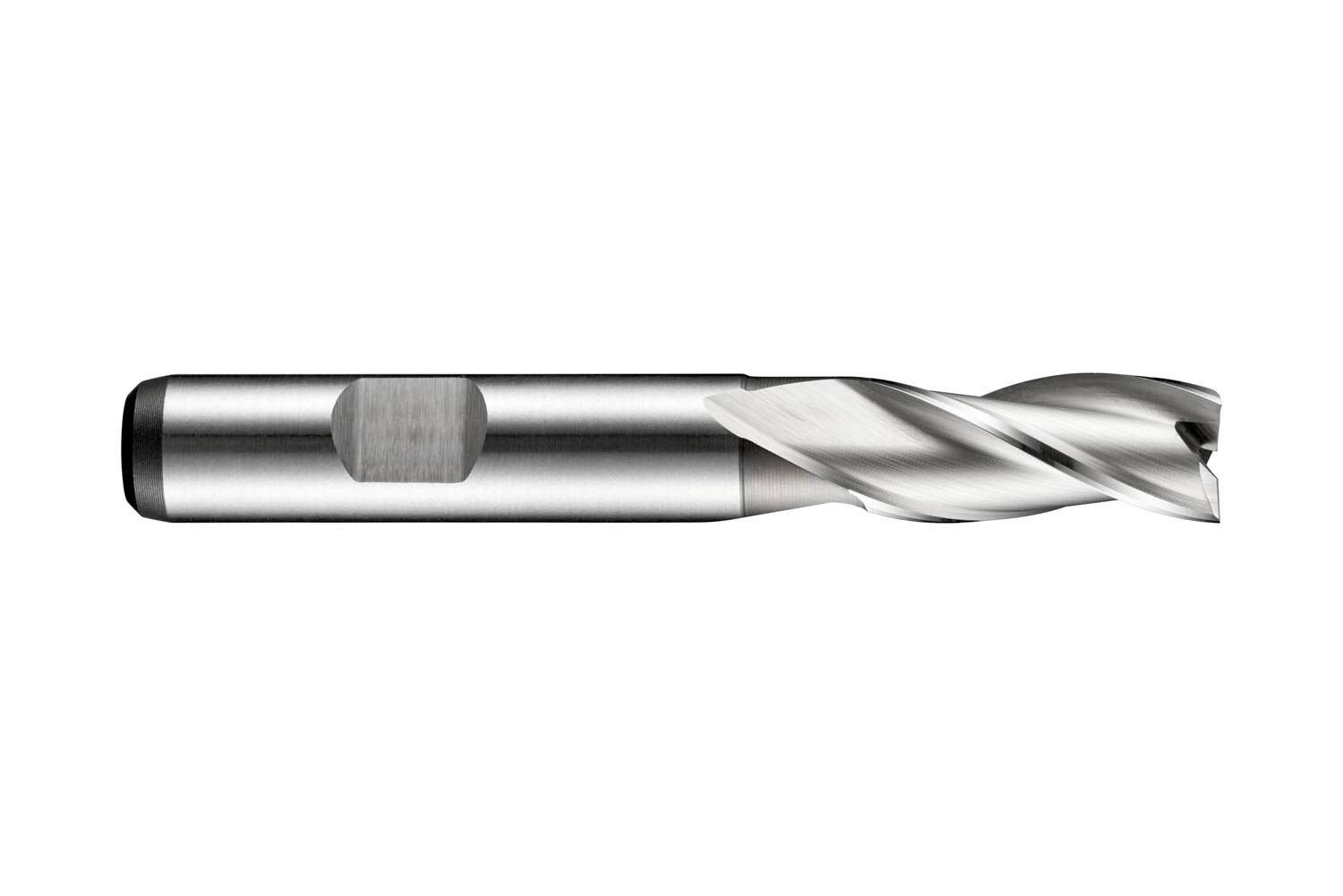

Short series slot drill with 3 flutes, diameter 2.5mm with 8mm length of cut and 52mm overall length, according to DIN 844 K standard with a 6mm Weldon shank, powder metallurgical HSS-E with bright finish, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining and plain carbon steel, copper or copper alloys and Fe-based, Ni-based and Co-based high-temperature alloys

Additional information

Weight 0.0638 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760572337
Product number (SAP): 86013763
Ordering code ANSI: C3052.5
Gross weight – grams: 11.5

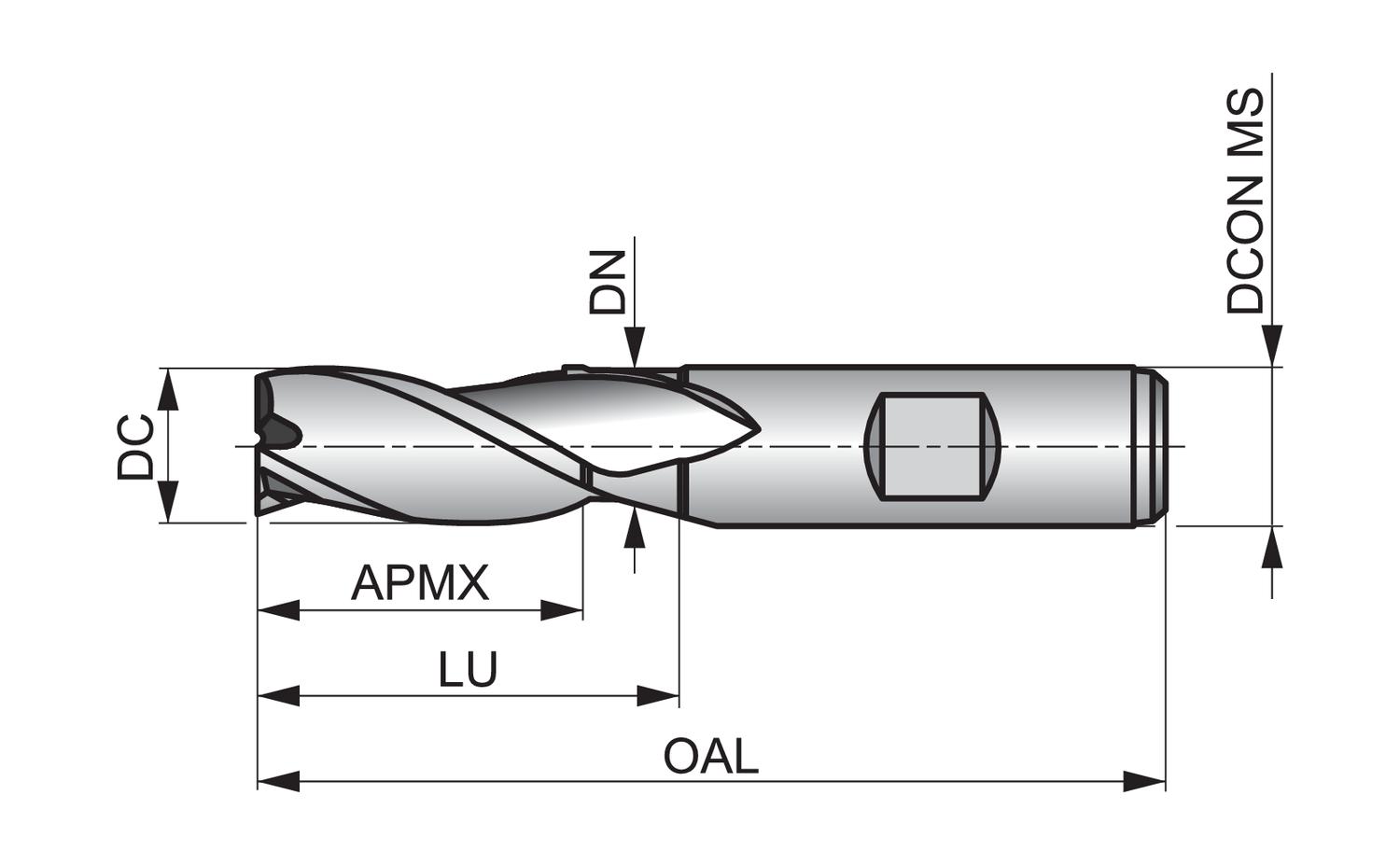

Cutting diameter – millimeter (DC): 2.5 mm
Connection diameter – millimeter (DCON MS): 6 mm
Depth of cut maximum – millimeter (APMX): 8 mm
Overall length – millimeter (OAL): 52 mm
Flute count (NOF): 3
Neck diameter – millimeter (DN): 2.5 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C3052.5

Brand

DORMER
