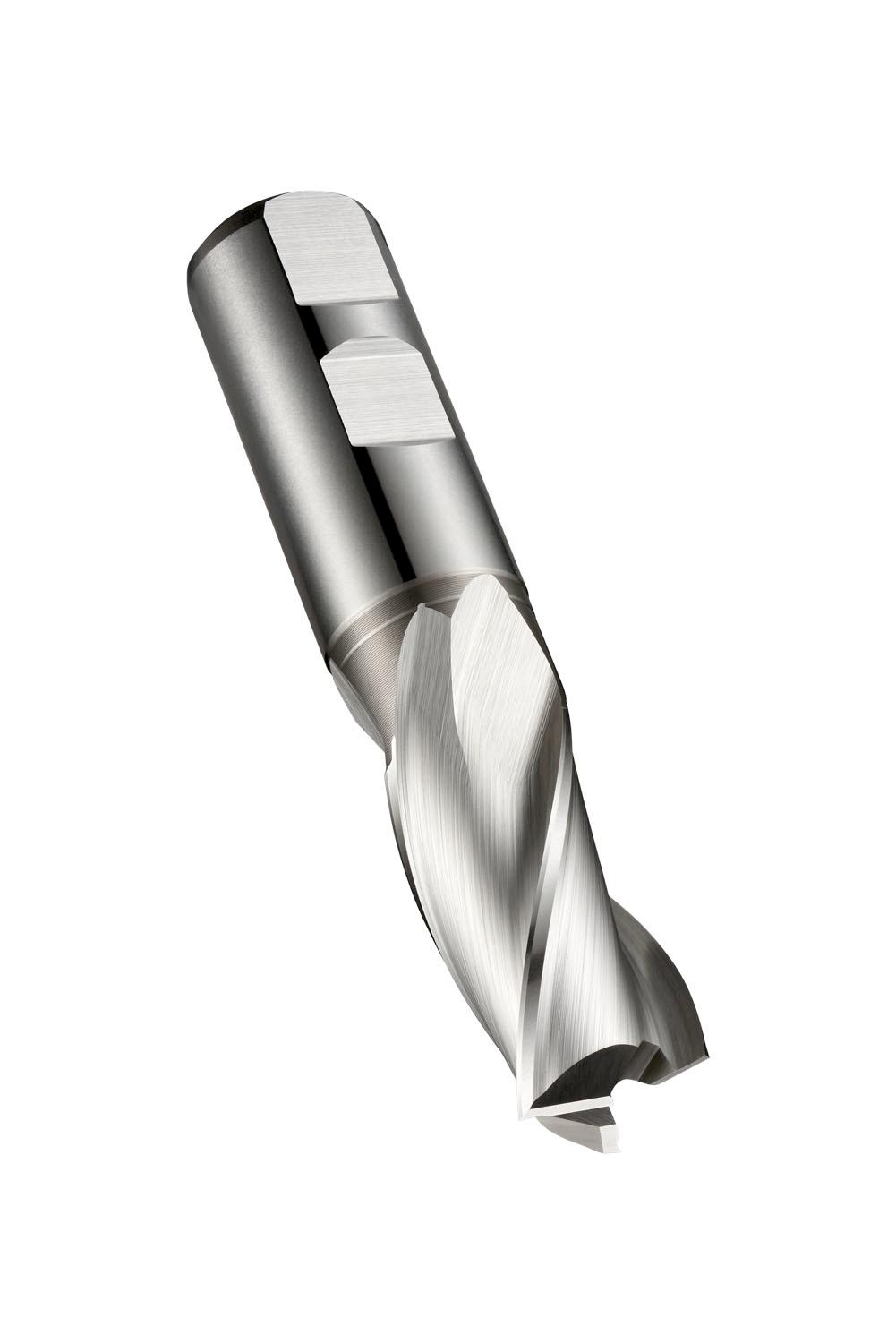

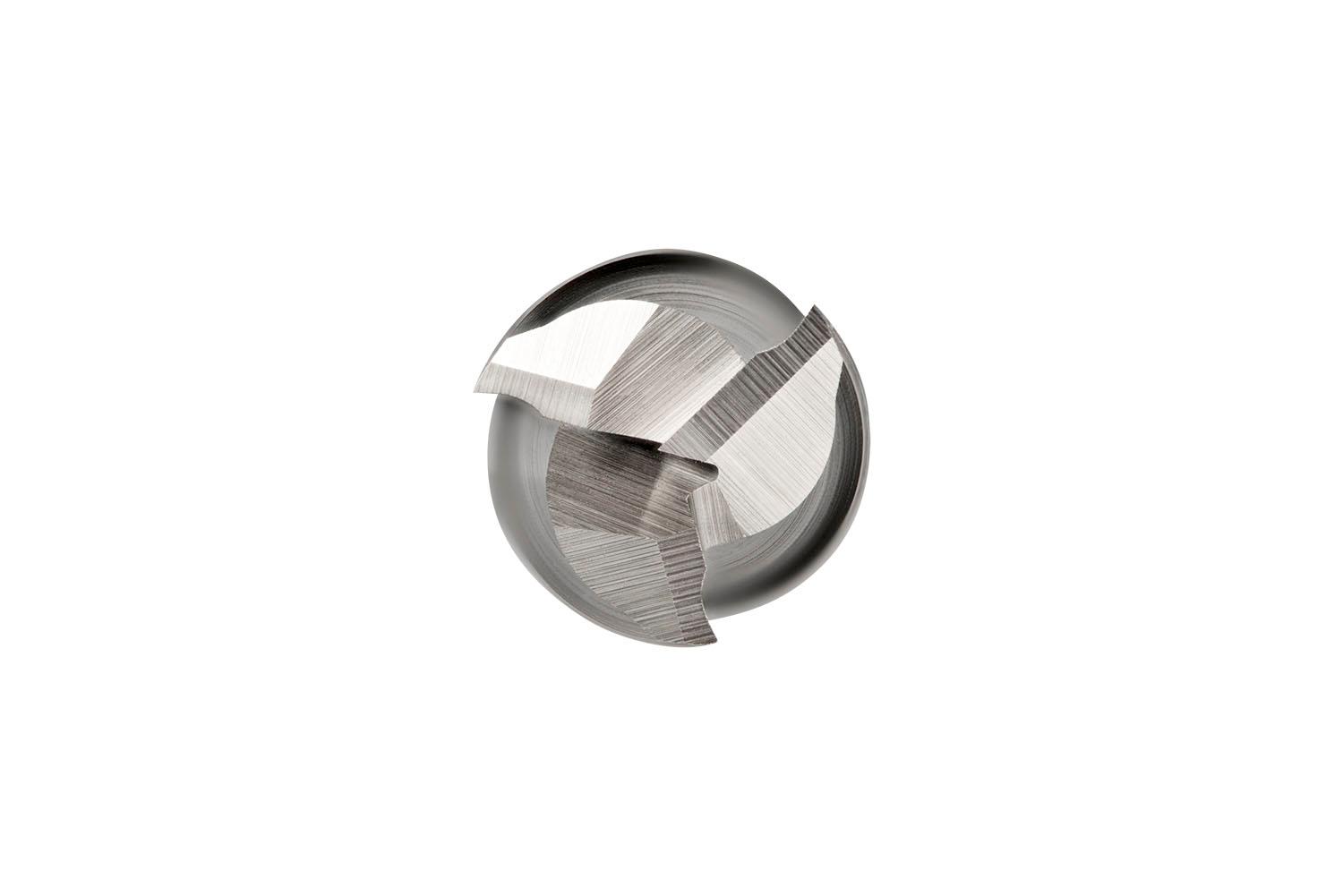

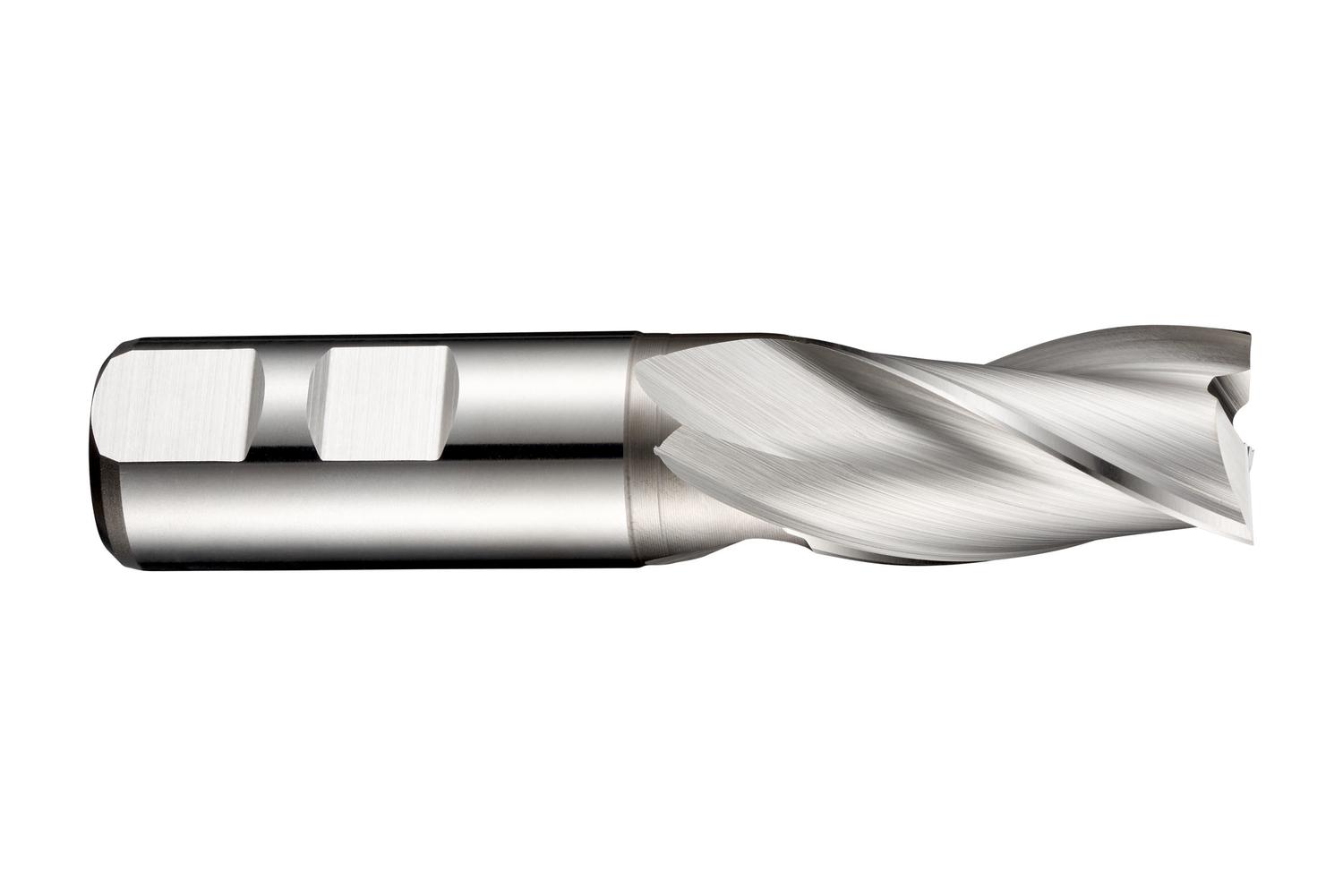

DORMER C30532.0 Primax Cutters

Product Code: C30532.0

$480.39$436.72 Ex. GST

Product Code: C30532.0 SKU C30532.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Short series slot drill with 3 flutes, diameter 32mm with 53mm length of cut and 133mm overall length, according to DIN 844 K standard with a 32mm Weldon shank, powder metallurgical HSS-E with bright finish, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining and plain carbon steel, copper or copper alloys and Fe-based, Ni-based and Co-based high-temperature alloys

Additional information

Weight 0.4664 kg
Dimensions
barcode
Additional Information

Description: Value

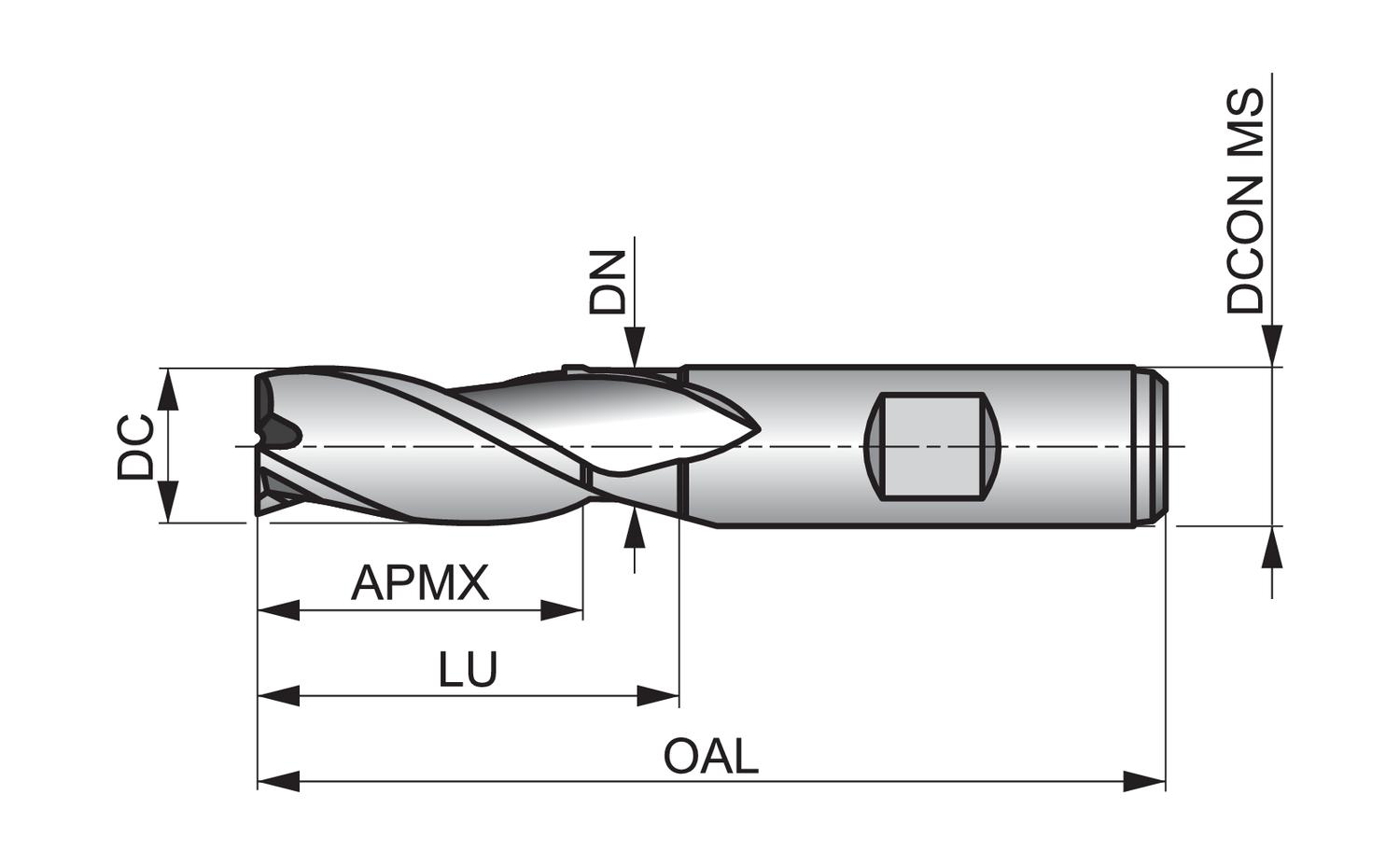

EAN number: 7320760572412 Product number (SAP): 86013771 Ordering code ANSI: C30532.0 Gross weight: 711 g Cutting diameter (DC): 32 mm Connection diameter (DCON MS): 32 mm Depth of cut maximum (APMX): 53 mm Overall length (OAL): 133 mm Flute count (NOF): 3 Neck diameter (DN): 31.5 mm Radial rake angle (GAMF): 12 With Neck: Yes ISO: C30532.0

Brand

DORMER
