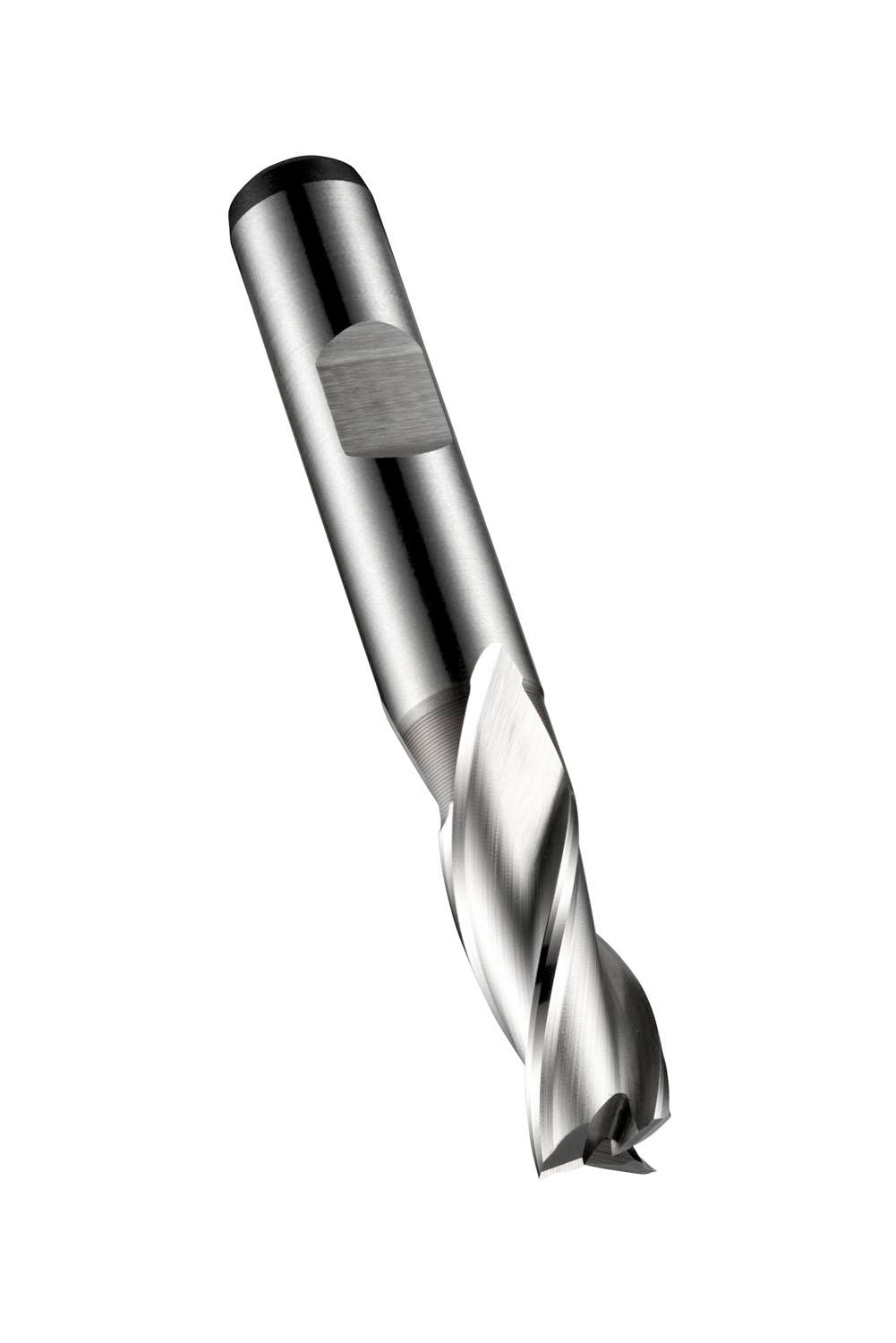

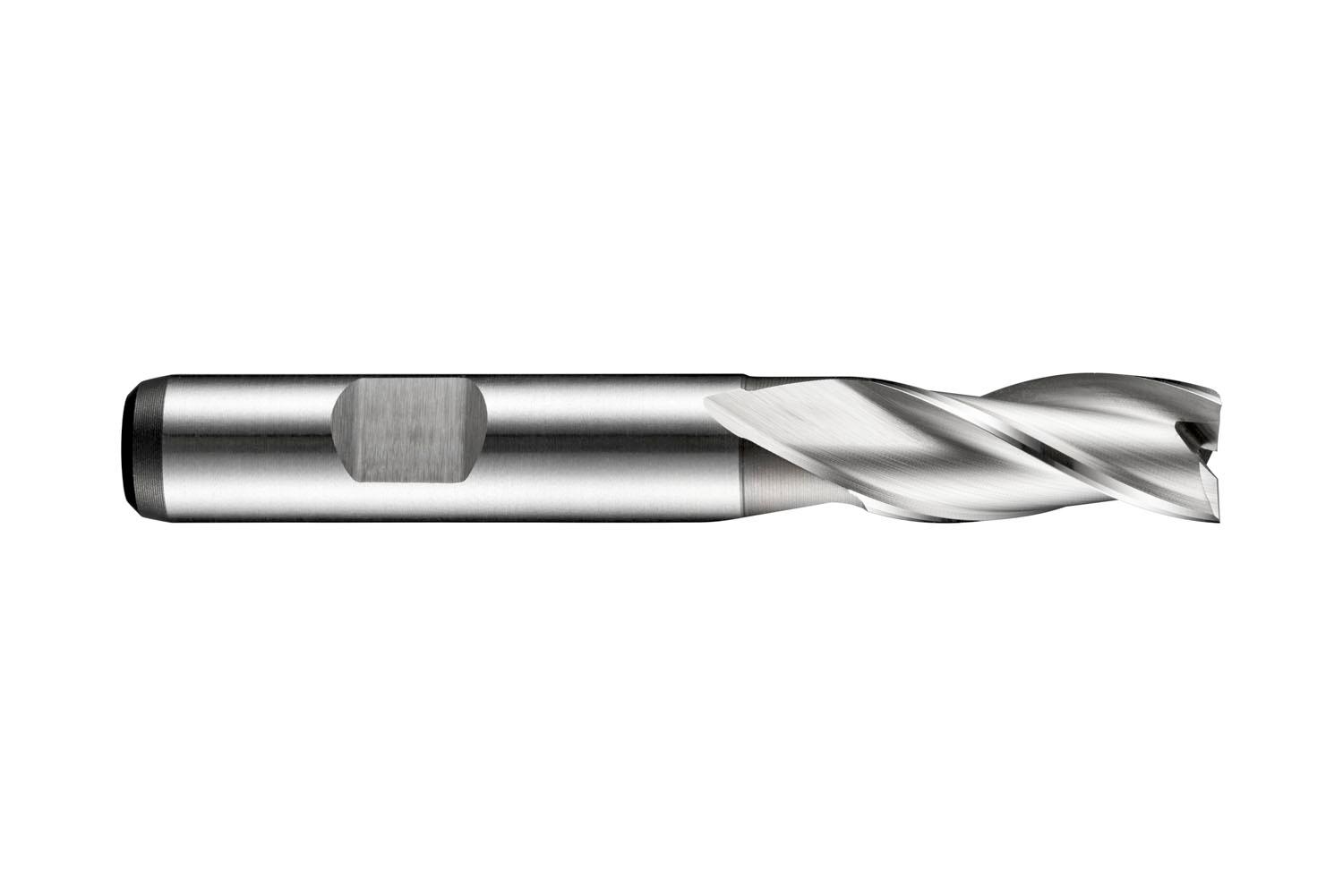

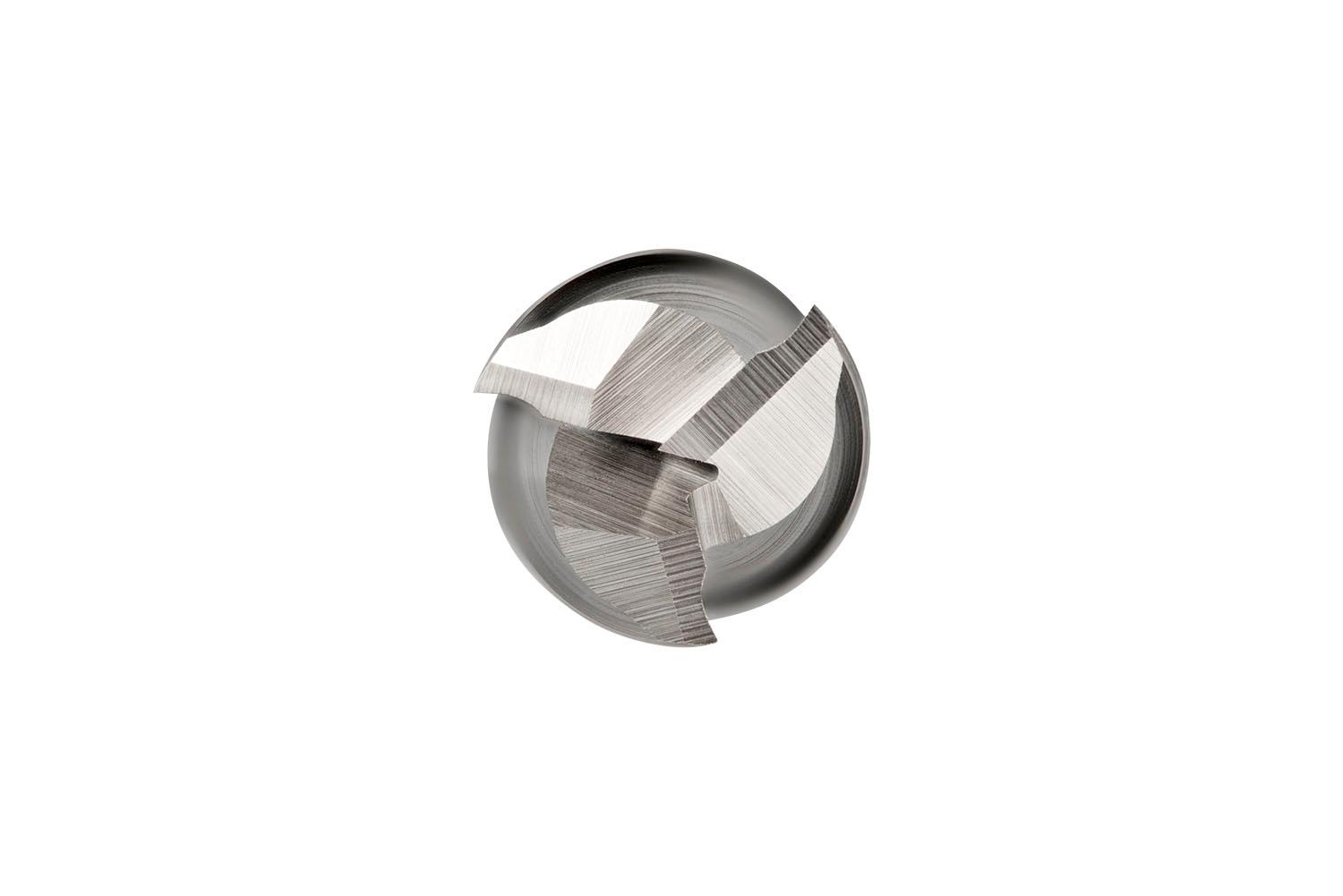

DORMER C3054.5 Primax Cutters

Product Code: C3054.5

$65.71$59.74 Ex. GST

Product Code: C3054.5 SKU C3054.5 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Short series slot drill with 3 flutes, diameter 4.5mm with 11mm length of cut and 55mm overall length, according to DIN 844 K standard with a 6mm Weldon shank, powder metallurgical HSS-E with bright finish, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining and plain carbon steel, copper or copper alloys and Fe-based, Ni-based and Co-based high-temperature alloys

Additional information

Weight 0.0638 kg
Dimensions
barcode
Additional Information

Description: Value

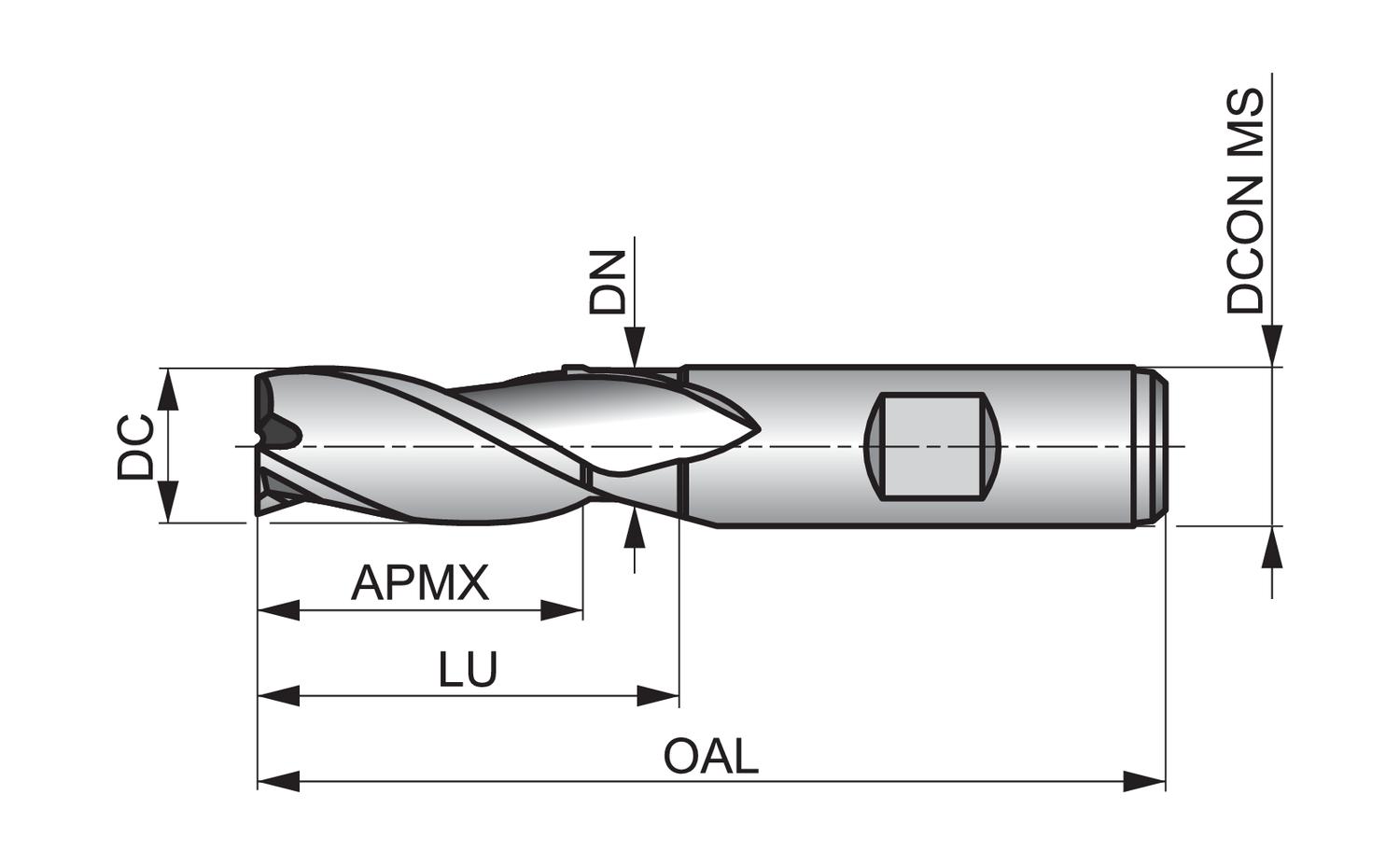

EAN number: 7320760572436 Product number (SAP): 86013773 Ordering code ANSI: C3054.5 Gross weight: 24.9 g Cutting diameter (DC): 4.5 mm Connection diameter (DCON MS): 6 mm Depth of cut maximum (APMX): 11 mm Overall length (OAL): 55 mm Flute count (NOF): 3 Neck diameter (DN): 4.5 mm Radial rake angle (GAMF): 12 With Neck: Yes ISO: C3054.5

Brand

DORMER
