DORMER C3056.5 Primax Cutters

Product Code: C3056.5

$88.95$80.86 Ex. GST

Product Code: C3056.5 SKU C3056.5 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

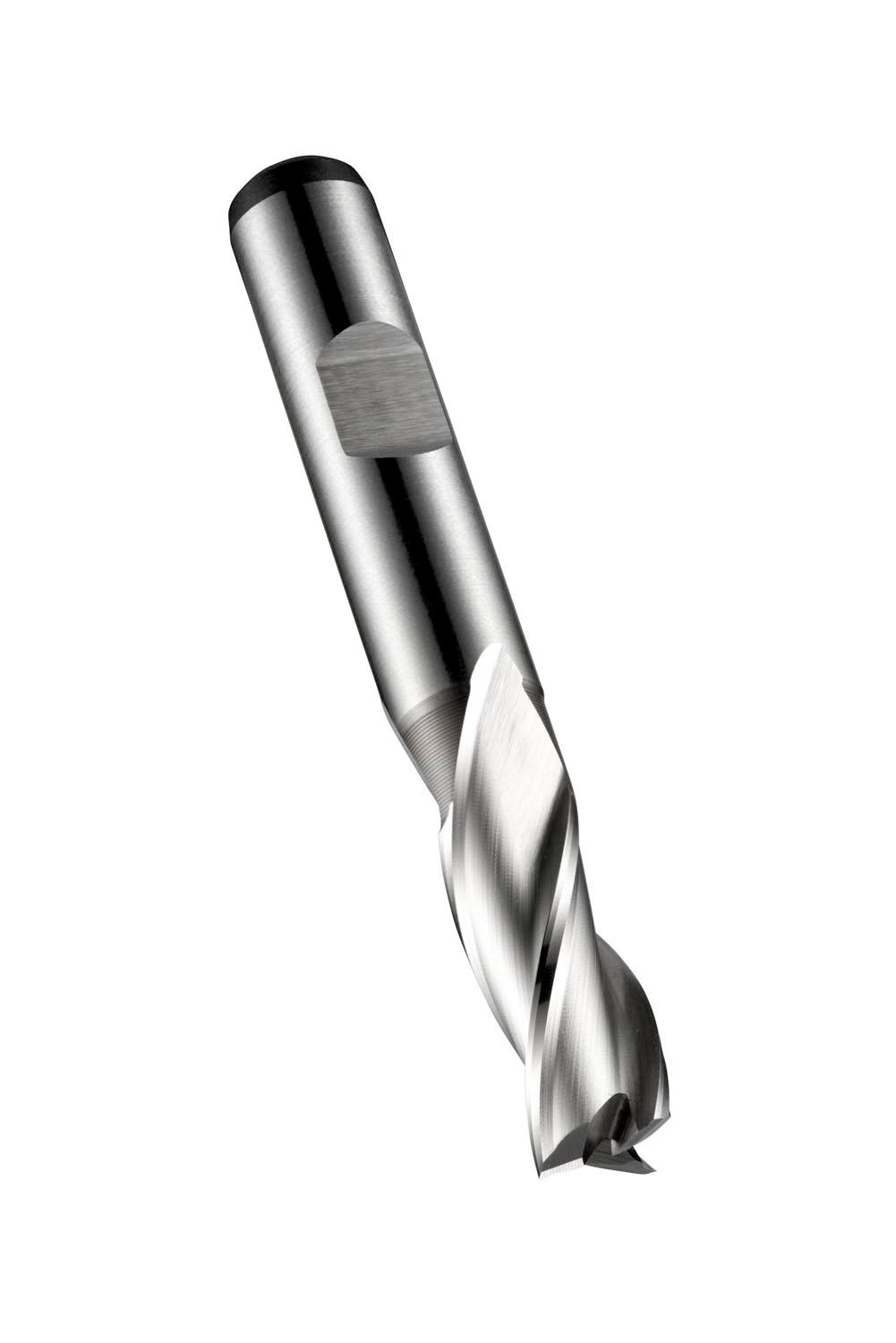

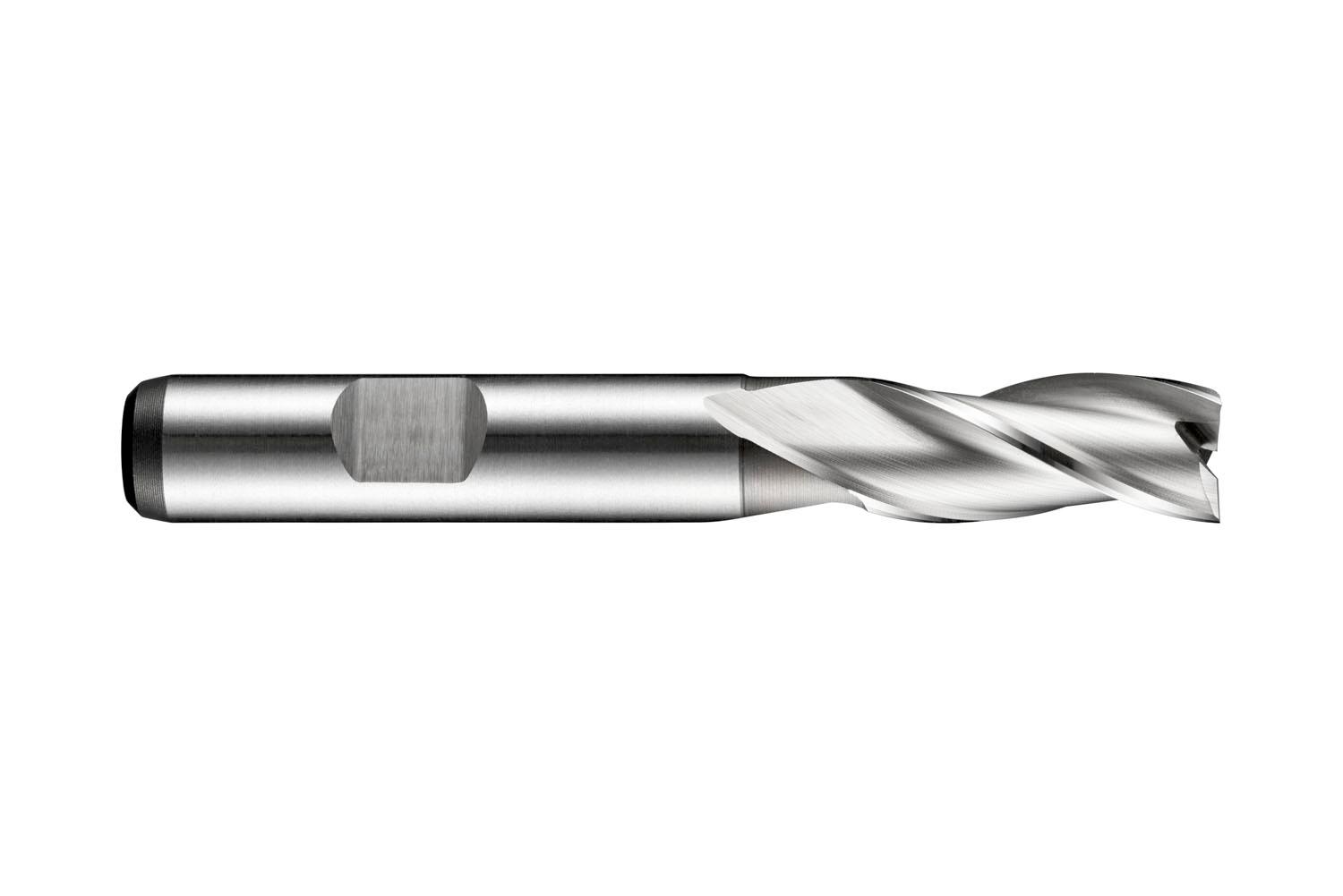

Short series slot drill with 3 flutes, diameter 6.5mm with 16mm length of cut and 66mm overall length, according to DIN 844 K standard with a 10mm Weldon shank, powder metallurgical HSS-E with bright finish, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining and plain carbon steel, copper or copper alloys and Fe-based, Ni-based and Co-based high-temperature alloys

Additional information

Weight 0.0864 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760572474
Product number (SAP): 86013777
Ordering code ANSI: C3056.5
Gross weight – grams: 35.4

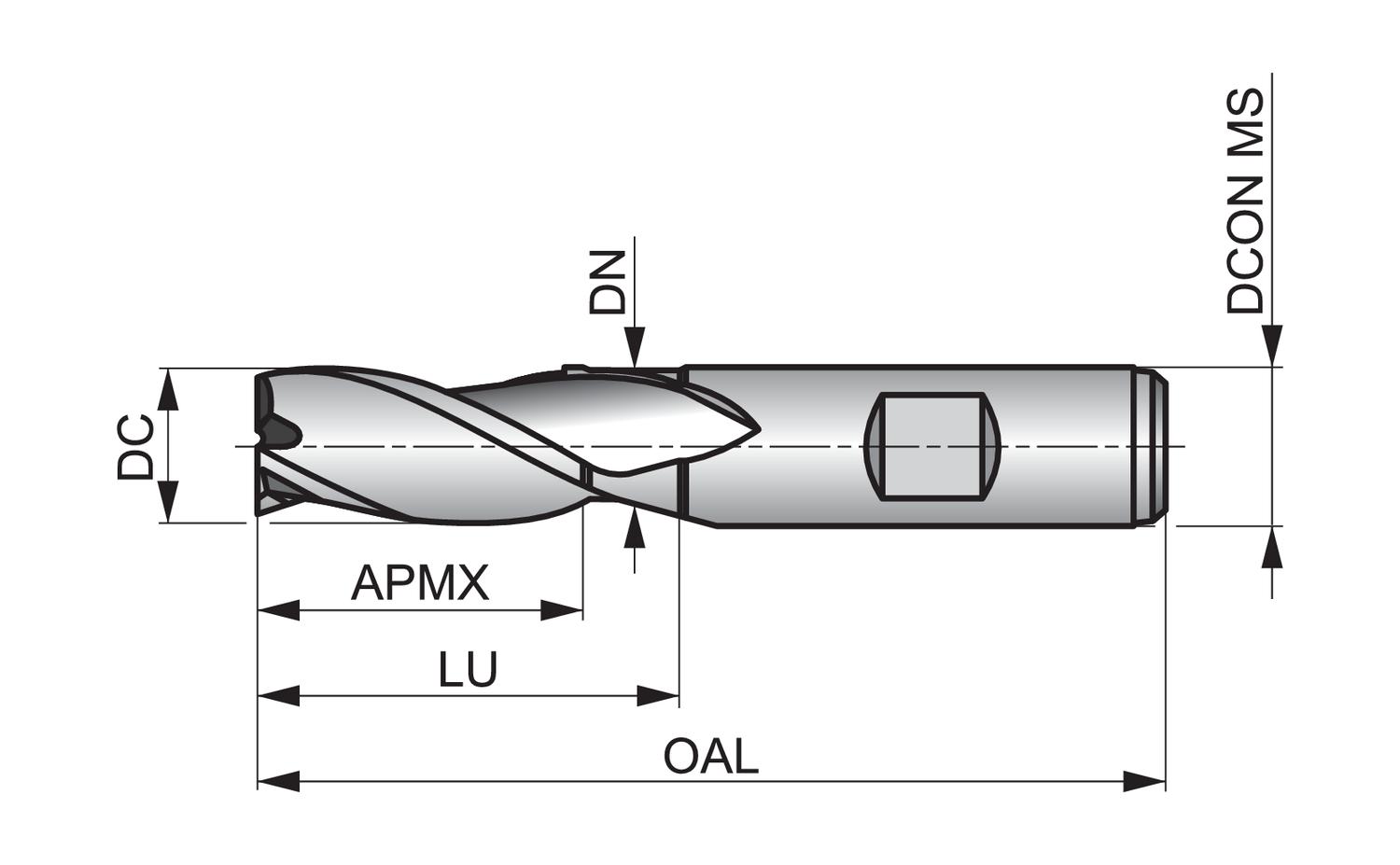

Cutting diameter – millimeter (DC): 6.5 mm
Connection diameter – millimeter (DCON MS): 10 mm
Depth of cut maximum – millimeter (APMX): 16 mm
Overall length – millimeter (OAL): 66 mm
Flute count (NOF): 3
Neck diameter – millimeter (DN): 6.5 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C3056.5

Brand

DORMER
