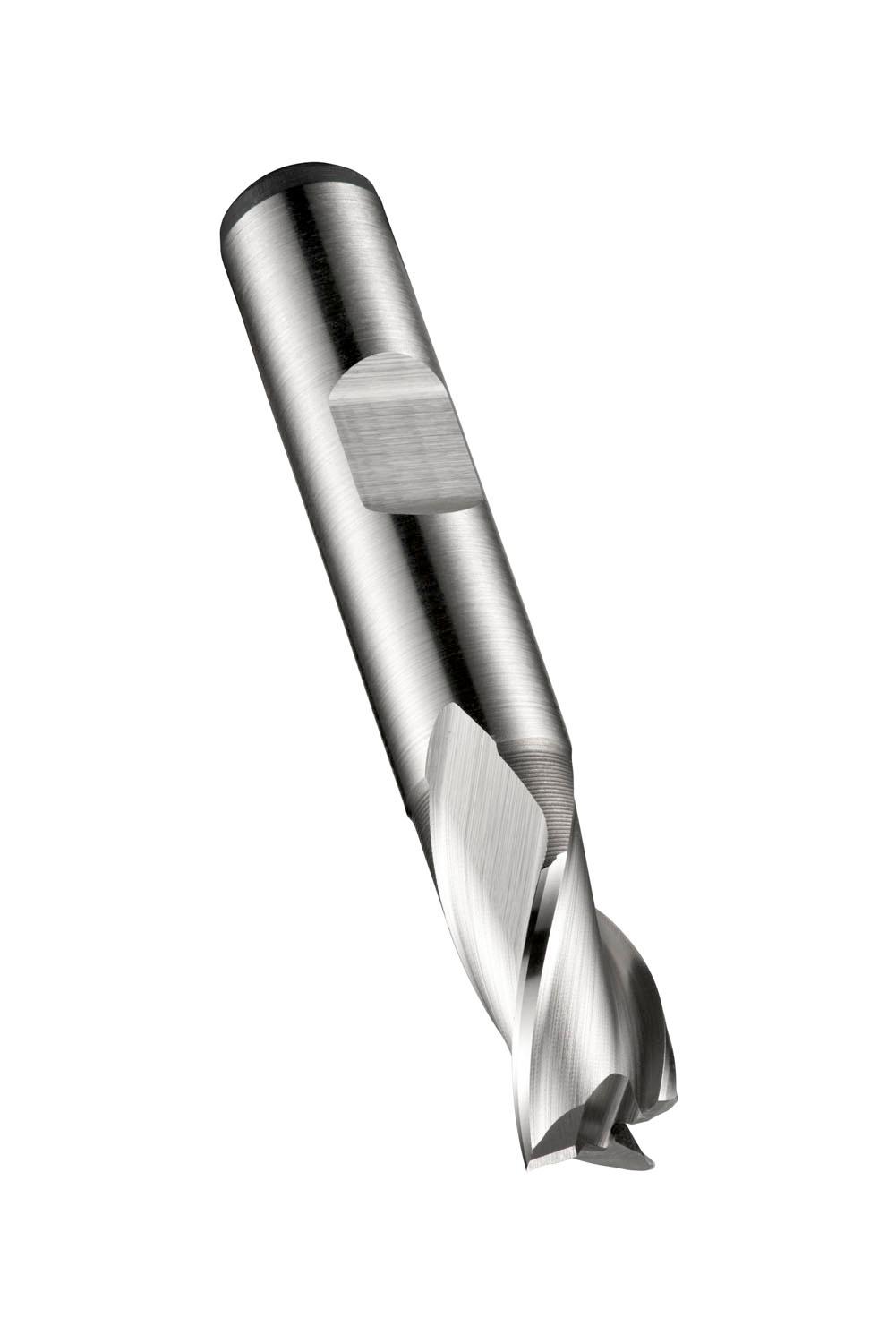

DORMER C30614.0 Primax Cutters

Product Code: C30614.0

$109.34$99.40 Ex. GST

Product Code: C30614.0 SKU C30614.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

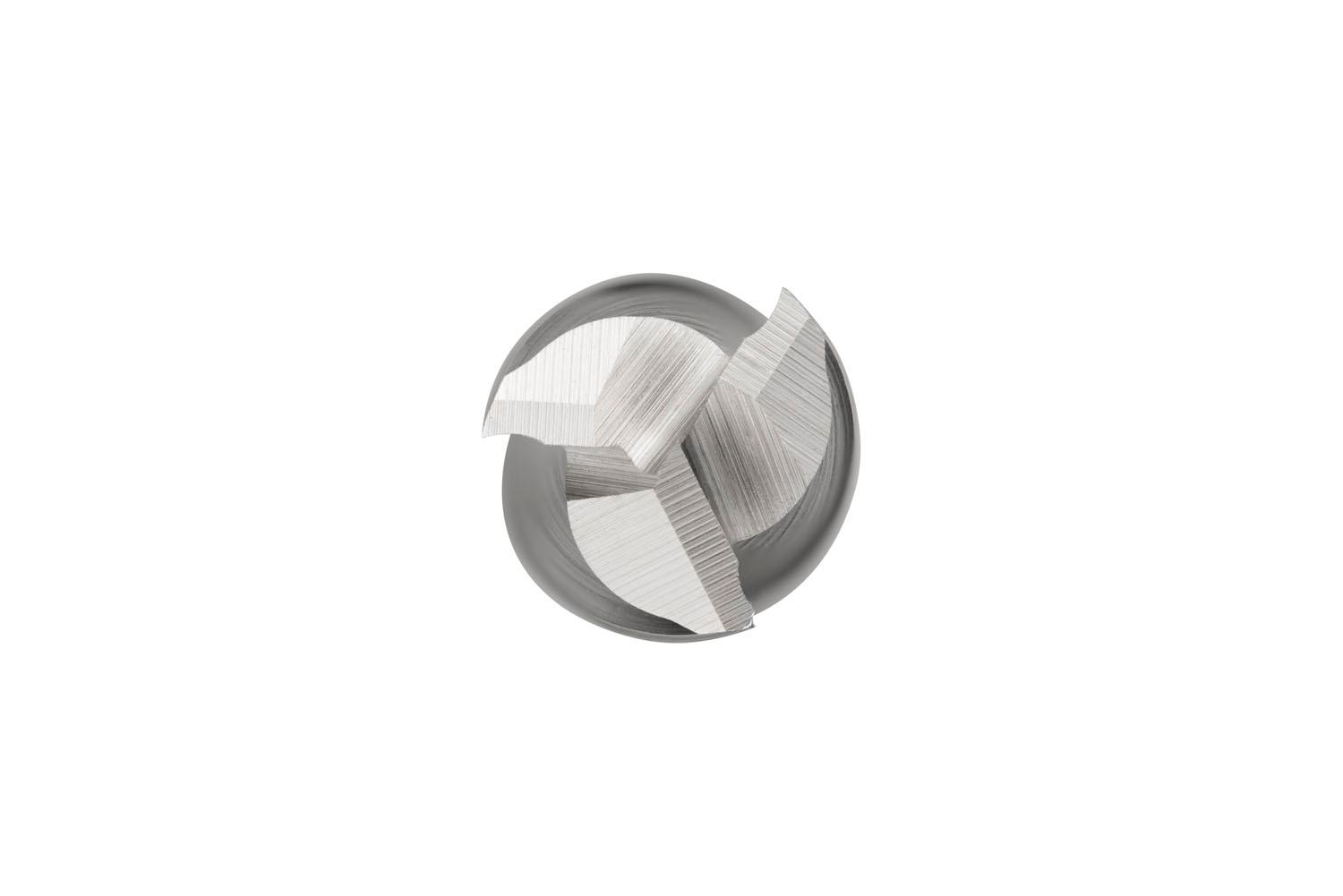

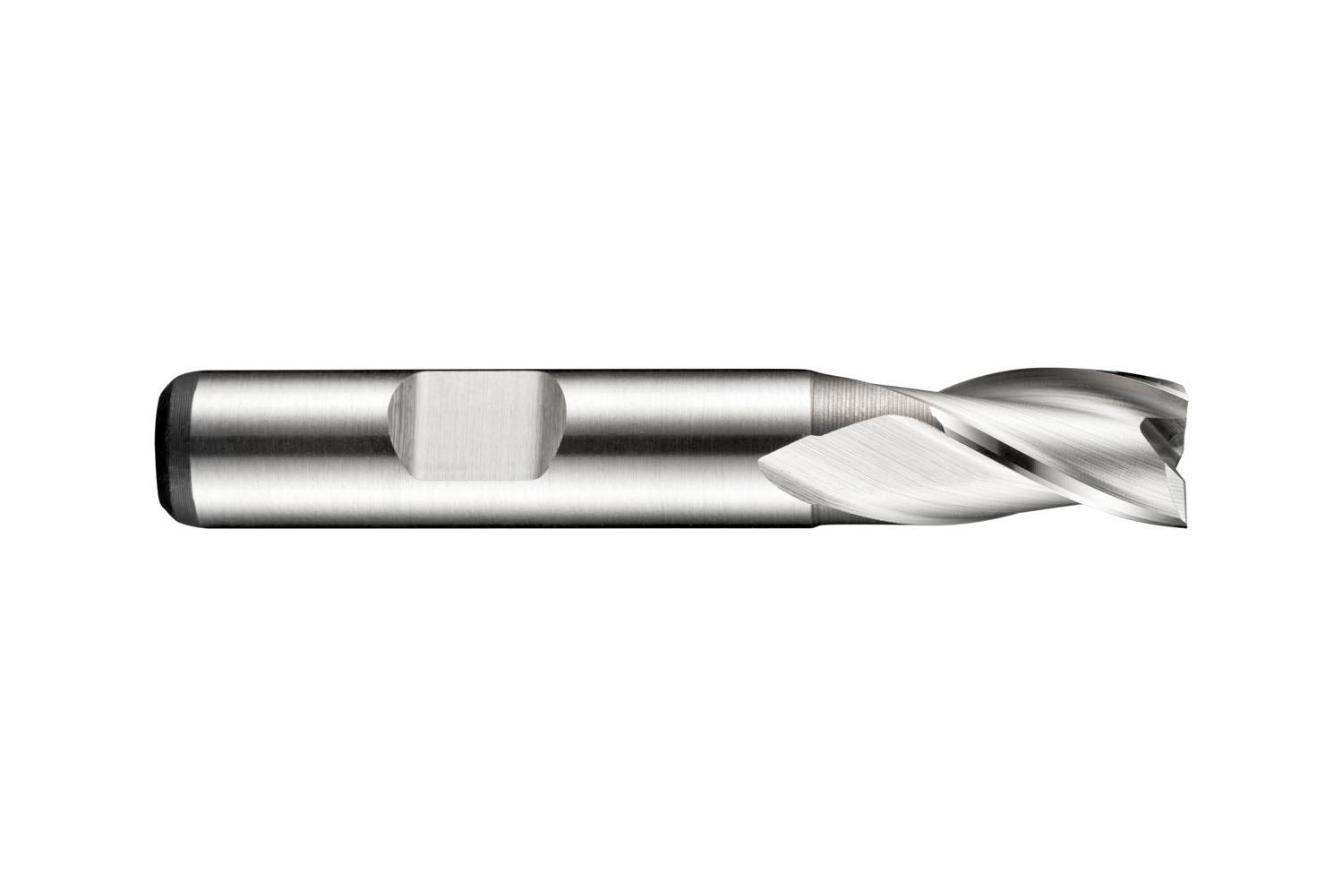

Extra short series slot drill with 3 flutes, diameter 14mm with 16mm length of cut, 73mm overall length and 27.5mm reach with neck relief, according to DIN 327 D standard with a 12mm Weldon shank, powder metallurgical HSS-E with bright finish, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining and plain carbon steel and copper or copper alloys

Additional information

Weight 0.1062 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760572603
Product number (SAP): 86013789
Ordering code ANSI: C30614.0
Gross weight – grams: 65.2

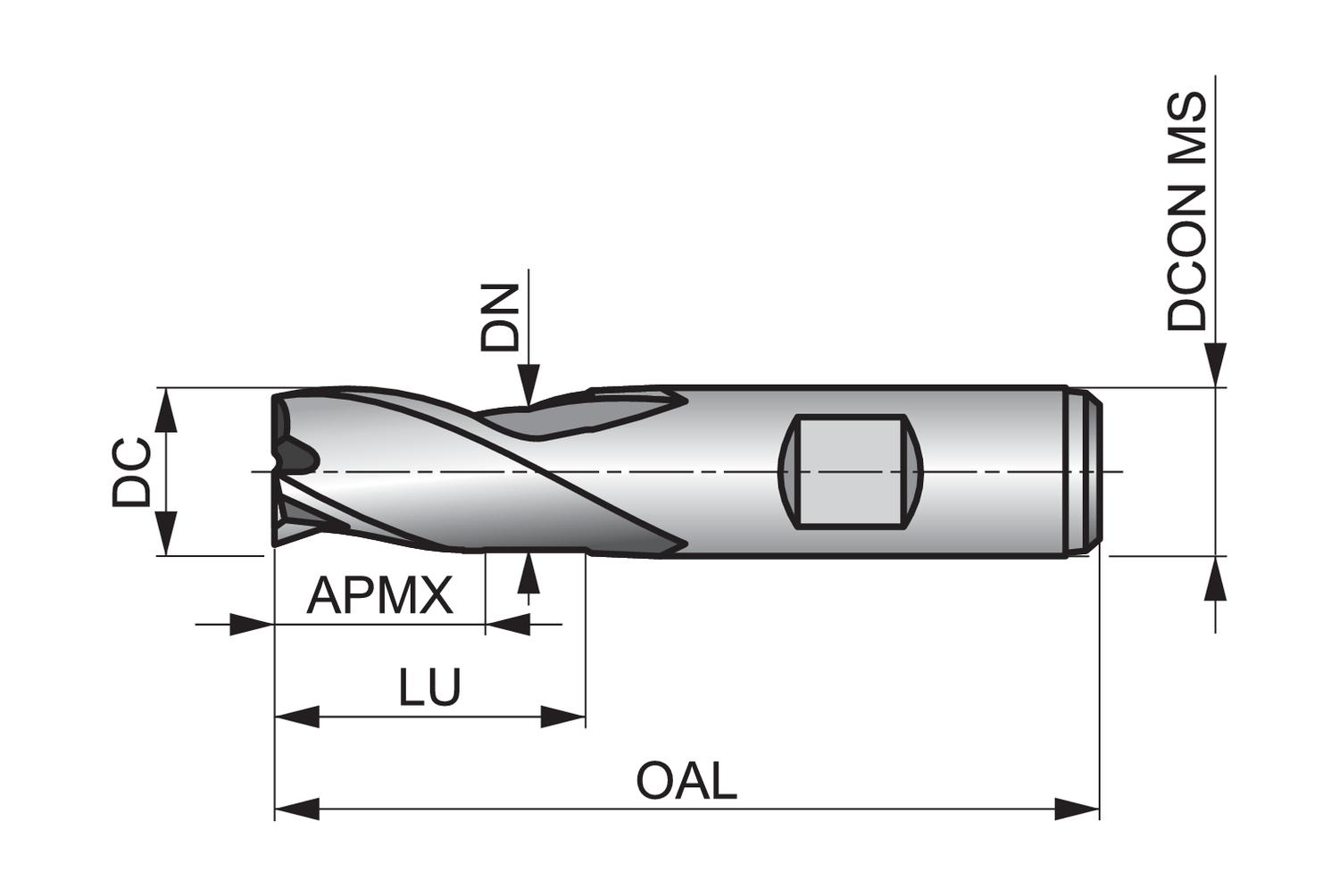

Cutting diameter – millimeter (DC): 14 mm
Connection diameter – millimeter (DCON MS): 12 mm
Depth of cut maximum – millimeter (APMX): 16 mm
Overall length – millimeter (OAL): 73 mm
Flute count (NOF): 3
Usable Length – millimeter (LU): 27.5 mm
Neck diameter – millimeter (DN): 11.5 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C30614.0

Brand

DORMER
