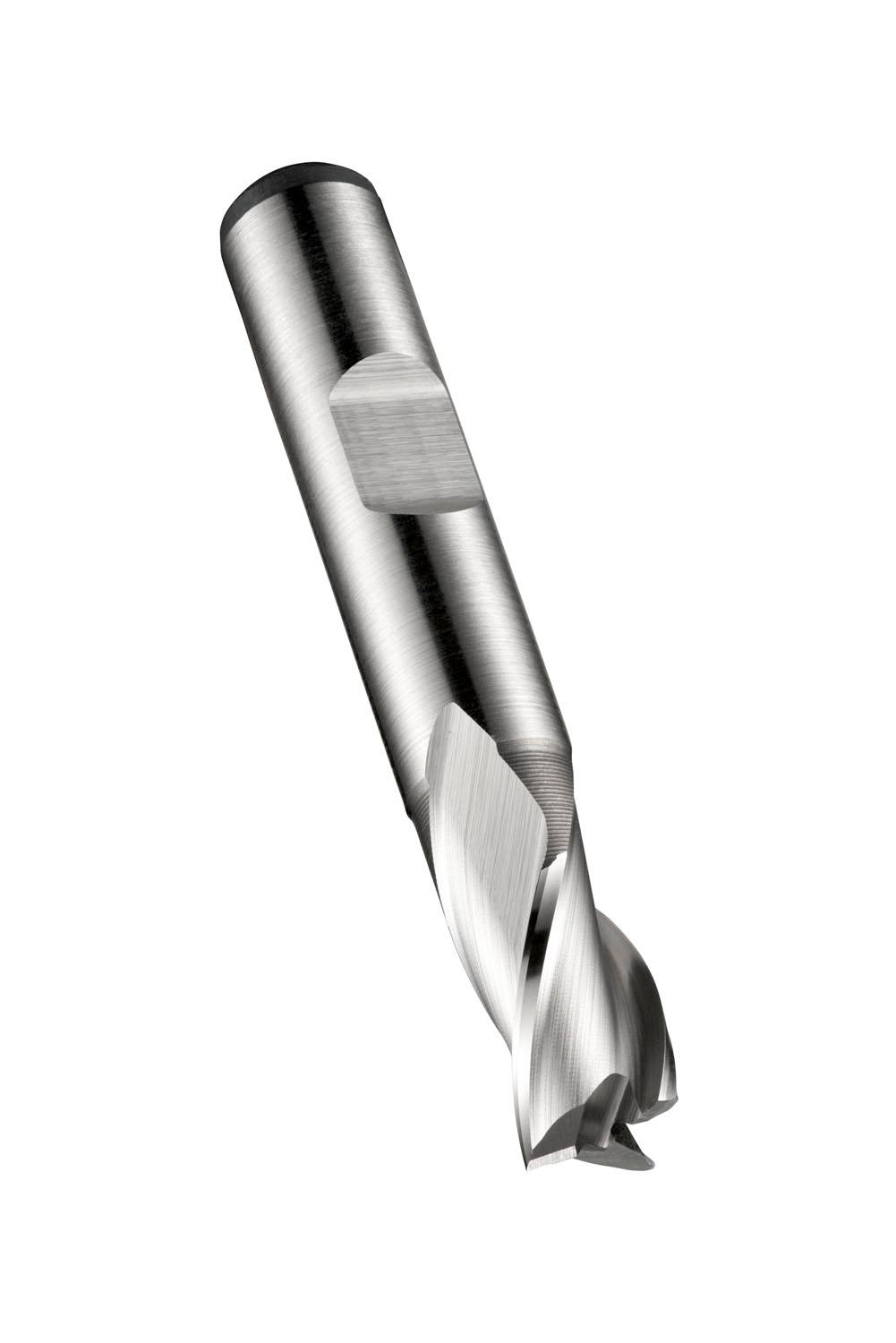

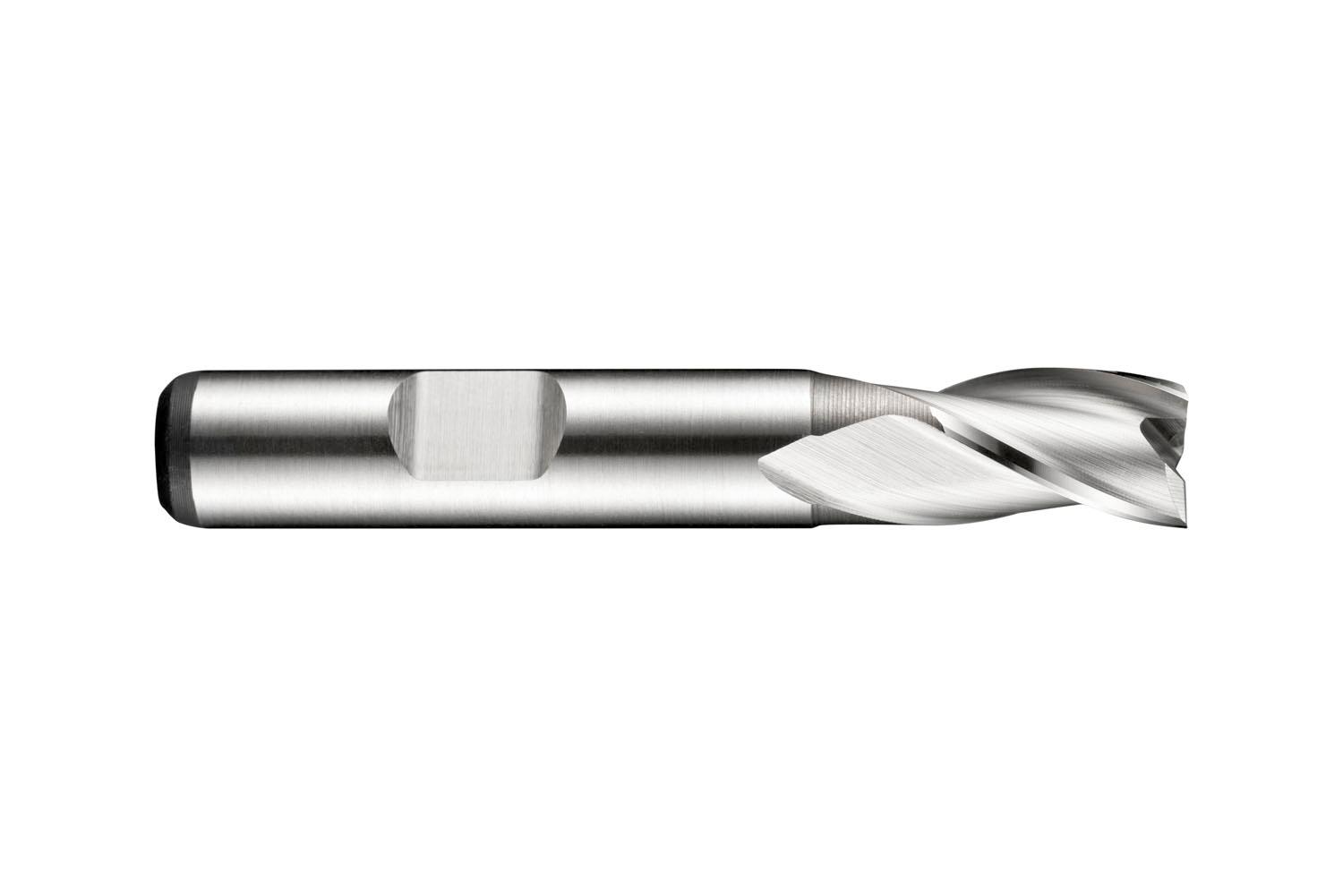

DORMER C3063.0 Primax Cutters

Product Code: C3063.0

$53.48$48.62 Ex. GST

Product Code: C3063.0 SKU C3063.0 Categories , ,
DORMER C3063.0 Primax Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Extra short series slot drill with 3 flutes, diameter 3mm with 5mm length of cut and 49mm overall length, according to DIN 327 D standard with a 6mm Weldon shank, powder metallurgical HSS-E with bright finish, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining and plain carbon steel and copper or copper alloys

Additional information

Weight 0.0519 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760572733
Product number (SAP): 86013800
Ordering code ANSI: C3063.0
Gross weight – grams: 11.52

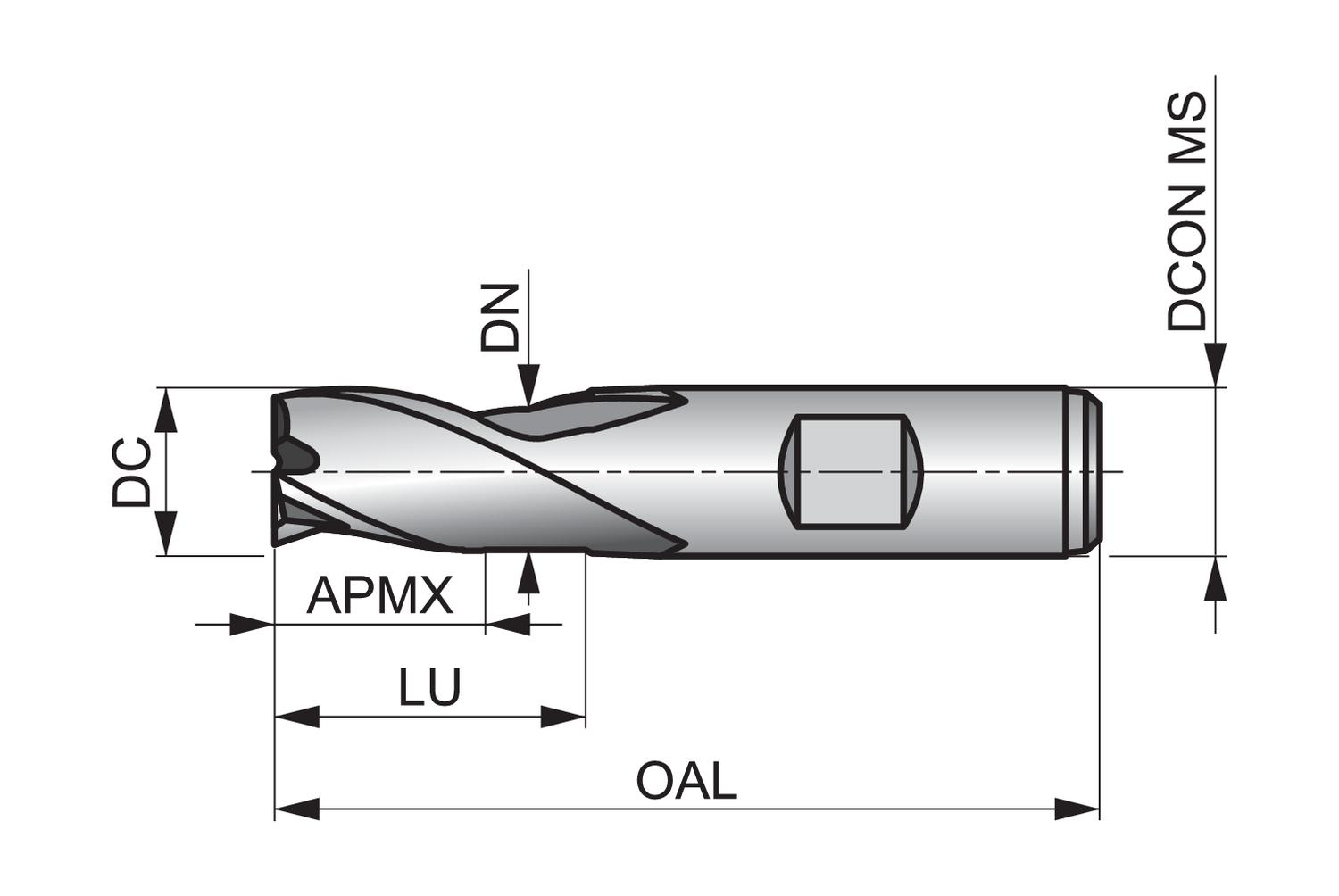

Cutting diameter – millimeter (DC): 3 mm
Connection diameter – millimeter (DCON MS): 6 mm
Depth of cut maximum – millimeter (APMX): 5 mm
Overall length – millimeter (OAL): 49 mm

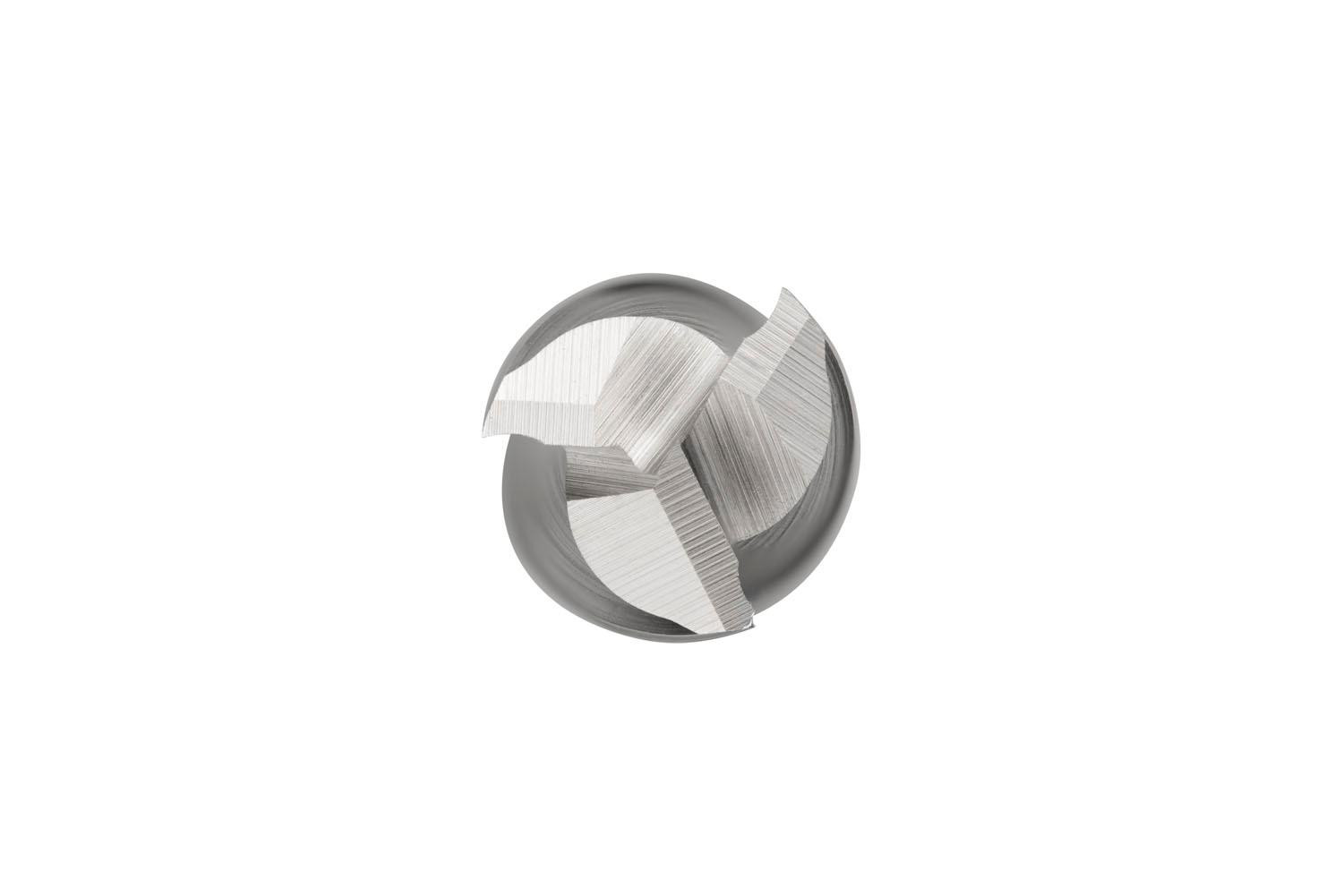

Flute count (NOF): 3
Neck diameter – millimeter (DN): 3 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C3063.0

Brand

DORMER
